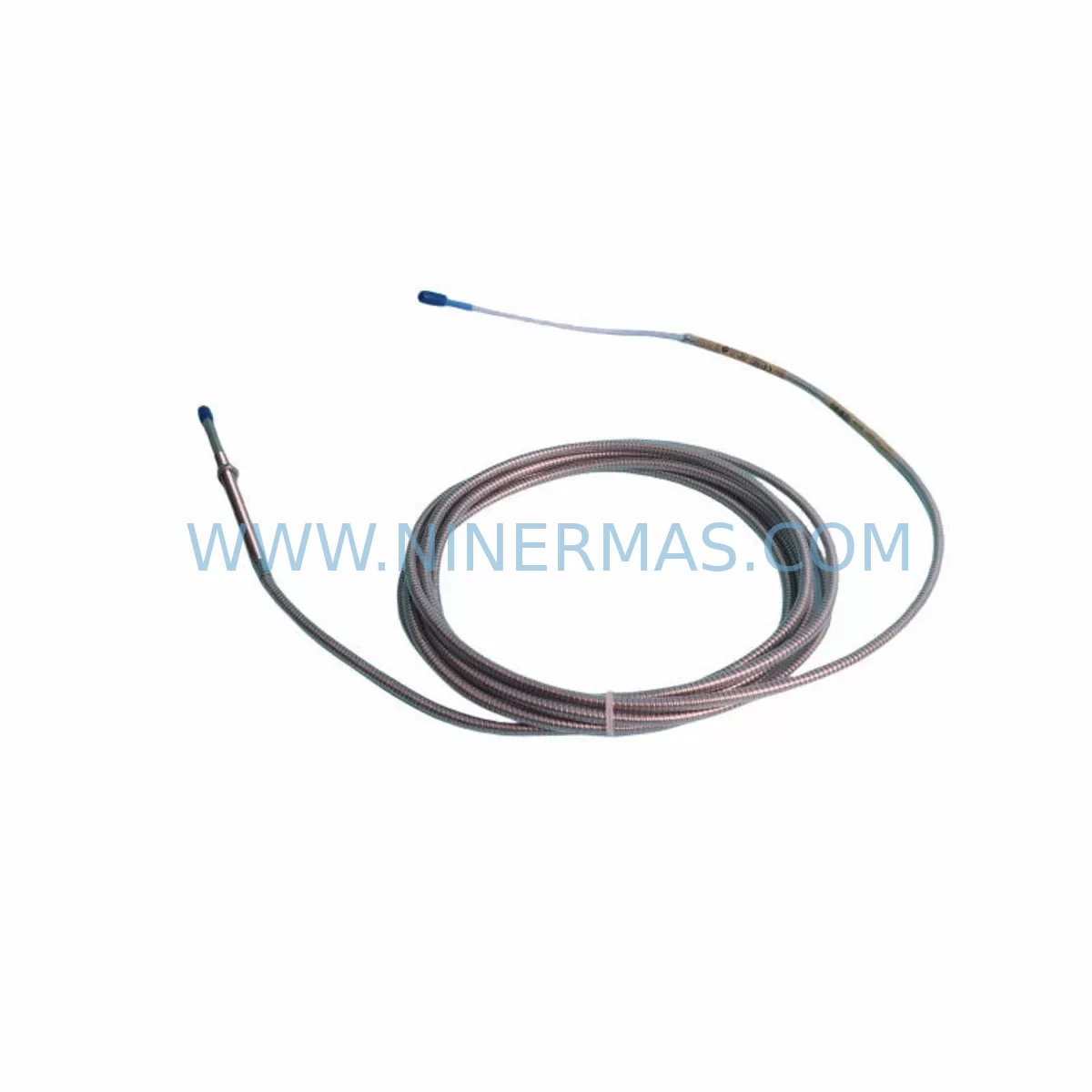

The Bently Nevada 330104-00-05-10-12-CN is a high-performance proximity transducer from the renowned 3300 XL Series, engineered to deliver uncompromising signal accuracy and mechanical reliability in the most demanding industrial environments. Designed for continuous operation in critical rotating machinery protection systems, this transducer is a cornerstone component in safety instrumented systems (SIS), turbine control panels, compressor monitoring racks, and heavy-duty motor protection circuits where unplanned downtime is simply not an option.

At NINERMAS, we supply the 330104-00-05-10-12-CN with full traceability, pre-shipment functional testing, and a 12-month quality warranty — ensuring your control cabinet receives a component that performs from day one and continues to perform under the harshest field conditions.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In critical control cabinets protecting rotating machinery — turbines, compressors, pumps, and fans — a single point of signal failure can cascade into a full plant trip or, worse, undetected mechanical damage. The Bently Nevada 330104-00-05-10-12-CN proximity transducer is designed to eliminate this risk by providing a stable, drift-free eddy-current signal that feeds directly into the Bently Nevada 3300 XL Monitor or compatible 3500 Series Rack Monitor, enabling real-time radial vibration and position measurement with API 670-compliant accuracy.

In a well-engineered machinery protection panel, this transducer works in concert with the Bently Nevada 330130 Proximitor Sensor (signal conditioning module), which converts the raw probe impedance change into a calibrated DC voltage output. The conditioned signal is then routed to the 3500/42M Proximitor/Seismic Monitor for alarm and trip processing. To protect the entire monitoring loop from power-side disturbances, a Phoenix Contact QUINT-PS/1AC/24DC/10 DIN-rail power supply with active buffer module is recommended — ensuring the 24 VDC instrument bus remains stable even during mains voltage dips or switching transients.

High electromagnetic interference is a persistent threat in motor control centers and variable frequency drive (VFD) environments. The shielded coaxial cable of the 330104-00-05-10-12-CN provides inherent EMI rejection, but for installations near large VFDs or high-current bus bars, supplementing the system with Belden 9182 shielded instrumentation cable for signal runs and Phoenix Contact VAL-MS surge protection devices on the I/O terminals of the monitor rack further reduces the risk of signal corruption and nuisance trips.

For safety instrumented system (SIS) integration, the transducer output is typically wired into a Triconex 3700A or equivalent TMR safety controller via a dedicated analog input module, where the vibration signal participates in a safety function — for example, initiating an emergency shutdown (ESD) if shaft displacement exceeds the API 670 danger setpoint. In such architectures, the Pepperl+Fuchs KFD2-STC4-Ex1 signal conditioner is often used to provide galvanic isolation between the field transducer loop and the SIS input card, preventing ground loops and protecting the safety controller from field-side faults.

In dusty, humid, or chemically aggressive environments — common in mining headframes, offshore platforms, and chemical processing units — the transducer probe tip and extension cable should be routed through Kopex flexible conduit or equivalent armored protection, and all junction boxes should be rated IP65 or higher. Pairing the 330104-00-05-10-12-CN with a Bently Nevada 330180 Armor Cable assembly provides additional mechanical protection for the coaxial cable in high-vibration or abrasion-prone installations.

Maintaining a verified spare on the shelf — tested and ready — is the single most effective strategy for minimizing mean time to repair (MTTR) when a transducer fails during a planned or unplanned outage. NINERMAS maintains standing inventory of the 330104-00-05-10-12-CN and related 3300 XL system components, enabling rapid dispatch to support your maintenance team’s critical path schedule.
