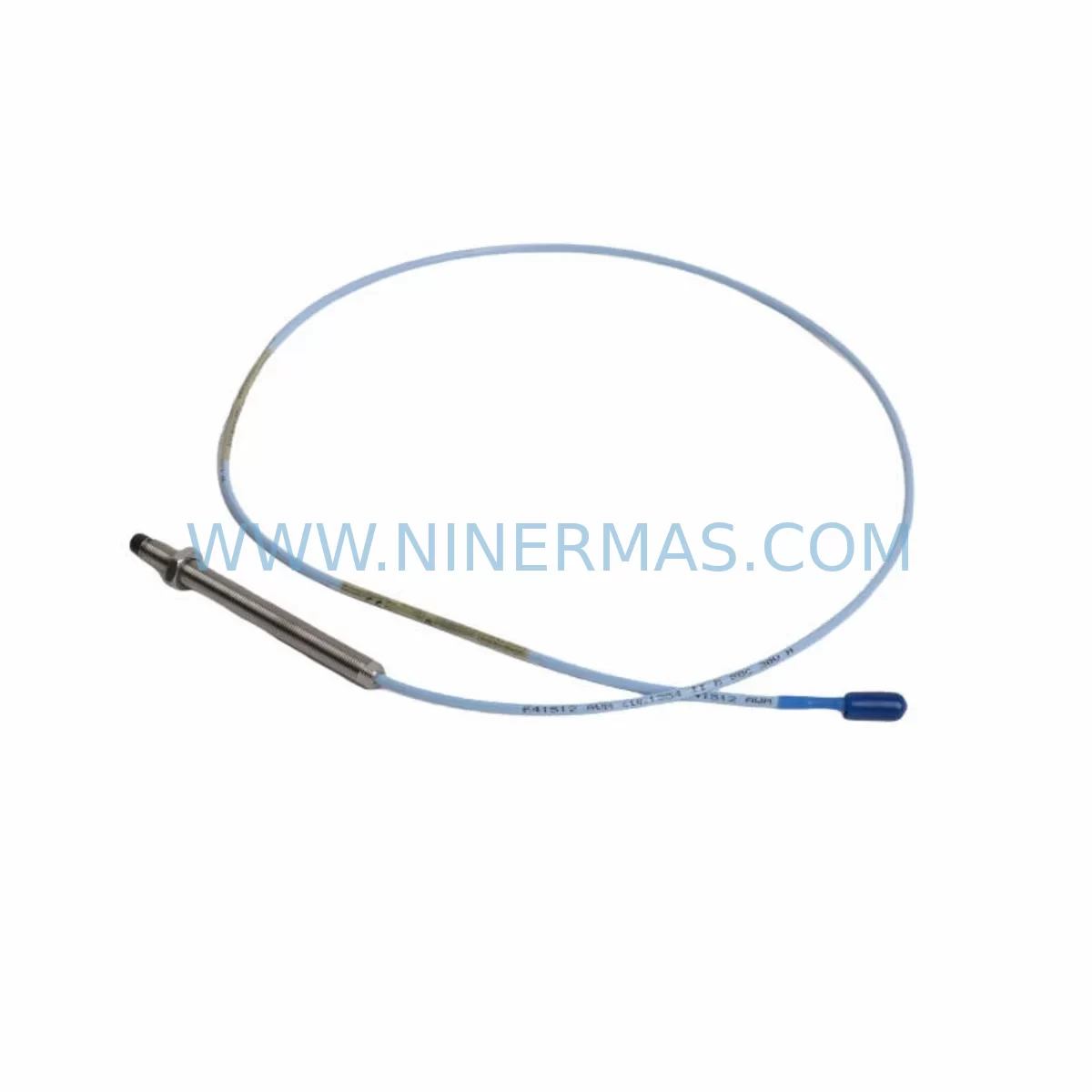

The Bently Nevada 330104-00-04-10-02-05 is an original proximity transducer engineered for the 3300 Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment facilities worldwide. Whether you are managing a planned annual overhaul, responding to an unplanned trip event, or building a strategic spare parts inventory for a critical turbine or compressor train, this transducer delivers the dimensional accuracy, gap voltage linearity, and signal integrity that the 3300 XL monitoring system demands. Sourced as an original Bently Nevada component, the 330104-00-04-10-02-05 is tested prior to shipment and backed by a 12-month warranty, giving maintenance engineers and procurement teams the confidence to stock and deploy it without compromise.

In high-availability plants — petrochemical, power generation, LNG, pulp and paper, and offshore platforms — the 3300 Series proximity transducer is a first-line diagnostic tool. It continuously measures radial shaft vibration and position, feeding real-time data to the 3300 XL monitor rack. When a transducer fails or drifts out of calibration, the entire channel goes into a fault state, potentially triggering a spurious shutdown or, worse, masking a genuine machinery fault. Keeping a verified spare of the 330104-00-04-10-02-05 on the shelf eliminates that risk and allows a like-for-like swap within minutes rather than days.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330104-00-04-10-02-05 in the field is rarely an isolated task. A disciplined maintenance engineer will treat the transducer swap as an opportunity to inspect the entire measurement chain and the surrounding control cabinet infrastructure. Begin with the 330130 series extension cable — the armored coaxial cable that connects the probe to the proximitor driver. Cable jacket abrasion, connector corrosion, or a bent center pin will introduce noise or a false gap reading even with a brand-new probe installed. Inspect the full cable run from the probe tip to the field junction box.

Next, verify the 3300 XL Proximitor / driver module (such as the 330180 or 330185 series). The driver provides the –24 VDC excitation and converts the probe impedance change into a calibrated DC output voltage. A driver with a degraded oscillator or a drifted bias circuit will produce incorrect readings regardless of probe condition. If the transducer channel has been in alarm or fault state for an extended period, replacing the driver alongside the probe is a prudent decision.

At the monitor rack level, confirm that the 3300 XL monitor card (e.g., 3300/16 or 3300/20 series) is seated correctly in the backplane and that the OK relay output is functioning. A loose backplane connector or a cracked solder joint on the monitor card can mimic a transducer fault. While the cabinet is open, inspect the 3500 series rack power supply if the installation has migrated to a hybrid 3300/3500 architecture — power supply ripple above specification will corrupt vibration amplitude readings.

For plants running a System 1 Evolution or System 1 Optimizer condition monitoring platform, verify that the channel configuration in the software matches the new transducer’s sensitivity coefficient (7.87 V/mm). A mismatch between the software scale factor and the physical transducer sensitivity will produce systematic measurement error that is difficult to diagnose without a calibration reference. Update the channel configuration file before returning the machine to service.

Do not overlook the terminal strip and field wiring inside the junction box. Loose screw terminals, oxidized contacts, or incorrect shield grounding are common root causes of intermittent channel faults that are incorrectly attributed to the transducer itself. Torque all terminals to specification and verify that the cable shield is grounded at one end only — typically at the monitor rack end — to prevent ground loop interference.

If the machine is also equipped with a Keyphasor transducer (such as the 330180 Keyphasor proximitor), confirm that the Keyphasor signal is clean and that the once-per-revolution pulse is correctly detected by the monitor. The Keyphasor reference is essential for phase angle measurements and for the System 1 vector plots used in balancing and alignment diagnostics. A degraded Keyphasor channel will affect the quality of all phase-referenced measurements across the entire monitor rack.

Finally, for facilities managing aging 3300 Series installations approaching end-of-life, consider stocking companion spares including the 330100 series standard probe variants, 330130 series extension cables in multiple lengths, and a spare 3300 XL driver module. A pre-assembled, tested spare kit stored in a climate-controlled cabinet dramatically reduces mean time to repair (MTTR) and supports the business case for extending the operational life of legacy monitoring systems without a full platform migration.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a work permit and confirm that the machine is in a safe state for maintenance. If the monitoring system is part of a safety instrumented system (SIS), coordinate with the safety team before bypassing any channel.

Step 2 — Document the existing gap voltage: Before removing the old transducer, record the gap voltage displayed on the 3300 XL monitor or in System 1. This value is your baseline for setting the new probe gap. The nominal gap voltage for the 330104-00-04-10-02-05 at the recommended installation gap is typically –10.0 VDC ± 0.5 VDC — verify against the site-specific calibration record.

Step 3 — Remove the old probe: Loosen the locknut and unscrew the probe body from the bracket. Disconnect the integral cable at the field junction box. Inspect the probe tip for impact damage, corrosion, or contamination — any of these conditions can explain the failure mode and should be documented in the maintenance management system (CMMS).

Step 4 — Install the replacement 330104-00-04-10-02-05: Thread the new probe into the bracket and adjust the gap to achieve the target gap voltage. Use a non-ferrous feeler gauge or a calibrated gap-setting tool. Tighten the locknut to the specified torque. Reconnect the cable at the junction box, ensuring correct polarity and shield grounding.

Step 5 — Verify channel OK status: Power up the channel and confirm that the 3300 XL monitor displays an OK status and that the gap voltage is within the linear range. Check the vibration reading against a known reference (e.g., a handheld vibration analyzer on the bearing housing) to confirm signal plausibility.

Step 6 — Update records: Log the replacement in the CMMS, update the spare parts inventory, and file the pre-shipment test certificate supplied with the 330104-00-04-10-02-05. Reorder a replacement spare to maintain minimum stock levels.

Spare Parts Support FAQ

Q1: Is the 330104-00-04-10-02-05 a direct drop-in replacement for older 3300 Series probes?
Yes. The 330104-00-04-10-02-05 is dimensionally and electrically compatible with the 3300 XL proximity transducer system. It uses the same 8 mm probe tip geometry, the same threaded body, and the same 7.87 V/mm sensitivity as the standard 3300 Series specification. No reconfiguration of the monitor card is required for a like-for-like replacement, provided the existing driver module is also a 3300 XL type.

Q2: What pre-shipment testing is performed on this spare part?
Each 330104-00-04-10-02-05 unit undergoes a functional gap-voltage linearity check before shipment. The test verifies that the output voltage tracks linearly across the specified measurement range and that the OK output is active within the nominal gap window. A test certificate is included with the shipment. The 12-month warranty covers defects in materials and workmanship from the date of shipment.

Q3: How should this spare part be stored to maintain long-term reliability?
Store the 330104-00-04-10-02-05 in its original packaging in a climate-controlled environment: temperature 0 °C to 40 °C, relative humidity below 85% non-condensing. Avoid storage near strong magnetic fields or sources of mechanical vibration. Inspect the probe tip and connector annually. If the spare has been in storage for more than three years, perform a bench calibration check before installation to confirm that sensitivity has not drifted.

Q4: Can you support long-term or blanket purchase orders for this part?
Yes. NINERMAS supports long-term supply agreements and blanket purchase orders for the 330104-00-04-10-02-05 and related 3300 Series components. We maintain stock to support emergency same-day dispatch as well as scheduled annual maintenance programs. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to discuss volume pricing, lead times, and consignment stock arrangements.
