Bently Nevada 330103-02-07-10-02-00 Safety-Reliable Proximity Probe

Bently Nevada 330103-02-07-10-02-00 Safety-Reliable Proximity Probe for Critical Control Sites

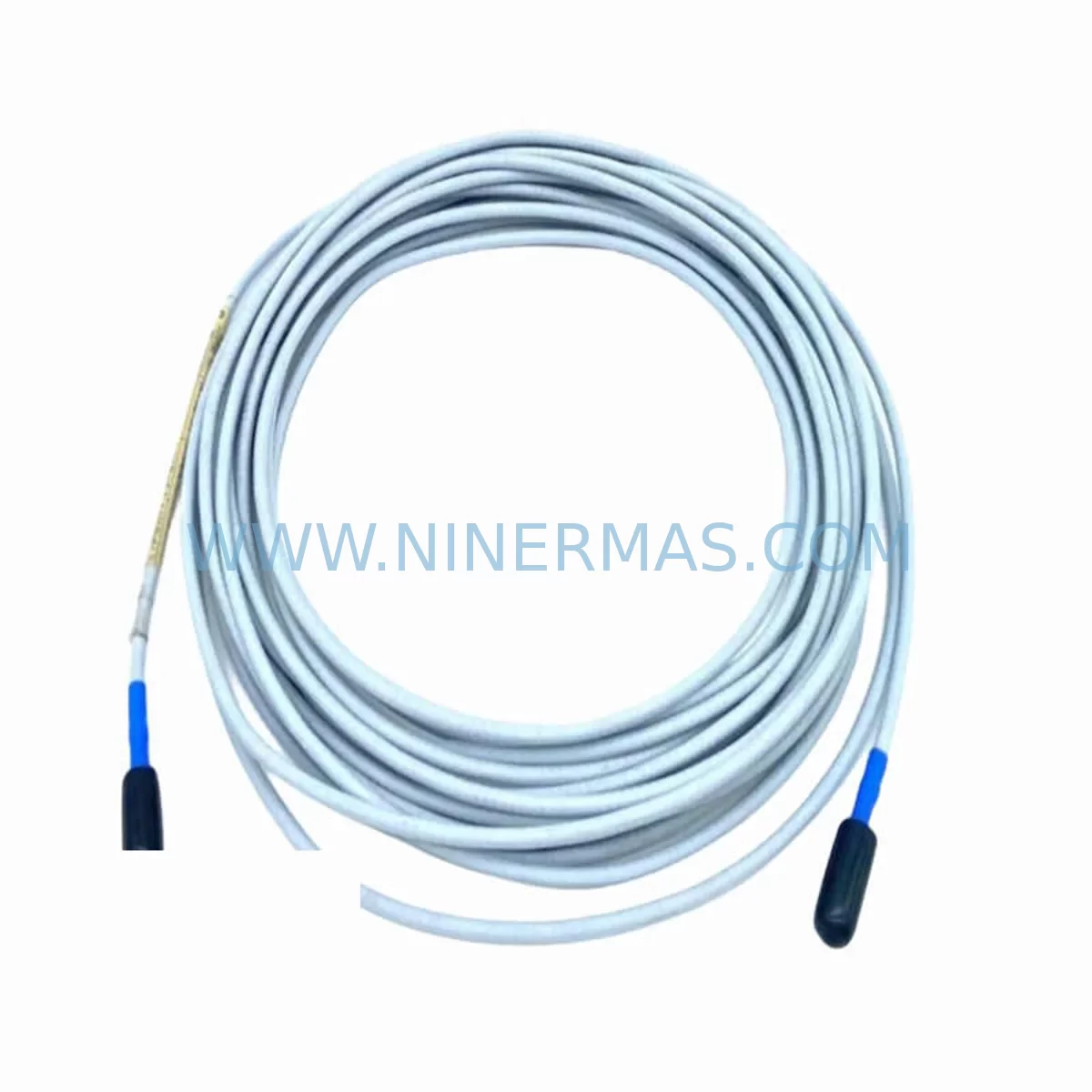

The Bently Nevada 330103-02-07-10-02-00 is a high-precision eddy-current proximity probe engineered for the 3300 Series vibration monitoring system. Designed to operate continuously in the most demanding industrial environments, this probe delivers stable, drift-free shaft displacement and vibration measurements that are essential for protecting rotating machinery in critical process facilities. Whether installed in a petrochemical compressor train, a power generation turbine hall, or a heavy-duty pump station, the 330103-02-07-10-02-00 provides the signal integrity and mechanical robustness that safety-critical control loops demand.

In continuous production environments where unplanned shutdowns carry severe operational and financial consequences, the reliability of every sensing element in the vibration protection chain is non-negotiable. The 330103-02-07-10-02-00 is factory-calibrated and pre-tested to Bently Nevada’s exacting standards, ensuring that it integrates seamlessly into existing 3300 Series monitor racks without requiring field recalibration. Its armored cable construction and stainless-steel tip resist mechanical damage, chemical exposure, and the ingress of process fluids, making it a dependable choice for installations where probe replacement access is limited and mean-time-between-failures must be maximized.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Effective machinery protection in a critical control cabinet extends well beyond a single sensing element. The 330103-02-07-10-02-00 proximity probe operates as part of a tightly integrated measurement chain. The probe connects via a matched Bently Nevada 330130 extension cable to a Bently Nevada 330180 proximitor / oscillator-demodulator, which conditions the raw eddy-current signal into a clean DC voltage proportional to gap distance. This conditioned output feeds directly into a Bently Nevada 3300/16 vibration monitor or a 3500/42M proximitor monitor housed in the protection rack, where configurable alert and danger setpoints trigger relay outputs to the safety instrumented system (SIS) or distributed control system (DCS).

To protect the integrity of the 24 VDC or ±24 VDC power rails supplying the monitor rack, a dedicated Bently Nevada 3500/15 power supply module with redundant input capability is recommended. Surge and transient events on the plant power bus — common in facilities with large motor starters, variable frequency drives, or arc furnace loads — can introduce voltage spikes that corrupt monitor readings or cause nuisance trips. Pairing the power supply with a Phoenix Contact TRABTECH surge protection device on the incoming DC rail provides an additional layer of transient immunity.

In high electromagnetic interference environments such as those found near large transformers, bus ducts, or radio-frequency welding equipment, signal integrity between the proximitor and the monitor rack can be compromised. Routing the proximitor output cable in a dedicated, grounded metallic conduit separated from power wiring, and using Bently Nevada 330100 series armored probe assemblies with double-shielded extension cables, significantly reduces susceptibility to induced noise. Where the monitor rack communicates machine health data upstream to a plant historian or condition monitoring platform via Modbus RTU or Ethernet/IP, installing a Moxa NPort serial device server with optical isolation on the communication port prevents ground loop currents from corrupting the data stream.

For installations in Zone 1 or Zone 2 hazardous areas classified under IEC 60079, the proximity probe assembly must be paired with a certified Bently Nevada 3300 XL series intrinsically safe barrier or a Pepperl+Fuchs zener barrier mounted in the safe-area control room cabinet. This barrier limits the energy available at the probe tip to levels below the ignition threshold of the surrounding atmosphere, satisfying the functional safety requirements of IEC 61511 for SIL-rated protection loops. Documenting the complete safety instrumented function — from the 330103-02-07-10-02-00 probe through the barrier, monitor, and final element — is essential for SIL verification and HAZOP closure.

Critical Industrial Safety Applications

The 330103-02-07-10-02-00 proximity probe is deployed across a broad spectrum of safety-critical rotating machinery applications in heavy industry.

In petrochemical and refinery facilities, it monitors the radial vibration of centrifugal compressors in ethylene crackers, hydrogen reformers, and LPG fractionation trains. These machines operate continuously at high speeds under elevated process pressures, and any undetected bearing deterioration or rotor imbalance can escalate rapidly to a catastrophic mechanical failure. The probe’s stable, low-drift output ensures that the protection system receives an accurate representation of machine condition at all times, enabling the SIS to execute a safe shutdown before damage propagates.

In thermal and combined-cycle power generation, the probe is used to monitor steam turbine shaft position and vibration during startup, load changes, and coast-down. Differential expansion measurements — comparing rotor thermal growth against casing expansion — are critical during cold starts to prevent blade-to-seal contact. The 330103-02-07-10-02-00, installed in conjunction with a Bently Nevada 3300/55 thrust position monitor, provides the axial position data needed to keep differential expansion within safe operating limits.

In mining and mineral processing, large ball mills, SAG mills, and slurry pumps operate in environments characterized by extreme dust loading, high ambient vibration, and frequent electrical transients from large variable-speed drives. The armored construction of the 330103-02-07-10-02-00 probe resists abrasive contamination and mechanical shock, maintaining reliable signal output even when adjacent equipment generates significant structure-borne vibration.

In water and wastewater treatment, the probe monitors the shaft vibration of large vertical turbine pumps and blower trains in aeration basins. These installations often operate in high-humidity, chemically aggressive atmospheres where sensor corrosion is a persistent maintenance challenge. The stainless-steel probe body and sealed cable termination of the 330103-02-07-10-02-00 provide the corrosion resistance needed for long service intervals in these environments.

In metallurgical and steel-making facilities, the probe is applied to rolling mill drive trains, continuous caster pinch roll drives, and blast furnace blower compressors. The combination of high radiated heat, heavy electromagnetic interference from arc furnaces, and severe mechanical vibration makes these among the most challenging environments for any sensing technology. The 330103-02-07-10-02-00’s shielded signal path and robust mechanical design have made it a proven choice for machinery protection in these conditions.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330103-02-07-10-02-00?
The 12-month warranty covers all manufacturing defects, calibration deviations, and functional failures that occur under normal operating conditions within the specified environmental and electrical limits. If the probe fails to meet its published sensitivity or linearity specification within the warranty period, NINERMAS will arrange replacement or repair at no additional cost. The warranty period begins from the date of shipment confirmation.

Q2: What pre-shipment testing is performed on each unit?
Every 330103-02-07-10-02-00 unit undergoes a documented functional verification before dispatch. This includes gap-versus-output linearity testing across the full measurement range, insulation resistance verification on the cable assembly, and visual inspection of the probe tip, body, and connector. A test record is available upon request and can be provided with the shipment documentation to support incoming quality inspection at the customer’s facility.

Q3: Is the 330103-02-07-10-02-00 directly compatible with existing 3300 Series monitor racks?
Yes. The 330103-02-07-10-02-00 is a direct replacement for the standard 3300 Series proximity probe assembly. It is calibrated to the 7.87 V/mm (200 mV/mil) sensitivity standard used by all 3300 Series monitors and proximitors. No field recalibration or monitor configuration changes are required when replacing a like-for-like probe in an existing installation. Compatibility with 3500 Series monitors should be confirmed against the specific monitor module’s input specification.

Q4: Can long-term supply and spare parts stocking be arranged for this SKU?
Yes. NINERMAS supports long-term spare parts programs for the 330103-02-07-10-02-00 and other Bently Nevada 3300 Series components. Customers operating continuous process facilities with extended maintenance intervals can arrange committed stock agreements to ensure availability of replacement probes, extension cables, and proximitor modules throughout the planned lifecycle of their machinery protection system. Contact our technical sales team to discuss stocking quantities, lead time commitments, and multi-year supply terms.
