Bently Nevada 330103-00-20-10-02-CN Service-Ready Spare Part for Industrial Maintenance

Bently Nevada 330103-00-20-10-02-CN Service-Ready Spare Part for Industrial Maintenance

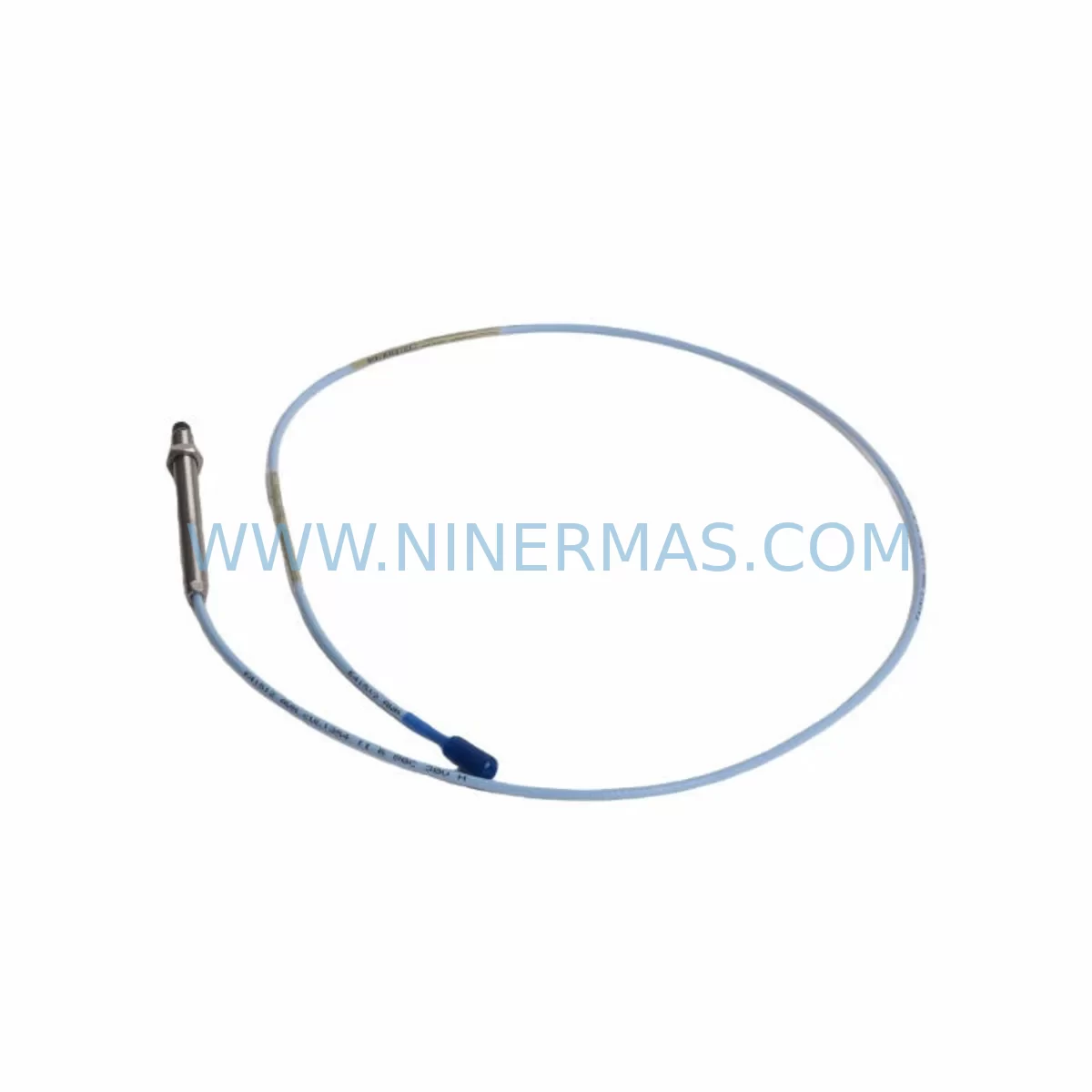

The Bently Nevada 330103-00-20-10-02-CN is an original proximity transducer system component from the renowned 3300 Series, engineered for continuous vibration and position monitoring in critical rotating machinery. This service-ready spare part is stocked and dispatched by NINERMAS to support maintenance engineers and procurement teams managing turbines, compressors, pumps, and other high-value industrial assets where unplanned downtime carries significant operational and financial risk.

The 330103-00-20-10-02-CN operates as part of Bently Nevada’s eddy-current proximity transducer system, delivering non-contact displacement measurement with exceptional linearity and reliability. Whether you are executing a scheduled annual overhaul, responding to a vibration alarm, or building a strategic spare parts inventory for a remote facility, this component provides the original-specification performance required to restore your machinery protection system to full operational status without compromise.

NINERMAS maintains ready stock of this part to eliminate lead-time risk. Every unit is inspected and tested prior to shipment, and is covered by a 12-month warranty from the date of delivery, giving procurement engineers the confidence to plan long-term supply agreements around a verified source.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330103-00-20-10-02-CN transducer in the field is rarely an isolated task. Experienced maintenance engineers understand that a vibration alarm or transducer failure is often a signal to inspect the entire measurement chain and the surrounding control infrastructure. A structured approach to this replacement significantly reduces the risk of repeat failures and unplanned shutdowns.

Begin by verifying the extension cable paired with this transducer — the Bently Nevada 330130-045-00-00 or equivalent 3300 Series extension cable should be inspected for jacket damage, connector corrosion, and continuity. A degraded extension cable is a common root cause of erratic vibration readings that are incorrectly attributed to the transducer itself. Replace the cable as a matched set whenever the transducer is changed to ensure system calibration integrity.

Next, confirm the condition of the 3300 Series driver / proximitor (such as the 330180 or 330185 series) mounted in the junction box or control cabinet. Drivers accumulate heat cycles and connector wear over years of service; a worn driver paired with a new transducer will produce measurement errors that are difficult to diagnose in the field. Stocking a driver alongside the 330103-00-20-10-02-CN in your spare parts cabinet is a widely adopted best practice in turbine maintenance programs.

Within the 3500 Series monitoring rack, inspect the relevant 3500/40M Proximitor / Seismic Monitor or 3500/42M card for alarm setpoint integrity and I/O wiring condition. Loose terminal connections on the I/O module are a frequent source of nuisance trips during and after transducer replacement. While the rack is open, verify the 3500/15 Power Supply output voltage — an under-voltage condition will affect transducer bias voltage and produce false readings even with a correctly installed new probe.

For facilities running Bently Nevada System 1 condition monitoring software, confirm that the channel configuration reflects the correct transducer scale factor and gap voltage for the 330103-00-20-10-02-CN before returning the machine to service. A misconfigured scale factor will cause the monitor to report incorrect displacement values, potentially masking a genuine machinery fault.

Procurement engineers building annual maintenance budgets should also consider stocking 3500 Series communication gateway modules (such as the 3500/92 Ethernet module) and barrier / isolator assemblies used in hazardous-area installations. These components share the same service interval logic as the transducer system and are frequently overlooked until a failure occurs. Pairing them in a single annual procurement order reduces administrative overhead and ensures the entire measurement chain is renewed on a coordinated schedule.

Finally, review the terminal blocks and DIN rail assemblies in the junction box where the transducer cable terminates. Corroded or loose terminals introduce resistance that shifts the transducer’s DC bias voltage outside the linear range, producing readings that appear as mechanical faults. Replacing terminal blocks during a planned transducer swap adds minimal cost but eliminates a common source of post-maintenance callbacks.

Site Replacement Workflow

Step 1 — Isolation and Documentation: Isolate the measurement channel in the 3500 Series monitor and record the existing gap voltage (typically –10 VDC ± 0.5 V for a correctly gapped 8 mm probe). Photograph the existing probe mounting orientation and cable routing before removal.

Step 2 — Removal: Loosen the locknut and carefully unthread the 330103-00-20-10-02-CN from its mounting bracket. Disconnect the extension cable at the junction box connector. Inspect the mounting bracket threads and bearing housing bore for damage or contamination.

Step 3 — Installation: Thread the new 330103-00-20-10-02-CN into the bracket and set the probe gap to the OEM-specified value (typically 1.0 mm / 40 mil for an 8 mm probe on a steel target). Secure the locknut to the specified torque. Reconnect the extension cable, ensuring the connector is fully seated and the locking sleeve is engaged.

Step 4 — Verification: With the driver powered, measure the output voltage at the monitor input terminal. Confirm the bias voltage falls within the linear range specified on the 3300 Series calibration chart. Adjust the gap if necessary. Clear any latched alarms in the 3500 monitor only after the bias voltage is confirmed correct.

Step 5 — Return to Service: Re-enable the measurement channel, confirm live vibration readings are within expected baseline values, and update the maintenance management system (CMMS) with the replacement date, new part serial number, and gap setting recorded. This documentation supports warranty claims and future predictive maintenance scheduling.

This workflow is compatible with legacy installations previously using older 3300 Series transducer variants, making the 330103-00-20-10-02-CN a direct drop-in replacement that requires no wiring modifications or monitor reconfiguration in standard applications.

Spare Parts Support FAQ

Q1: Is the 330103-00-20-10-02-CN compatible with both the 3300 Series monitor and the 3500 Series rack?
Yes. The 330103-00-20-10-02-CN is designed for use within the Bently Nevada 3300 Series proximity transducer system and is fully compatible with 3500 Series monitoring racks when paired with the appropriate 3300 Series extension cable and driver. Always verify the driver model and scale factor configuration in the monitor before returning the channel to service.

Q2: What is the recommended spare parts inventory strategy for this transducer?
For critical rotating machinery, maintenance best practice recommends holding a minimum of one spare transducer per monitored shaft, plus one matched extension cable and one driver per measurement plane. For facilities with multiple identical machines, a pooled inventory of 2–3 units of the 330103-00-20-10-02-CN is typically sufficient to cover emergency replacements while a replenishment order is processed. NINERMAS supports blanket purchase orders and scheduled delivery agreements to help procurement teams maintain optimal stock levels without excessive capital tied up in inventory.

Q3: How does NINERMAS verify the condition of this part before shipment?
Every 330103-00-20-10-02-CN dispatched by NINERMAS undergoes pre-shipment inspection covering electrical continuity of the coil and cable, visual inspection of the probe tip and connector, and sensitivity verification against the Bently Nevada 3300 Series specification. Units that do not meet specification are quarantined and not offered for sale. A 12-month warranty from the date of shipment covers any defects in materials or workmanship identified under normal operating conditions.

Q4: Can NINERMAS support long-term or repeat supply of this part?
Yes. NINERMAS maintains ongoing stock of the 330103-00-20-10-02-CN and related 3300 / 3500 Series components to support customers with annual maintenance contracts, multi-site operations, and EPC project procurement schedules. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to discuss pricing, lead times, and supply agreement options tailored to your maintenance program.
