Bently Nevada 330103-00-05-05-02-00 3300 XL Spare Part

Bently Nevada 330103-00-05-05-02-00 3300 XL Spare Part: Precision Vibration Monitoring Replacement for Industrial Maintenance

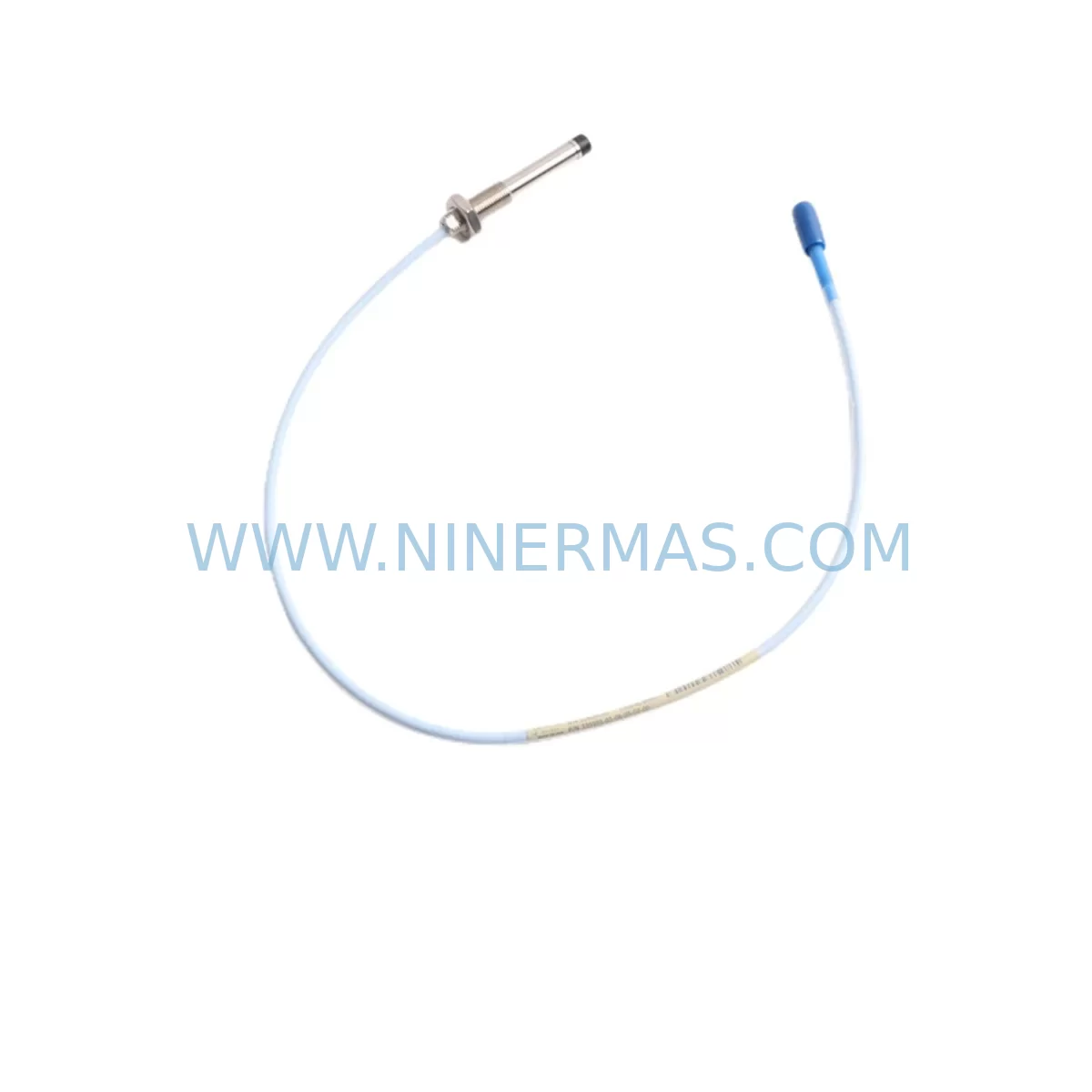

The Bently Nevada 330103-00-05-05-02-00 is a service-ready proximity transducer spare part designed for the Bently Nevada 3300 XL Series condition monitoring system. This original-specification component is engineered for continuous vibration measurement on rotating machinery including turbines, compressors, pumps, and motors in oil & gas, power generation, petrochemical, and heavy industrial environments. When unplanned downtime strikes a critical asset, having a verified, tested replacement on the shelf is the single most effective strategy for rapid recovery — and the 330103-00-05-05-02-00 is precisely that component.

Maintenance engineers and reliability teams operating 3300 XL-based monitoring systems depend on the proximity transducer as the primary sensing element for shaft radial vibration, axial position, and eccentricity measurement. A failed or degraded transducer directly compromises the integrity of your condition monitoring loop, triggering nuisance trips or — more dangerously — masking real machinery faults. Sourcing a pre-tested, specification-matched spare eliminates the risk of compatibility mismatches and accelerates return-to-service after a fault event.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a 3300 XL-based monitoring system goes well beyond replacing the proximity transducer in isolation. When a 330103-00-05-05-02-00 probe is flagged during a fault investigation or scheduled outage, experienced reliability engineers treat the event as a trigger for a broader loop inspection. The transducer, its mating 3300 XL Extension Cable (typically the 330130 series), and the associated 3300 XL Proximitor Sensor (such as the 330180-91-00 or 330180-51-00) form a calibrated measurement chain — replacing only one element without verifying the others introduces calibration uncertainty that can persist undetected until the next trip event.

During a control cabinet inspection or annual shutdown, maintenance teams should simultaneously audit the 3500/20 Rack Interface Module or equivalent rack power supply feeding the monitoring system. Degraded rack power — even within nominal voltage tolerance — can shift Proximitor output and produce false vibration readings. Alongside the power supply, inspect the 3500/22M Transient Data Interface or the relevant I/O module for connector corrosion, loose terminations, and firmware currency. Signal integrity from the 330103-00-05-05-02-00 depends on a clean, low-impedance signal path all the way to the monitor rack.

For plants running hybrid architectures, the vibration signal from the 3300 XL loop is often fed into a DCS analog input card or a safety instrumented system (SIS) input module via a signal isolator or barrier — components such as Pepperl+Fuchs or MTL Zener barriers in hazardous-area installations. These barriers age and drift; a transducer replacement is the right moment to verify barrier resistance and isolation integrity. Similarly, terminal blocks and marshalling panels in the junction box between the field probe and the rack should be inspected for oxidation, particularly in humid or coastal environments.

Plants operating older 3300 XL racks alongside newer 3500 Series monitoring systems should maintain cross-compatible spare inventories. The 330103-00-05-05-02-00 probe, when paired with the correct Proximitor, can serve both platforms — a procurement advantage that reduces SKU proliferation in the spare parts store. Procurement engineers should also consider stocking the 330130-080-00-00 extension cable and at least one 330180 Proximitor per critical machine train to ensure a complete loop replacement can be executed within a single maintenance window, avoiding secondary delays caused by missing sub-components.

For facilities with aging HMI workstations running System 1 or Bently Nevada condition monitoring software, ensure that any transducer replacement is followed by a channel re-calibration and alarm setpoint verification within the software. A physically correct installation that is not reflected in the monitoring database provides no protection. Coordinate with your instrumentation team to update the as-found / as-left records and confirm that the OK relay output from the monitor module is functioning correctly after reinstatement.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a hot-work or cold-work permit as applicable. Isolate the monitor channel at the rack (place in bypass mode) to prevent a spurious trip during probe removal. Document the pre-removal gap voltage reading from the Proximitor output.

Step 2 — Probe Removal: Loosen the probe locknut and back the probe out of the bracket. Note the thread engagement depth for reinstallation reference. Disconnect the integral cable from the extension cable junction.

Step 3 — New Probe Installation: Thread the replacement 330103-00-05-05-02-00 into the bracket. Set the air gap to the manufacturer-specified linear range midpoint (typically 1.0–1.27 mm / 40–50 mil for standard steel targets). Tighten the locknut to the specified torque. Reconnect the extension cable.

Step 4 — Gap Voltage Verification: With the Proximitor powered, measure the DC gap voltage at the OK/Gap terminal. Confirm the reading falls within the linear range (typically -10 VDC ± 1 V for a correctly gapped 5 mm probe on a steel target). Compare against the pre-removal baseline.

Step 5 — Channel Reinstatement: Remove the bypass, restore the monitor channel to normal operation, and confirm the OK relay is energised. Verify that vibration readings are stable and consistent with historical baseline values. Update maintenance records and spare parts inventory accordingly.

This workflow minimises machine downtime to under two hours for a prepared maintenance team, provided the replacement spare is on-site and pre-tested — reinforcing the value of proactive spare parts stocking for critical rotating equipment.

Spare Parts Support FAQ

Q1: Is the 330103-00-05-05-02-00 a direct drop-in replacement for older 3300 XL probes with the same SKU suffix?
Yes. The SKU suffix encoding in the 330103 series specifies probe tip diameter, cable length, connector type, and temperature rating. A unit with an identical part number is a direct replacement with no recalibration of the Proximitor required, provided the extension cable and Proximitor are also within specification. Always verify the gap voltage after installation as a final confirmation step.

Q2: What is included in the 12-month warranty, and what does pre-shipment testing cover?
Every unit shipped by NINERMAS undergoes electrical continuity testing, coil resistance verification, and output sensitivity spot-check before dispatch. The 12-month warranty covers manufacturing defects and out-of-specification performance under normal operating conditions. It does not cover physical damage caused by incorrect installation, over-torquing, or target material incompatibility. Warranty claims are supported with full documentation and replacement dispatch within agreed lead times.

Q3: Can you supply the complete 3300 XL transducer loop — probe, extension cable, and Proximitor — as a matched set?
Yes. NINERMAS maintains inventory of 3300 XL series components including the 330103 probe family, 330130 extension cables in multiple lengths, and 330180 Proximitor Sensors. Ordering as a matched set ensures calibration traceability and eliminates the risk of mixing components from different production batches. Contact our technical team with your machine train details for a complete loop quotation.

Q4: What is your lead time for the 330103-00-05-05-02-00, and do you support long-term supply agreements for MRO procurement?
In-stock units are dispatched within 3–5 business days with full test documentation. For facilities requiring guaranteed availability — particularly for critical assets where downtime cost is high — NINERMAS offers long-term supply agreements with reserved inventory allocation. This is particularly valuable for plants managing end-of-life Bently Nevada 3300 XL systems where OEM supply channels have become unreliable. Contact sale@ninermas.com to discuss your annual consumption and establish a supply framework.
