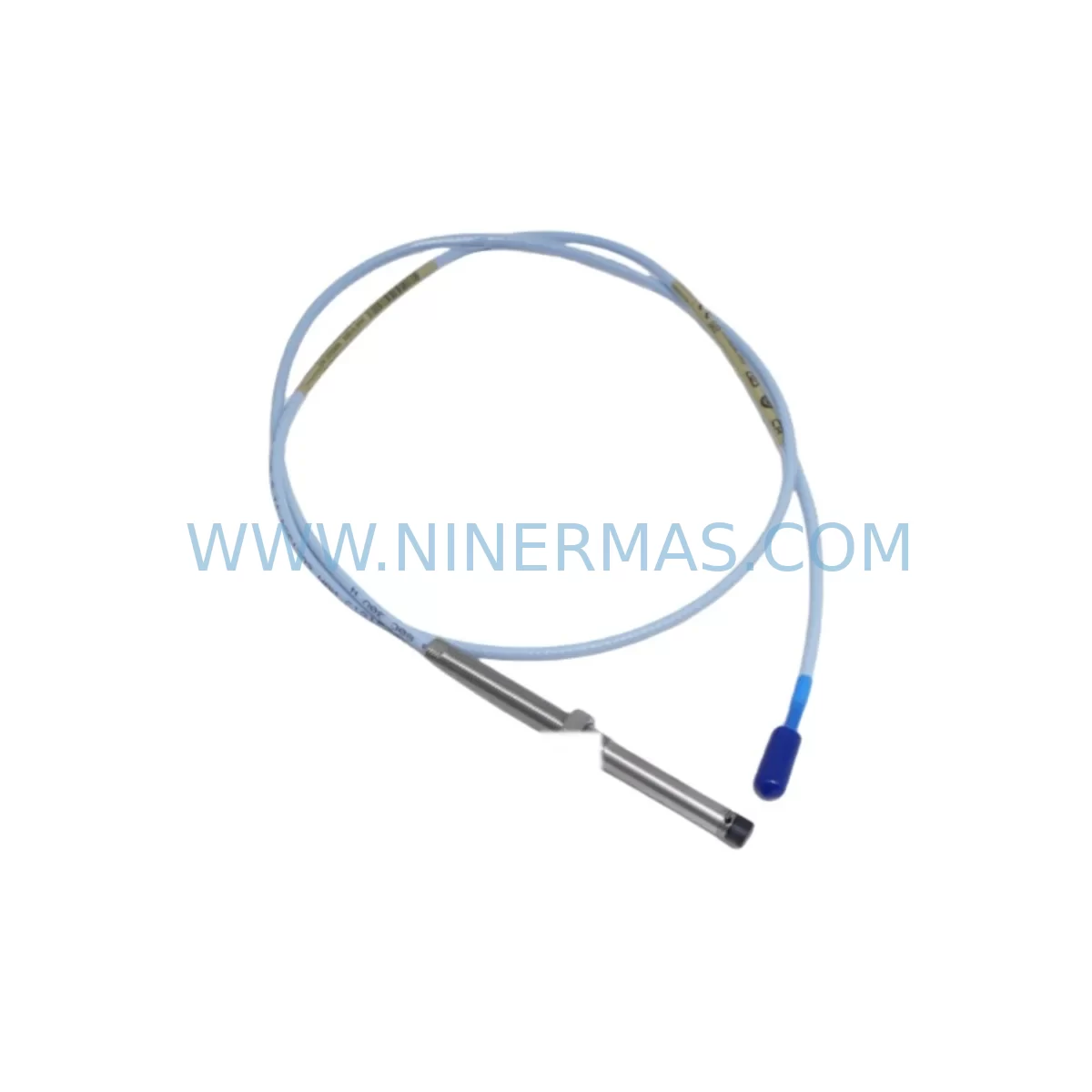

Bently Nevada 330101-32-70-10-12-05 Retrofit Proximity Transducer

Bently Nevada 330101-32-70-10-12-05 Retrofit Proximity Transducer: Legacy System Compatible Upgrade

The Bently Nevada 330101-32-70-10-12-05 is a ruggedized proximity transducer module engineered for continuous vibration and position monitoring in rotating machinery applications. As legacy Bently Nevada 3300 Series systems approach end-of-life and original spare parts become increasingly scarce, this SKU — 330101-32-70-10-12-05 — serves as a critical retrofit and replacement component for facilities seeking to extend the operational life of their existing monitoring infrastructure without committing to a full platform migration.

NINERMAS maintains verified inventory of the 330101-32-70-10-12-05, sourced from authorized channels and subject to full functional testing prior to shipment. Each unit is backed by a 12-month warranty, ensuring confidence in both quality and long-term supply continuity for maintenance engineers and procurement teams managing aging control systems.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the Bently Nevada 330101-32-70-10-12-05, maintenance teams must evaluate the complete signal chain — from the transducer tip through the extension cable, into the Bently Nevada 3300/05 Proximitor, and ultimately to the monitor module seated in the rack. The Proximitor acts as the signal conditioner, and its calibration must be verified or reset whenever a transducer is replaced. In systems using the Bently Nevada 3300/16 Monitor, engineers should confirm that the channel configuration in the monitor’s internal settings still reflects the correct transducer sensitivity (typically 7.87 mV/µm or 200 mV/mil) after the swap.

For facilities running multi-channel vibration monitoring panels, the 330101-32-70-10-12-05 is often deployed alongside companion transducers on the X-Y axis pair of a single bearing. In these configurations, both transducers should ideally be replaced simultaneously to maintain consistent sensitivity and gap voltage across the measurement plane. The Bently Nevada 330180-91-05 extension cable is a commonly paired component and should be inspected for continuity and insulation integrity before reuse.

Rack-level considerations are equally important. The Bently Nevada 3300/20 Rack and its associated backplane connectors must be inspected for corrosion or pin damage before reseating any new module. If the system includes a Bently Nevada 3500/22M Transient Data Interface or a 3500/42M Proximitor I/O Module, verify that the new transducer’s signal is correctly mapped to the corresponding channel address in the System 1 software or the legacy Data Manager 2000 platform.

In older installations where the control cabinet also houses a Bently Nevada 3300/55 Keyphasor Module, the phase reference signal must remain undisturbed during transducer replacement. Any interruption to the Keyphasor signal during live operation can trigger spurious alarms or trip the machinery protection system. Coordinate with the control room before beginning physical work.

For facilities transitioning from the 3300 Series toward the Bently Nevada System 3500 platform, the 330101-32-70-10-12-05 can serve as an interim solution — maintaining monitoring continuity on legacy racks while the 3500 infrastructure is staged and commissioned in parallel. This phased approach minimizes production risk and allows program logic, HMI display pages, and historian tags to be validated before full cutover.

Downtime Control During System Migration

Unplanned downtime during a proximity transducer replacement is one of the most avoidable risks in rotating machinery maintenance — provided the retrofit is properly sequenced. When replacing the 330101-32-70-10-12-05 in a live production environment, the recommended approach is to pre-stage the replacement unit with a verified gap voltage reading on a test rig before bringing it to the field. This eliminates the need for extended on-machine adjustment time and reduces the commissioning window to under 30 minutes in most cases.

Before removing the existing transducer, document the current gap voltage reading from the monitor display or System 1 software. This baseline value — typically between -9.5 VDC and -10.5 VDC — serves as the target for the replacement unit. After installation, adjust the transducer axial position until the gap voltage matches the documented baseline, then lock the mounting hardware and re-verify the reading under thermal conditions if possible.

Protect the original program logic by ensuring that no channel re-addressing or I/O mapping changes are made during a like-for-like transducer swap. If the replacement is part of a broader migration — for example, moving from a 3300 Series rack to a 3500 Series rack — export and archive the existing monitor configuration before making any changes. The Bently Nevada System 1 Configuration Utility allows full configuration export, which can be used as a reference during 3500 rack commissioning.

Maintain field control continuity by coordinating bypass procedures with the machinery protection system operator. Most 3300 and 3500 series monitors support a maintenance bypass mode that suppresses trip outputs during transducer replacement without disabling the monitoring function entirely. Use this feature to protect the machine while the swap is completed, and remove the bypass only after the new transducer has been verified and the gap voltage confirmed stable.

Retrofit Support FAQ

Q1: Is the 330101-32-70-10-12-05 a direct drop-in replacement for other 330101 suffix variants?
The 330101 base part number covers a family of Bently Nevada proximity transducers with varying cable lengths, thread sizes, and tip diameters encoded in the suffix. The -32-70-10-12-05 suffix specifies a particular configuration. Before ordering, confirm that the suffix of your existing transducer matches exactly. If your current unit carries a different suffix, contact NINERMAS to verify cross-compatibility or identify the correct replacement SKU.

Q2: What commissioning steps are required after installing this transducer?
After mechanical installation, the primary commissioning step is gap voltage adjustment. Position the transducer tip at the correct distance from the shaft surface until the Proximitor output reads the nominal gap voltage (typically -10 VDC ± 0.5 VDC). Verify the reading at the monitor channel display and in the System 1 software if applicable. Check for alarm and trip setpoint integrity, confirm the channel is not in bypass, and document the final gap voltage in the maintenance record.

Q3: Does NINERMAS test units before shipment, and what does the 12-month warranty cover?
Yes. All 330101-32-70-10-12-05 units shipped by NINERMAS undergo functional verification prior to dispatch, including continuity testing and output signal validation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Units damaged by incorrect installation, overvoltage, or mechanical impact are not covered. NINERMAS provides replacement or repair support for all warranty claims.

Q4: Can NINERMAS supply multiple units for a full bearing replacement project?
Yes. NINERMAS maintains stock of the 330101-32-70-10-12-05 and related 3300 Series components to support both single-unit emergency replacements and multi-unit planned maintenance projects. Lead times and quantity availability can be confirmed by contacting the sales team directly. Bulk orders for plant-wide retrofits or spare parts inventory programs are accommodated with priority processing.
