Bently Nevada 21000-16-05-00-135-03-02 Retrofit Proximity Probe

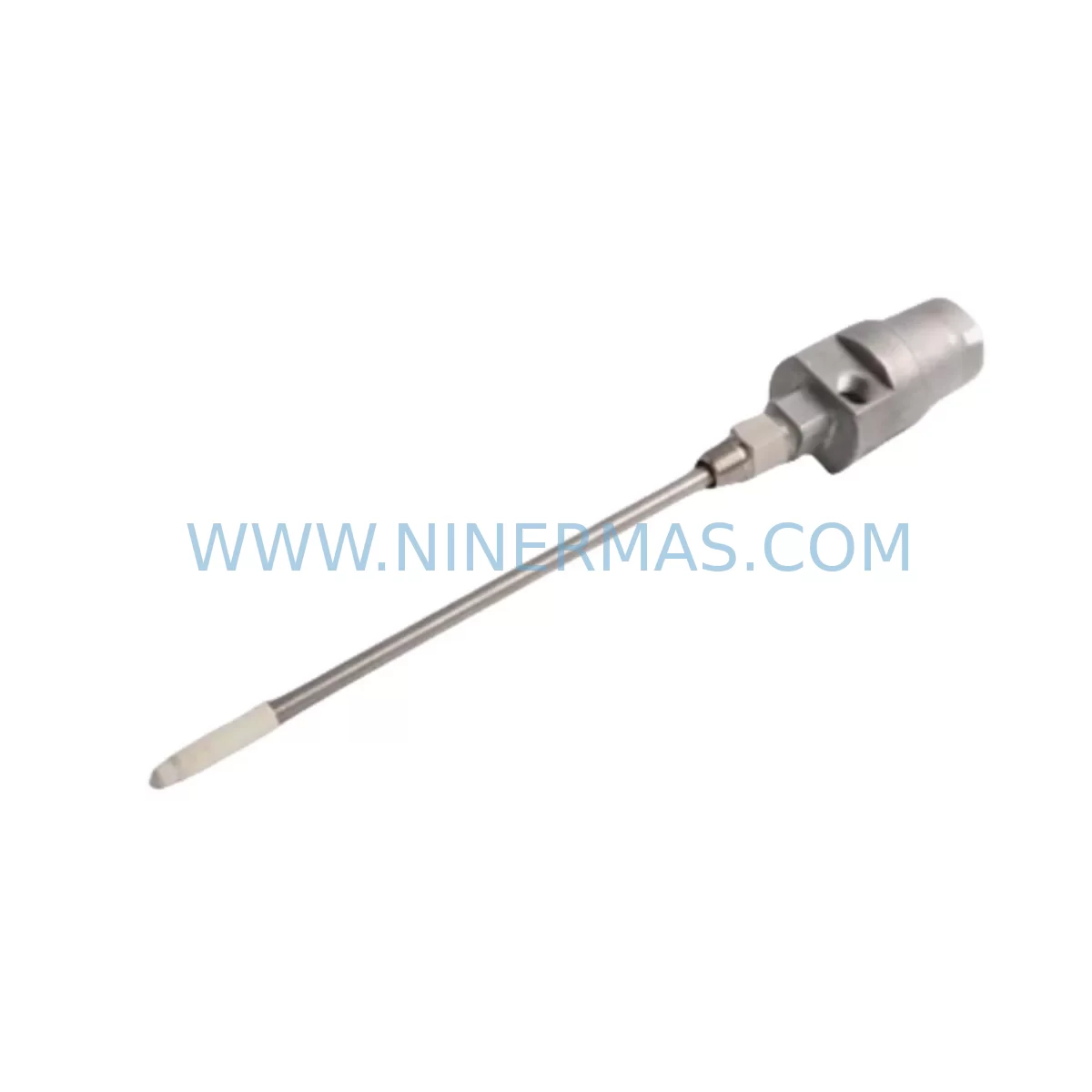

Bently Nevada 21000-16-05-00-135-03-02 Retrofit Proximity Probe Housing: Legacy System Compatible Upgrade

The Bently Nevada 21000-16-05-00-135-03-02 is a proximity probe housing assembly designed for the 21000 Series eddy-current measurement platform — one of the most widely deployed vibration monitoring systems in rotating machinery applications across power generation, oil & gas, petrochemical, and heavy industrial sectors. As original equipment reaches end-of-life and OEM support for legacy 21000 Series components becomes increasingly limited, plant engineers and reliability teams are actively seeking verified retrofit-compatible replacements that preserve existing wiring, signal conditioning infrastructure, and machinery protection logic without requiring a full system overhaul.

This unit — SKU 21000-16-05-00-135-03-02 — is a direct retrofit solution for facilities operating legacy Bently Nevada 21000 Series proximity probe assemblies. It maintains dimensional compatibility with standard probe housing mounting configurations, supports the established eddy-current sensing principle used across the 21000 platform, and integrates with existing signal conditioning modules and proximitor drivers already installed in the control cabinet. For plants running Bently Nevada 3300 XL Series or 7200 Series proximitors alongside legacy 21000 Series probe assemblies, this replacement unit allows continued operation without requalifying the entire measurement chain.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful replacement of the Bently Nevada 21000-16-05-00-135-03-02 in an operating plant requires a structured retrofit plan that addresses the full measurement chain — from probe tip to the machinery protection system output. The proximity probe assembly does not operate in isolation; it is part of an integrated vibration monitoring loop that typically includes a Bently Nevada 3300 XL Proximitor Module, a dedicated power supply module within the 3300 rack, and signal conditioning cards that feed radial vibration, axial position, or differential expansion data to the plant DCS or safety system.

Before removing the legacy probe assembly, engineers should document the existing gap voltage reading at the proximitor — typically between -10 VDC and -18 VDC for a properly gapped probe — and record the scale factor (commonly 200 mV/mil or 7.87 V/mm) programmed into the associated 3300 Series monitor card. This baseline is critical for post-installation verification. If the plant is also upgrading from an older 3300 Series rack to a newer Bently Nevada System 1 platform or a 3701 Series rack-based monitor, the probe replacement should be coordinated with the rack migration to avoid introducing multiple variables during commissioning.

Wiring and termination review is equally important. The extension cable connecting the 21000 Series probe to the proximitor — often a Bently Nevada 330130 or 330180 Series extension cable — must be inspected for insulation integrity, connector condition, and correct impedance matching. If the extension cable is being replaced simultaneously, confirm that the combined probe-plus-extension system length matches the calibrated range of the proximitor driver. Mismatched cable lengths are a common source of scale factor error after retrofit.

For control cabinets housing multiple measurement loops — radial vibration, keyphasor, thrust position — the retrofit of a single probe assembly should be planned alongside a review of the Bently Nevada TK-3 or TK-81 calibration kit availability for on-site gap setting verification. If the plant uses a Bently Nevada 1900/65 or 2300 Series general-purpose monitor for auxiliary machinery, those loops should be isolated and verified independently to prevent nuisance trips during the primary probe replacement work. I/O mapping in the DCS — particularly for 4–20 mA retransmission outputs from the monitor rack — should be confirmed unchanged before returning the loop to service.

Where the retrofit involves migrating from a legacy hardwired system to a networked machinery protection architecture, signal isolators and protocol converters may be required to bridge the analog output of the 21000 Series measurement chain to a Modbus RTU or PROFIBUS DP network. In such cases, the probe replacement is the first step in a broader modernization that may also involve upgrading the HMI trend displays, alarm setpoint databases, and historian tag configurations associated with the affected measurement points.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any proximity probe retrofit on rotating machinery. For critical assets — compressors, turbines, pumps — the replacement of the Bently Nevada 21000-16-05-00-135-03-02 should be scheduled during a planned maintenance window with the machine at rest and the associated monitor channel placed in bypass mode to prevent spurious trips during probe removal and reinstallation.

The original program logic in the machinery protection system — including danger and alert setpoints, time delays, and voting logic — should be exported and archived before any hardware change. If the plant uses a Bently Nevada System 1 software platform for online monitoring, the configuration database should be backed up and the affected channel tagged out in the software to prevent false alarm escalation during the gap-setting procedure.

On-site gap setting using a digital voltmeter at the proximitor terminal strip is the standard commissioning step after probe installation. The target gap voltage should be set to the midpoint of the proximitor’s linear range — typically -12 VDC for a 5 mm gap on a standard 8 mm probe — and verified against the original baseline recorded before removal. Once gap voltage is confirmed, the channel bypass should be removed, the monitor returned to normal operation, and a short observation period maintained to confirm stable vibration readings before the machine is restarted.

Pre-shipment functional testing of the 21000-16-05-00-135-03-02 unit, combined with in-stock availability, allows plants to compress the total retrofit window to a single shift in most cases — reducing exposure to extended downtime and the associated production loss risk.

Retrofit Support FAQ

Q1: Is the 21000-16-05-00-135-03-02 a direct drop-in replacement for the original Bently Nevada 21000 Series probe housing?
A: Yes. This unit is retrofit-compatible with the 21000 Series proximity probe housing configuration. Verify the suffix digits against your original order to confirm cable length and extension specifications match your installed proximitor’s calibrated range before installation.

Q2: Which proximitor models are compatible with this probe assembly?
A: The 21000-16-05-00-135-03-02 is compatible with Bently Nevada 3300 XL Series and 7200 Series proximitor drivers. Confirm the scale factor and gap voltage range programmed in the associated monitor card match the probe-plus-extension system length being installed.

Q3: What pre-shipment testing is performed on this unit?
A: Each unit undergoes functional verification prior to shipment, including dimensional inspection and electrical continuity checks. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional performance under normal operating conditions.

Q4: What is the typical lead time and stock availability?
A: This SKU is maintained in ready stock to support urgent retrofit and breakdown replacement requirements. Standard shipment is available within 1–3 business days. Contact our team to confirm current inventory and arrange expedited dispatch for critical machinery downtime situations.
