Bently Nevada 200155-10-05 Service-Ready Spare Part

Bently Nevada 200155-10-05 Service-Ready Spare Part for Industrial Maintenance

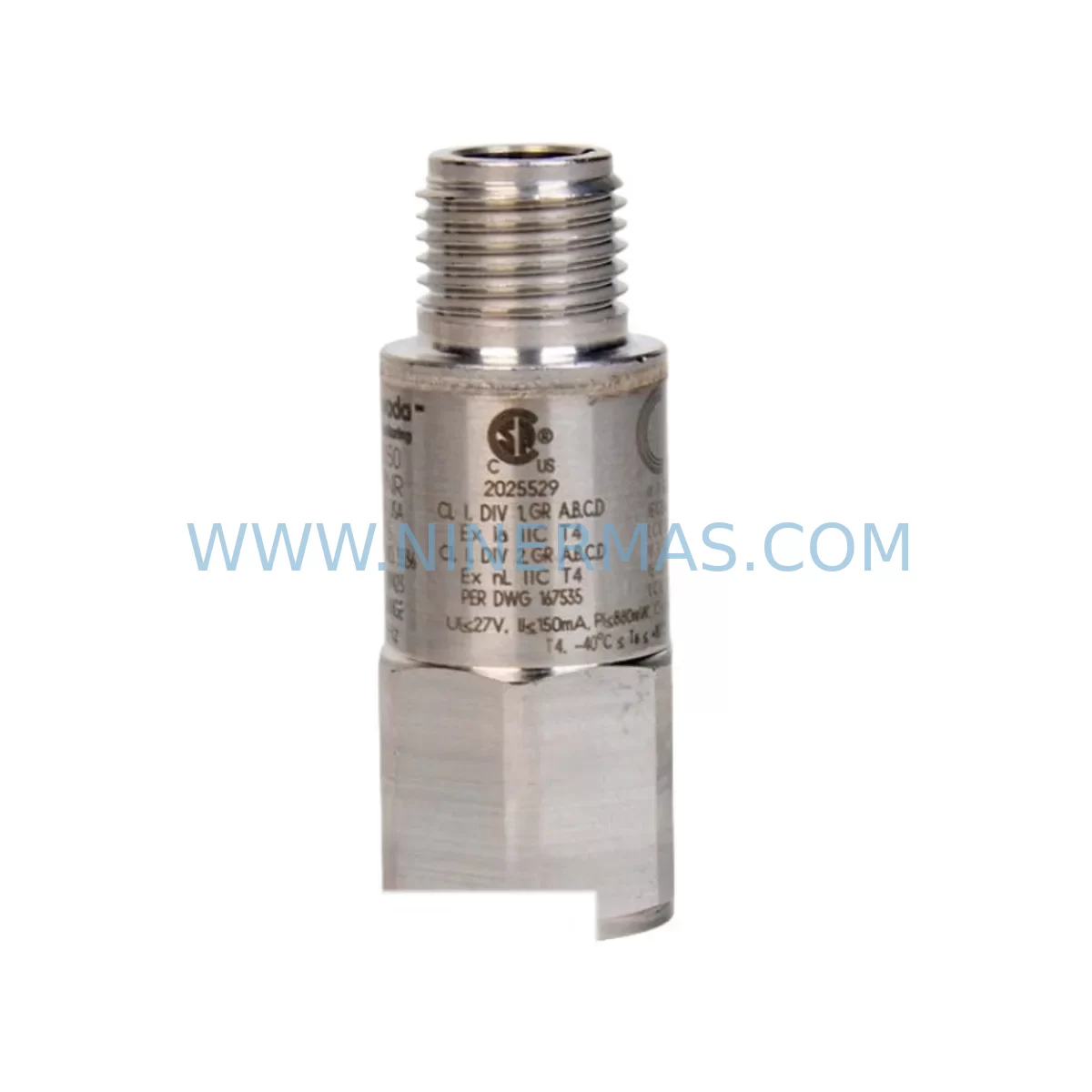

The Bently Nevada 200155-10-05 is a ruggedized accelerometer module engineered for continuous vibration monitoring in demanding industrial environments. As a critical sensing component within the Bently Nevada 3500 Series machinery protection system, this module delivers high-accuracy acceleration signals essential for early fault detection on rotating equipment including turbines, compressors, pumps, and motors. Sourced as an original spare part, the 200155-10-05 is fully tested prior to shipment and backed by a 12-month warranty, making it the preferred choice for maintenance engineers and procurement teams managing long-term asset reliability programs.

Unplanned downtime caused by accelerometer failure can cascade rapidly across a production line. A degraded or failed 200155-10-05 may result in loss of vibration data, triggering false alarms or — more critically — masking developing faults in rotating machinery. Stocking this module as a ready-to-deploy spare is a fundamental element of any proactive maintenance strategy. Whether you are managing a petrochemical plant, power generation facility, offshore platform, or heavy manufacturing site, having the 200155-10-05 on the shelf ensures that your machinery protection system remains fully operational at all times.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the Bently Nevada 200155-10-05 accelerometer module during a scheduled outage or emergency corrective maintenance event, a thorough inspection of the surrounding measurement chain and protection system is strongly recommended. Maintenance engineers should verify the condition and calibration of the associated Bently Nevada 3300 XL 8mm proximity probes or 3300 XL 11mm proximity probes used for radial vibration measurement on the same machine train, as accelerometer and proximity probe data are often cross-referenced in the 3500 system’s alarm logic.

The 3500/20 rack power supply module should be inspected for output voltage stability and ripple, as power quality directly affects accelerometer signal integrity. If the rack has been in service for more than five years, proactive replacement of the 3500/20 alongside the 200155-10-05 is advisable to eliminate power-related measurement drift. Similarly, the 3500/42M or 3500/42E monitor card receiving the accelerometer signal should be checked for firmware currency and channel calibration status.

Interconnecting signal cables and field junction boxes between the accelerometer and the monitor rack are frequent sources of intermittent faults in harsh environments. Inspect all cable terminations, shielding continuity, and connector integrity. Where cable runs pass through areas of high electromagnetic interference, verify that shielding is grounded at one end only per Bently Nevada installation guidelines. The 3500 system’s Keyphasor module — typically a 3500/25 — should also be confirmed operational, as phase reference data is essential for accurate vibration analysis when the 200155-10-05 is used in conjunction with spectral monitoring.

For facilities running integrated condition monitoring platforms, confirm that the Bently Nevada System 1 software or equivalent historian is correctly receiving and archiving the new sensor’s data stream after replacement. I/O mapping, tag assignments, and alarm setpoints should be verified in the DCS or safety instrumented system (SIS) interface. If the plant uses a Modbus or OPC-DA/OPC-UA gateway for data integration, confirm that the 3500 rack’s communication module — such as the 3500/92 communication gateway — is correctly configured and that the new accelerometer channel is mapped to the correct process historian tag.

Procurement engineers sourcing the 200155-10-05 for annual maintenance kits should also consider including the 3500/15 power supply input module, terminal strip assemblies, and spare rack backplane connectors as part of a comprehensive 3500 series spares package. This approach minimizes the risk of secondary failures extending downtime beyond the initial accelerometer replacement event.

Site Replacement Workflow

Replacing the Bently Nevada 200155-10-05 in the field follows a structured procedure to ensure system compatibility and minimize production impact. Begin by isolating the affected measurement channel in the 3500 monitor card and notifying the control room of the planned bypass to prevent spurious trips during the replacement. Document the existing accelerometer’s mounting orientation, cable routing, and connector pinout before removal.

Install the new 200155-10-05 using the torque specification and mounting method defined in the Bently Nevada installation drawing for the specific machine application. Reconnect the signal cable, verify shield grounding, and restore the channel in the 3500 monitor. Perform a channel check by observing the live vibration reading against baseline values recorded during the previous healthy operating period. If the reading is within expected range and alarm setpoints are confirmed, the replacement is complete and the bypass can be removed.

For sites transitioning from older Bently Nevada accelerometer models or third-party equivalents, the 200155-10-05 provides a direct service-ready replacement path that maintains full compatibility with the 3500 series rack architecture. No firmware changes or rack reconfiguration are required in standard replacement scenarios, significantly reducing the skill level and time required for field execution. This makes the 200155-10-05 an ideal candidate for inclusion in emergency response spare kits held at site, reducing mean time to repair (MTTR) for vibration monitoring channel failures from hours to minutes.

Spare Parts Support FAQ

Q1: Is the Bently Nevada 200155-10-05 compatible with all 3500 series monitor cards?
The 200155-10-05 is designed for use within the Bently Nevada 3500 series machinery protection system and is compatible with the 3500/42M and 3500/42E monitor cards in standard accelerometer input configurations. Compatibility with specific rack revisions and firmware versions should be confirmed against the Bently Nevada system documentation for your installation. NINERMAS technical support can assist with compatibility verification prior to order placement.

Q2: What pre-shipment testing is performed on the 200155-10-05?
Every 200155-10-05 unit dispatched by NINERMAS undergoes full functional and electrical verification prior to shipment, including output signal check and physical inspection. Units are packaged in anti-static, shock-protected packaging to ensure they arrive in service-ready condition. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can NINERMAS support long-term or contract supply of the 200155-10-05?
Yes. NINERMAS maintains ongoing inventory of the Bently Nevada 200155-10-05 and can support annual maintenance contracts, blanket purchase orders, and emergency spot procurement. For facilities managing multi-site maintenance programs or requiring guaranteed lead times, contact our sales team to discuss a dedicated supply agreement. Long-term supply continuity is a core commitment of NINERMAS’s spare parts support model.

Q4: What should I do if my 3500 series system shows a channel fault after replacing the 200155-10-05?
If a channel fault persists after installation, first verify cable continuity and shield grounding from the accelerometer to the monitor card terminal. Confirm that the channel is not in bypass mode in the 3500 monitor configuration. Check the 3500/20 rack power supply output for voltage within specification. If the fault remains, contact NINERMAS with your rack configuration details and we will provide technical guidance or arrange an advance replacement unit to minimize further downtime.
