Bently Nevada 190501-09-99-05 Retrofit Proximitor

Bently Nevada 190501-09-99-05 Retrofit-Compatible Proximitor for Legacy Systems

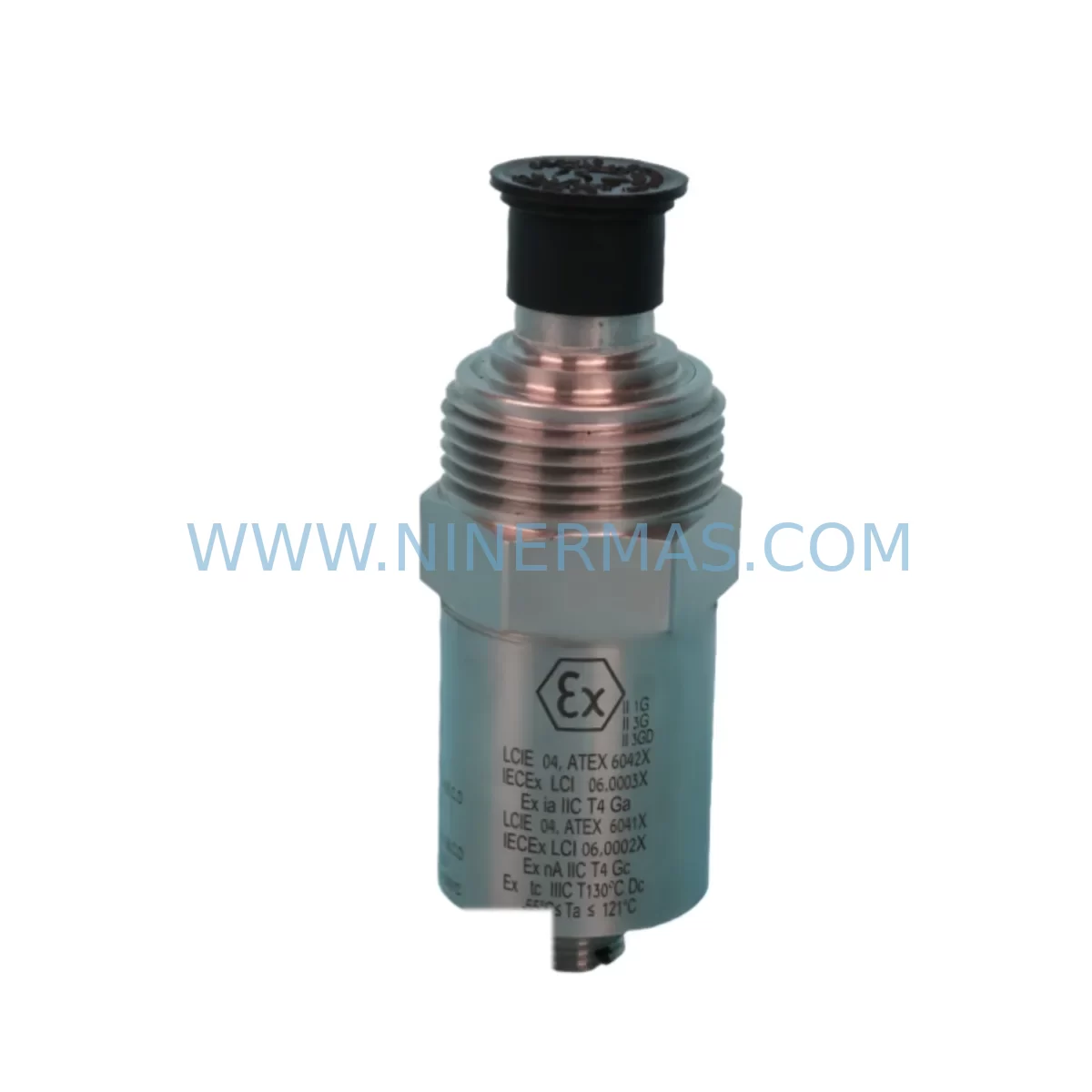

The Bently Nevada 190501-09-99-05 is a Proximitor sensor interface module widely deployed in rotating machinery protection and condition monitoring systems. As legacy Bently Nevada platforms age and original spare parts become increasingly scarce, the 190501-09-99-05 serves as a critical retrofit-compatible replacement for facilities managing older vibration monitoring architectures. Whether you are upgrading a control cabinet, restoring a decommissioned monitoring loop, or extending the service life of an existing protection system, this module provides a reliable, tested solution with verified compatibility across multiple legacy configurations.

Designed for use within eddy-current proximity measurement loops, the 190501-09-99-05 interfaces directly with standard Bently Nevada proximity probes and extension cables to deliver conditioned output signals suitable for radial vibration, axial position, and differential expansion measurements. Its signal output is compatible with legacy 3300 Series monitors, 3500 Series rack-based protection systems, and earlier standalone monitor enclosures, making it a versatile component in both direct replacement and cross-generation upgrade scenarios.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 190501-09-99-05 into an existing protection system requires careful pre-installation planning. Begin by auditing the current wiring layout: the Proximitor connects to the proximity probe via a matched extension cable — typically a 3300 XL 8mm or 3300 NSv series cable — and the output feeds directly into the corresponding channel input on the monitor module. If the existing monitor is a 3500/40M or 3500/42M Proximitor I/O module housed in a 3500 rack, confirm that the rack backplane connectors and channel assignments remain unchanged before swapping the Proximitor.

For facilities running older 3300 Series monitors, the retrofit may also involve reviewing the 3300/16 or 3300/20 monitor cards to ensure input impedance and signal range remain within specification. In cases where the control system has been partially upgraded to a DCS or safety PLC platform — such as a Rockwell Automation ControlLogix or Siemens S7-400 — an analog input module with appropriate signal conditioning will be required to accept the Proximitor’s DC voltage output. A signal isolator or barrier module may also be necessary to maintain loop integrity and protect against ground loops in mixed-grounding environments.

When the retrofit involves a full control cabinet upgrade, account for the physical installation space: the 190501-09-99-05 enclosure dimensions must be verified against the available panel cutout or DIN-rail segment. If the cabinet also houses a 3500/22M Transient Data Interface or a 3500/92 Communication Gateway, coordinate the Proximitor replacement with any firmware or configuration updates to those modules to avoid signal mapping conflicts. Similarly, if an HMI running System 1 Condition Monitoring software is connected to the protection rack, update the channel configuration and alarm setpoints in the software database to reflect the replacement module’s calibration data.

Power supply capacity is another critical checkpoint. The –24 VDC rail supplying the Proximitor must have sufficient headroom to support the replacement module without causing voltage droop that could affect adjacent I/O modules or communication cards. If the existing power supply — such as a 3500/15 Power Supply module — is already operating near capacity, consider adding a supplementary supply or redistributing loads across available rails before completing the retrofit.

Downtime Control During System Migration

Minimizing unplanned downtime during a Proximitor replacement requires a structured migration approach. Before removing the failed or end-of-life 190501-09-99-05, document all existing gap voltage readings, alarm setpoints, and channel configurations from the connected monitor. If the monitor is part of a 3500 Series rack, use the Rack Configuration software to export the full rack configuration file — this preserves all channel parameters, alarm logic, and communication settings and allows rapid restoration if the replacement module requires reconfiguration.

Where possible, perform the physical swap during a scheduled maintenance window rather than under emergency conditions. Pre-stage the replacement 190501-09-99-05, verify its output characteristics on a bench test rig using a calibrated gap simulator before installation, and confirm that the probe and extension cable assembly is undamaged and within the manufacturer’s specified gap range. This pre-commissioning step significantly reduces the risk of a second trip to the field for recalibration.

Once installed, restore the gap voltage to the previously documented value, re-enable monitor channels in sequence, and verify that all alarm and danger setpoints are active before returning the machine to service. If the protection system is connected to a plant DCS via a 3500/92 Communication Gateway or a Modbus/TCP interface, confirm that the data tags and signal mappings are intact and that the DCS operator display reflects live vibration data before releasing the unit for operation. Maintaining a detailed retrofit log — including part numbers, calibration records, and commissioning sign-off — supports future audits and spare parts lifecycle planning.

Retrofit Support FAQ

Q: Is the 190501-09-99-05 a direct drop-in replacement for other 190501-series Proximitors?
A: In most cases, yes. The 190501 series shares a common form factor and signal interface. However, the suffix digits (e.g., -09-99-05) denote specific cable length, temperature range, and sensitivity configurations. Always verify that the replacement suffix matches the original specification or confirm compatibility with the connected probe and extension cable assembly before installation.

Q: What commissioning steps are required after installation?
A: After physical installation, measure the gap voltage at the Proximitor output with the probe positioned at the nominal gap distance specified for your probe type. Adjust the probe position if necessary to bring the gap voltage within the linear range. Then verify alarm and danger setpoints in the connected monitor, confirm signal integrity at the DCS or safety system input, and document all readings in the site commissioning record.

Q: Can this Proximitor be used with a non-Bently Nevada monitor or PLC analog input?
A: Yes, with appropriate signal conditioning. The 190501-09-99-05 outputs a standard DC voltage signal that can be accepted by any analog input module with a compatible input range. A signal isolator may be required to prevent ground loops. Confirm the input impedance and voltage range of the receiving module before connecting.

Q: What does the 12-month warranty cover, and is in-stock inventory available?
A: All units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes functional testing prior to shipment. We maintain ready stock of the 190501-09-99-05 to support urgent replacement requirements and minimize plant downtime. Contact our team to confirm current availability and lead time.
