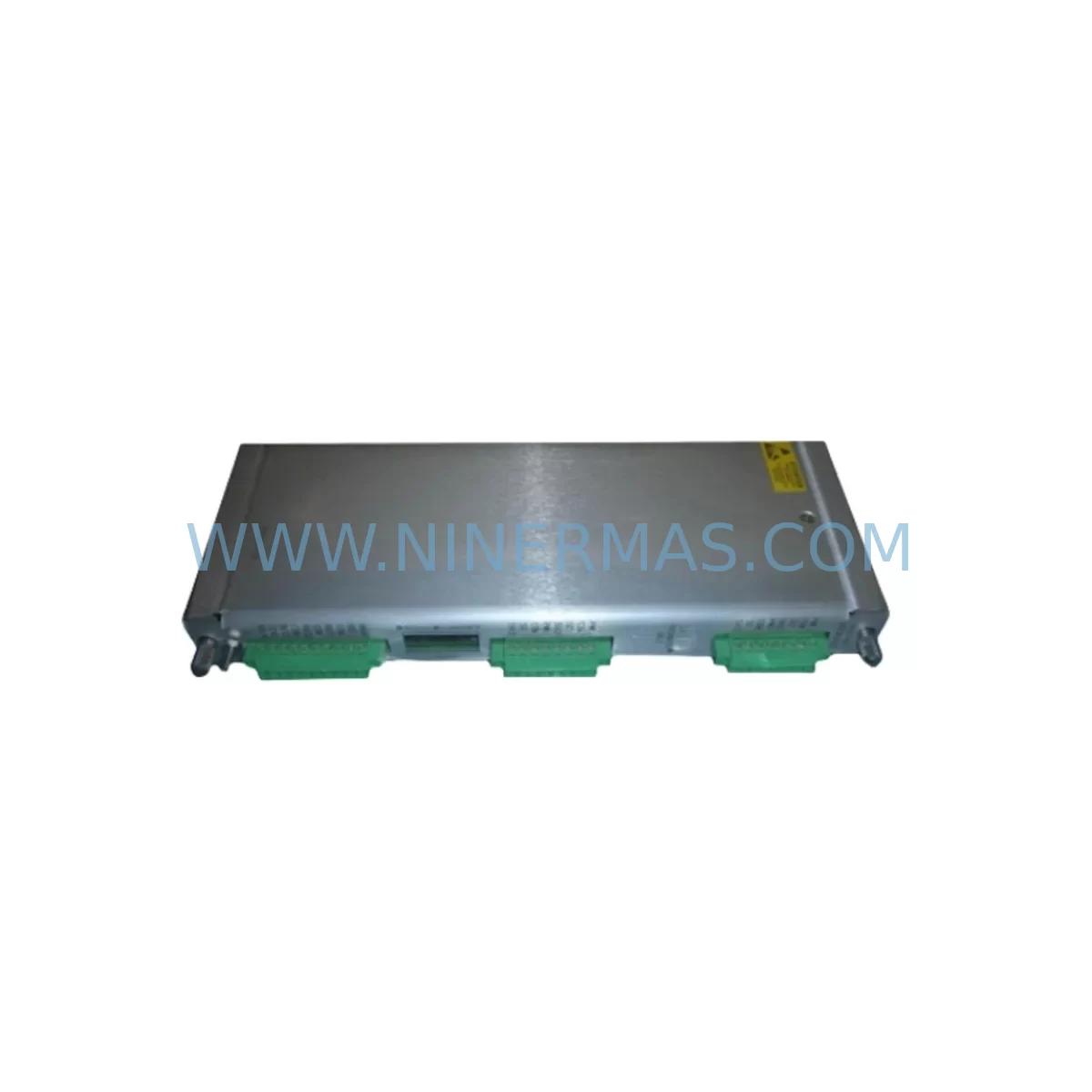

Bently Nevada 135127-01 Retrofit Position I/O Module

Bently Nevada 135127-01 Retrofit Position I/O Module: Legacy-Compatible Upgrade for 3500 Series Control Systems

The Bently Nevada 135127-01 is a ruggedized Position I/O Module designed for integration within the Bently Nevada 3500 Series machinery protection and monitoring platform. As legacy control systems age and OEM support windows close, the 135127-01 has become a critical retrofit component for facilities seeking to extend the operational life of their existing 3500 rack infrastructure without committing to a full platform migration. This module supports position measurement signal conditioning and I/O interfacing in harsh industrial environments, including petrochemical plants, power generation facilities, offshore platforms, and heavy manufacturing lines where vibration, temperature extremes, and electromagnetic interference are constant concerns.

For maintenance engineers and automation specialists managing aging Bently Nevada installations, sourcing a verified replacement 135127-01 is often the fastest path to restoring system integrity after a module failure. Rather than triggering a full rack replacement — which may involve reprogramming the 3500 Rack Interface Module, reconfiguring the 3500/22M Transient Data Interface, and revalidating every channel against the existing Keyphasor signal chain — a direct module swap preserves the existing wiring, terminal assignments, and software configuration. Each unit supplied by NINERMAS undergoes pre-shipment functional testing to confirm signal fidelity, I/O channel response, and backplane communication before dispatch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating a replacement 135127-01 into an existing 3500 Series installation requires a structured approach to avoid introducing new faults during the changeover. The first step is a physical audit of the rack bay: confirm the slot position, verify that the adjacent 3500/20 Rack Interface Module is communicating correctly with the host DCS or SCADA system, and document the existing terminal block wiring before disconnecting any field cables. Position sensors — typically proximity probes or eddy-current transducers — must be carefully labeled and their signal polarity confirmed against the original loop drawings.

Power supply capacity is a common oversight in retrofit projects. The 3500/05 Power Supply Module or its equivalent must be verified to have sufficient headroom to support the replacement I/O module, particularly if other slots in the rack have been upgraded or expanded since the original installation. If the rack is running near its rated load, a supplementary 3500/05 power supply or a rack expansion using a 3500/15 Power Supply may be required before the new module is installed.

Communication chain integrity is equally important. The 3500 Rack Interface Module (RIM) manages the data path between individual I/O modules and the plant historian or condition monitoring software. After installing the 135127-01 replacement, engineers should verify that the RIM correctly enumerates the new module and that all channel tags are mapped correctly in System 1 or the connected DCS. If the facility uses a Modbus or OPC-DA communication link to a third-party SCADA platform, the tag database should be cross-checked to confirm that no address offsets have shifted as a result of the module swap.

For facilities that are simultaneously upgrading their HMI infrastructure — for example, migrating from an older Wonderware InTouch installation to a modern SCADA platform — the 135127-01 replacement can be coordinated with a broader I/O rationalization effort. This may include replacing aging 3500/40M Proximitor/Seismic Monitor modules, consolidating redundant 3500/42M Proximitor/Seismic Monitor channels, or adding a 3500/60 Keyphasor Module to support expanded shaft speed and phase reference monitoring. Signal isolators installed between the 135127-01 output and the DCS analog input cards can help eliminate ground loop interference during the transition period, particularly in older facilities where cable shielding practices were inconsistent.

Where I/O expansion is part of the retrofit scope, engineers should also evaluate whether the existing rack chassis — typically a 3500/05 or 3500/10 frame — has sufficient free slots to accommodate additional modules, or whether a secondary rack linked via a 3500 Rack Interface Module is required. Programming cable access for configuration changes using the Bently Nevada Configuration Data Manager (CDM) software should be confirmed before the maintenance window begins, as last-minute software access issues are a common source of unplanned downtime extension.

Downtime Control During System Migration

Minimizing unplanned downtime during a 135127-01 module replacement is achievable with disciplined pre-outage preparation. The most effective approach is to complete all configuration documentation, spare parts staging, and software backup tasks before the maintenance window opens. This means exporting the full rack configuration from the Bently Nevada Configuration Data Manager, saving a copy of all channel setpoints, alarm thresholds, and Keyphasor assignments, and verifying that a known-good backup of the System 1 database is available before any hardware is disturbed.

During the swap itself, the sequence matters: power down the affected rack slot using the rack’s individual slot isolation capability if available, remove the failed 135127-01, install the replacement unit, and restore power before reconnecting field wiring. This sequence reduces the risk of transient signals triggering spurious alarms or tripping protective relay logic during the changeover. If the plant’s safety instrumented system (SIS) monitors the same shaft position signals, the SIS logic should be placed in bypass mode — with appropriate management of change documentation — for the duration of the swap.

Post-installation verification should include a channel-by-channel signal check against known reference values, confirmation that all alarm setpoints have been correctly restored, and a short-duration trend capture in System 1 or the connected historian to confirm that signal noise levels are within acceptable bounds. For facilities with continuous process requirements, a hot-standby spare 135127-01 held in inventory provides the fastest possible recovery path in the event of a future module failure, reducing mean time to repair (MTTR) to the time required for a physical swap rather than the lead time for a new procurement.

Retrofit Support FAQ

Q1: Is the 135127-01 a direct drop-in replacement for the original Bently Nevada module?
In most 3500 Series rack configurations, yes. The 135127-01 uses the standard 3500 backplane interface and front-access terminal block format. DIP switch settings for module address and channel configuration should be verified against the original unit’s documentation before installation. No firmware update is typically required for a like-for-like replacement.

Q2: What pre-shipment testing is performed on each unit?
Every 135127-01 supplied by NINERMAS undergoes a full functional test prior to dispatch. This includes backplane communication verification, I/O channel signal response testing, and environmental stress screening where applicable. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: Can this module be used in a rack that has been partially upgraded with newer 3500 Series modules?
Yes. The 3500 Series platform is designed to support mixed-module configurations within a single rack, provided that the Rack Interface Module firmware is compatible with all installed modules. It is recommended to confirm the RIM firmware revision against the 135127-01 compatibility matrix before installation in a mixed-revision rack.

Q4: What is the typical lead time and inventory availability?
NINERMAS maintains stock of the 135127-01 to support urgent replacement requirements. Current inventory levels and confirmed lead times are available on request. For time-critical shutdowns or emergency maintenance situations, please contact our team directly to confirm availability and arrange expedited dispatch.
