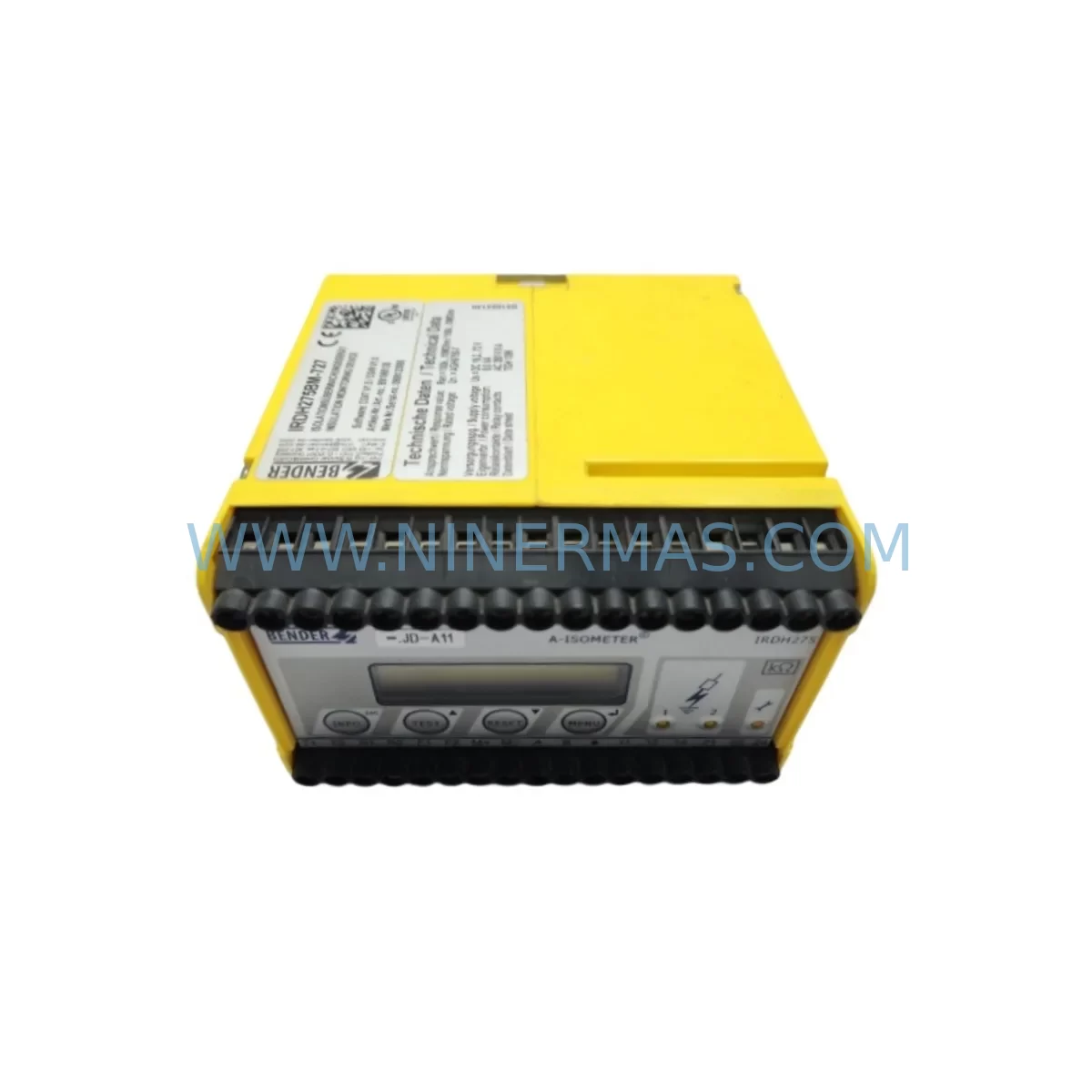

The Bender IRDH275B-435 is an original insulation monitoring device (IMD) engineered for continuous supervision of insulation resistance in ungrounded IT power systems. Deployed across industrial manufacturing plants, chemical processing facilities, offshore platforms, and critical infrastructure control rooms, this unit provides real-time ground fault detection before a first fault escalates into a system-wide shutdown. For maintenance engineers managing aging automation infrastructure, having a verified service-ready IRDH275B-435 in the spare parts inventory is a direct line of defense against unplanned downtime and costly production losses.

The IRDH275B-435 operates across a rated system voltage range up to 690V AC/DC, with an adjustable response value from 1 kΩ to 200 kΩ, making it adaptable to a wide range of industrial electrical environments. Its ruggedized design supports an operating temperature range of -25°C to +55°C, ensuring reliable performance in harsh plant conditions including high-vibration motor rooms, outdoor switchgear enclosures, and temperature-variable process areas. When a unit fails or reaches end-of-service life, immediate replacement with a pre-tested, original spare is the only strategy that maintains system integrity without compromising safety certification compliance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured spare parts strategy around the IRDH275B-435 must account for the full electrical circuit in which it operates. During annual shutdowns or control cabinet inspections, maintenance teams should treat the insulation monitoring circuit as a system — not a single device. When replacing the IRDH275B-435, the following components in the same cabinet or electrical loop should be inspected or replaced concurrently to prevent repeat faults and ensure the new unit operates within specification.

The Bender AN450 coupling device is the primary interface between the IRDH275B-435 and the monitored IT system. A degraded or incorrectly wired AN450 will produce false alarms or suppress genuine insulation faults — always verify its connection integrity and insulation resistance during the same maintenance window. Alongside this, the Bender AGH520S alarm annunciator should be tested for relay response and visual/audible output, as a failed annunciator renders the monitoring system silent during a real fault event.

For fault localization after an insulation alarm, the Bender EDS3090 insulation fault locator is the recommended companion tool. Stocking an EDS3090 alongside the IRDH275B-435 allows maintenance teams to pinpoint the faulted branch without de-energizing the entire system. Similarly, the Bender RCMA423 residual current monitor should be reviewed in systems where AC/DC mixed loads are present, as it complements the IRDH275B-435’s ground fault detection with differential current supervision.

Measurement and connection cables — particularly the Bender W35 and W60 series — are frequently overlooked during spare parts audits. Cracked insulation or corroded terminals on these cables introduce measurement errors that mimic device failure. Replace cables on a scheduled basis rather than waiting for visible damage. The Bender MK2430 relay output module, often used to extend the IRDH275B-435’s alarm relay to remote control panels or SCADA systems, should also be verified for contact integrity and correct wiring during the same inspection cycle.

For sites running the IRDH275B-435 in parallel with other series variants, the Bender IRDH275B-427 covers a different voltage range and is a common stocking companion for facilities managing multiple voltage levels across production lines. Additionally, the Bender B91068100 24V DC auxiliary power supply module should be checked for output stability, as voltage fluctuations at the supply input directly affect the IRDH275B-435’s measurement accuracy and alarm threshold behavior. Terminal blocks, fuse holders, and surge protection devices within the same cabinet should be inspected as part of every insulation monitoring maintenance cycle.

Site Replacement Workflow

Replacing the IRDH275B-435 on-site requires a structured approach to minimize downtime and avoid introducing new faults during the swap. Begin by documenting the existing alarm setpoints, response value settings, and relay output configuration before powering down the cabinet. Photograph the wiring layout and label all terminals before disconnecting the old unit.

Once the original unit is removed, inspect the DIN rail mounting position for corrosion or mechanical damage. Install the replacement IRDH275B-435 and reconnect all terminals according to the original wiring diagram, verifying that the AN450 coupling device connections are secure and correctly polarized. Before restoring power, use a calibrated insulation tester to confirm that the monitored IT system’s baseline insulation resistance is within the expected range — this prevents a false alarm from triggering immediately after startup.

After power restoration, verify that the IRDH275B-435 displays the correct system voltage and insulation resistance readings. Confirm that the AGH520S annunciator responds correctly to a test alarm signal. Log the replacement date, unit serial number, and post-installation test results in the site maintenance record. This documentation supports warranty claims and provides traceability for future audits. The entire replacement procedure, when parts are pre-staged and the team is prepared, can typically be completed within a single planned maintenance window, keeping production downtime to a minimum.

Spare Parts Support FAQ

Q1: Is the IRDH275B-435 a direct replacement for older IRDH275 series units?
The IRDH275B-435 is part of the IRDH275B generation and is designed as a functional replacement for earlier IRDH275 variants in compatible IT system configurations. Before installation, verify the rated system voltage, response value range, and relay output wiring against the existing installation documentation. For systems with non-standard coupling or communication requirements, consult the Bender IRDH275B series compatibility matrix or contact our technical team for pre-purchase verification.

Q2: How do you ensure the spare unit is functional before shipment?
Every IRDH275B-435 unit in our inventory undergoes pre-shipment functional testing, including insulation resistance measurement simulation, relay output verification, and power-on self-test confirmation. Units that do not pass testing are quarantined and not shipped. A test report is available upon request. All shipped units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q3: What is the recommended inventory strategy for the IRDH275B-435?
For facilities with multiple IT system panels or critical production lines, we recommend maintaining a minimum of one IRDH275B-435 unit on-site as a hot spare. For larger sites with 10 or more monitored circuits, a buffer stock of two to three units reduces the risk of extended downtime during simultaneous failures or scheduled maintenance cycles. Pairing the IRDH275B-435 stock with AN450 coupling devices and W35 measurement cables ensures a complete replacement kit is always available without waiting for multi-item procurement lead times.
