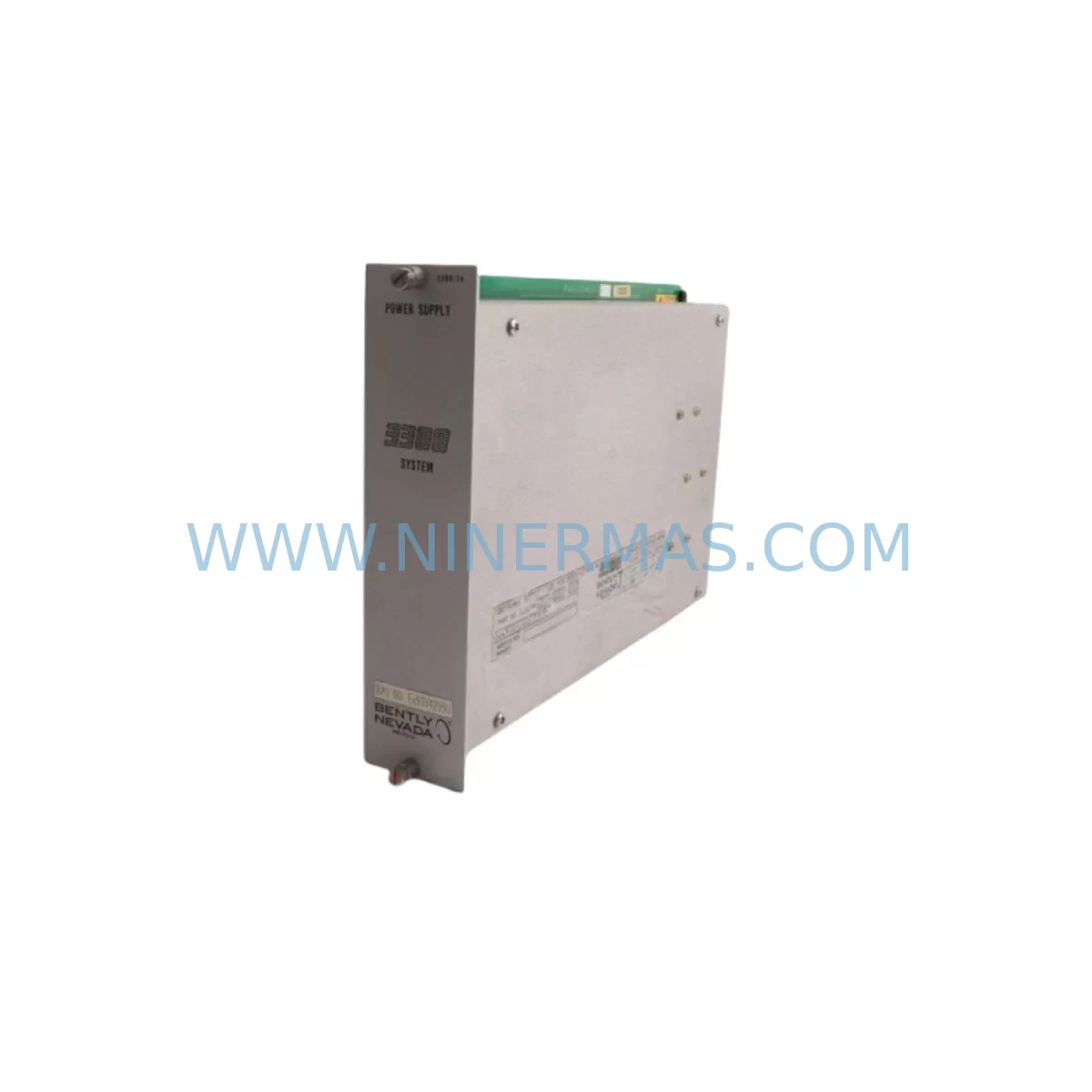

Bently Nevada 3300/14 Safety-Reliable AC Power Supply

Bently Nevada 3300/14 Safety-Reliable AC Power Supply for Critical Control Sites

The Bently Nevada 3300/14 is the dedicated AC Power Supply module engineered for the Bently Nevada 3300 Series vibration monitoring and machinery protection system — one of the most widely deployed continuous machinery monitoring platforms in the global process industry. In critical control environments where unplanned downtime carries severe safety and financial consequences, the 3300/14 serves as the foundational power backbone that keeps the entire monitoring rack operational, stable, and responsive under demanding field conditions.

Designed to operate within the 3300 Series rack architecture, the 3300/14 converts AC mains input into the regulated DC voltages required by co-installed modules such as the Bently Nevada 3300/16-14-01-02-00-00-00 proximitor I/O module, the 3300/20 16-channel monitor, and the 3300/46 Keyphasor module. Its regulated output ensures that signal conditioning circuits, relay output cards, and communication interface modules receive clean, stable power — eliminating voltage sag, ripple, and transient spikes that can cause false trips, missed alarms, or data corruption in vibration and position monitoring loops.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In rotating machinery protection cabinets — whether installed on gas compressors, steam turbines, centrifugal pumps, or large induction motors — power supply integrity is the single most critical factor in preventing false shutdowns and missed protective trips. The Bently Nevada 3300/14 addresses this directly by providing a stable, regulated power rail that eliminates the root cause of many field failures: power-induced signal drift and module brownout.

When deployed alongside the Bently Nevada 3300/25 dual-channel monitor or the 3300/55 temperature monitor, the 3300/14 ensures that all monitoring channels receive consistent supply voltage — preventing the threshold drift that can cause nuisance trips during load transients or grid switching events. In facilities where the control cabinet also houses Rockwell Automation 1756-PA75 ControlLogix power supplies or Phoenix Contact QUINT-PS DIN-rail power supplies for PLC and relay logic sections, the 3300/14 maintains electrical isolation between the vibration monitoring domain and the control domain, reducing cross-domain interference.

For plants operating under IEC 61511 functional safety requirements, the 3300/14 supports the power integrity demands of Safety Instrumented System (SIS) architectures. When paired with Bently Nevada 3500/15 power supply modules in adjacent 3500 Series racks — the next-generation platform — the 3300/14 enables phased migration strategies where legacy 3300 Series racks continue to protect non-critical machinery while 3500 Series racks handle SIL-rated protection loops. This coexistence approach is common in petrochemical and power generation facilities undergoing long-cycle capital upgrades.

Surge and transient protection is equally important in heavy industrial environments. In sites where the main switchgear generates significant conducted EMI — such as arc furnace facilities, large VFD-driven conveyor systems, or offshore platform power distribution networks — the 3300/14’s internal filtering prevents transient energy from propagating into the monitoring rack. This is especially important when the rack also contains Bently Nevada 3300/40 relay output modules that drive shutdown solenoids or alarm annunciators, where a false trigger could initiate an unplanned process shutdown.

For communication-intensive installations where the 3300 Series rack interfaces with a Bently Nevada 3300/95 System 1 communication interface or a Modbus RTU gateway for DCS integration, stable power from the 3300/14 ensures that the communication module maintains continuous data transmission without packet loss or watchdog resets — a common failure mode when power supply ripple exceeds module tolerance thresholds.

Critical Industrial Safety Applications

The Bently Nevada 3300/14 is deployed across the full spectrum of continuous process industries where rotating machinery protection is non-negotiable:

Petrochemical and Refinery Plants: In crude distillation units, catalytic crackers, and compressor trains, the 3300/14 powers vibration monitoring racks that provide the first line of defense against bearing failure, rotor imbalance, and shaft misalignment. API 670-compliant installations depend on the 3300/14 to maintain uninterrupted power to proximity probe signal conditioners and velocity transducer inputs.

Power Generation: Steam turbine and gas turbine protection systems in thermal power plants rely on the 3300 Series rack for real-time shaft displacement and vibration monitoring. The 3300/14 ensures that the monitoring system remains operational during grid disturbances, generator load rejection events, and auxiliary power switchovers — precisely the moments when machinery is most vulnerable to damage.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations generate extreme vibration and dust loading. The 3300/14’s robust design supports continuous operation in these environments, providing stable power to monitoring modules that detect early-stage bearing degradation before catastrophic failure occurs.

Water and Wastewater Treatment: High-service pumping stations and blower systems in water treatment facilities require continuous monitoring to prevent unplanned outages that could affect public water supply. The 3300/14 supports 24/7 monitoring operations in these critical infrastructure environments.

Metallurgy and Steel Production: In electric arc furnace facilities and rolling mill drives, the 3300/14 operates in environments with extreme electromagnetic interference from high-current switching. Its EMI-hardened design maintains power supply integrity even in these electrically hostile conditions.

Marine and Offshore: Offshore platform compressors and marine propulsion systems require machinery protection systems that can withstand salt air, humidity, and vessel motion. The 3300/14’s wide operating temperature range and humidity tolerance make it suitable for these demanding marine environments.

Safety and Quality FAQ

Q1: What warranty does the Bently Nevada 3300/14 carry when purchased from NINERMAS?
All Bently Nevada 3300/14 units supplied by NINERMAS carry a 12-month warranty covering functional performance and operational reliability. Warranty coverage begins from the date of shipment and includes support for field-identified defects under normal operating conditions.

Q2: Is the 3300/14 tested before shipment?
Yes. Every unit undergoes a full pre-shipment functional test at our facility before dispatch. This includes power-on verification, output voltage measurement, and visual inspection for physical integrity. Test records are available upon request for quality-critical procurement processes.

Q3: Is the Bently Nevada 3300/14 compatible with existing 3300 Series racks?
The 3300/14 is designed as the native power supply for the Bently Nevada 3300 Series rack system. It is directly compatible with all standard 3300 Series monitor modules, relay output cards, and communication interface modules without modification. For mixed-rack installations, compatibility with adjacent 3500 Series components should be verified against the specific rack configuration.

Q4: Can NINERMAS support long-term supply of the 3300/14 as a spare part?
Yes. NINERMAS maintains inventory of the Bently Nevada 3300/14 as a long-term spare part to support facilities with extended equipment lifecycles. We understand that many 3300 Series installations remain in service for 15–25 years, and we are committed to providing reliable spare part availability to support planned maintenance, emergency replacement, and lifecycle extension programs.
