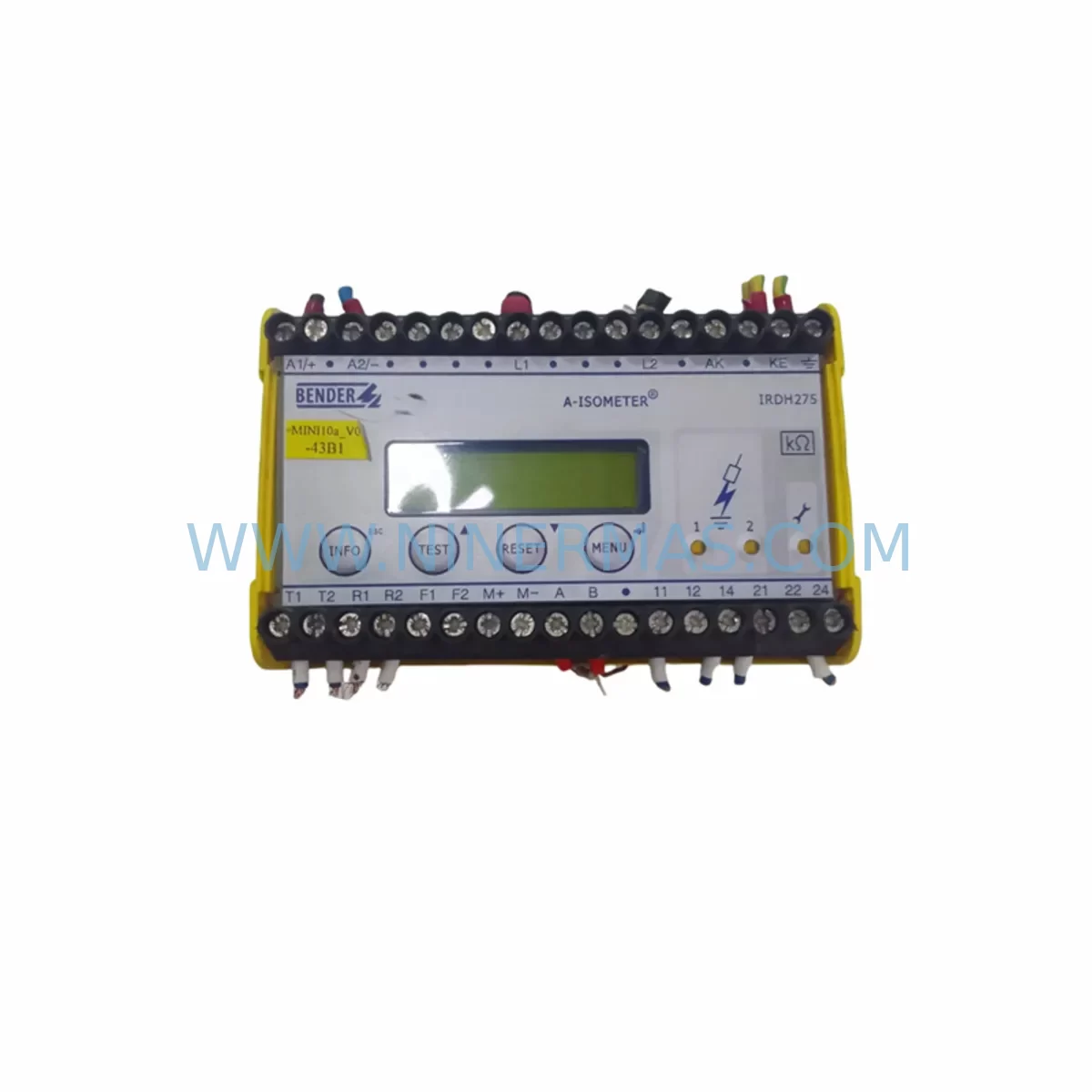

BENDER IRDH275-435 Safety-Reliable Insulation Monitor

BENDER IRDH275-435 Safety-Reliable Insulation Monitor for Critical Control Sites

The BENDER IRDH275-435 is a precision insulation monitoring device engineered for uninterrupted operation in safety-critical industrial environments. Designed for use in IT (isolated terra) power systems, this unit continuously monitors insulation resistance between active conductors and earth, providing early-warning fault detection before a ground fault can escalate into an unplanned shutdown, equipment damage, or personnel hazard. In continuous production facilities, petrochemical plants, power generation stations, and heavy manufacturing sites where control interruption carries severe operational and safety consequences, the IRDH275-435 delivers the reliable, real-time insulation surveillance that modern critical control cabinets demand.

Built on BENDER’s proven IRDH275 platform, the IRDH275-435 variant is optimized for AC/DC IT systems operating at system voltages up to 690 V AC or 1000 V DC. Its adaptive measuring method (AMP) ensures accurate insulation resistance readings even in systems with high capacitive leakage currents — a common challenge in variable frequency drive (VFD) networks, long cable runs, and EMI-dense switchgear environments. The device’s robust design addresses the core risks that plague industrial control systems: signal drift, nuisance tripping, communication anomalies, and surge-induced measurement errors that can mask genuine insulation degradation.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered critical control cabinet, the BENDER IRDH275-435 functions as the first line of defense against insulation failure — but its effectiveness is maximized when integrated with a coordinated protection architecture. In IT power distribution systems serving hospital operating theaters, offshore platforms, or continuous chemical reactors, the IRDH275-435 works in conjunction with the BENDER EDS460 or EDS490 fault location systems to pinpoint the exact branch circuit where insulation degradation has occurred, eliminating the need for manual isolation of entire bus sections and dramatically reducing mean time to repair (MTTR).

For power supply integrity in the same cabinet, pairing the IRDH275-435 with a BENDER ISOMETER iso685 series device on adjacent AC/DC segments ensures comprehensive insulation coverage across mixed-voltage architectures. Where surge and transient protection is required at the incoming supply, PHOENIX CONTACT TRABTECH surge protection devices or equivalent Type 1/2 combined SPDs protect the measurement circuit from lightning-induced voltage spikes that could otherwise corrupt insulation readings or damage the monitoring relay output.

Communication integrity is equally critical. The IRDH275-435’s RS-485 / BCOM interface connects directly to BENDER COM465IP or COM465DP communication modules, enabling real-time insulation data to be transmitted to SCADA systems, DCS platforms, or building management systems without signal loss. In high-EMI environments — common in motor control centers (MCCs) with multiple ABB ACS880 or Siemens SINAMICS S120 variable frequency drives — shielded RS-485 cabling and proper grounding of the BCOM network prevent data corruption that could mask a genuine alarm condition.

For the control power supply feeding the IRDH275-435 and associated relay logic, a PHOENIX CONTACT QUINT POWER or PULS DIMENSION 24 V DC power supply with active power boost and diagnostic output ensures the monitoring device remains energized even during upstream voltage sags. Complementing this, WAGO 750-series or Beckhoff EL-series I/O modules in the same cabinet can capture the IRDH275-435 relay alarm output and route it into the safety PLC logic for automated load shedding or interlock activation — a critical capability in SIL-rated safety instrumented systems (SIS).

Where the control cabinet operates in dusty, humid, or chemically aggressive environments — such as cement plants, wastewater treatment facilities, or offshore drilling platforms — the addition of Rittal TopTherm cabinet cooling units and IP54-rated enclosure sealing ensures the IRDH275-435 and its associated wiring remain within the device’s specified operating envelope, preventing condensation-induced false alarms or accelerated component aging.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In ATEX-classified zones and continuous distillation units, an undetected insulation fault in an IT-powered instrument loop can trigger a catastrophic arc flash or ignition event. The IRDH275-435 provides continuous, non-interrupting insulation surveillance that allows maintenance teams to schedule corrective action during planned turnarounds rather than responding to emergency shutdowns. Its AMP technology reliably distinguishes genuine insulation degradation from capacitive leakage in long instrument cable runs — a critical distinction in large-scale process plants.

Power Generation and Substation Control: Generator excitation systems, UPS-backed protection relay panels, and battery-backed DC control buses in power stations operate as IT systems to maintain supply continuity during a first fault. The IRDH275-435 monitors these isolated systems 24/7, ensuring that a single insulation fault — which would be tolerated in a TN system — is immediately detected and alarmed before a second fault creates a dangerous short circuit or protection system failure.

Mining and Tunneling Operations: Underground mining environments combine high humidity, mechanical vibration, and mobile equipment with the need for continuous haulage and ventilation. IT systems powered by the IRDH275-435 allow mining operations to continue safely after a first insulation fault, with the monitoring device providing the alarm that triggers an orderly inspection cycle rather than an emergency stop that could trap personnel or halt ore extraction.

Water and Wastewater Treatment: Pump motor control panels in water treatment facilities are exposed to condensation, chemical vapors, and frequent start-stop cycling that accelerates cable insulation aging. The IRDH275-435 detects early-stage insulation degradation in submersible pump circuits and chemical dosing systems, enabling predictive maintenance that prevents motor burnout and contamination of treated water supplies.

Metallurgy and Steel Production: Electric arc furnace (EAF) control systems and continuous casting lines operate in extreme thermal and electromagnetic environments. The IRDH275-435’s immunity to high capacitive interference makes it suitable for monitoring insulation in furnace electrode control circuits and ladle transfer systems, where conventional insulation monitors would generate nuisance alarms due to the high leakage currents inherent in high-power induction equipment.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the BENDER IRDH275-435?
The 12-month warranty covers all manufacturing defects, component failures, and functional deviations from the published BENDER IRDH275-435 specification under normal operating conditions. Warranty claims are supported with replacement unit dispatch or repair service. The warranty period begins from the date of confirmed shipment. Physical damage caused by incorrect installation, overvoltage beyond rated limits, or unauthorized modification is excluded.

Q2: What pre-shipment testing is performed on each IRDH275-435 unit?
Every IRDH275-435 unit undergoes a full functional verification test prior to dispatch. This includes confirmation of insulation resistance measurement accuracy across the specified range, relay output operation at the configured alarm threshold, communication interface continuity (RS-485 / BCOM), and supply voltage acceptance. A test record is maintained for each unit. This process ensures that the device arrives on-site ready for installation without requiring additional bench testing.

Q3: Is the IRDH275-435 compatible with existing BENDER IRDH275 series installations?
Yes. The IRDH275-435 is a direct functional replacement within the IRDH275 platform family. It maintains dimensional compatibility for panel cutout and DIN rail mounting, and its BCOM communication protocol is backward-compatible with existing BENDER communication modules including the COM465IP and COM465DP. Configuration parameters from predecessor units can be replicated using BENDER’s BMS or BCOM configuration tools, minimizing commissioning time during a like-for-like replacement.

Q4: Can long-term spare part supply be guaranteed for the IRDH275-435?
Yes. The IRDH275-435 is maintained as a stocked spare part item with committed inventory availability. For customers operating continuous production facilities or safety-critical installations requiring multi-year spare part programs, we support bulk stock commitment arrangements with fixed lead times. This ensures that replacement units are available on demand without exposure to spot-market shortages or extended lead times from the original manufacturer’s distribution network.
