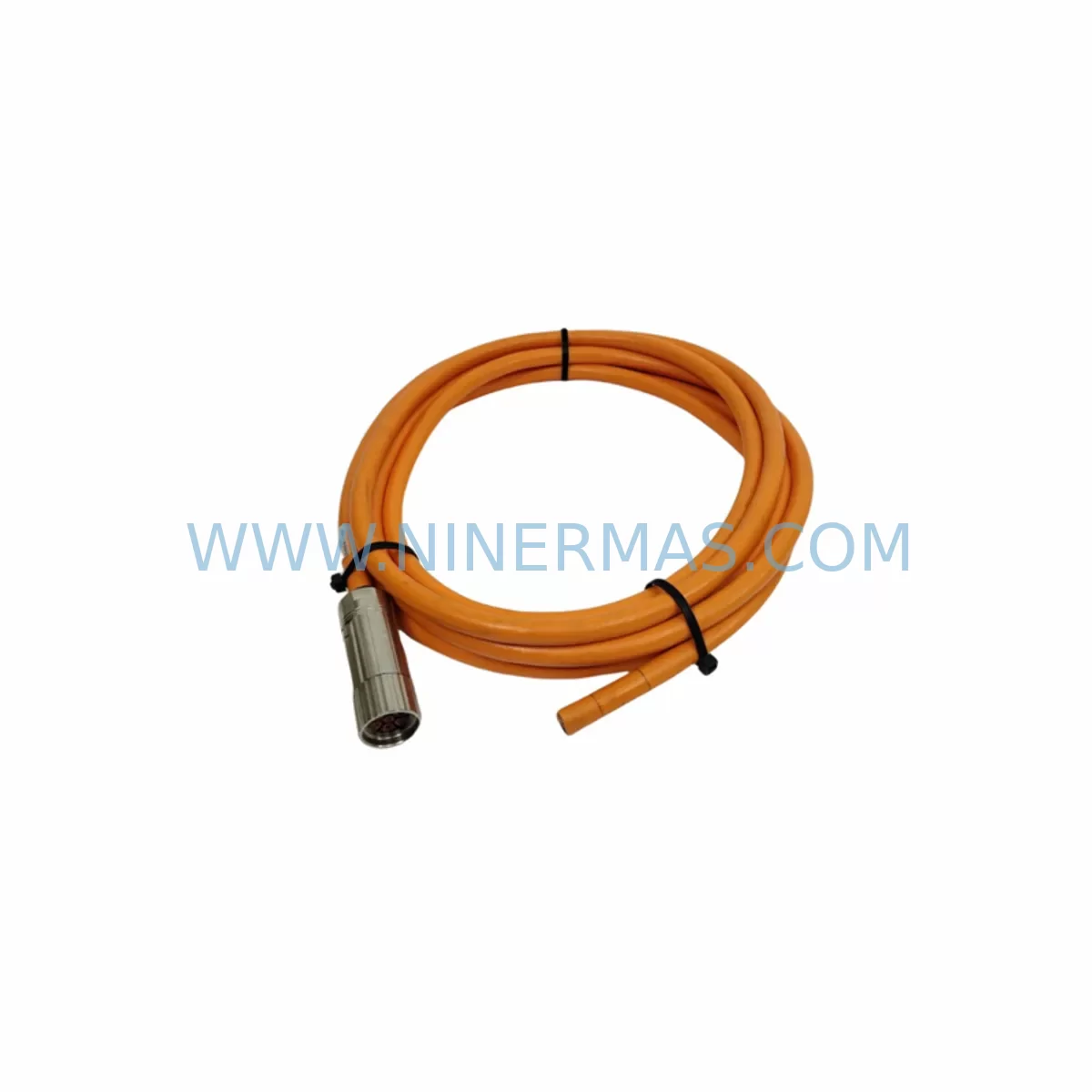

The BECKHOFF ZK4000-2111-2050 is an original pre-assembled motor cable designed for direct integration with BECKHOFF servo drive systems, including the AX5000 and AX8000 series. With a 5.0-metre length and M23 connector configuration, this cable delivers reliable power and encoder signal transmission between the servo drive and the connected motor axis. For maintenance engineers managing aging automation lines or executing planned shutdowns, having a service-ready ZK4000-2111-2050 in stock is a critical element of any spare parts strategy.

Unplanned downtime caused by cable degradation, connector wear, or insulation failure is one of the most preventable yet costly disruptions in industrial automation. The ZK4000-2111-2050 is engineered for demanding environments — oil mist, vibration, repeated flexing — making it a preferred replacement cable for production lines where continuous motion and high-cycle servo operation are standard. Procurement engineers sourcing long-term supply for BECKHOFF-based control systems should treat this cable as a consumable spare, stocking at least one unit per servo axis in critical applications.

NINERMAS supplies original BECKHOFF ZK4000-2111-2050 cables with full traceability, pre-shipment electrical testing, and a 12-month warranty from the date of delivery. Each unit is inspected for connector integrity, shielding continuity, and insulation resistance before dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the ZK4000-2111-2050 during a scheduled or emergency maintenance event, a thorough inspection of the surrounding servo system components is essential to prevent repeat failures and ensure full axis recovery. Maintenance engineers should begin by verifying the condition of the BECKHOFF AX5000 or AX8000 servo drive itself — checking for fault codes, overtemperature history, and DC bus voltage stability before reconnecting a new cable.

The servo motor connector at the motor end (typically an AM8000 or AM8500 series motor) should be inspected for pin corrosion, bent contacts, and moisture ingress. If the motor has been running in a high-humidity or washdown environment, the motor feedback connector and encoder interface board may also require attention. In parallel, the 24 VDC auxiliary power supply feeding the drive’s control section — often sourced from a BECKHOFF PS2000 or equivalent DIN-rail power supply — should be load-tested to confirm stable output under servo enable conditions.

For multi-axis cabinets, the EtherCAT communication chain connecting the AX5000 drives to the BECKHOFF CX or IPC controller should be verified after cable replacement. A single loose EtherCAT patch cable or a degraded EK1100 EtherCAT coupler can prevent axis re-commissioning even after a successful cable swap. Similarly, the EL7201 or EL7211 servo terminal modules used in compact EtherCAT servo configurations should be checked for firmware compatibility and terminal contact condition.

In cabinet-level inspections, engineers should also review the condition of terminal blocks on the drive’s I/O interface, any KL or EL digital output terminals controlling brake release signals, and the 24 VDC brake supply wiring. If the system uses a BECKHOFF TwinSAFE module (such as the EL6900 or AX5805 safety option card) for STO (Safe Torque Off) functionality, the safety wiring and diagnostic status should be confirmed before returning the axis to automatic operation.

For sites managing multiple servo axes, maintaining a structured spare parts kit that includes at least one ZK4000-2111-2050 per critical axis, along with spare AX5000 drive units, AM8000 motor feedback connectors, EtherCAT patch cables, and a replacement EK1100 coupler, significantly reduces mean time to repair (MTTR) during unplanned outages.

Site Replacement Workflow

Step 1 — Isolation: Disable the servo axis via TwinCAT NC/PLC, engage STO via the safety circuit, and isolate the drive from mains power. Confirm zero voltage at the motor cable connector before disconnection.

Step 2 — Cable Removal: Disconnect the ZK4000-2111-2050 at both the drive end (AX5000/AX8000 motor connector) and the motor end (AM8000/AM8500 M23 connector). Inspect the vacated connectors for damage, contamination, or pin deformation.

Step 3 — New Cable Installation: Route the replacement ZK4000-2111-2050 following the original cable path. Avoid sharp bends below the minimum bend radius. Secure with original cable clamps and EMC bonding clips to maintain shielding integrity.

Step 4 — Connector Engagement: Seat and lock both M23 connectors fully. Verify locking ring engagement. Do not overtighten.

Step 5 — System Re-enable: Restore 24 VDC auxiliary power, re-enable STO circuit, and power up the drive. Confirm no fault codes in TwinCAT System Manager. Execute a low-speed jog test before returning to full production speed.

Step 6 — Documentation: Record the replacement date, cable serial number, and post-installation test results in the site maintenance log. Update the spare parts inventory accordingly.

This workflow applies equally to planned annual overhauls and emergency breakdown recovery, and is compatible with BECKHOFF TwinCAT 2 and TwinCAT 3 environments.

Spare Parts Support FAQ

Q1: Is the ZK4000-2111-2050 a direct replacement for older ZK4000 series cables of the same length?
A: Yes. The ZK4000-2111-2050 follows the standard BECKHOFF ZK4000 series connector and wiring specification. It is a direct replacement for any ZK4000-xxxx-xxxx-2050 variant of the same connector type and length, provided the drive and motor connector configuration matches. Always verify the connector coding (straight vs. angled) before ordering.

Q2: How does NINERMAS verify cable quality before shipment?
A: Every ZK4000-2111-2050 unit undergoes pre-shipment testing including conductor continuity across all pins, insulation resistance measurement, and physical inspection of both M23 connectors. Test records are available upon request. All units are shipped in original or equivalent protective packaging to prevent transit damage.

Q3: What is the recommended stocking quantity for a multi-axis servo system?
A: For systems with 4–8 servo axes, we recommend stocking a minimum of 2 units of the ZK4000-2111-2050. For critical 24/7 production lines, a 1:1 spare ratio per axis is advisable. Cable degradation is gradual and often not detected until a fault occurs, making proactive stock management essential for minimising unplanned downtime.

Q4: Does NINERMAS support long-term supply for end-of-life or discontinued BECKHOFF cable variants?
A: Yes. NINERMAS maintains sourcing relationships for original BECKHOFF spare parts including legacy ZK4000 series cables. For long-term maintenance contracts or annual procurement planning, contact our team to discuss volume pricing, reserved stock arrangements, and supply continuity agreements covering 12-month or multi-year horizons.
