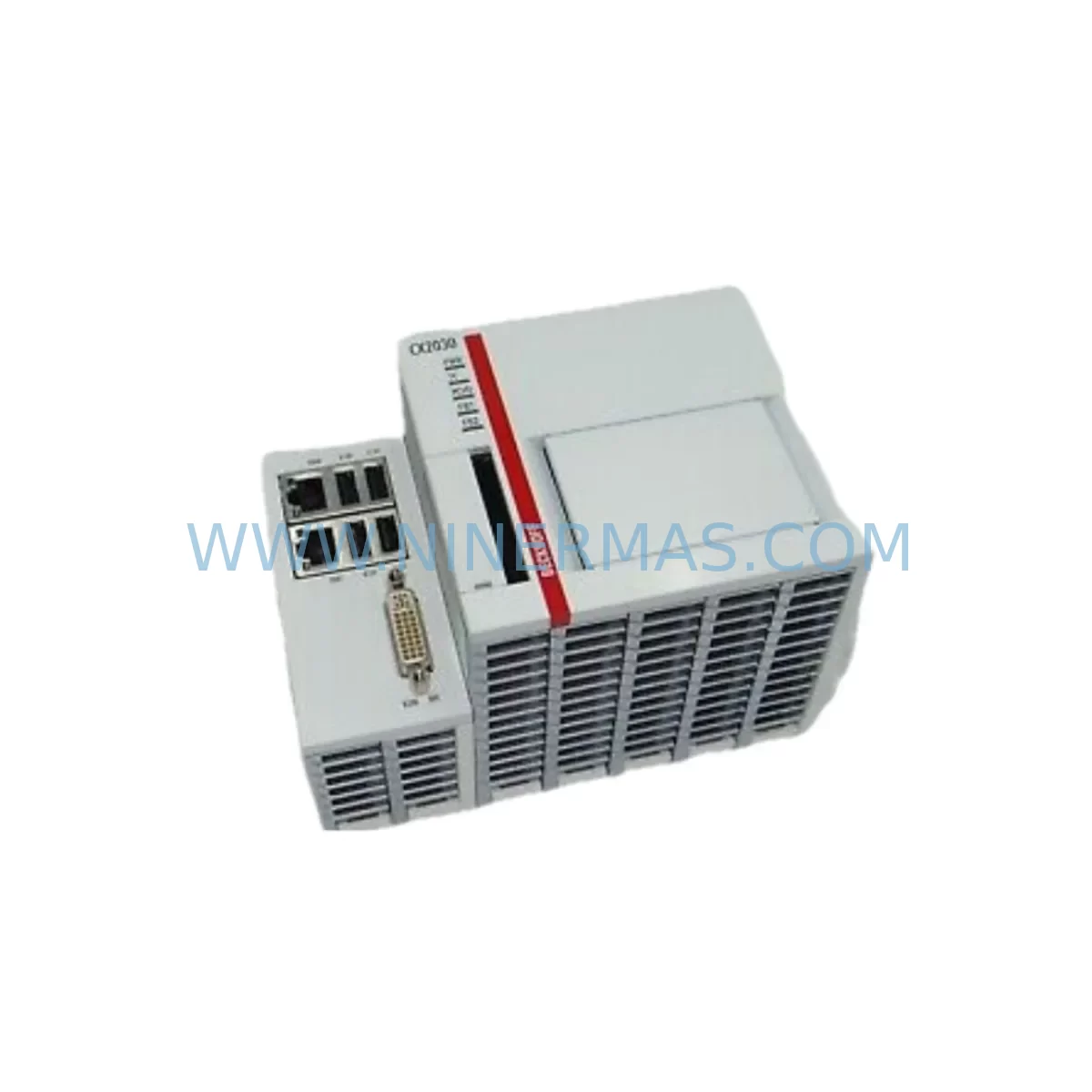

The Beckhoff CX2030-0122 is an original power supply module designed for the CX2000 series Embedded PC platform — one of Beckhoff’s most widely deployed industrial computing architectures in process automation, machine control, and motion systems. When a CX2030-0122 fails or degrades in the field, every minute of unplanned downtime translates directly into production loss. Sourcing a verified, service-ready replacement from a reliable spare parts supplier is the fastest path to restoring system integrity without compromising compatibility or safety.

At NINERMAS, we supply the CX2030-0122 as an original spare part, fully tested prior to shipment, backed by a 12-month warranty, and available for rapid global dispatch. Our procurement team maintains long-term sourcing channels for Beckhoff CX-series components, including end-of-life and discontinued modules, ensuring your maintenance team is never left without a critical replacement.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

The CX2030-0122 power supply module sits at the heart of the CX2030 Embedded PC’s energy distribution. When planning a replacement or conducting a scheduled inspection, maintenance engineers should treat this module as part of a broader system health review — not an isolated swap. A degraded or failed power supply often signals stress on adjacent components that share the same 24 V DC rail or system bus.

During any CX2030-0122 replacement procedure, it is strongly recommended to simultaneously inspect the CX2030 CPU module itself for signs of thermal stress, corrupted firmware, or abnormal boot behavior. The CX2500-0060 or CX2500-0061 fieldbus connection modules mounted to the right of the CPU should be checked for secure seating and clean connector contacts, as power interruptions frequently cause latent damage to these interfaces.

On the I/O side, any EL9410 E-bus power supply terminals feeding downstream EtherCAT I/O slices should be tested for output stability — a failing CX2030-0122 can cause undervoltage events that degrade EL9410 performance over time. Similarly, EL1008 digital input terminals and EL2008 digital output terminals in the same cabinet should be visually inspected for discoloration or connector wear.

For systems using EL6001 serial communication terminals or EL6021 RS422/RS485 interface modules for legacy device integration, verify that communication integrity has not been affected by the power event. Unstable supply voltage is a common root cause of intermittent serial communication faults that are often misdiagnosed as software or configuration issues.

If the CX2030 is connected to a CP6201 or CP6606 Panel PC / HMI via TwinCAT ADS, confirm that the HMI is still communicating correctly after the power module replacement. Power-related resets can corrupt ADS routing tables or TwinCAT runtime states. Additionally, check any KL9010 bus end terminals and KL9100 potential distribution terminals in the same terminal block for secure contact and correct potential assignment.

Procurement engineers building annual spare parts kits for CX2030-based control systems should consider stocking the CX2030-0122 alongside a CX2030 CPU spare unit, at least one EL9410 E-bus power supply terminal, and a set of ZK1090-3191 system bus cables to cover the most common failure scenarios without requiring emergency sourcing under downtime pressure.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Before removing the CX2030-0122, document the current TwinCAT project version, AMS Net ID, and IP configuration. Export the TwinCAT project backup from the CX2030 if the CPU is still accessible. Confirm the replacement CX2030-0122 matches the original part number exactly — do not substitute with CX2030-0120 or CX2030-0124 variants without verifying electrical compatibility with your system integrator.

Step 2 — Safe isolation: De-energize the control cabinet following your site LOTO (Lockout/Tagout) procedure. Disconnect the 24 V DC supply to the CX2030 system. Allow a minimum 30-second discharge period before handling the power supply module.

Step 3 — Module removal and inspection: Slide the CX2030-0122 off the DIN rail mounting. Inspect the connector interface on the CPU side for bent pins or contamination. Clean with dry compressed air if necessary. Inspect the DIN rail clip for deformation.

Step 4 — Replacement installation: Seat the new CX2030-0122 firmly onto the DIN rail and engage the CPU-side connector. Verify the module is flush and the locking mechanism is engaged. Reconnect the 24 V DC supply.

Step 5 — System restart and validation: Power up the CX2030 and confirm TwinCAT runtime restarts correctly. Verify all EtherCAT slaves come online without error. Check the TwinCAT System Manager for any I/O or communication faults. Confirm HMI connectivity and process variable integrity before returning the system to production.

This workflow minimizes downtime exposure and ensures the replacement is validated before the system is handed back to operations — a critical step for maintaining safety integrity in automated production environments.

Spare Parts Support FAQ

Q1: Is the CX2030-0122 still available as a new original part, or only as refurbished?
Availability depends on current stock status. NINERMAS maintains sourcing channels for both new original and professionally refurbished-to-specification CX2030-0122 units. All refurbished units undergo full electrical testing and are supplied with the same 12-month warranty as new stock. Contact our team for real-time availability confirmation before placing an order.

Q2: How do I verify compatibility between the CX2030-0122 and my existing CX2030 CPU unit?
The CX2030-0122 is designed specifically for the CX2030 Embedded PC platform. Compatibility is confirmed by matching the CPU base unit part number (CX2030-xxxx) and verifying the system bus connector revision. If you are unsure, provide your full system configuration — including TwinCAT version and any expansion modules — and our technical team will confirm compatibility before shipment.

Q3: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or environmental contamination beyond IP20 rating. To initiate a warranty claim, contact sale@ninermas.com with your order reference, a description of the fault, and photographic evidence. Our team will arrange return logistics and replacement dispatch.

Q4: Can NINERMAS support long-term supply agreements for CX2030-0122 and related CX-series components?
Yes. For maintenance teams managing multiple CX2030-based systems or planning multi-year spare parts budgets, NINERMAS offers long-term supply agreements with reserved stock allocation, priority dispatch, and fixed pricing. This is particularly valuable for end-of-life Beckhoff components where open-market availability is declining. Contact our procurement team to discuss a tailored supply agreement.
