Basler 0000104714-07 Safety-Reliable CCD Camera for Critical Sites

Basler 0000104714-07 Safety-Reliable CCD Camera for Critical Industrial Control Sites

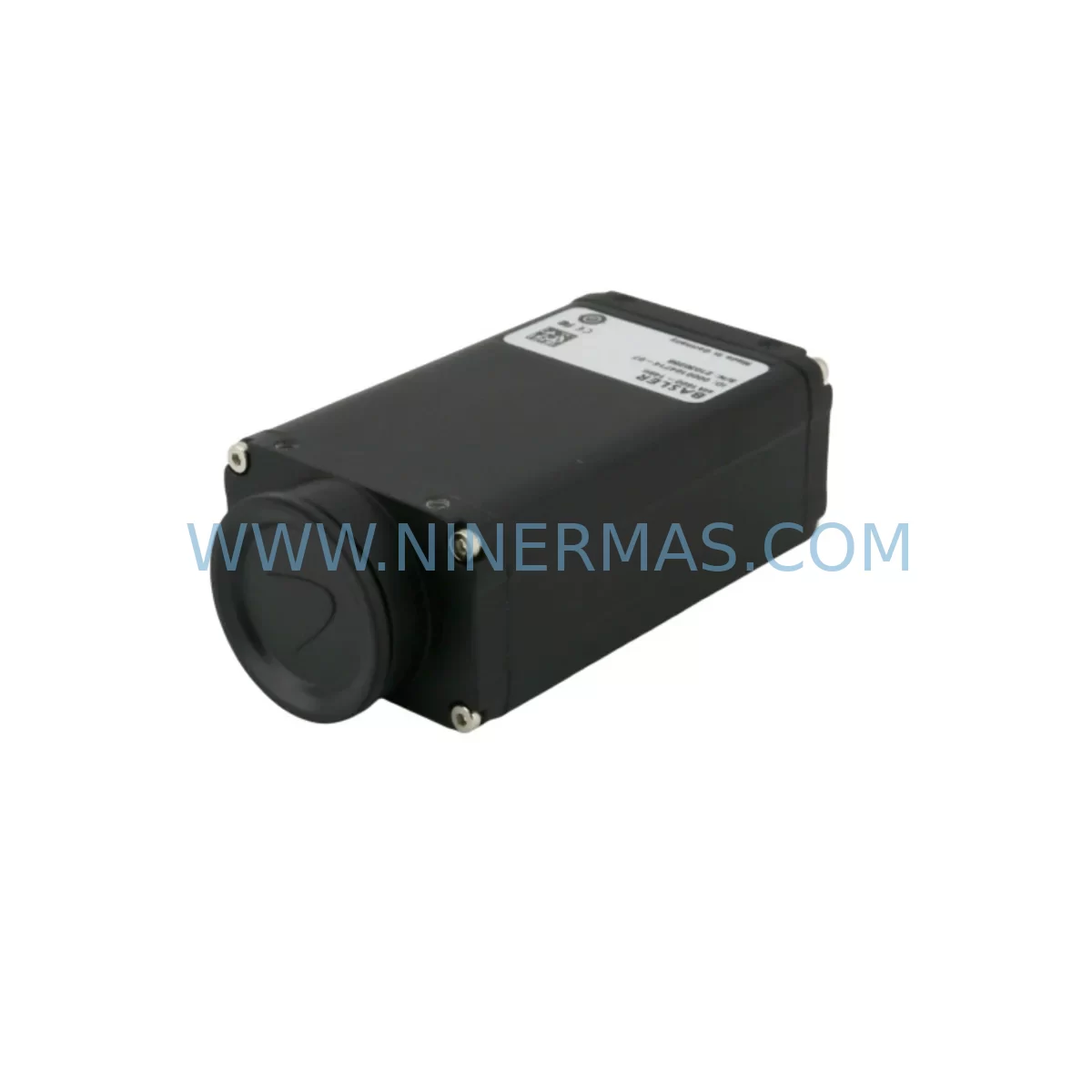

The Basler 0000104714-07 SIA1600-14FM is a high-resolution industrial CCD camera engineered for continuous, safety-critical machine vision applications. With a 400mm × 190mm (KXL06050V-N2-S40) sensor configuration and 14-bit monochrome output, this camera delivers exceptional image fidelity in demanding production environments where control interruption, signal drift, or misdetection can trigger unplanned shutdowns or safety incidents. Designed for integration into critical control cabinets, automated inspection lines, and safety interlock systems, the SIA1600-14FM provides the stable, repeatable imaging performance that modern industrial safety demands.

At NINERMAS, every unit of the Basler 0000104714-07 undergoes pre-shipment functional testing to verify sensor integrity, output signal stability, and interface compatibility before dispatch. Backed by a 12-month warranty, this camera is available from long-term stock to support both planned maintenance cycles and emergency spare part replacement scenarios.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In critical control cabinet environments — particularly those serving continuous process industries — a single point of imaging failure can cascade into costly production halts or, worse, safety incidents. The Basler 0000104714-07 SIA1600-14FM is designed to be the stable visual sensing anchor within a broader, layered protection architecture.

For reliable Camera Link signal transmission across long cabinet runs, the SIA1600-14FM pairs effectively with Camera Link fiber optic extenders such as those from the Basler CL-series accessory range, which eliminate signal degradation over distances exceeding 10 meters. In high-electromagnetic-interference (EMI) environments — common in motor drive cabinets housing Siemens SINAMICS G120 variable frequency drives or ABB ACS880 industrial drives — proper EMC shielding and ferrite core filtering on Camera Link cables are essential to prevent image noise and frame loss.

Power quality is equally critical. The SIA1600-14FM’s 12V DC supply should be sourced from a regulated, low-ripple DIN rail power supply such as the MEAN WELL HDR-60-12 or equivalent, ensuring the camera receives clean, stable power even when co-located with high-inrush loads like solenoid valves or contactor banks. Surge protection devices — for example, Phoenix Contact TRABTECH surge arresters — should be installed upstream of the camera power feed to guard against transient voltage spikes from nearby switching equipment.

On the control side, the camera’s output integrates with Cognex In-Sight vision processors or National Instruments frame grabber cards (e.g., NI PCIe-1433) to deliver real-time inspection data to the supervisory PLC layer. When the host controller is a Siemens S7-1500 safety PLC or a Beckhoff CX2040 embedded PC, the vision system can be configured to trigger safety-rated outputs upon defect detection, directly feeding into the machine’s safety interlock chain without additional relay logic.

Network-level resilience is maintained through Hirschmann MICE industrial managed Ethernet switches, which provide redundant ring topology for the broader automation network surrounding the vision station. For installations in dusty or humid environments — such as cement plants or coastal port facilities — the camera enclosure should be supplemented with an IP65-rated protective housing and positive-pressure purge system to prevent particulate ingress and condensation on the sensor window.

Finally, for applications requiring synchronized multi-camera inspection, the SIA1600-14FM supports external trigger input, allowing precise coordination with Basler acA1600-20gm GigE cameras used in adjacent inspection zones, creating a unified, time-stamped imaging record for traceability and audit compliance.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process facilities handling flammable or toxic materials, the SIA1600-14FM provides non-contact visual inspection of valve positions, pipe joint integrity, and seal conditions on critical process lines. Its global shutter eliminates motion artifacts when inspecting rotating equipment, and its stable CCD output ensures consistent defect detection even under the harsh lighting conditions typical of outdoor or semi-enclosed refinery structures.

Power Generation & Transmission: Deployed in turbine hall inspection systems and transformer monitoring stations, this camera supports automated visual checks of insulator surfaces, busbar connections, and cooling fin conditions. Integration with the plant’s DCS (Distributed Control System) via the vision processor allows alarm generation upon detection of surface anomalies, supporting predictive maintenance before failures escalate to forced outages.

Mining & Mineral Processing: In underground and surface mining operations, the SIA1600-14FM is used for conveyor belt tear detection, ore size classification, and crusher gap monitoring. Its robust CCD sensor maintains imaging accuracy in the high-vibration, dust-laden environments characteristic of crushing and screening circuits, where lesser cameras suffer from premature sensor degradation.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use this camera for automated inspection of filter media condition, sedimentation basin surface monitoring, and UV disinfection lamp integrity checks. The camera’s stable low-light performance is particularly valuable in enclosed treatment chambers where supplemental lighting must be minimized.

Metallurgy & Steel Production: In hot rolling mills and continuous casting lines, the SIA1600-14FM supports surface defect detection on steel strip and billet products at production speeds. Its 14-bit dynamic range captures subtle surface texture variations — pits, cracks, scale inclusions — that 8-bit cameras routinely miss, directly reducing scrap rates and downstream quality escapes.

Port & Marine Logistics: Automated container inspection systems at port terminals rely on high-resolution CCD cameras to verify container seal integrity, identify damage, and read OCR markings under variable outdoor lighting. The SIA1600-14FM’s wide dynamic range and global shutter make it well-suited for these high-throughput, safety-critical identification tasks.

Safety and Quality FAQ

Q1: What warranty coverage does the Basler 0000104714-07 SIA1600-14FM carry?
Every unit supplied by NINERMAS carries a 12-month warranty from the date of shipment. This covers manufacturing defects, sensor performance degradation below specification, and interface failures under normal operating conditions. Warranty claims are supported by our pre-shipment test records, which document the unit’s functional status at the time of dispatch.

Q2: What pre-shipment testing is performed on each unit?
Each Basler 0000104714-07 undergoes a structured functional test protocol prior to dispatch, including: power-on verification, Camera Link signal integrity check, full-frame image capture and pixel uniformity assessment, and external trigger response validation. Test results are retained in our quality management system and can be provided upon request for critical installation documentation.

Q3: Is the SIA1600-14FM compatible with my existing Camera Link frame grabber and vision software?
The Basler 0000104714-07 SIA1600-14FM complies with the Camera Link Full standard, ensuring compatibility with all major Camera Link frame grabbers including those from National Instruments, Matrox, and Euresys. It is also supported by Basler’s pylon Camera Software Suite, which provides drivers and APIs for integration with common machine vision frameworks including HALCON, OpenCV, and LabVIEW Vision. For site-specific compatibility verification, contact our technical team with your frame grabber model and software version.

Q4: Can NINERMAS guarantee long-term supply for this end-of-life or legacy component?
Yes. NINERMAS maintains dedicated reserve inventory for industrial automation components with limited or discontinued production runs, including the Basler 0000104714-07 SIA1600-14FM. Our procurement model prioritizes long-term stock agreements with verified suppliers to ensure availability for planned maintenance cycles, emergency replacements, and multi-unit retrofit projects. Customers with recurring demand are encouraged to discuss reserved inventory arrangements to secure supply continuity.
