B&R 8BVI0220HCD8.000-1 Retrofit-Compatible Servo Drive for Legacy Systems

B&R 8BVI0220HCD8.000-1 Retrofit-Compatible Servo Drive for Legacy Systems

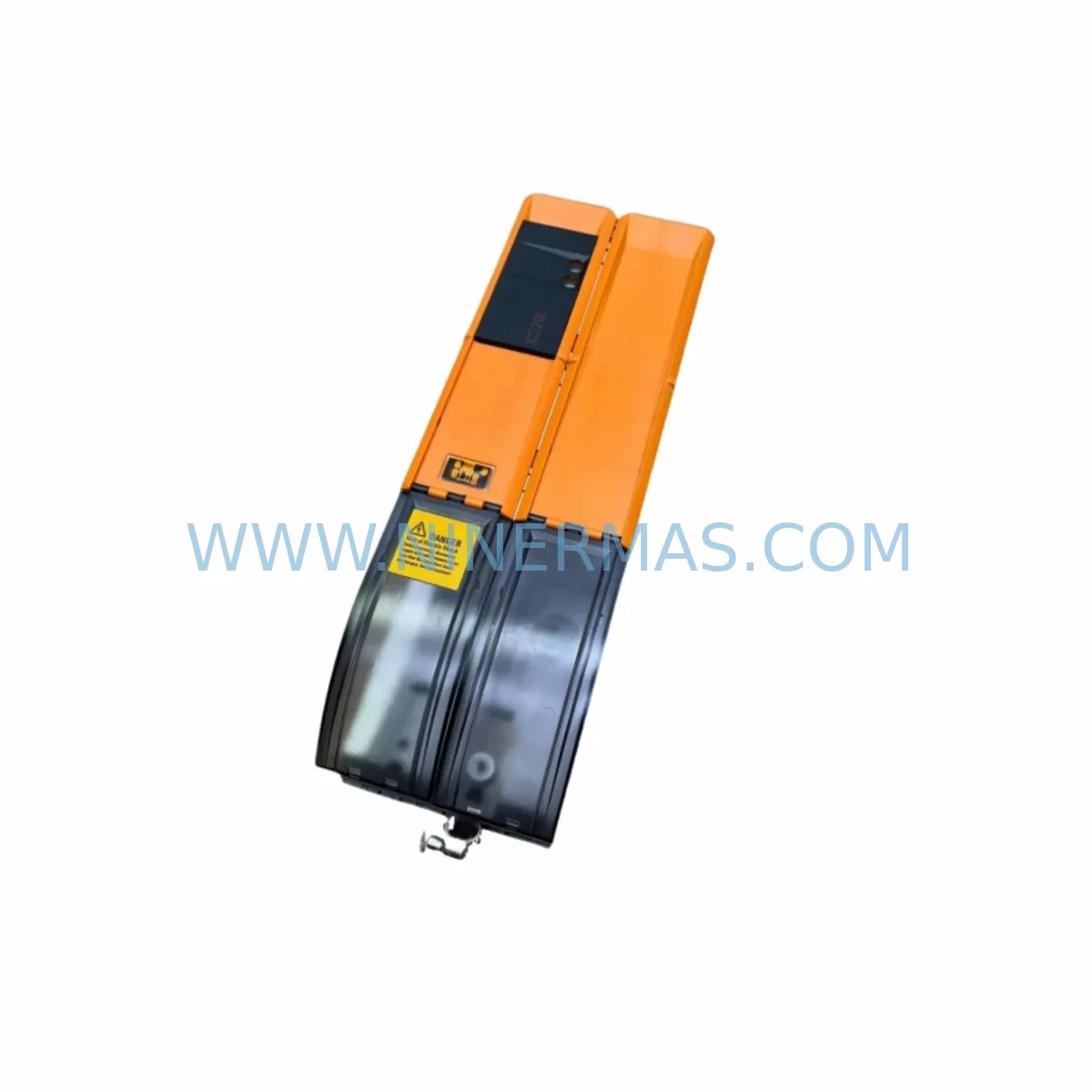

The B&R 8BVI0220HCD8.000-1 is an ACOPOSmulti series inverter/servo drive module rated at 22 A continuous output current, designed for multi-axis motion control architectures in demanding industrial environments. As B&R’s ACOPOSmulti platform reaches end-of-production milestones, plant engineers and maintenance teams increasingly require verified retrofit-compatible replacements that preserve existing motion logic, axis parameterization, and POWERLINK communication topology without forcing a full drive system overhaul. NINERMAS supplies the 8BVI0220HCD8.000-1 from original manufacturing stock, fully tested and backed by a 12-month warranty, to support smooth legacy system modernization and unplanned breakdown recovery.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 8BVI0220HCD8.000-1 within an existing ACOPOSmulti installation requires a structured pre-migration assessment to avoid axis configuration loss and unplanned downtime. The first step is to document the current axis parameter set using Automation Studio’s online axis configuration export. This preserves motor data, encoder resolution, current loop gains, and velocity feed-forward values that would otherwise need to be re-tuned from scratch after module swap.

On the power supply side, confirm that the installed 8B0C0160HCS0.000-1 or 8B0M0220HCS0.000-1 DC bus supply module can sustain the combined peak current demand of all active inverter slots after the replacement module is inserted. Undersized supply modules are a common cause of nuisance trips during post-retrofit commissioning. Similarly, verify that the 8BVI0220HCD8.000-1 shares the same DC bus segment as adjacent inverter modules — ACOPOSmulti systems use segmented bus bars, and incorrect segment assignment will prevent the module from receiving bus voltage.

Terminal wiring at the motor power connector (X4) and brake connector (X5) should be photographed and labeled before removal. The 8BVI0220HCD8.000-1 uses the standard ACOPOSmulti motor connector pinout, but field technicians should cross-reference the motor cable shield grounding point on the cabinet backplate to ensure EMC compliance is maintained after reinstallation. If the existing motor cable uses a 8BCM motor connector assembly, it will mate directly to the replacement module without re-crimping.

For systems using 8BAC encoder option modules — such as the 8BAC0120.000-1 for EnDat 2.2 or the 8BAC0130.000-1 for resolver feedback — these plug-in encoder cards transfer with the axis and do not need to be replaced unless physically damaged. Confirm that the encoder option module firmware version is compatible with the replacement inverter module’s hardware revision (HCD8 suffix) before powering up.

POWERLINK network topology should be verified using the network diagnostic view in Automation Studio. The 8BVI0220HCD8.000-1 operates as a managed node on the POWERLINK ring. After physical replacement, the node address (set via rotary switch on the module face) must match the original address stored in the PLC project. Mismatched node addresses will cause the X20CP controller or APC910 industrial PC to report a network configuration error and prevent axis enable. If the installation uses a POWERLINK hub such as the X20HB8815, confirm that the ring segment is intact after module swap.

For multi-axis gantry or coordinated motion applications, the 8BVI0220HCD8.000-1 may operate alongside 8BVI0640HCS0.000-1 high-current inverter modules on larger axes and 8BVI0055HCD0.000-1 compact modules on auxiliary axes. Ensure that the Automation Studio axis grouping and CNC or robotics channel assignments are not disrupted during the single-module replacement. A partial system restart — bringing only the affected POWERLINK segment offline — is preferable to a full machine stop where process continuity allows.

HMI screens built on B&R’s mapp View or Power Panel platforms that display axis status, drive fault codes, or torque monitoring values will resume normal operation automatically once the replacement module is recognized on the POWERLINK network and the axis is re-enabled. No HMI screen modification is required for a like-for-like module replacement. However, if the retrofit involves a firmware version change, verify that the mapp Axis or mapp Motion library version in the PLC project is compatible with the new module firmware to avoid runtime library mismatch errors.

Downtime Control During System Migration

Minimizing production downtime during an 8BVI0220HCD8.000-1 replacement begins with advance preparation. Before the maintenance window opens, use Automation Studio to create a full project backup including axis parameters, POWERLINK network configuration, and safety function assignments if the system uses an integrated SafeMOTION option. Store this backup on an external medium independent of the machine controller.

Physical replacement of an ACOPOSmulti inverter module is a tool-free operation — the module slides out of the backplane slot after releasing the locking lever, and the replacement slides in and locks without requiring any wiring changes to the DC bus bar or motor connector if the same cable assembly is reused. This mechanical simplicity means that a trained technician can complete the physical swap in under 15 minutes, with the remaining commissioning time dominated by POWERLINK node recognition, axis parameter download, and test motion execution.

To protect original program logic, never perform a full PLC project download during a module swap unless a firmware update is also required. Use the Automation Studio “Transfer to Target” function in online mode to push only the axis configuration changes, leaving the application program, safety logic, and HMI project untouched. This approach preserves production recipes, batch counters, and operator-set parameters that reside in non-volatile PLC memory.

For critical production lines where even a brief axis disable is unacceptable, consider pre-staging the replacement 8BVI0220HCD8.000-1 with the correct node address and encoder option module installed, then executing the swap during a scheduled micro-stop or product changeover. NINERMAS ships modules with pre-shipment functional testing completed, reducing the risk of receiving a non-functional unit that would extend the maintenance window unexpectedly.

After the replacement module is installed and the POWERLINK network is confirmed healthy, execute a controlled test motion sequence at reduced speed and torque before returning the axis to full production speed. Monitor drive temperature, current feedback, and position error via the Automation Studio online monitor or the machine’s existing SCADA connection to confirm that the replacement module is performing within specification before releasing the line.

Retrofit Support FAQ

Q1: Is the 8BVI0220HCD8.000-1 a direct drop-in replacement for other 8BVI0220 variants?
The 8BVI0220HCD8.000-1 is slot-compatible with other ACOPOSmulti 22 A inverter modules sharing the same backplane interface. However, the HCD8 hardware and firmware suffix must match the axis configuration stored in the PLC project. If the original module carried a different suffix (e.g., HCS0 or HCD0), verify compatibility in Automation Studio before powering up. NINERMAS technical support can assist with cross-reference confirmation prior to shipment.

Q2: What commissioning steps are required after installing the replacement module?
After physical installation, confirm the POWERLINK node address matches the original, download the axis parameter set from the project backup, perform a motor identification run if the encoder option module was also replaced, and execute a slow-speed test motion to verify position feedback and current loop stability. Full recommissioning from scratch is only required if the motor or encoder type has changed.

Q3: Does NINERMAS perform pre-shipment testing on the 8BVI0220HCD8.000-1?
Yes. All units supplied by NINERMAS undergo functional power-on testing and output stage verification before dispatch. Units are shipped with original packaging where available and include a test record. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment.

Q4: What is the typical lead time and stock availability?
NINERMAS maintains inventory of ACOPOSmulti series modules including the 8BVI0220HCD8.000-1 to support urgent breakdown and planned retrofit requirements. Standard in-stock orders are dispatched within 1–3 business days. For large-quantity or long-term supply agreements, contact our sales team to discuss scheduled delivery and reserved stock arrangements.
