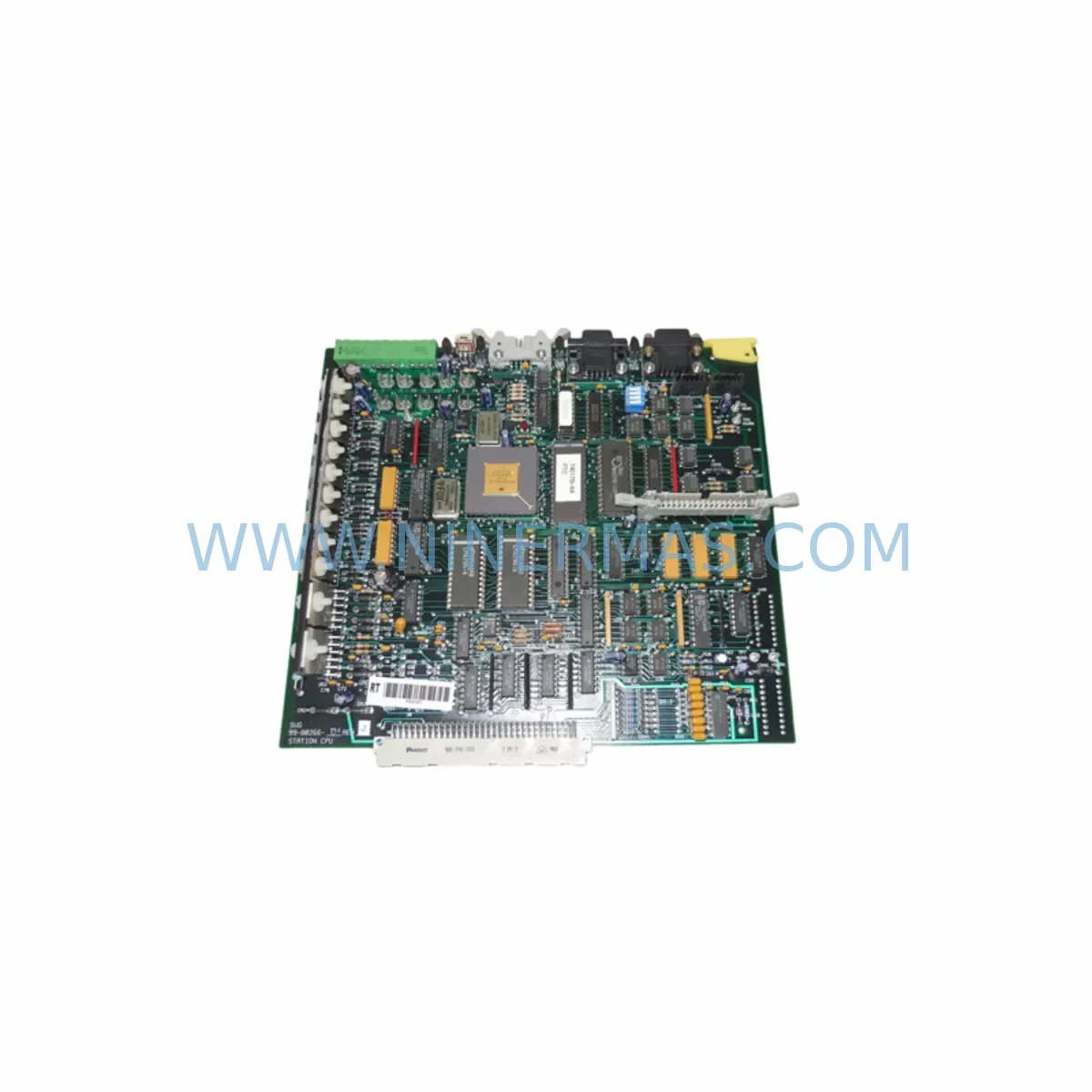

The ASML SVG 99-80266-01 is a critical CPU board designed for Silicon Valley Group (SVG) lithography and industrial automation systems. As semiconductor fabs and precision manufacturing facilities extend the operational life of legacy SVG platforms, maintaining a reliable inventory of the SVG 99-80266-01 is essential for minimizing unplanned downtime and sustaining throughput. This board serves as the central processing unit within the SVG control architecture, coordinating motion control, I/O sequencing, and system diagnostics across the equipment platform.

At NINERMAS, every SVG 99-80266-01 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and shipped with full documentation. Our 12-month warranty covers all tested spare parts, giving maintenance engineers and procurement teams the confidence to plan replacements without compromising system integrity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the SVG 99-80266-01 CPU board, a thorough inspection of the surrounding control cabinet is strongly recommended to prevent repeat failures and ensure full system recovery. Maintenance engineers should verify the condition of the SVG backplane assembly that hosts the CPU board, as damaged backplane connectors or cracked PCB traces can cause intermittent faults even after a successful board swap.

The system power supply feeding the CPU board — typically an SVG-series DC power supply module — should be load-tested to confirm stable voltage rails (commonly +5 VDC and ±12 VDC) before the new board is powered on. Voltage ripple or marginal regulation is a leading cause of premature CPU board failure in aging SVG platforms.

I/O interface boards connected to the CPU via the backplane bus should also be inspected. Common candidates include SVG digital I/O modules and analog signal conditioning boards that handle sensor feedback from the lithography stage. Corroded edge connectors or failed I/O drivers can generate fault codes that are incorrectly attributed to the CPU board itself.

Communication interfaces — including GPIB interface cards, RS-232/RS-422 serial communication modules, and any Ethernet or fieldbus adapter boards integrated into the SVG control rack — should be reseated and tested. A faulty communication module can prevent the CPU board from completing its initialization sequence, leading to misdiagnosis during troubleshooting.

For systems that include HMI operator panels or dedicated display controller boards, verify that the display communication link to the CPU is intact. Broken ribbon cables or failed display interface ICs are a common secondary fault discovered during CPU board replacement campaigns.

Relay output modules and solid-state relay (SSR) driver boards within the same control cabinet should be inspected for contact wear or thermal damage, particularly if the original CPU board failure was preceded by erratic output behavior. Similarly, signal isolation modules protecting analog inputs from ground loops should be checked for drift or failure, as these can corrupt feedback data processed by the CPU.

Terminal blocks, DIN rail fuse holders, and wiring harnesses connecting the CPU board’s I/O to field devices should be inspected for loose terminations, insulation breakdown, or corrosion — especially in humid or chemically aggressive fab environments. Replacing the CPU board without addressing wiring integrity issues risks immediate re-failure.

Finally, for facilities running annual or biennial overhaul programs, the SVG 99-80266-01 should be included in the critical spare parts list alongside the backplane, power supply, and primary I/O boards. Stocking a minimum of one tested spare unit per active SVG system significantly reduces mean time to repair (MTTR) and supports lifecycle extension programs for equipment that may no longer be supported by the OEM.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the SVG 99-80266-01 part number against the system’s bill of materials or the label on the installed board. Cross-reference with the SVG system documentation to verify board revision compatibility if applicable.

Step 2 — System Power-Down: Follow the SVG equipment’s standard lockout/tagout (LOTO) procedure. Discharge any residual capacitor energy in the power supply section before opening the control cabinet.

Step 3 — ESD Protection: Use a grounded ESD wrist strap and anti-static mat. The SVG 99-80266-01 contains sensitive CMOS and TTL logic components that are susceptible to electrostatic discharge damage.

Step 4 — Board Removal and Inspection: Remove the faulty board and inspect the backplane connector for bent pins or debris. Clean the connector with appropriate contact cleaner if necessary.

Step 5 — Installation: Seat the replacement SVG 99-80266-01 firmly into the backplane slot. Secure any retention hardware. Reconnect all cables and verify correct orientation of any DIP switches or jumper settings that match the original board configuration.

Step 6 — Power-On and Diagnostics: Restore power and observe the system boot sequence. Confirm that the CPU board completes initialization without fault codes. Run the SVG system’s built-in diagnostic routine to validate I/O, communication, and motion control functions before returning the equipment to production.

Step 7 — Documentation: Record the replacement in the equipment maintenance log, including the new board’s serial number, installation date, and technician name. Retain the failed board for root cause analysis if required.

Spare Parts Support FAQ

Q1: Is the SVG 99-80266-01 compatible with all SVG lithography system variants?
The SVG 99-80266-01 is designed for use within the SVG industrial automation and lithography control platform. Compatibility should be verified against the specific system model and board revision documented in your equipment’s maintenance manual. NINERMAS technical support can assist with compatibility confirmation prior to order placement.

Q2: What testing is performed before shipment?
Every SVG 99-80266-01 unit undergoes pre-shipment functional testing to verify board-level operation. Test records are available upon request. Units are packed in anti-static packaging with appropriate cushioning to prevent transit damage.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers defects in materials and workmanship under normal operating conditions. It applies from the date of shipment. Warranty claims are supported by NINERMAS directly, with replacement or repair options available depending on stock availability and fault assessment.

Q4: Can NINERMAS support long-term supply commitments for the SVG 99-80266-01?
Yes. NINERMAS offers long-term supply programs for critical spare parts including the SVG 99-80266-01, with options for blanket orders, reserved stock, and scheduled delivery to support annual maintenance planning and lifecycle extension programs for legacy SVG systems.
