AMAT B101-HEA-0200-76057 Retrofit Seal Module for Legacy Systems

AMAT B101-HEA-0200-76057 Retrofit Seal Module: Ruggedized Sealing Ring Replacement for Legacy Applied Materials Systems

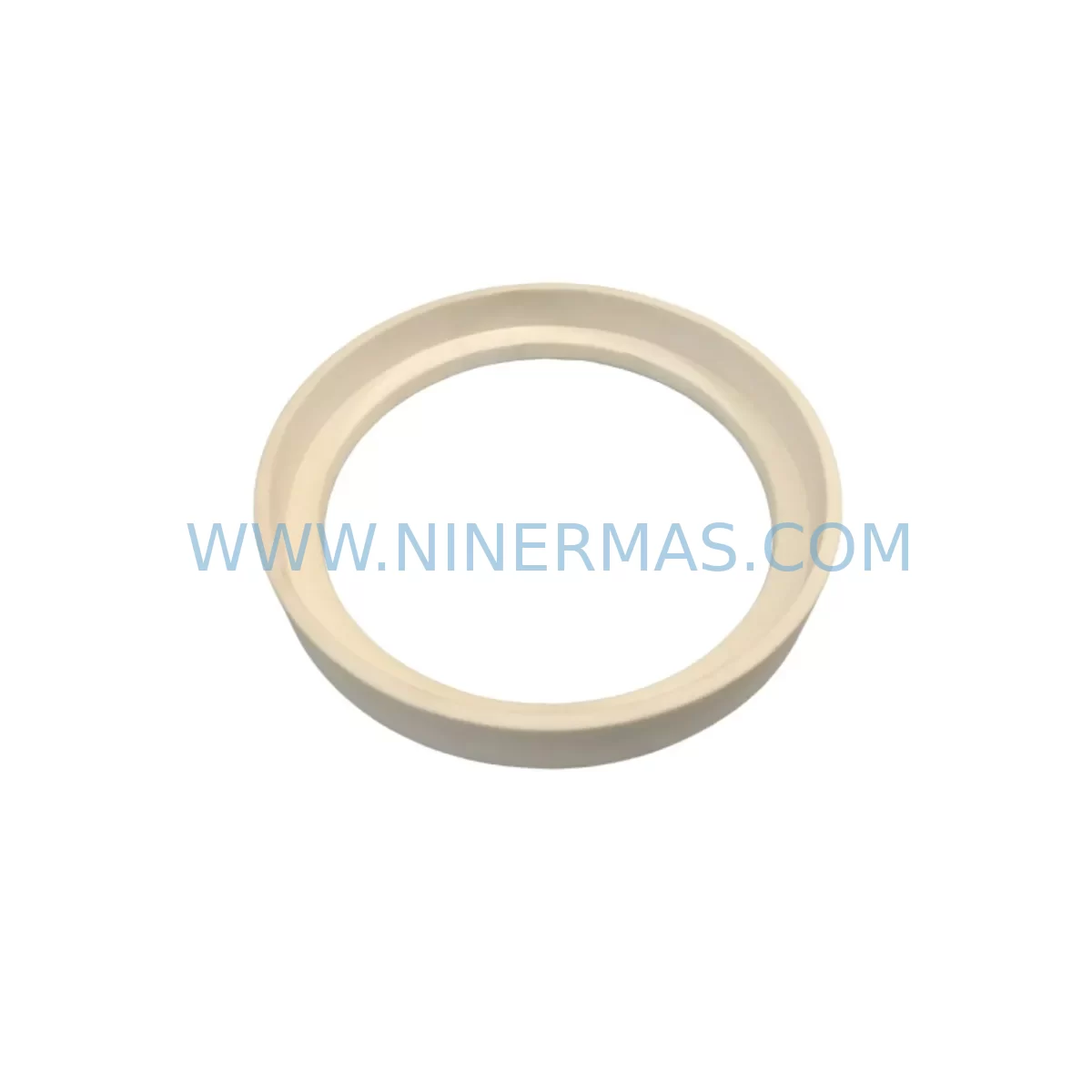

The Applied Materials B101-HEA-0200-76057 Ruggedized Sealing Ring Module is a critical spare part for legacy semiconductor process equipment platforms that remain in active production across wafer fabrication facilities worldwide. As Applied Materials continues to evolve its product portfolio, many older chamber configurations — particularly those built around the Centura, Producer, and Endura platform architectures — rely on ruggedized sealing ring assemblies that are no longer available through standard OEM channels. The B101-HEA-0200-76057 addresses this supply gap directly, providing a retrofit-compatible replacement that maintains process integrity without requiring full chamber replacement or platform migration.

For maintenance engineers and process equipment technicians managing legacy fab infrastructure, sourcing a verified replacement for the B101-HEA-0200-76057 is often the difference between a scheduled preventive maintenance window and an unplanned production stoppage. This module is designed to interface with the original chamber body geometry, preserving the sealing surface tolerances required for vacuum integrity in CVD, PVD, and etch process environments. Before installation, engineers should confirm the chamber body part number, verify the sealing groove dimensions against the replacement module specifications, and inspect the mating flange surface for wear or contamination that could compromise the seal after retrofit.

In retrofit scenarios where the original chamber has undergone prior modifications — such as upgraded throttle valve assemblies, replacement RF match networks, or retrofitted endpoint detection systems — it is essential to verify that the B101-HEA-0200-76057 sealing ring module remains compatible with the modified chamber geometry. Dimensional verification using the original engineering drawings or a coordinate measurement tool is recommended prior to committing to installation, particularly in chambers that have been refurbished with non-OEM components.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When planning a retrofit around the B101-HEA-0200-76057, the scope of work typically extends beyond the sealing ring itself. A comprehensive chamber maintenance event on legacy Applied Materials platforms often involves simultaneous inspection and replacement of several interdependent components. The chamber lid assembly, including its associated O-ring kit and lift pin mechanism, should be evaluated alongside the sealing ring module to avoid repeat downtime within the same maintenance cycle.

The throttle valve module — commonly the APC (Automatic Pressure Control) valve assembly used in Centura and Producer chambers — is another component that frequently requires attention during the same maintenance window. Worn throttle valve seals can cause pressure instability that masks or mimics sealing ring failures, making it important to address both simultaneously. Similarly, the turbo pump controller interface and the associated foreline valve assembly should be inspected to confirm that vacuum system performance is not being compromised by upstream or downstream leakage points.

For chambers equipped with RF power delivery systems, the RF generator interface board and the match network capacitor assembly are worth inspecting during any extended maintenance event. RF-related components are sensitive to contamination ingress that can occur when sealing integrity is compromised, and replacing the B101-HEA-0200-76057 without verifying the RF subsystem condition may result in process drift after restart. The endpoint detection module — whether optical emission spectroscopy-based or interferometry-based — should also be recalibrated after any chamber break event to ensure process endpoint accuracy is restored.

Gas panel assemblies and mass flow controller (MFC) modules connected to the process chamber should be leak-checked at their chamber interface points as part of the retrofit validation sequence. MFC calibration drift is a known consequence of extended operation in chambers with marginal sealing performance, and a post-retrofit MFC verification step is recommended before returning the chamber to production. The wafer handler controller and end-effector assembly should also be inspected for contamination that may have migrated from the process chamber during the period of degraded sealing performance.

I/O interface boards and the chamber control PLC or embedded controller module should be reviewed for any fault logs or alarm histories that correlate with the sealing degradation period. Clearing historical fault data and performing a full system diagnostic after the retrofit ensures that residual alarm conditions do not interfere with normal process control operation. Signal isolation modules in the chamber interlock circuit should be tested to confirm that safety interlocks are functioning correctly before the chamber is returned to automated operation.

Downtime Control During System Migration

Minimizing downtime during a B101-HEA-0200-76057 replacement requires advance preparation and a structured execution plan. The most effective approach is to pre-stage all replacement components — including the sealing ring module, associated O-rings, and any ancillary parts identified during the pre-maintenance inspection — before the chamber is taken offline. This eliminates the risk of extended downtime caused by parts shortages discovered mid-maintenance.

Preserving the original process program logic is a priority during any chamber maintenance event. Before breaking chamber vacuum, engineers should archive the current process recipe set and chamber parameter baseline from the equipment controller. This provides a reference point for post-retrofit process qualification and ensures that any parameter drift introduced during the maintenance event can be identified and corrected systematically.

The leak-up rate test is the critical gate for returning the chamber to production after a sealing ring replacement. Establishing a clear pass/fail criterion for the leak-up rate — based on the process requirements for the chamber’s application — before beginning the maintenance event ensures that the commissioning sequence is objective and repeatable. Chambers that fail the initial leak-up rate test should be inspected for secondary leak paths at the throttle valve, foreline connection, and gas inlet fittings before concluding that the sealing ring replacement was unsuccessful.

Maintaining field control continuity during the retrofit requires clear communication between the maintenance team and the production scheduling function. A realistic time estimate for the full maintenance sequence — including chamber pump-down, leak check, process qualification, and sign-off — should be communicated to production planning before the chamber is taken offline. This allows production schedules to be adjusted proactively, reducing the operational impact of the maintenance event.

Retrofit Support FAQ

Q: Is the B101-HEA-0200-76057 a direct drop-in replacement for the original Applied Materials sealing ring module?
A: Yes, the B101-HEA-0200-76057 is designed as a retrofit-compatible replacement for the original OEM sealing ring module. It matches the original flange geometry and sealing surface specifications. However, if the chamber body has been modified or refurbished with non-OEM components, dimensional verification is recommended before installation to confirm compatibility.

Q: What commissioning steps are required after installing the B101-HEA-0200-76057?
A: After installation, perform a full chamber pump-down and conduct a leak-up rate test to verify vacuum integrity. Compare the measured leak-up rate against the process specification baseline. If the chamber is equipped with an endpoint detection system, recalibrate the detector before resuming production. Archive the post-retrofit baseline parameters for future reference.

Q: Is pre-shipment testing performed on the B101-HEA-0200-76057?
A: Yes. All units are functionally tested and inspected before shipment. Each module is verified against dimensional and material specifications to ensure it meets the requirements for vacuum-rated sealing applications. A 12-month warranty is provided from the date of shipment, covering defects in materials and workmanship.

Q: What is the typical lead time and inventory availability for the B101-HEA-0200-76057?
A: NINERMAS maintains service-ready inventory of the B101-HEA-0200-76057 to support urgent maintenance requirements. Standard lead time for in-stock units is 1–3 business days for international shipment. For high-volume or long-term supply requirements, reserved inventory agreements are available. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock status and arrange shipment.
