AMAT 0090-36221 Retrofit-Compatible TC Amp for Legacy Systems

AMAT 0090-36221 Retrofit-Compatible TC Amp for Legacy Systems

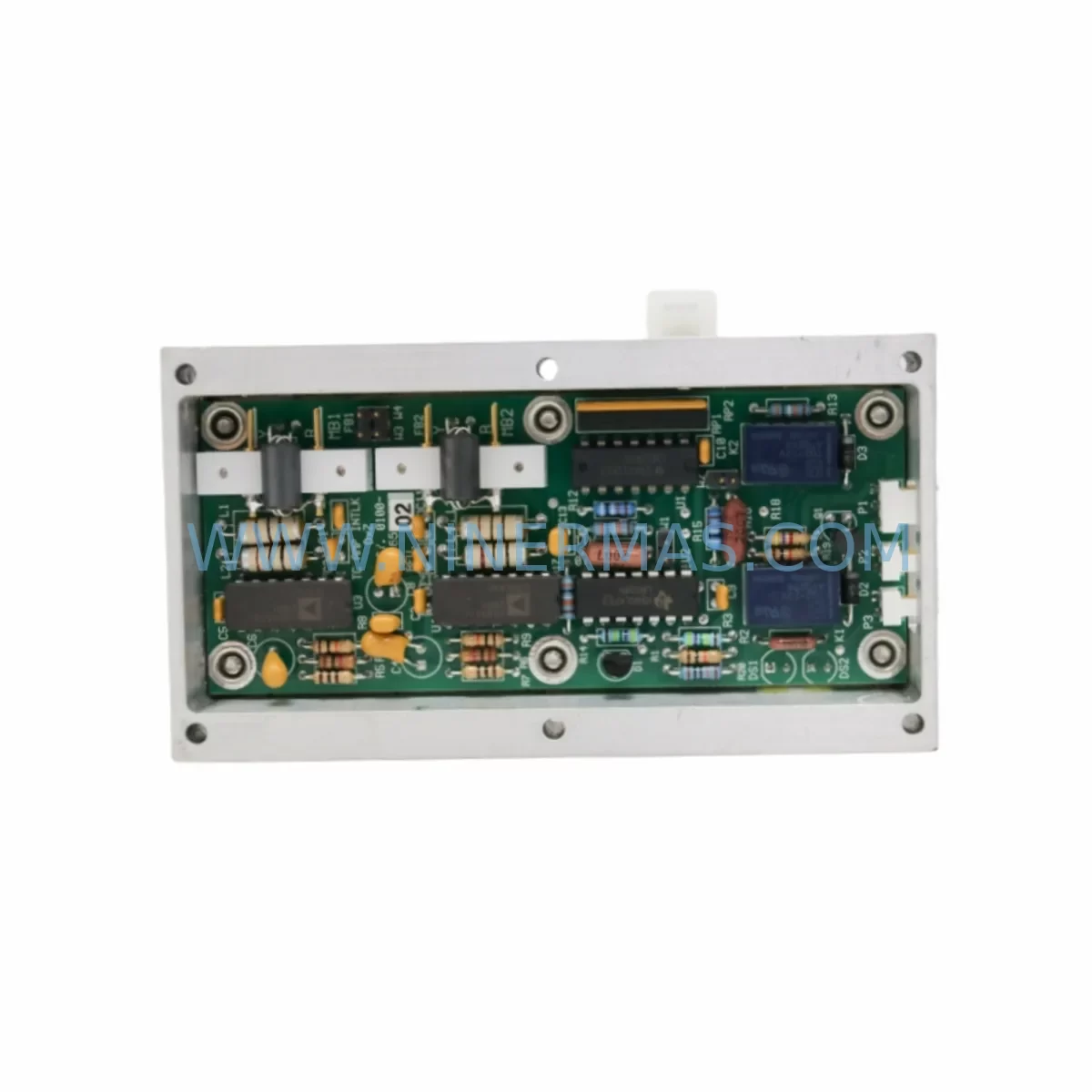

The Applied Materials 0090-36221 is a thermocouple amplifier and overtemperature interlock module originally designed for the GIGA-F platform and related legacy process equipment. As semiconductor fabs and industrial automation facilities continue to operate aging tool sets beyond their original design life, the demand for verified retrofit-compatible spare parts has grown significantly. This module plays a critical role in temperature monitoring and safety interlock circuits, making it one of the most operationally sensitive components in any legacy thermal control architecture. NINERMAS maintains reserved inventory of the 0090-36221 to support planned maintenance cycles, emergency replacements, and system modernization projects with minimal lead time impact.

The 0090-36221 interfaces directly with thermocouple inputs across multiple process zones, amplifying low-level millivolt signals to usable analog ranges for downstream controllers and safety logic. Its overtemperature interlock function provides a hardware-level safety cutoff that operates independently of software control layers, ensuring process protection even during PLC faults or communication failures. When replacing this module in a legacy system, engineers must verify thermocouple type compatibility (typically Type K or Type J), confirm the signal conditioning range matches the existing process setpoints, and validate that the interlock trip threshold aligns with the original process safety documentation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 0090-36221 in an operational GIGA-F tool requires a structured approach that accounts for the interdependencies between thermal control, safety interlock, and process sequencing subsystems. Before removing the existing module, technicians should document the current thermocouple wiring assignments at the terminal block, photograph the card slot position within the backplane assembly, and record the active interlock chain configuration from the system’s safety relay panel.

The 0190-04562-H heater control assembly is frequently replaced in the same maintenance window as the 0090-36221, since both modules share the same thermal zone control loop. Verifying that the 0190-04562-H is functioning correctly before commissioning the new TC amplifier prevents misdiagnosis of residual temperature faults. Similarly, the 0040-95291 temperature controller board must be checked for firmware version compatibility, as older revisions may require a parameter reload after the TC amplifier is swapped.

Power supply integrity is another critical checkpoint. The 0190-35805 power supply unit that feeds the analog signal conditioning section should be load-tested before the new 0090-36221 is installed, as voltage ripple or marginal regulation can cause false overtemperature trips during initial commissioning. The 0660-01895 communication interface card, if present in the same rack, should also be inspected for loose connectors, as vibration-induced intermittent faults are common in aging GIGA-F installations.

For facilities upgrading the I/O architecture as part of a broader modernization effort, the 0100-09104 digital I/O board and 0100-00001 analog I/O module are commonly replaced alongside the TC amplifier to standardize the signal infrastructure across the control cabinet. The 0190-36082 backplane assembly should be visually inspected for cracked traces or corroded edge connectors before the new module is seated, as backplane degradation is a leading cause of premature module failure in legacy systems. Where wiring harnesses show signs of insulation breakdown, the 0020-38697 wiring harness assembly provides a direct replacement that restores signal integrity without requiring custom fabrication. For systems where the original signal conditioning chain has drifted, the 0242-36221 signal conditioner can be used to recalibrate the TC input range before the new amplifier module is commissioned.

HMI screen updates may be required if the replacement module changes the scaling or engineering unit mapping of the temperature display. Coordinate with the controls engineer to verify that the HMI tag database reflects the correct input range for the 0090-36221 before returning the tool to production. Programming cable access to the PLC or embedded controller should be arranged in advance to allow rapid parameter adjustments during commissioning without extending the maintenance window.

Downtime Control During System Migration

Minimizing unplanned downtime during a TC amplifier replacement requires pre-staging all replacement components, tools, and documentation before the maintenance window begins. For the 0090-36221, this means having the replacement module bench-tested and confirmed functional, the thermocouple wiring diagram printed and verified against the as-built configuration, and the interlock bypass procedure reviewed and approved by the site safety officer.

The original program logic stored in the PLC or embedded controller should be backed up to a portable storage device before any hardware changes are made. This protects against accidental parameter loss during power cycling and provides a restore point if the new module requires different scaling constants. In GIGA-F systems where the thermal control loop is integrated with the process recipe sequencer, a forced manual mode should be engaged on the affected zone before the module is removed to prevent recipe abort faults from propagating to adjacent process zones.

Field commissioning should follow a structured sequence: power-on self-test, TC signal verification at ambient temperature, interlock trip-point test using a calibrated temperature source, and a full process cycle run at reduced setpoint before returning to production conditions. This sequence typically requires 2 to 4 hours for a single-zone replacement and can be compressed to under 2 hours when a pre-tested spare is available from reserved inventory. NINERMAS maintains buffer stock of the 0090-36221 specifically to support same-day or next-day dispatch for emergency maintenance scenarios, reducing the risk of extended tool downtime due to parts availability.

Retrofit Support FAQ

Q1: Is the 0090-36221 a direct drop-in replacement for the original Applied Materials module?
A: Yes. The 0090-36221 supplied by NINERMAS is a form-fit-function compatible replacement for the original Applied Materials part. Each unit undergoes pre-shipment functional testing to verify TC amplification accuracy and overtemperature interlock response before dispatch. Customers should confirm the thermocouple type and interlock trip threshold against their process documentation before installation.

Q2: What commissioning steps are required after installing the 0090-36221?
A: After installation, verify TC signal continuity at the terminal block, confirm the module is correctly seated in the backplane slot, and perform an interlock trip-point test using a calibrated temperature source. If the system uses a PLC-based setpoint, reload the thermal zone parameters and run a reduced-setpoint process cycle before returning to full production conditions. Document all calibration results for the site maintenance record.

Q3: What is the warranty coverage for the 0090-36221?
A: All 0090-36221 modules supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. The warranty covers functional defects identified under normal operating conditions. Pre-shipment testing documentation is available upon request and can be included with the shipment for incoming inspection purposes.

Q4: Can NINERMAS support long-term supply of the 0090-36221 for ongoing maintenance programs?
A: Yes. NINERMAS maintains reserved inventory of the 0090-36221 and can support blanket order arrangements for facilities with recurring maintenance requirements. Long-term supply commitments help stabilize lead times and reduce the risk of stockouts during peak maintenance periods. Contact our sales team to discuss inventory reservation and scheduled delivery options.
