Alstom MMLG02R1AA0001E Retrofit-Compatible Test Block Legacy

Alstom MMLG02R1AA0001E Retrofit-Compatible Test Block: Legacy System Compatibility & Smooth Upgrade

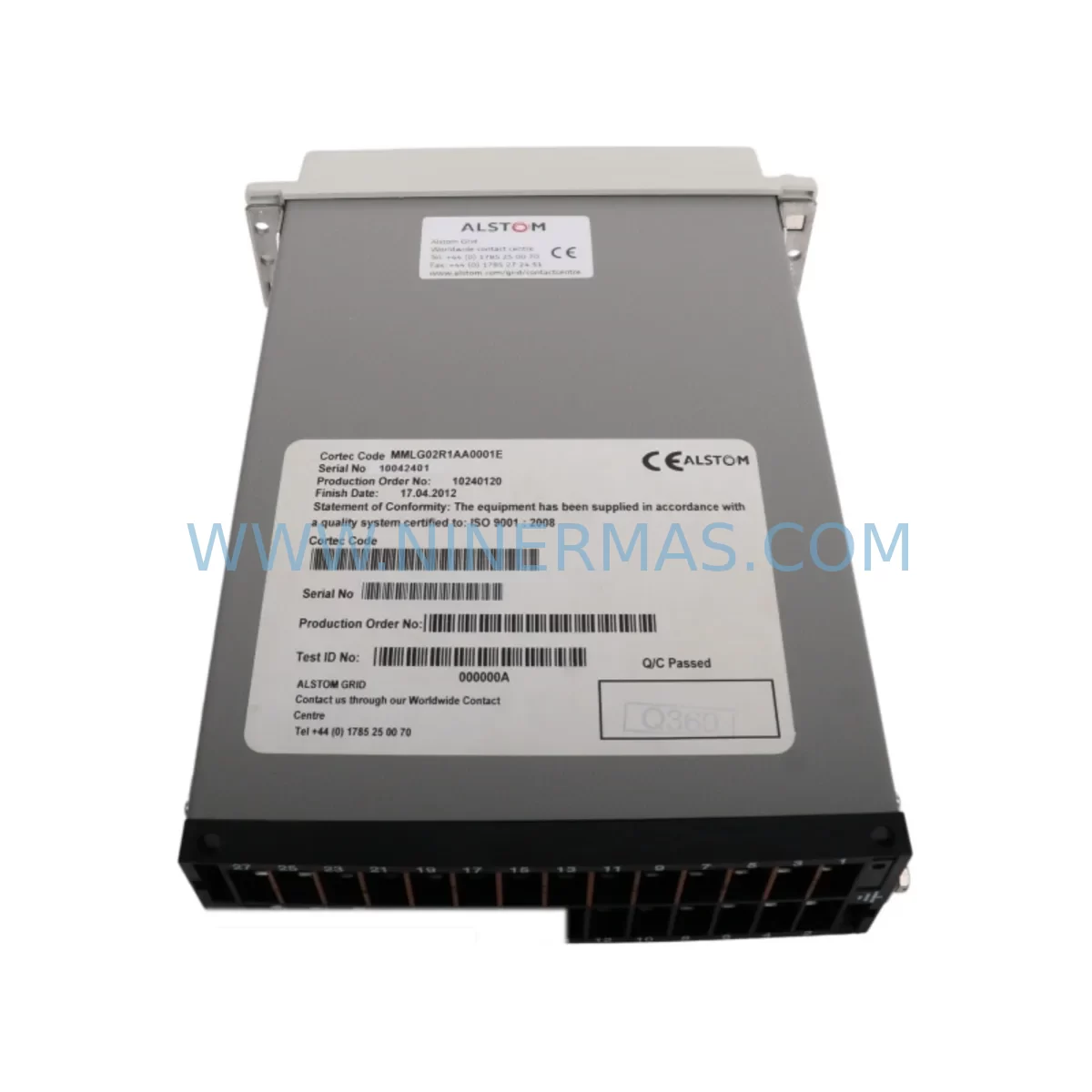

The Alstom MMLG02 (MMLG02R1AA0001E) is a precision-engineered test block designed for use within Alstom’s protection relay and control system platforms. As aging substation automation and protection systems reach end-of-life, the MMLG02R1AA0001E has become a critical component in retrofit projects where engineers must maintain operational continuity while transitioning away from discontinued relay panels and legacy marshalling cabinets. NINERMAS maintains verified stock of this unit, fully tested and backed by a 12-month warranty, ready for immediate dispatch to support your planned or emergency retrofit schedule.

In legacy protection systems, the MMLG02 test block serves as the interface point between the relay element and the secondary wiring of current transformers (CTs) and voltage transformers (VTs). During a retrofit or panel replacement, the test block allows engineers to safely isolate the relay under test without interrupting the CT secondary circuit — a critical safety requirement in live substation environments. When replacing an obsolete Alstom or GEC Alsthom relay panel, the MMLG02R1AA0001E is frequently retained in place or replaced like-for-like to preserve the existing wiring scheme and avoid costly rewiring of the CT/VT secondary circuits.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit involving the MMLG02R1AA0001E requires careful coordination across multiple system layers. In a typical substation panel replacement project, the MMLG02 test block is one of several components that must be sourced, verified, and staged before the outage window begins. Engineers working on Alstom K-series or M-series protection panels will commonly need to address the following adjacent components during the same retrofit cycle:

The Alstom MCGG52 or MCGG82 overcurrent relay is frequently the primary relay being replaced or retained in the panel. When the relay is being upgraded to a modern numerical unit such as the Alstom MiCOM P122 or MiCOM P142, the existing MMLG02 test block wiring must be verified against the new relay’s terminal diagram to confirm CT input mapping and polarity. In many cases, the MMLG02 can be retained, eliminating the need to disturb the CT secondary wiring — a significant advantage in reducing outage duration.

Where the retrofit involves a full panel replacement rather than a relay swap, the Alstom MMLB01 or MMLB02 link block is often replaced alongside the MMLG02 test block. These link blocks control the shorting and isolation of CT circuits and must be confirmed as functional before the panel is energised. Similarly, the Alstom MMLD01 draw-out relay case may need to be inspected or replaced if the existing case shows signs of contact wear or mechanical damage from years of relay insertion and withdrawal cycles.

For projects involving communication protocol migration — for example, transitioning from a hardwired SCADA scheme to IEC 61850 GOOSE messaging — the MMLG02 test block remains relevant as a physical isolation point during commissioning of the new Alstom MiCOM P746 or MiCOM P841 bay controller. Engineers should confirm that the test block’s CT shorting function is verified independently of the new IED’s self-test routines, as the IED cannot detect an open CT secondary caused by a faulty test block.

Power supply integrity is another critical consideration. Legacy Alstom panels often use a 48VDC or 110VDC station battery supply. When upgrading to a new numerical relay or bay controller, confirm that the auxiliary supply input range of the new device is compatible with the existing station battery voltage. If a new Alstom or Schneider Electric power supply module is being introduced into the panel, verify that the total burden on the DC distribution board does not exceed the rated capacity of the existing fuse or MCB protecting that circuit.

Where the retrofit involves I/O expansion — for example, adding new binary inputs for circuit breaker position indication or adding output contacts for new tripping schemes — the Alstom MiCOM P594 or a compatible I/O extension module may be introduced. In these cases, the marshalling wiring between the new I/O module and the existing CT/VT secondary circuits must be carefully documented, and the MMLG02 test block positions must be updated in the panel wiring schedule to reflect the new circuit topology.

Finally, for projects where an HMI upgrade is part of the scope, confirm that the new HMI display — whether a local Alstom MiCOM S1 Agile engineering workstation or a remote SCADA terminal — has been updated with the correct mimic diagrams and relay setting files before the outage. Relay settings should be backed up from the existing relay using a MiCOM S1 Studio programming cable and software before any hardware is disturbed, ensuring that the protection scheme can be restored quickly if commissioning issues arise.

Downtime Control During System Migration

Minimising outage duration is the primary operational concern in any live substation or industrial control system retrofit. When the MMLG02R1AA0001E is part of the replacement scope, the following approach is recommended to protect the original protection logic and maintain field control continuity:

Pre-outage preparation is the most effective tool for downtime reduction. Before the outage window opens, all replacement components — including the MMLG02 test block, any associated link blocks, and the target relay or IED — should be staged, tested, and confirmed as functional. NINERMAS ships all units after a full functional test, reducing the risk of receiving a defective component that cannot be identified until it is installed in the panel.

CT secondary circuit protection must be maintained throughout the replacement process. The MMLG02’s integral CT shorting function must be engaged before the relay is isolated or removed. Engineers should verify the shorting link position visually and confirm with a continuity test before proceeding. Failure to short the CT secondary before opening the circuit is a serious safety hazard and can result in dangerously high voltages appearing at the open terminals.

Program and setting preservation is equally important. All relay settings, logic configurations, and HMI display files should be exported and stored before the outage begins. For numerical relays such as the MiCOM P122 or P142, settings files should be saved in MiCOM S1 Studio format and stored on a local engineering laptop as well as a network backup location. This ensures that if the new relay requires a factory reset or firmware update during commissioning, the original settings can be reloaded without delay.

Post-installation verification should follow a structured commissioning checklist: confirm CT polarity and ratio, verify VT connections, check auxiliary supply voltage, test all binary inputs and output contacts, and confirm communication link integrity before the protection scheme is declared in service. A structured approach to commissioning reduces the risk of errors that extend the outage beyond the planned window.

Retrofit Support FAQ

Q1: Is the MMLG02R1AA0001E a direct replacement for all MMLG02 variants?
The MMLG02R1AA0001E is the standard production variant of the MMLG02 test block and is a direct like-for-like replacement in all standard Alstom K-series and M-series relay panels. If your existing installation uses a modified or non-standard wiring configuration, please contact our technical team with your panel wiring diagram for confirmation before ordering.

Q2: How are units tested before shipment?
All MMLG02R1AA0001E units supplied by NINERMAS are subject to a full functional test prior to dispatch. This includes verification of the CT shorting link mechanism, terminal continuity, and mechanical integrity of the plug-in contacts. A test report is available on request. All units are covered by a 12-month warranty from the date of shipment.

Q3: What is the typical lead time and do you hold stock?
NINERMAS maintains verified inventory of the MMLG02R1AA0001E to support emergency and planned retrofit projects. Standard orders are dispatched within 1–3 business days. For urgent requirements, please contact our sales team directly at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock availability and expedited shipping options.

Q4: Can the MMLG02 be used with modern numerical relays and IEC 61850 systems?
Yes. The MMLG02 is a passive electromechanical component and has no protocol dependency. It is fully compatible with modern numerical protection relays and IEC 61850-based substation automation systems. Its function as a CT/VT secondary isolation and test interface point is independent of the communication architecture of the protection system, making it suitable for use in both legacy hardwired schemes and modern digital substation environments.
