Allen-Bradley MPL-B540K-MJ74AA Service-Ready Spare Part

Allen-Bradley MPL-B540K-MJ74AA Service-Ready Spare Part for Industrial Maintenance

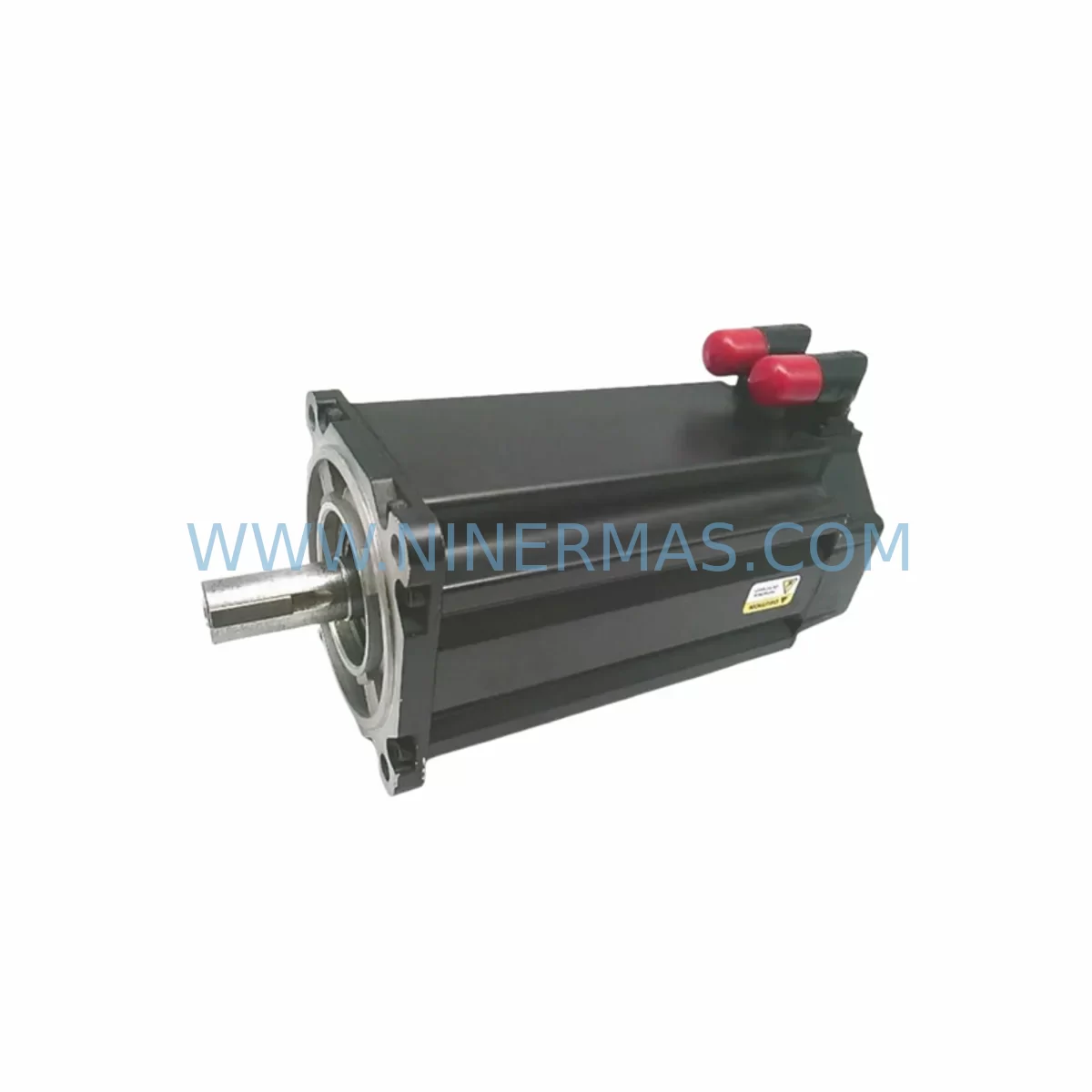

The Allen-Bradley MPL-B540K-MJ74AA is a ruggedized, high-performance servo motor engineered for demanding industrial environments where vibration, contamination, and thermal stress are constant operational realities. As a direct-replacement spare part, the MPL-B540K-MJ74AA is a critical asset for maintenance engineers managing Kinetix-based motion control systems across process manufacturing, automotive assembly, packaging lines, and heavy industrial applications. Holding this unit in your approved spare parts inventory is one of the most effective strategies for minimizing unplanned downtime and protecting production continuity.

When a servo motor fails on a critical axis, every minute of downtime translates directly into lost throughput and recovery costs. The MPL-B540K-MJ74AA is stocked, pre-tested, and ready for immediate dispatch — enabling your maintenance team to execute a controlled replacement within a planned or emergency maintenance window. Each unit supplied by NINERMAS undergoes pre-shipment functional verification and ships with a 12-month warranty, giving procurement engineers the confidence to approve this part for long-term spare parts programs.

This motor is fully compatible with the Rockwell Automation Kinetix servo drive family, including the Kinetix 6000, Kinetix 6200, Kinetix 5500, and Kinetix 5700 platforms. The MPL-B540K-MJ74AA’s MJ74AA suffix designates its specific feedback, brake, and connector configuration — a detail that must be confirmed against your existing axis configuration before installation to ensure seamless electrical and mechanical integration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the MPL-B540K-MJ74AA in the field is rarely an isolated task. Experienced maintenance engineers understand that a servo motor failure is often a symptom of broader system stress, and a thorough replacement procedure should include inspection of all interconnected components within the same electrical circuit and control cabinet.

Begin with the servo drive powering this axis — the Kinetix 6000 or Kinetix 5700 drive module should be inspected for DC bus voltage stability, fault history, and output current waveform integrity. A degraded drive can destroy a new motor within hours of restart. Alongside the drive, verify the condition of the servo power cable (2090-series SpeedTec cable assembly) and the feedback cable (2090-XXNFMF series) — connector corrosion, insulation breakdown, or shield continuity failures are common root causes of encoder faults and motor overtemperature trips.

The brake control circuit deserves particular attention when the MPL-B540K-MJ74AA includes an integrated holding brake. Verify the brake release relay, 24VDC brake power supply, and wiring continuity before commissioning the replacement motor. A failed brake relay or undersized power supply will prevent the axis from releasing correctly and may trigger safety faults in the Logix controller.

At the control level, review the ControlLogix or CompactLogix processor axis configuration — specifically the motor catalog number entry in Studio 5000 Logix Designer. The MPL-B540K-MJ74AA must be selected precisely, as the drive uses the motor model data to calculate current limits, velocity loop gains, and commutation offsets. An incorrect motor selection will result in poor motion performance or axis faults even with a mechanically sound installation.

For systems using a 1756-M02AE or 1756-M08SE motion module, confirm that the axis configuration and drive firmware are compatible with the replacement motor’s feedback type. Additionally, inspect the 1756 backplane and chassis for signs of thermal stress or loose module seating — a marginal backplane connection can introduce intermittent communication faults that are difficult to diagnose after motor replacement.

Procurement engineers building a comprehensive spare parts kit for Kinetix-based systems should also consider stocking the 2090-series cable assemblies, a spare Kinetix 6000 or 5700 drive module for the relevant axis power rating, 24VDC power supply modules for brake and I/O circuits, and 1492-series terminal blocks for I/O wiring integrity. Including a spare 1734 POINT I/O adapter or 1756 analog I/O module in the cabinet spare kit ensures that a single component failure does not cascade into a multi-day recovery event.

Site Replacement Workflow

Step 1 — Isolation & Lockout: De-energize the Kinetix drive and apply LOTO (Lockout/Tagout) per site safety procedures. Allow the DC bus to fully discharge before disconnecting motor cables.

Step 2 — Cable Labeling & Disconnection: Label and photograph all power and feedback cable connections before removal. Disconnect the SpeedTec power connector and feedback connector from the motor. Inspect connector pins and seals for corrosion or damage.

Step 3 — Mechanical Removal: Remove the motor from the machine axis. Note the coupling type (jaw, bellows, or direct) and inspect for wear. Replace the coupling if any backlash or deformation is detected.

Step 4 — Replacement Motor Inspection: Verify the replacement MPL-B540K-MJ74AA part number, suffix, and serial number against the purchase documentation. Confirm the brake and feedback connector style matches the existing cable assemblies.

Step 5 — Installation & Cable Connection: Mount the replacement motor, torque fasteners to specification, and reconnect power and feedback cables. Ensure SpeedTec connectors are fully seated and locked.

Step 6 — Drive Configuration Verification: In Studio 5000, confirm the motor catalog number is correctly assigned to the axis. Download the updated configuration to the controller and perform an autotune or verify existing tuning parameters are appropriate for the replacement unit.

Step 7 — Commissioning & Test Run: Re-energize the drive, clear any startup faults, and perform a controlled jog test at low speed before returning the axis to full production speed. Monitor drive current, encoder feedback, and motor temperature during the initial run.

Spare Parts Support FAQ

Q1: Is the MPL-B540K-MJ74AA compatible with my existing Kinetix drive without reconfiguration?
The MPL-B540K-MJ74AA is designed for use with Rockwell Automation Kinetix servo drives. However, the motor catalog number must be correctly assigned in Studio 5000 Logix Designer for the drive to apply the correct motor model parameters. If you are replacing a motor with an identical part number, the existing configuration is typically retained. If the previous motor had a different suffix, a configuration update and autotune may be required. NINERMAS technical support can assist with compatibility verification prior to shipment.

Q2: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Each unit is pre-tested before dispatch. In the event of a warranty claim, contact NINERMAS at sale@ninermas.com with the order reference, serial number, and a description of the fault. NINERMAS will arrange for inspection and replacement or repair as appropriate.

Q3: Can NINERMAS support long-term or scheduled spare parts supply for this model?
Yes. NINERMAS offers long-term spare parts supply agreements for the MPL-B540K-MJ74AA and related Kinetix motion components. For maintenance engineers managing aging Rockwell Automation systems, a scheduled supply arrangement ensures stock availability without the risk of market shortages or extended lead times. Contact our team to discuss annual volume commitments and priority allocation.

Q4: How should I verify the condition of the unit upon receipt?
Each MPL-B540K-MJ74AA shipped by NINERMAS includes a pre-shipment test record. Upon receipt, inspect the packaging for transit damage, verify the part number and suffix on the motor nameplate, and check connector pins and shaft condition before installation. If any discrepancy is found, contact NINERMAS before installation to initiate a pre-installation inspection claim.
