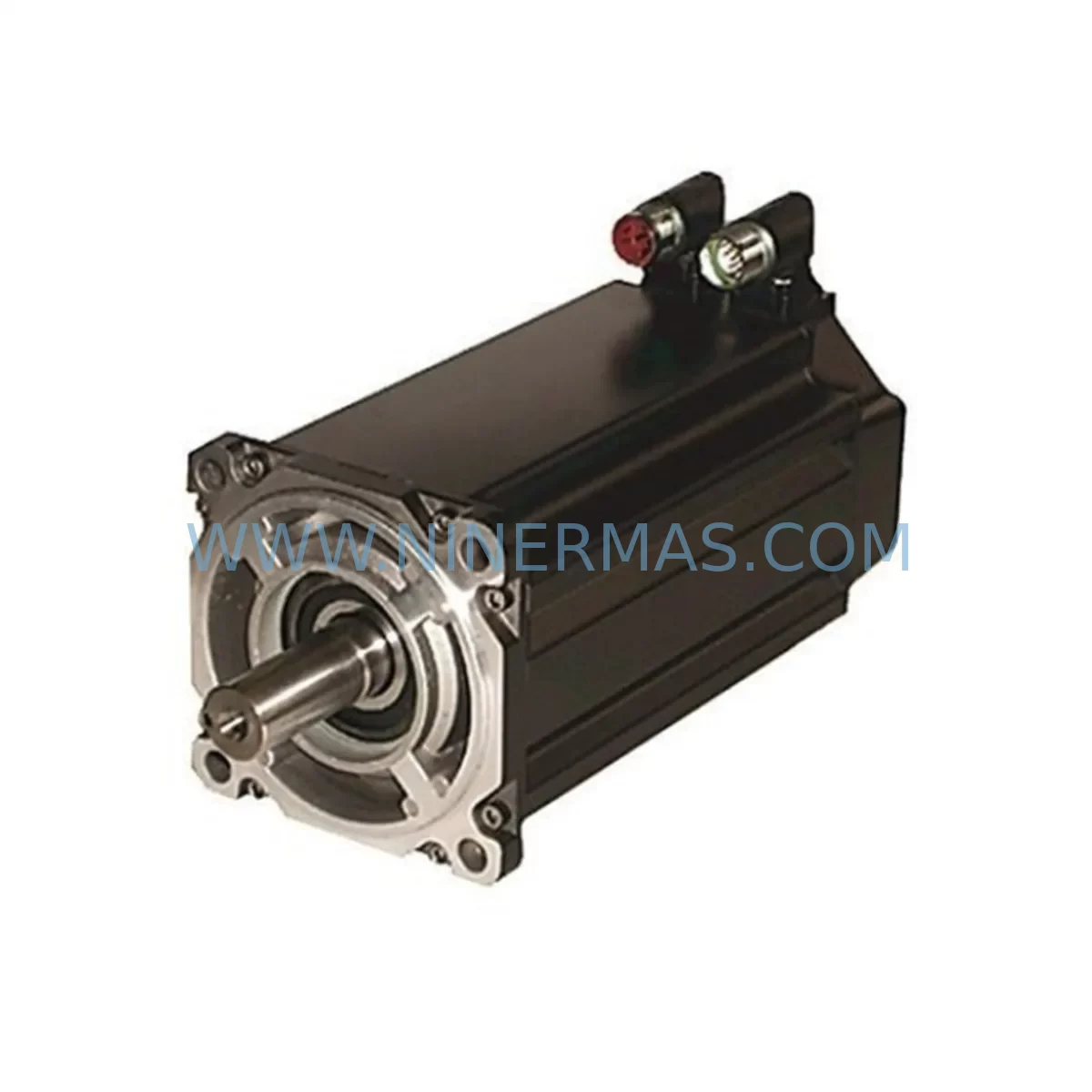

Allen-Bradley MPL-B310P-MJ74AA Retrofit Servo Motor

Allen-Bradley MPL-B310P-MJ74AA Retrofit-Compatible Servo Motor for Legacy Systems

The Allen-Bradley MPL-B310P-MJ74AA is a medium-inertia, brushless servo motor from Rockwell Automation’s MPL (Medium Power Low-inertia) series, widely deployed across manufacturing lines, packaging equipment, CNC machining centers, and material handling systems. As original equipment ages and OEM support windows close, the MPL-B310P-MJ74AA has become one of the most sought-after retrofit and replacement components for engineers tasked with modernizing legacy motion control architectures without full system overhauls.

Whether you are replacing a failed unit on a running production line, sourcing a long-term spare for a discontinued model, or planning a phased upgrade from an older Kinetix 6000 or Kinetix 6200 drive platform to a current-generation Kinetix 5700 system, the MPL-B310P-MJ74AA provides a reliable, tested, and immediately deployable solution. NINERMAS maintains verified stock of this model with full functional testing prior to shipment and a 12-month warranty on every unit.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the MPL-B310P-MJ74AA into an existing control architecture requires a structured pre-installation review. Engineers should begin by auditing the current drive module — typically a Kinetix 6000 IAM/AM power module or a Kinetix 6200 CIP drive — to confirm that the axis configuration stored in the ControlLogix or CompactLogix controller matches the motor catalog number being installed. In Studio 5000 Logix Designer, navigate to the axis properties and update the motor catalog number to MPL-B310P-MJ74AA before downloading the updated program to the controller.

On the power side, verify that the shared DC bus or individual converter module supplying the axis has sufficient continuous and peak current capacity for the MPL-B310P-MJ74AA’s rated stall current and peak torque demand. If the existing Kinetix 6000 power rail is operating near capacity due to additional axes — such as MPL-A320P or MPL-B430P motors on adjacent slots — a bus capacity calculation should be performed before commissioning. The 1756-M02AE or 1756-M08SE motion modules in the ControlLogix backplane must also be checked for available axis slots if the retrofit involves adding a new axis rather than a direct one-for-one swap.

Terminal wiring and cable assemblies deserve particular attention. The MJ74AA connector designation specifies a SpeedTec DIN-style power connector and a matching feedback connector. If the existing cable harness was routed for an older MPL variant with a different connector suffix — such as MJ72AA or MK74AA — a replacement 2090-series motor cable will be required. Confirm cable length, shielding continuity, and ground bonding at both the motor frame and the drive chassis before energizing the axis. Signal isolation between the feedback cable and adjacent power conductors is critical in high-noise environments where VFDs, contactors, or welding equipment operate nearby; a signal isolator module may be warranted in such installations.

For systems migrating from a Sercos-based Kinetix 6000 architecture to an EtherNet/IP-based Kinetix 5700 platform, the MPL-B310P-MJ74AA is fully supported on the new drive, but the transition requires re-mapping all motion instructions in the Logix program from MSERCOS to CIP Motion function blocks. The 842E-SIP EtherNet/IP encoder interface or a 1734-VHSC24 high-speed counter module may be needed if auxiliary encoder feedback from a downstream axis or gearbox is part of the control loop. Additionally, any PanelView Plus HMI screens that display axis status, fault codes, or position feedback will need to be updated to reflect the new tag structure generated after the drive platform change.

Backplane and rack considerations are equally important when the retrofit involves a ControlLogix chassis. If the existing 1756-A7 or 1756-A13 rack is fully populated, adding a new 1756-M02AE motion module or replacing a failed module requires a rack power budget review. The 1756-PA75 or 1756-PB75 power supply feeding the rack must have sufficient wattage headroom. In some installations, a secondary rack with a dedicated power supply is the preferred solution to avoid disrupting existing I/O modules — such as 1756-IB16 digital input or 1756-OB16E digital output modules — that are critical to the machine’s safety interlock logic.

Downtime Control During System Migration

Minimizing unplanned downtime during a servo motor replacement is the primary concern for maintenance teams operating in continuous-process or high-throughput environments. The MPL-B310P-MJ74AA retrofit process can be completed within a planned maintenance window of two to four hours when all preparatory steps are completed in advance.

Before the maintenance window opens, the replacement motor should be bench-tested using a portable Kinetix drive or a test rig to confirm encoder feedback integrity, winding resistance, and insulation resistance. NINERMAS performs outgoing functional testing on every unit prior to shipment, but a site-level incoming inspection — including a megger test and encoder signal verification via the drive’s diagnostic screen — eliminates the risk of discovering a transit-related fault after the machine has been taken offline.

The existing Logix program should be exported and archived before any hardware changes are made. If the motor swap involves a catalog number change — even within the same MPL-B3 frame size — the axis configuration in Studio 5000 must be updated and the program re-downloaded. Using the controller’s online edit capability where possible reduces the time the machine spends in program mode. After the motor is mechanically installed and cables are reconnected, the Autotune routine in Studio 5000 should be run to re-establish the velocity and position loop gains appropriate for the new motor’s inertia and torque constant. This step is frequently skipped in time-pressured situations but is essential for preventing oscillation, following error faults, or premature drive shutdown after restart.

For systems where continuous production cannot be interrupted, a parallel commissioning approach — where the replacement axis is configured and tuned on a test bench replicating the load profile — allows the actual machine swap to be reduced to a cable transfer and program download, cutting live downtime to under 30 minutes in well-prepared scenarios.

Retrofit Support FAQ

Q1: Is the MPL-B310P-MJ74AA a direct drop-in replacement for other MPL-B3 variants?
Within the MPL-B3 frame family, motors sharing the same frame size and connector suffix are mechanically interchangeable. However, differences in winding configuration, feedback resolution, or connector style between suffix variants — such as MJ72AA versus MJ74AA — mean that the drive parameters and cable assemblies must be verified before assuming a direct swap. Always cross-reference the full catalog number and confirm compatibility in Studio 5000 before installation.

Q2: What commissioning steps are required after replacing the motor?
After mechanical installation and cable connection, update the motor catalog number in the axis properties within Studio 5000 Logix Designer, download the updated program to the controller, and run the Motor Autotune routine. Verify that the axis reaches its target velocity without oscillation, confirm that all fault codes are cleared, and check that HMI position displays and fault indicators reflect the correct axis state before returning the machine to production.

Q3: Does NINERMAS test units before shipment, and what does the warranty cover?
Yes. Every MPL-B310P-MJ74AA unit shipped by NINERMAS undergoes functional testing including encoder signal verification, winding resistance measurement, and insulation resistance testing prior to dispatch. The 12-month warranty covers functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical overload.

Q4: Can you supply compatible cables, connectors, and drive modules alongside the motor?
NINERMAS can advise on compatible 2090-series motor power and feedback cables, SpeedTec connector assemblies, and Kinetix drive modules commonly paired with the MPL-B310P-MJ74AA. Contact our technical team with your full system configuration — including drive model, cable routing distance, and rack layout — for a complete retrofit bill of materials.
