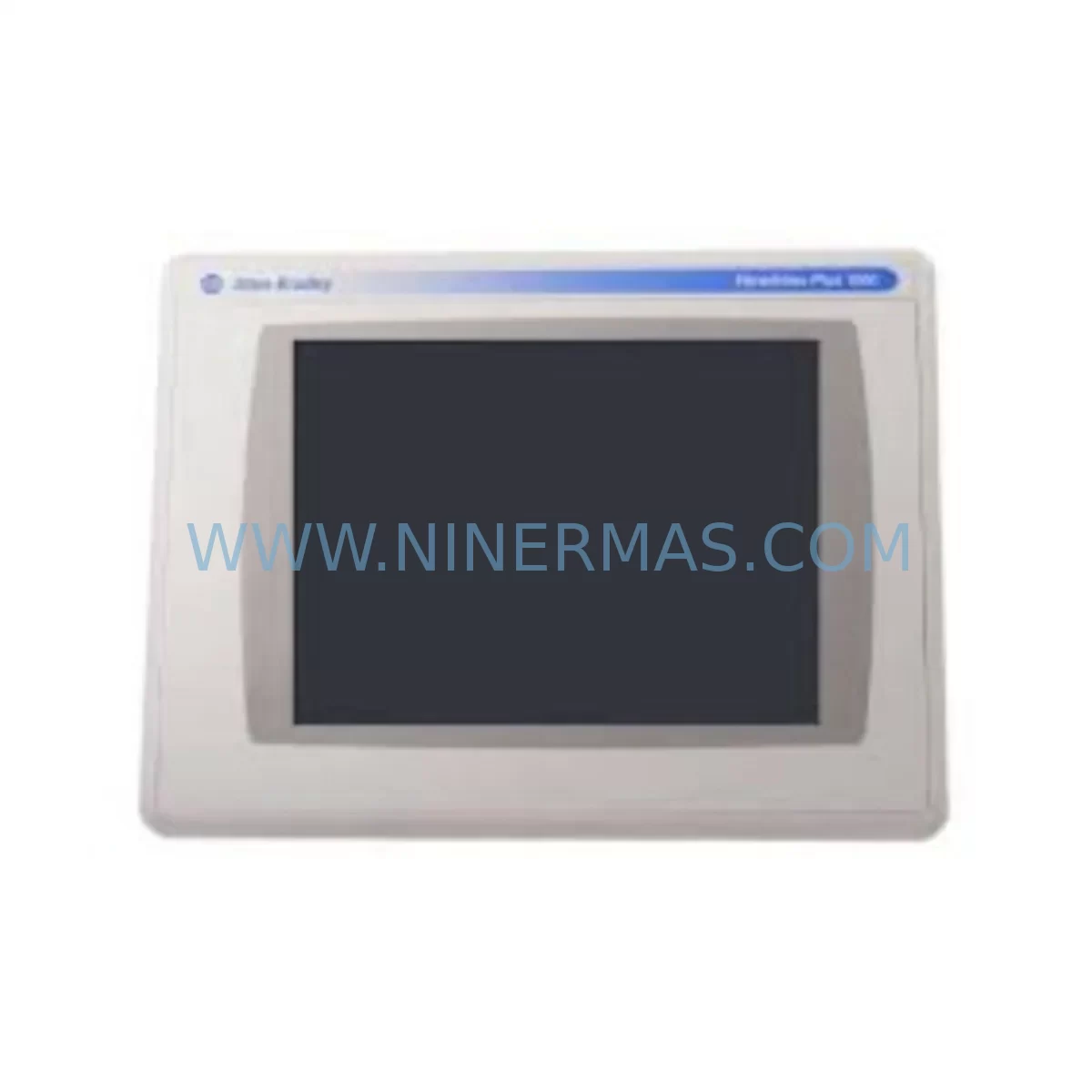

The Allen-Bradley 2711PC-T10C4D1 is a 10-inch color touch-screen operator interface terminal from the PanelView Plus Compact series, engineered by Rockwell Automation for demanding industrial environments where control continuity and operator safety are non-negotiable. Designed to integrate seamlessly into Allen-Bradley control architectures, this HMI delivers stable, high-visibility process visualization and operator interaction across continuous production lines, critical interlock circuits, and heavy-duty control cabinets where unplanned downtime carries serious operational and safety consequences.

In industries where milliseconds matter — petrochemical processing, electric power generation, mining extraction, water treatment, metallurgical smelting, port logistics, and marine vessel automation — the 2711PC-T10C4D1 provides the operator interface reliability that safety-critical systems demand. Its robust design addresses the most common causes of HMI-related control interruptions: signal drift under electrical noise, display failure in high-temperature or high-vibration environments, communication anomalies on EtherNet/IP networks, and power fluctuation-induced restarts that can trigger unintended actuator responses.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the 2711PC-T10C4D1 as the primary operator interface in a safety-oriented control cabinet requires a holistic approach to panel design. In high-electromagnetic-interference environments — such as those found near variable frequency drives (VFDs), large motor starters, or arc furnace control systems — the HMI’s EtherNet/IP communication port should be paired with shielded Cat6 cabling and managed industrial switches such as the Allen-Bradley Stratix 5700 series to prevent packet loss and communication timeouts that could mask alarm conditions from operators.

Power supply stability is equally critical. The 2711PC-T10C4D1 operates on 24V DC, and any voltage sag or surge at the supply rail can cause unexpected HMI restarts, momentarily blinding operators to process status during the most critical moments. Pairing this terminal with a high-quality Allen-Bradley 1606-XLP power supply or equivalent DIN-rail mounted regulated DC supply with built-in surge protection significantly reduces this risk. For cabinets in dusty or humid environments — common in cement plants, grain processing, or coastal marine installations — the IP65-rated front panel of the 2711PC-T10C4D1 provides a reliable barrier, but the rear enclosure should be protected by a properly sealed NEMA 4X rated control cabinet with filtered ventilation.

In safety interlock circuits, the HMI serves as the operator’s window into the safety PLC logic. When integrated with a Allen-Bradley GuardLogix 5580 safety controller or a CompactLogix 5380 standard controller via EtherNet/IP, the 2711PC-T10C4D1 enables real-time visualization of safety relay states, emergency stop status, and interlock bypass conditions. This visibility is essential for reducing operator error during manual override procedures — a leading cause of process safety incidents in continuous manufacturing. The terminal’s FactoryTalk View ME application environment supports alarm management, trend displays, and recipe management, all of which contribute to reducing unplanned shutdowns caused by operator misjudgment.

For installations in high-vibration environments such as mining conveyors, offshore platforms, or heavy press lines, the panel-mount design of the 2711PC-T10C4D1 should be complemented by vibration-dampening mounting hardware and secure cable strain relief. Alongside this HMI, control engineers frequently deploy Allen-Bradley 1734 POINT I/O modules for distributed field signal acquisition, 1492 interface modules for relay output isolation, and Allen-Bradley 700-HLT safety relays within the same cabinet to form a complete, safety-validated control loop. Surge protection devices on field signal cables — particularly on analog inputs from thermocouples, pressure transmitters, and flow meters — prevent signal drift and false readings that could trigger nuisance trips or, worse, mask genuine process faults.

Critical Industrial Safety Applications

The Allen-Bradley 2711PC-T10C4D1 has established a strong track record across the most demanding industrial safety applications globally:

Petrochemical & Refinery Operations: In continuous process plants where a single control interruption can trigger cascading safety system activations, the 2711PC-T10C4D1 provides operators with a stable, high-contrast display of critical process variables — reactor temperatures, pressure vessel levels, and emergency shutdown valve positions — even in ambient temperatures approaching 55°C and in the presence of corrosive atmospheric conditions.

Electric Power Generation & Substation Control: Deployed in turbine control rooms and substation automation panels, this HMI withstands the intense electromagnetic fields generated by high-voltage switching equipment. Its EtherNet/IP connectivity allows seamless integration with SCADA systems and Allen-Bradley ControlLogix 5580 controllers managing generator synchronization and load dispatch sequences.

Mining & Mineral Processing: On underground conveyor systems, crusher control stations, and flotation cell panels, the 2711PC-T10C4D1’s IP65 front panel and vibration-resistant construction ensure continuous operator visibility even in environments laden with coal dust, silica particles, and constant mechanical vibration. Its compatibility with Allen-Bradley PowerFlex 755 drive systems via EtherNet/IP enables integrated speed and torque monitoring directly at the operator station.

Water & Wastewater Treatment: In pump station control panels and chemical dosing systems, where humidity and condensation are persistent threats, the sealed front panel of the 2711PC-T10C4D1 prevents moisture ingress that could cause display failure or touchscreen malfunction. Operators rely on this terminal to monitor flow rates, chemical feed rates, and UV disinfection system status around the clock.

Metallurgy & Steel Production: In electric arc furnace (EAF) control rooms and rolling mill operator stations, the HMI must function reliably in the presence of extreme radiated heat, heavy electrical interference from furnace transformers, and airborne metallic particulates. The 2711PC-T10C4D1’s industrial-grade construction and EMC compliance make it a trusted choice for these environments.

Port Logistics & Marine Vessel Automation: Crane control cabinets and ship engine room automation panels demand HMI solutions that can withstand salt-laden air, constant vibration from diesel engines, and wide ambient temperature swings. The 2711PC-T10C4D1’s robust design and broad operating temperature range make it well-suited for these mobile and semi-fixed industrial platforms.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the Allen-Bradley 2711PC-T10C4D1?
Every 2711PC-T10C4D1 unit supplied by NINERMAS COMPANY LIMITED is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our warranty support includes technical diagnosis, repair, or replacement, ensuring your control system remains operational without extended downtime risk.

Q2: What outgoing quality inspection is performed before shipment?
Each unit undergoes a comprehensive pre-shipment functional test that verifies display operation, touchscreen calibration, communication port integrity (EtherNet/IP and RS-232), power input performance, and overall boot sequence. Units that do not pass all inspection criteria are quarantined and not dispatched, ensuring only fully verified product reaches your facility.

Q3: Is the 2711PC-T10C4D1 compatible with existing Allen-Bradley PLC and SCADA systems?
Yes. The 2711PC-T10C4D1 is fully compatible with Rockwell Automation’s FactoryTalk View ME software environment and communicates natively over EtherNet/IP with CompactLogix, ControlLogix, MicroLogix, and GuardLogix controller families. It also supports RS-232 serial communication for legacy system integration, making it an ideal drop-in replacement or upgrade for aging PanelView terminals in existing control architectures.

Q4: Can NINERMAS guarantee long-term supply and replacement support for this model?
NINERMAS maintains dedicated inventory of the 2711PC-T10C4D1 and related PanelView Plus Compact series components to support long-term spare parts programs for industrial facilities. We understand that production-critical sites cannot afford extended lead times for replacement HMIs. Our stock availability and rapid dispatch capability are specifically designed to minimize your mean time to repair (MTTR) and keep your control systems running safely.
