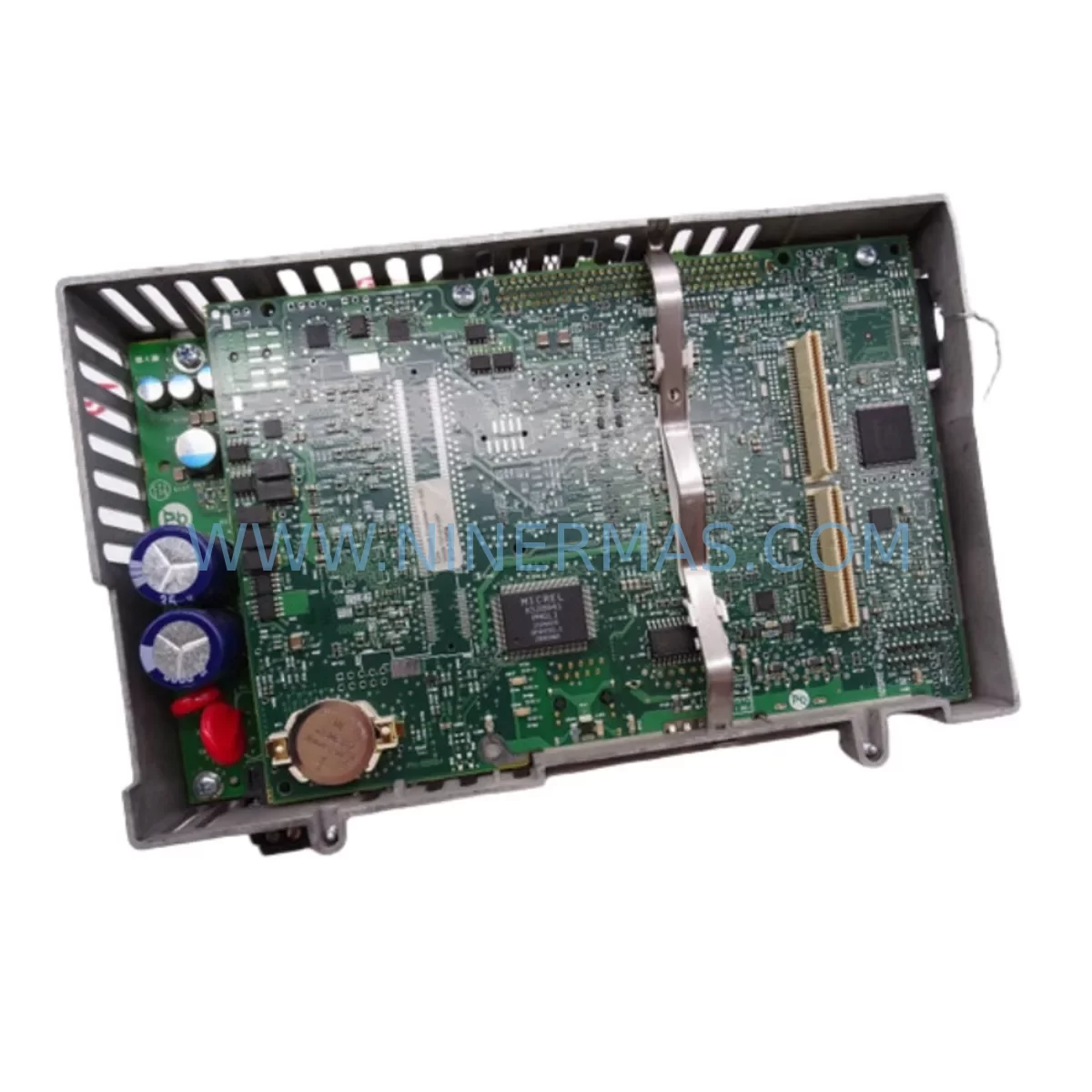

Allen-Bradley 2711PC-RP8D Retrofit-Compatible Logic Module

Allen-Bradley 2711PC-RP8D Retrofit-Compatible Logic Module: Legacy HMI System Modernization & Smooth Upgrade

The Allen-Bradley 2711PC-RP8D is a replacement logic module designed for the PanelView Plus 6 compact terminal series, widely deployed across manufacturing, process control, water treatment, and discrete automation environments. As legacy HMI platforms reach end-of-life and original spare parts become increasingly scarce, the 2711PC-RP8D serves as a critical retrofit component that allows plant engineers and system integrators to extend the operational life of existing control panels without committing to a full system overhaul.

This module is engineered to slot directly into PanelView Plus 6 compact enclosures, preserving the existing terminal housing, mounting footprint, and wiring harness. For facilities running aging Allen-Bradley PanelView Plus 700, 1000, or 1250 compact terminals, the 2711PC-RP8D provides a validated upgrade path that minimizes installation time and reduces the risk of production interruption during the replacement process.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 2711PC-RP8D into a legacy control system requires careful pre-installation planning. Before removing the failed module, engineers should document the existing terminal’s IP address configuration, EtherNet/IP node settings, and any active DF1 or DH-485 communication parameters. If the panel is connected to a CompactLogix L3x or MicroLogix 1400 controller, the communication driver and baud rate settings must be recorded to ensure seamless reconnection after the module swap.

In retrofit scenarios where the control cabinet also houses a 1769-L33ER CompactLogix processor or a 1756-L71 ControlLogix rack, the HMI application file stored on the original logic module must be backed up prior to replacement. FactoryTalk View ME Studio can be used to export the .MER runtime file, which is then transferred to the new 2711PC-RP8D via USB flash drive or SD card slot. This process eliminates the need to rebuild screen logic from scratch and preserves all existing tag bindings, alarm configurations, and navigation structures.

For panels that include a 1769-SDN DeviceNet Scanner or a 1747-SDN SLC DeviceNet module communicating with field devices, the HMI’s device shortcut list must be verified against the new module’s runtime environment. Similarly, if the control system uses a 1756-EN2T EtherNet/IP communication module to bridge the HMI to a remote I/O rack, the network path and producer/consumer tag relationships should be validated before returning the system to automatic mode.

Power supply capacity is another critical checkpoint. The existing 2711PC-T10C4D8 or similar PanelView Plus 6 compact terminal draws power from the panel’s 24VDC bus. Before installing the 2711PC-RP8D, confirm that the power supply — often a 1606-XLP95E or equivalent — can sustain the inrush current during module initialization without causing a voltage dip that could reset adjacent I/O modules or safety relays.

In systems where the HMI communicates with a 1734-AENT POINT I/O EtherNet/IP adapter or a 1794-AENT FLEX I/O adapter, the I/O tree configuration within the ControlLogix or CompactLogix project must remain unchanged. The 2711PC-RP8D does not alter the controller’s I/O configuration — it only restores the HMI display and operator interface functionality, making it a non-invasive replacement that does not require a controller program download.

For facilities managing multiple HMI terminals across a production line, it is advisable to maintain a spare 2711PC-RP8D in the site’s critical spare parts inventory. Given the extended lead times associated with discontinued Rockwell Automation components, having an in-stock replacement module significantly reduces unplanned downtime exposure and supports the site’s maintenance reliability program.

Downtime Control During System Migration

Minimizing production downtime during an HMI logic module replacement is achievable with structured preparation. The recommended approach is to schedule the swap during a planned maintenance window, ideally during a shift changeover or scheduled equipment inspection period. Before powering down the terminal, operators should confirm that the associated PLC — whether a MicroLogix 1100, CompactLogix L2x, or ControlLogix L7x — is in a safe hold state and that all field outputs are in a known, safe condition.

The physical replacement of the 2711PC-RP8D typically takes under 30 minutes for a trained technician familiar with the PanelView Plus 6 compact enclosure design. The module is secured by a single retention mechanism and connects via the internal backplane interface, eliminating the need to disturb field wiring, terminal blocks, or communication cable routing within the control cabinet.

Once the new module is seated and the terminal is powered on, the FactoryTalk View ME runtime application should load automatically from the transferred .MER file. The technician should verify that all HMI screens display correctly, that real-time tag values are updating from the controller, and that alarm banners and navigation buttons respond as expected before releasing the system back to production operators.

Communication link verification is the final step. Confirm that the EtherNet/IP connection to the controller is established (green status indicator on the HMI diagnostics screen), that any DH-485 or DF1 serial links are active, and that the HMI is correctly reading and writing to the controller’s data table. Document the completed replacement in the site’s maintenance log, including the module serial number, installation date, and technician sign-off, to support future warranty claims and audit requirements.

Retrofit Support FAQ

Q1: Is the 2711PC-RP8D a direct drop-in replacement for my existing failed logic module?
Yes. The 2711PC-RP8D is designed as a direct replacement for the logic module in PanelView Plus 6 compact terminals within the 2711PC series. It uses the same internal backplane connector and fits the existing enclosure without modification. Your existing application file (.MER) can be transferred to the new module via USB or SD card, preserving all screen logic, tag bindings, and alarm configurations.

Q2: What communication protocols does the 2711PC-RP8D support, and will it work with my existing controller?
The 2711PC-RP8D supports EtherNet/IP, DH-485, and DF1 (RS-232) communication protocols, making it compatible with a wide range of Allen-Bradley controllers including MicroLogix, SLC 500, CompactLogix, and ControlLogix platforms. After installation, verify the communication driver settings and IP address configuration match your existing network parameters to restore connectivity without requiring changes to the controller program.

Q3: Has the module been tested before shipment, and what warranty coverage is provided?
Every 2711PC-RP8D unit undergoes functional testing and verification before dispatch. All units are covered by a 12-month warranty from the date of shipment. In the event of a warranty claim, contact our support team with the module serial number and proof of purchase. Replacement or repair will be processed promptly to minimize any impact on your production operations.

Q4: What should I check if the HMI does not communicate with the controller after installing the 2711PC-RP8D?
If communication is not established after installation, first verify that the IP address assigned to the new module matches the address expected by the controller’s EtherNet/IP connection. Check that the communication driver selected in the FactoryTalk View ME application matches the physical connection type (EtherNet/IP vs. DF1 serial). Confirm that the controller is in Run mode and that the EtherNet/IP connection path in the HMI application correctly references the controller’s slot and chassis address. If using a serial DF1 connection, verify baud rate, parity, and stop bit settings match on both the HMI and controller sides.
