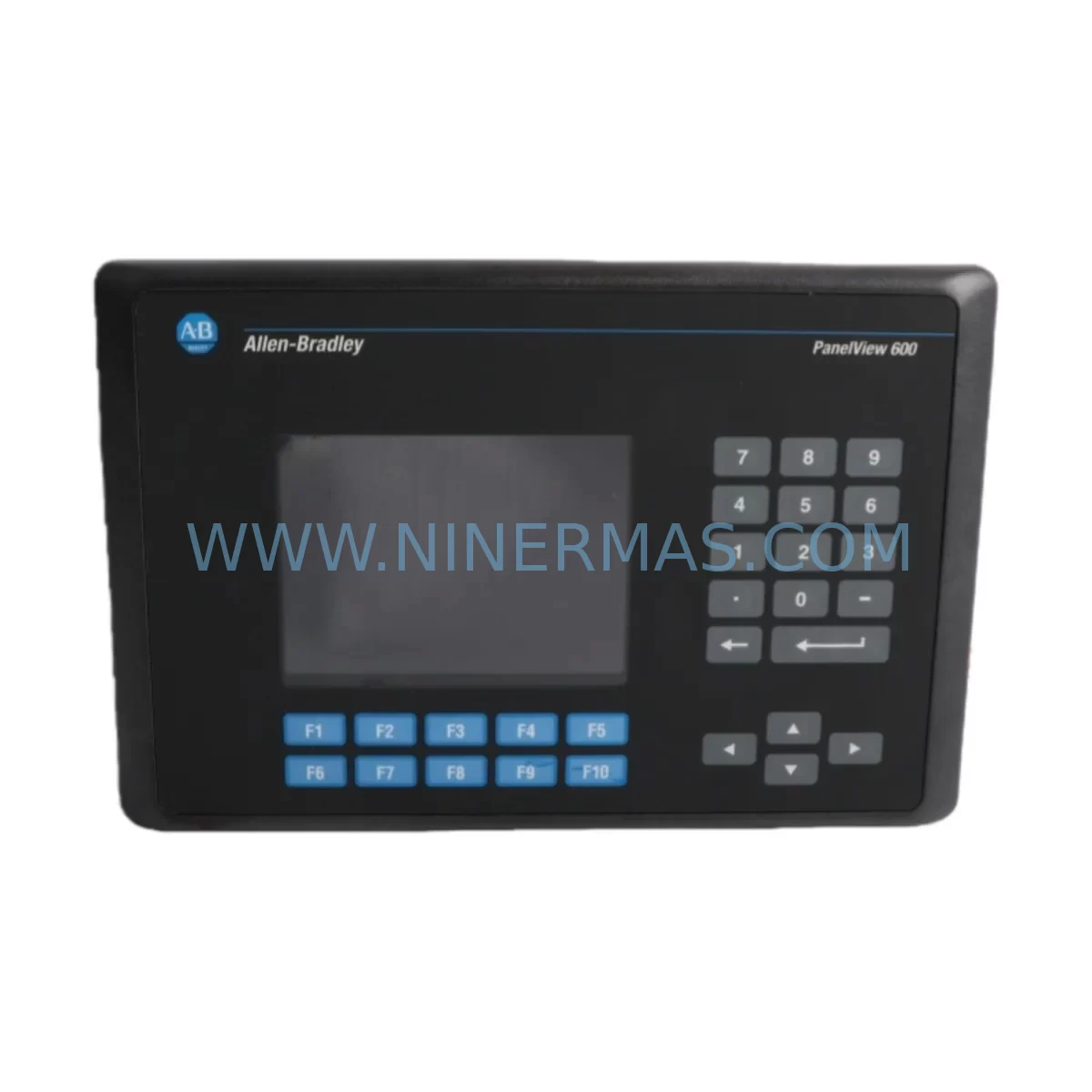

The Allen-Bradley 2711-K6C16 is a ruggedized Human-Machine Interface (HMI) terminal from Rockwell Automation’s PanelView series, engineered to deliver uninterrupted operator control in the most demanding industrial environments. Designed for critical control sites where downtime is not an option, this unit combines robust hardware construction with proven communication reliability to protect your production continuity, personnel safety, and process integrity.

In continuous manufacturing, petrochemical processing, power generation, and heavy-industry control rooms, the 2711-K6C16 serves as the operator’s primary window into the control system. Its ruggedized enclosure and sealed front panel resist dust ingress, moisture, and mechanical vibration — conditions that routinely compromise standard HMI terminals and trigger unplanned shutdowns. The unit’s stable display and responsive keypad interface ensure that operators can execute critical commands accurately, even under high-stress or emergency conditions where misoperation could trigger safety interlock trips or equipment damage.

Signal integrity is a persistent challenge in industrial environments saturated with electromagnetic interference from variable frequency drives, large motor starters, and high-current bus systems. The 2711-K6C16 is built to maintain stable communication with Allen-Bradley PLC platforms — including the SLC 500 and MicroLogix controller families — across noisy electrical environments, reducing the risk of communication faults, screen freezes, or erroneous status displays that could mislead operators during critical process transitions.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered control cabinet, the 2711-K6C16 does not operate in isolation — it is the operator interface layer of a layered safety and control architecture. Paired with an Allen-Bradley SLC 5/05 processor module, the HMI provides real-time visibility into ladder logic execution, I/O status, and fault registers, enabling operators to identify and respond to abnormal conditions before they escalate into safety events.

Power quality is foundational to HMI reliability. Deploying a 1606-XLP power supply alongside the 2711-K6C16 ensures that the 24V DC rail remains stable even during upstream voltage sags, transient surges, or momentary grid disturbances common in heavy industrial facilities. Without a regulated, surge-protected DC supply, HMI terminals are vulnerable to unexpected resets that can leave operators without process visibility at the worst possible moment.

Communication continuity is equally critical. The 2711-K6C16 connects to the control network via DH-485 or DH+ protocols. Using shielded, twisted-pair communication cable and properly terminated network segments — along with Allen-Bradley 1747-AIC Advanced Interface Converters where required — minimizes the risk of communication timeouts, data corruption, and screen lockups caused by reflections or ground loops on the network.

For installations in panels that also house Allen-Bradley 1746 SLC I/O modules, proper cabinet layout and cable segregation between power wiring and signal wiring are essential. Ferrite cores on communication cables and physical separation of AC power conductors from low-voltage signal lines dramatically reduce induced noise that can cause erratic HMI behavior or false alarm conditions.

In safety-critical applications, the HMI is often integrated into a broader safety interlock architecture. While the 2711-K6C16 itself is an operator interface device rather than a safety-rated controller, it plays a vital role in displaying the status of safety relay modules — such as Allen-Bradley MSR series safety relays — and enabling operators to acknowledge faults, reset interlocks, and confirm safe states before restarting equipment. Misreading or missing a safety status indication due to a failed or frozen HMI screen is a recognized risk factor in industrial incident investigations.

Surge protection at the panel’s incoming power terminals — using DIN-rail mounted surge protective devices rated for the installation’s fault current — further shields the 2711-K6C16 and co-located Allen-Bradley 1746-OB16 output modules from lightning-induced transients and switching surges that can permanently damage sensitive electronics.

Critical Industrial Safety Applications

The Allen-Bradley 2711-K6C16 is deployed across a wide range of critical industrial sectors where operator interface reliability directly impacts safety outcomes and production continuity.

In petrochemical and refinery operations, the 2711-K6C16 provides operators with real-time control and monitoring of pump stations, compressor controls, and emergency shutdown (ESD) system status displays. Its sealed front panel resists hydrocarbon vapors and cleaning agents, while its stable communication with SLC 500 controllers ensures that process alarms and interlock status are always accurately displayed — a requirement in facilities operating under IEC 61511 functional safety standards.

In electric power generation and substation control, the unit serves as the local operator panel for generator excitation controls, transformer tap changers, and switchgear status monitoring. The ability to withstand the high electromagnetic fields present in substation environments — generated by high-voltage switching events and large transformer cores — makes the 2711-K6C16 a reliable choice where lesser HMI terminals would suffer communication disruptions or display corruption.

In mining and mineral processing, the 2711-K6C16 is mounted in control panels on conveyor drives, crusher controls, and flotation cell management systems. The combination of NEMA 12 front-panel sealing and vibration tolerance allows it to function reliably in environments where dust, moisture, and mechanical shock are constant operational realities.

In water and wastewater treatment facilities, the unit provides operators with clear visibility into pump sequencing, chemical dosing controls, and alarm management. Its non-volatile memory retains application programming through power interruptions, ensuring that the HMI returns to full operational status immediately upon power restoration — a critical capability in facilities where continuous treatment is a public health obligation.

In port and marine terminal operations, the 2711-K6C16 is used in crane control cabinets, ship-to-shore conveyor systems, and bulk material handling controls. Its ability to operate across a wide temperature range and resist humidity makes it suitable for outdoor-adjacent panel installations subject to sea air and temperature cycling.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the Allen-Bradley 2711-K6C16?
All Allen-Bradley 2711-K6C16 units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects and functional failures under normal operating conditions. NINERMAS provides replacement or repair support within the warranty period, with rapid response to minimize your site downtime.

Q2: How is the 2711-K6C16 tested before shipment?
Each unit undergoes pre-shipment functional verification, including power-on testing, display integrity checks, keypad response validation, and communication port testing. Units that do not meet operational standards are quarantined and not shipped. This process ensures that every 2711-K6C16 leaving our facility is ready for immediate installation and commissioning.

Q3: Is the 2711-K6C16 compatible with my existing Allen-Bradley SLC 500 or MicroLogix system?
Yes. The 2711-K6C16 is designed for native compatibility with Allen-Bradley SLC 500 series processors and MicroLogix controllers via DH-485 communication. It is also compatible with PLC-5 platforms via DH+ with appropriate cabling. NINERMAS technical support can assist with compatibility confirmation for your specific controller model and firmware version.

Q4: Can NINERMAS guarantee long-term supply and replacement support for the 2711-K6C16?
NINERMAS maintains dedicated inventory of Allen-Bradley legacy and current HMI products, including the 2711-K6C16, to support customers with long-lifecycle industrial installations. We understand that many critical facilities cannot migrate to newer HMI platforms on short notice, and we are committed to providing reliable spare parts supply, technical documentation support, and replacement units to keep your operations running safely and continuously.
