Allen-Bradley 22C-D022N103 PowerFlex 400 Retrofit Drive

Allen-Bradley 22C-D022N103 PowerFlex 400 Retrofit Drive: Legacy-Compatible Fan & Pump System Upgrade

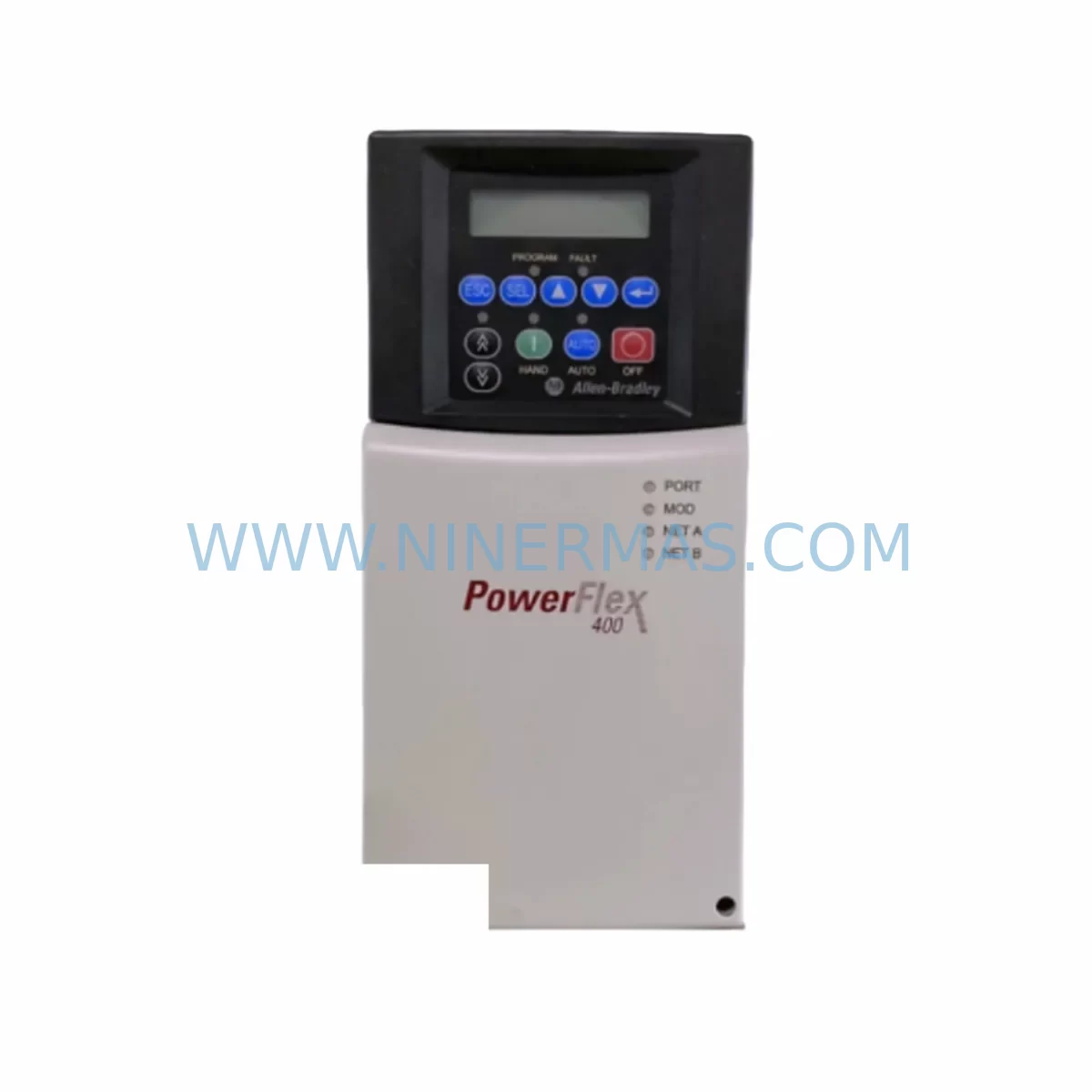

The Allen-Bradley 22C-D022N103 is a PowerFlex 400 series AC variable frequency drive (VFD) rated for fan and pump applications, delivering reliable speed control for legacy automation systems that require a direct replacement or retrofit-compatible upgrade. As industrial facilities face the end-of-life reality of older drive platforms — including discontinued PowerFlex 70, PowerFlex 4, and early PowerFlex 400 variants — the 22C-D022N103 provides a proven migration path that preserves existing wiring infrastructure, minimizes panel rework, and reduces total downtime during changeover. Whether you are managing a HVAC retrofit, a water treatment pump upgrade, or a legacy conveyor fan replacement, this drive is engineered to integrate into existing Rockwell Automation control architectures with minimal engineering overhead.

Sourced as an original Allen-Bradley spare part through a verified industrial supply network, the 22C-D022N103 is available with a 12-month warranty and pre-shipment functional testing. Inventory is maintained to support urgent replacement orders, reducing lead time risk for facilities operating on tight maintenance windows.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a legacy drive in an active production environment demands careful pre-engineering. Before installing the 22C-D022N103, maintenance engineers should audit the existing control cabinet for available panel depth and width, as the PowerFlex 400 frame size for this catalog number may differ from older PowerFlex 4 or PowerFlex 40 units previously installed. Confirm that the back-panel mounting hole pattern is compatible or prepare a sub-plate adapter to avoid structural rework.

Power supply capacity is a critical checkpoint. Verify that the upstream transformer or MCC section can sustain the drive’s input current demand, particularly in facilities where multiple drives share a common bus. If the existing installation includes a 1321-3R line reactor or an EMC filter, confirm that these passive components are rated for the 22C-D022N103’s input specifications before reuse.

Terminal wiring adaptation is frequently the most time-consuming step. The 22C-D022N103 uses a standard screw-terminal I/O block, but legacy systems wired for older PowerFlex 4 or PowerFlex 40 drives may use different terminal numbering for analog inputs (0–10V or 4–20mA speed reference), digital inputs (start/stop, fault reset, speed preset), and relay outputs (run status, fault indication). Map each existing wire to the corresponding 22C-D022N103 terminal before disconnecting the old drive. A terminal-by-terminal wiring diagram comparison between the outgoing and incoming drive catalogs will prevent miswiring errors that could damage the new unit or connected motor.

For facilities running DeviceNet or PROFIBUS networks, the 22C-D022N103 requires a 22-COMM-D or 22-COMM-P communication adapter module respectively. If the legacy system used a 1203-GU6 or 1203-USB gateway for drive configuration, verify that the replacement adapter is compatible with the existing network scanner — typically a 1756-DNB or 1756-PBE ControlLogix module. EtherNet/IP integration via a 22-COMM-E adapter is the preferred migration path for facilities standardizing on a single network protocol, as it simplifies integration with existing 1756-ENBT or 1756-EN2T Ethernet bridge modules in the ControlLogix or CompactLogix backplane.

I/O module mapping in the PLC program must be reviewed before commissioning. If the legacy drive was configured as an explicit messaging node or consumed/produced tags in a Studio 5000 project, update the Add-On Profile (AOP) to reflect the 22C-D022N103’s parameter set. Pay particular attention to accel/decel ramp parameters, motor nameplate data entry (FLA, RPM, Hz), and any custom PID loop tuning previously applied to the fan or pump control loop. HMI screens built on FactoryTalk View SE or ME that display drive speed, current, or fault codes should be validated against the new drive’s parameter addresses to ensure accurate real-time data display.

Where the legacy system included a 22-HIM-A3 or 22-HIM-C2S Human Interface Module mounted on the drive door, confirm physical compatibility with the 22C-D022N103 faceplate before reusing the existing HIM. In many retrofit scenarios, the HIM can be transferred directly, preserving operator familiarity with the interface and reducing retraining time on the plant floor.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern in any drive replacement project. For the 22C-D022N103 retrofit, a structured changeover plan should begin with a full parameter backup of the outgoing drive using DriveExplorer or a 22-HIM-A3 module before any power is removed. This backup preserves all application-specific settings — including speed references, torque limits, fault response configurations, and PID parameters — and allows rapid restoration if commissioning of the new drive encounters unexpected issues.

Schedule the physical swap during a planned maintenance window, ideally aligned with a production shift change or scheduled equipment inspection. Pre-stage the 22C-D022N103 with motor nameplate data pre-entered and basic I/O wiring verified on a bench setup before bringing it to the panel. This reduces in-panel commissioning time to final wiring termination, network node address assignment, and a supervised motor run test.

During the motor run test, verify rotation direction, confirm that the speed reference signal from the PLC or process controller is correctly received, and check that all digital input functions (run, stop, fault reset, speed preset) respond as expected. Monitor output current during the first loaded run cycle and compare against the motor’s nameplate FLA to confirm the drive is not operating in an overload condition. Log all commissioning results for the maintenance record and update the site’s spare parts inventory to reflect the installed catalog number change from the legacy unit to 22C-D022N103.

Maintaining a buffer stock of critical spare parts — including a replacement 22C-D022N103 unit, the associated 22-COMM adapter, and relevant 1321-3R line reactor — is strongly recommended for facilities where fan or pump drive failure would trigger a process shutdown. A 12-month warranty on each shipped unit provides a defined coverage period, and pre-shipment functional testing ensures that the replacement drive arrives ready for installation without additional incoming inspection delays.

Retrofit Support FAQ

Q1: Is the 22C-D022N103 a direct drop-in replacement for a PowerFlex 4 or PowerFlex 40 drive?
The 22C-D022N103 is functionally compatible with PowerFlex 4 and PowerFlex 40 fan/pump applications, but it is not a mechanical drop-in due to differences in frame dimensions and terminal block layout. A sub-plate adapter may be required for panel mounting, and terminal wiring must be remapped according to the 22C-D022N103 wiring diagram. Parameter migration is manual — use DriveExplorer to document legacy settings before removal.

Q2: What communication adapters are compatible with the 22C-D022N103 for network integration?
The 22C-D022N103 supports the full range of 22-COMM series adapters: 22-COMM-E (EtherNet/IP), 22-COMM-D (DeviceNet), 22-COMM-P (PROFIBUS DP), and 22-COMM-C (CANopen). Select the adapter that matches your existing plant network. EtherNet/IP is recommended for new installations or protocol migration projects due to its compatibility with ControlLogix and CompactLogix platforms.

Q3: Does the shipped unit include a pre-shipment functional test, and what does the 12-month warranty cover?
Yes. Each 22C-D022N103 unit undergoes a functional power-on test before dispatch to verify drive operation, display function, and I/O response. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the drive’s rated specifications.

Q4: What is the typical lead time, and is stock available for urgent replacement orders?
Inventory of the 22C-D022N103 is maintained to support urgent replacement requirements. Standard orders are processed and dispatched within 1–3 business days. For critical plant breakdowns requiring same-day or next-day dispatch, contact our sales team directly to confirm real-time stock availability and expedited shipping options.
