Allen-Bradley 22B-D024N104 Safety-Reliable AC Drive

Allen-Bradley 22B-D024N104 Safety-Reliable AC Drive for Critical Industrial Control Sites

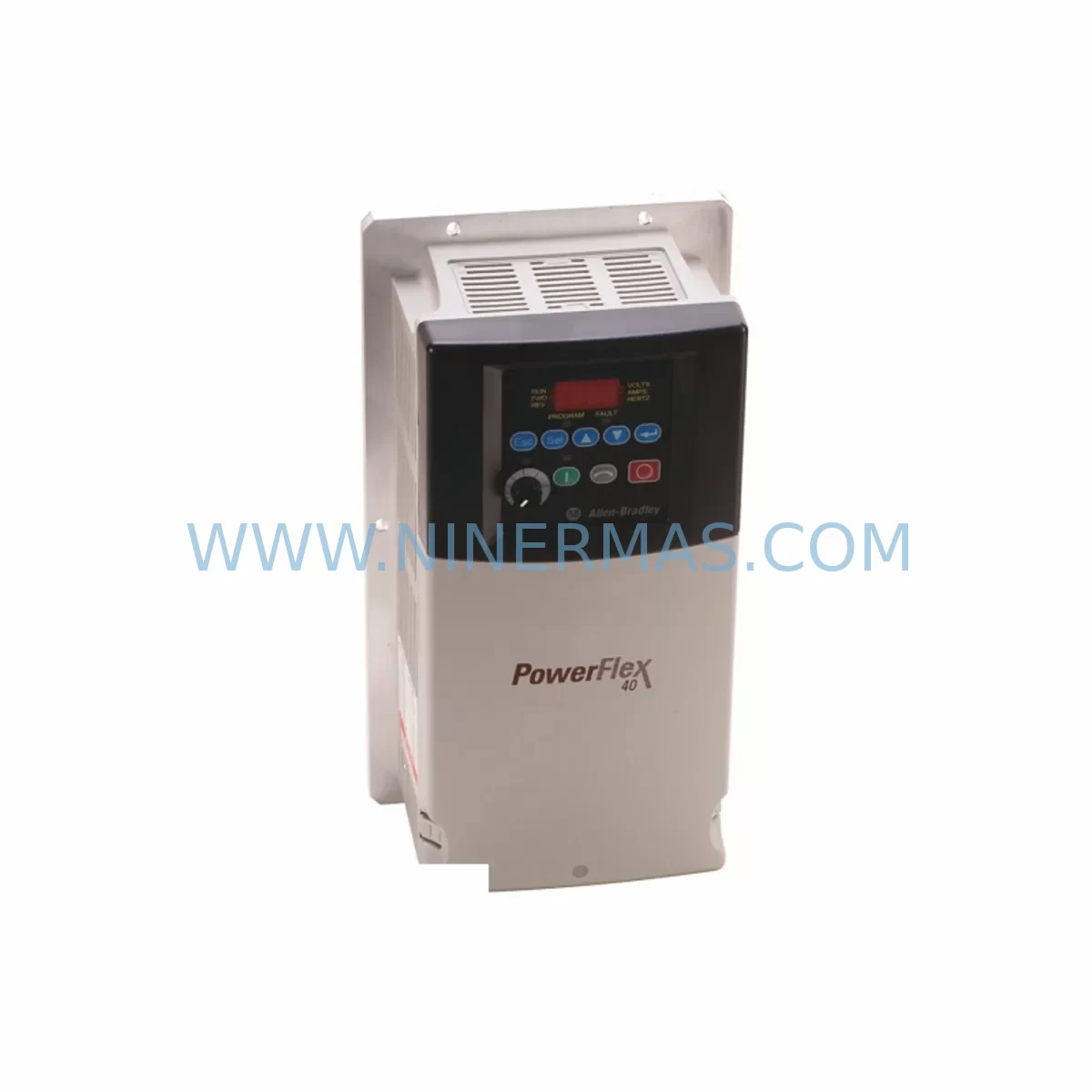

The Allen-Bradley 22B-D024N104 is a PowerFlex 40 series AC variable frequency drive engineered for demanding industrial environments where control continuity, personnel safety, and process reliability are non-negotiable. Rated at 11 kW / 15 HP for 480V three-phase input, this drive delivers precise motor speed regulation, robust fault protection, and seamless integration into safety-critical control architectures across petrochemical, power generation, mining, water treatment, metallurgy, port logistics, and continuous manufacturing facilities.

At NINERMAS, every 22B-D024N104 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty — ensuring that your critical control loop remains protected from the moment of installation through the full warranty period.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In high-stakes control environments, a single component failure can cascade into unplanned downtime, process upsets, or safety incidents. The Allen-Bradley 22B-D024N104 PowerFlex 40 is designed to anchor a layered risk-reduction strategy within the control cabinet.

Its built-in Class A EMC filter significantly attenuates conducted and radiated emissions, protecting adjacent components such as Allen-Bradley 1756-L71 ControlLogix processors and 1769-IQ16 CompactLogix digital input modules from signal corruption caused by high-frequency switching noise — a critical concern in cabinets housing both drive and PLC equipment on shared power rails.

For power quality protection, the 22B-D024N104 is commonly paired with Allen-Bradley 1321-3R line reactors upstream to suppress voltage spikes and reduce harmonic distortion, and with Allen-Bradley 1321-M line filters to further limit EMI propagation. In facilities with unstable utility supplies — common in mining and port environments — adding a Rockwell Automation 1606-XLP power supply to the 24VDC control circuit ensures that the drive’s control board and I/O remain energized through brief voltage sags, preventing nuisance trips and false fault conditions.

The drive’s DSI communication port enables direct integration with Allen-Bradley 20-COMM-E EtherNet/IP communication adapters, allowing real-time speed reference, fault status, and diagnostic data to be transmitted to the plant DCS or SCADA system without additional signal converters. For safety interlock circuits, the drive’s digital inputs can be wired to Allen-Bradley 440C-CR30 safety relays or GuardLogix safety controllers to implement STO (Safe Torque Off) equivalent logic, ensuring the motor de-energizes safely upon emergency stop activation.

In dusty or humid environments — such as cement plants, water treatment stations, or coastal port facilities — the 22B-D024N104’s IP20 enclosure is typically installed within a sealed NEMA 12 or IP54 control cabinet, with Allen-Bradley 1492-SP series circuit breakers providing upstream short-circuit protection. Thermal management is maintained through cabinet-mounted heat exchangers or filtered fan units, preserving the drive’s operating temperature within the 0–50°C specification even in high-ambient-temperature process areas.

For facilities managing multiple drive axes, the PowerFlex 40 22B-D024N104 can be coordinated alongside smaller PowerFlex 40 variants such as the 22B-D012N104 (7.5 HP) and 22B-D017N104 (10 HP) within the same control cabinet, sharing a common bus architecture and simplifying spare parts inventory management — a key advantage for maintenance teams operating under lean stocking policies.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The 22B-D024N104 is deployed on pump and compressor drives within hazardous area control rooms, where precise speed control prevents pressure surges and the drive’s comprehensive fault protection — including ground fault detection and phase loss monitoring — reduces the risk of motor failures that could trigger process safety events. Its ability to maintain controlled deceleration during emergency stop sequences supports safe process shutdown without mechanical shock.

Power Generation & Utilities: In coal-fired and hydroelectric power plants, the drive controls cooling water pumps, induced draft fans, and auxiliary equipment. The overload capacity of 150% for 60 seconds accommodates motor starting transients without tripping, maintaining continuous operation of critical auxiliary systems. Integration with plant DCS via EtherNet/IP adapters enables centralized monitoring and predictive maintenance scheduling.

Mining & Mineral Processing: Conveyor belt drives, slurry pump motors, and crusher feed systems in underground and open-pit mining operations benefit from the drive’s robust overcurrent and overvoltage protection. In high-vibration environments, the drive’s compliance with IEC 60068-2-6 vibration standards ensures reliable operation without connector loosening or PCB fatigue failures.

Water & Wastewater Treatment: Municipal water treatment facilities use the 22B-D024N104 on aeration blowers, sludge pump drives, and filtration system motors. The drive’s sensorless vector control maintains precise flow rates across varying load conditions, reducing energy consumption while ensuring consistent treatment process performance. Its non-condensing humidity rating supports installation in pump houses with high ambient moisture levels.

Metallurgy & Steel Manufacturing: Rolling mill auxiliary drives, furnace exhaust fans, and cooling system pumps in steel plants operate under extreme thermal and vibration stress. The 22B-D024N104’s derating capability above 40°C and its storage temperature range down to -40°C make it suitable for both hot-end process areas and cold storage spare parts environments, simplifying logistics for maintenance teams.

Port Logistics & Marine Applications: Crane hoist and travel drives, conveyor systems, and ballast pump controls in port and shipboard environments demand drives that can withstand salt-laden air, high humidity, and continuous duty cycles. When installed in properly sealed enclosures, the 22B-D024N104 provides the speed regulation accuracy and fault resilience required for safe cargo handling operations.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Allen-Bradley 22B-D024N104?
Every 22B-D024N104 unit supplied by NINERMAS carries a 12-month warranty from the shipment date. This covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported with direct technical assistance and replacement unit coordination to minimize your site downtime.

Q2: Is pre-shipment testing performed on each unit?
Yes. Each Allen-Bradley 22B-D024N104 undergoes functional verification testing prior to dispatch, including power-on checks, fault code diagnostics, and output parameter verification. This pre-shipment testing protocol ensures that units arrive at your facility in confirmed working condition, reducing the risk of installation delays caused by DOA (dead-on-arrival) components.

Q3: Is the 22B-D024N104 compatible with existing PowerFlex 40 installations?
Yes. The 22B-D024N104 is a direct form-fit-function replacement for existing PowerFlex 40 drives of the same power rating and voltage class. It retains full compatibility with Allen-Bradley DSI peripherals, 20-HIM operator interfaces, and 20-COMM communication adapters already installed in your control cabinet, eliminating the need for rewiring or parameter reconfiguration beyond standard commissioning steps.

Q4: Can long-term supply continuity be assured for this part?
NINERMAS maintains dedicated inventory of the 22B-D024N104 and related PowerFlex 40 series components to support ongoing MRO (Maintenance, Repair & Operations) requirements. Our supply chain is structured to support repeat orders, blanket purchase agreements, and emergency procurement requests — ensuring that your facility’s spare parts program is not disrupted by market shortages or lead time volatility.
