Allen-Bradley 22B-D012N104 Retrofit-Compatible AC Drive

Allen-Bradley 22B-D012N104 Retrofit-Compatible AC Drive for Legacy Systems

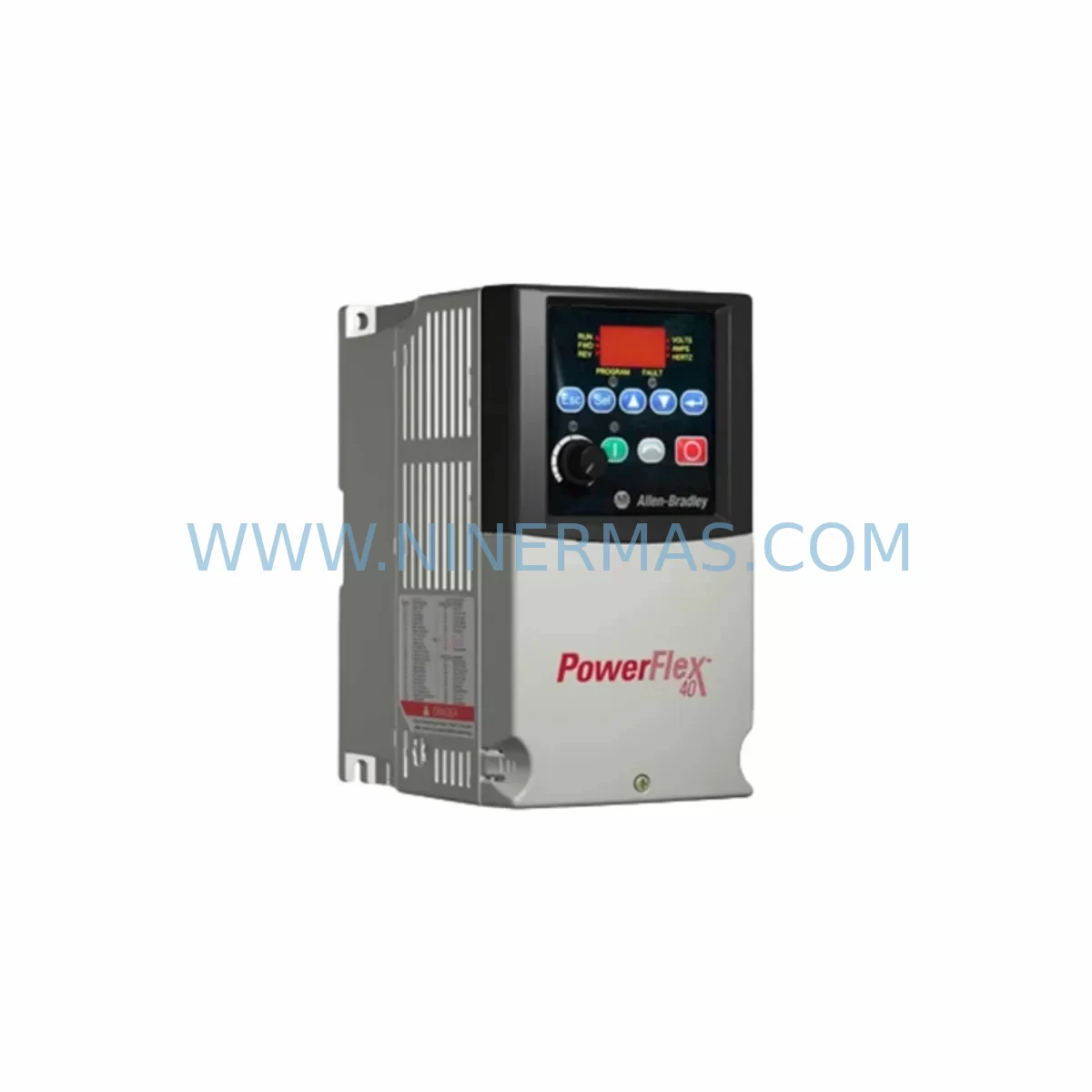

The Allen-Bradley 22B-D012N104 is a PowerFlex 4M series AC variable frequency drive engineered for seamless integration into existing automation architectures. Rated at 5.5 kW / 7.5 HP for 480V three-phase input, this drive is a proven retrofit solution for facilities managing aging motor control infrastructure across continuous manufacturing, water treatment, HVAC, conveyor systems, and process industries. Whether you are replacing an end-of-life drive, upgrading a legacy panel, or restoring a critical production line, the 22B-D012N104 delivers the dimensional compatibility, terminal layout, and parameter structure needed to minimize engineering rework and reduce commissioning time on site.

Industrial facilities operating legacy Allen-Bradley PowerFlex 4 or PowerFlex 4M drives face increasing pressure as original units reach end-of-life status. Sourcing a verified replacement that maintains backward compatibility with existing wiring, control terminals, and PLC logic is essential to protecting uptime. The 22B-D012N104 addresses this challenge directly — its compact DIN-rail or panel-mount footprint matches the original PowerFlex 4M envelope, and its terminal block layout preserves the standard control wiring scheme used across thousands of installed panels worldwide.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 22B-D012N104 into an existing control cabinet begins with a systematic review of the current installation. Engineers should first confirm the incoming power supply capacity — the 22B-D012N104 draws up to 12A output current and requires a properly rated circuit breaker or fused disconnect upstream. In many legacy panels, the original Allen-Bradley PowerFlex 4 or PowerFlex 40 drive may have been wired with a shared 24VDC control power rail; this rail must be verified for adequate current capacity before the new drive is energized.

Terminal block wiring is the next critical checkpoint. The PowerFlex 4M control terminal strip uses a standard layout for digital inputs (DI1–DI3), analog input (AI1), relay output (R1A/R1B/R1C), and RS-485 DSI port. When replacing an older unit, technicians should photograph and document the existing wiring before removal. In many cases, the original wiring can be reconnected directly to the 22B-D012N104 without modification, significantly reducing panel downtime.

For facilities using a 1747-SDN DeviceNet Scanner or a 1756-DNB DeviceNet Bridge module in a ControlLogix or SLC 500 rack, the drive’s node address and I/O mapping must be verified against the existing PLC program. If the original drive was configured with a 22-COMM-D DeviceNet adapter, the replacement unit should be fitted with the same adapter type to maintain network continuity. Similarly, sites running EtherNet/IP communication via a 22-COMM-E adapter should confirm IP address assignment and EDS file compatibility before going live.

Parameter backup is essential before decommissioning the old drive. Using Connected Components Workbench or a 22-HIM-A3 handheld HIM, engineers can upload the existing parameter set and transfer it to the replacement 22B-D012N104. Key parameters to verify include acceleration and deceleration ramp times, minimum and maximum frequency limits, motor nameplate data (voltage, current, frequency, RPM), and any custom fault response configurations. If the original drive used a 22-HIM-C2S remote HIM panel, the same remote HIM can be reconnected to the new drive without rewiring the HIM cable.

In applications where the drive controls a conveyor, pump, or fan tied to a SCADA or DCS system, the analog speed reference signal (typically 4–20mA from a process controller) must be verified at the AI1 terminal. Signal drift or ground loop issues that existed with the old drive should be corrected during the retrofit window. Installing a signal isolator between the process controller output and the drive analog input is a recommended best practice for long cable runs or high-EMI environments.

Backplane and rack considerations apply when the drive is mounted adjacent to other Allen-Bradley components such as a 1492-IFM interface module, terminal block assemblies, or a 1606-XLP power supply. Adequate spacing for airflow must be maintained per the PowerFlex 4M installation manual, particularly in enclosed cabinets operating in ambient temperatures above 40°C.

Downtime Control During System Migration

Minimizing production interruption during a drive retrofit requires careful pre-staging and a structured cutover plan. Before the scheduled maintenance window, the replacement 22B-D012N104 should be fully pre-configured with the motor parameters, ramp settings, and I/O assignments matching the original drive. This pre-commissioning step — performed on the bench using Connected Components Workbench and a USB-to-DSI cable — eliminates the need for on-site parameter entry and reduces the live commissioning window to a final verification run.

During the cutover, the sequence should follow: isolate and lock out the incoming power supply, remove the original drive, install the 22B-D012N104 in the same mounting position, reconnect power and control wiring per the documented terminal layout, restore the DSI or network communication adapter, and energize for a no-load test run before reconnecting the motor load. This structured approach typically allows a complete drive swap to be completed within a two-to-four hour planned maintenance window, even in complex multi-drive panels.

For critical processes where even a brief interruption is unacceptable, a parallel installation strategy can be employed: mount the new drive in an adjacent panel position, wire it in parallel with the existing drive, and perform a live switchover using the PLC logic to redirect the speed reference and enable signal. This approach is particularly effective in water treatment pump stations, chemical dosing systems, and continuous web or film production lines where process continuity is paramount.

Protecting the original PLC program logic is non-negotiable. No changes should be made to the ControlLogix, CompactLogix, or SLC 500 program during the drive swap unless a parameter mapping difference requires it. If the drive’s DeviceNet or EtherNet/IP node configuration differs from the original, the PLC program should be updated and tested in offline simulation before the live cutover. All program changes must be version-controlled and backed up to a secure location before and after the retrofit.

Retrofit Support FAQ

Q1: Is the 22B-D012N104 a direct drop-in replacement for my existing PowerFlex 4M drive?
Yes. The 22B-D012N104 is the standard catalog number for the PowerFlex 4M 5.5 kW / 7.5 HP 480V drive. It shares the same frame B dimensions, terminal layout, and parameter structure as the original unit, making it a direct mechanical and electrical replacement in the vast majority of existing installations.

Q2: Can I reuse my existing wiring and communication adapter?
In most cases, yes. The control terminal layout and power terminal positions are consistent with the original PowerFlex 4M design. Existing 22-COMM-D (DeviceNet), 22-COMM-E (EtherNet/IP), or 22-COMM-C (ControlNet) adapters can be transferred to the replacement drive. Verify adapter firmware compatibility with the replacement unit before installation.

Q3: What pre-shipment testing is performed on the 22B-D012N104?
Every unit undergoes a full functional test prior to dispatch, including power-on verification, I/O terminal continuity check, and basic motor run test where applicable. A test report is available upon request. All units are shipped with original or equivalent packaging to prevent transit damage.

Q4: What warranty and long-term supply support is available?
The 22B-D012N104 is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. We maintain ongoing inventory of PowerFlex 4M series drives and accessories to support long-term spare parts programs, including scheduled stock commitments for facilities managing multi-site retrofit projects.
