Allen-Bradley 22B-D010N104 Safety-Reliable AC Drive

Allen-Bradley 22B-D010N104 Safety-Reliable AC Drive for Critical Control Sites

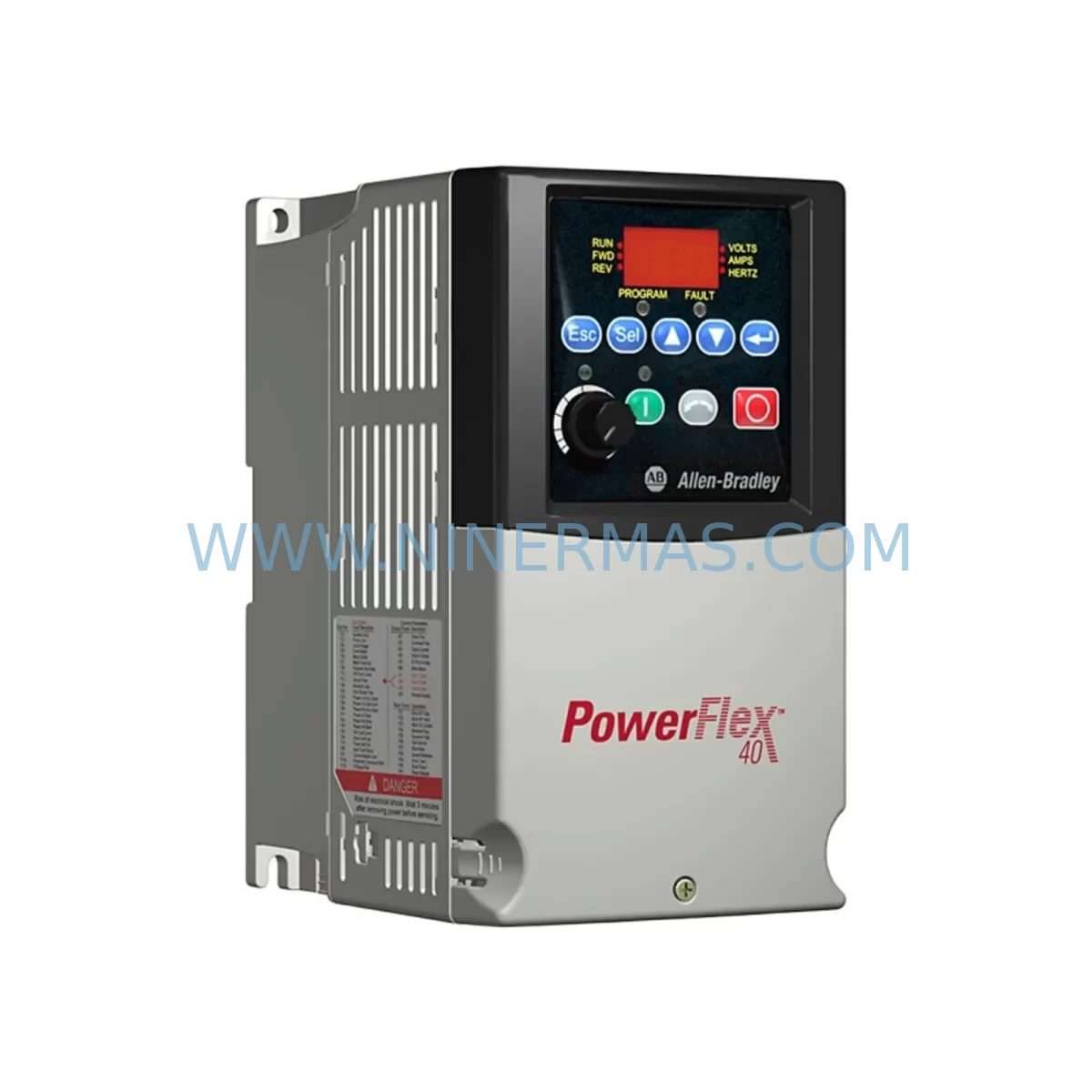

The Allen-Bradley 22B-D010N104 is a PowerFlex 40 series AC Variable Frequency Drive (VFD) engineered by Rockwell Automation for demanding industrial environments where control continuity, personnel safety, and process reliability are non-negotiable. Rated at 4 kW / 5 HP for 240V AC three-phase input, this compact drive delivers precise motor speed and torque regulation across a wide range of critical applications — from continuous process lines to safety-interlock-dependent machinery.

At NINERMAS, every 22B-D010N104 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty — giving procurement engineers and plant maintenance teams the confidence to plan long-term spare-parts programs without compromising uptime or safety compliance.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In modern industrial control cabinets, a single component failure can cascade into unplanned shutdowns, safety interlock trips, or even personnel hazards. The 22B-D010N104 is designed to be the stable core of a well-engineered drive panel, but its reliability is maximized when integrated with a complete protection ecosystem.

On the power input side, pairing this drive with a Allen-Bradley 1492-SPM1C100 supplementary protector or an equivalent branch circuit protection device ensures that upstream fault currents are interrupted before they can damage the drive’s internal IGBT modules. A Rockwell Automation 1321-3R series line reactor installed ahead of the drive significantly reduces harmonic distortion and protects against voltage spikes and surge events common in heavy industrial facilities — particularly in environments where large motors, welding equipment, or variable loads share the same bus.

For control-level protection, the 22B-D010N104 communicates via DSI, and when extended to a PLC rack via an optional 22-COMM-E EtherNet/IP adapter or 22-COMM-D DeviceNet adapter, it integrates seamlessly into a Allen-Bradley CompactLogix L3x or MicroLogix 1400 control architecture. This enables real-time fault diagnostics, parameter monitoring, and remote speed reference — all critical for reducing operator intervention in hazardous zones.

In safety-critical interlock circuits, the drive’s STO-compatible input can be wired directly to a Allen-Bradley MSR127RP safety relay or a Guardmaster 440C-CR30 safety controller, ensuring that the motor is de-energized within the required response time when a guard door opens, an E-stop is activated, or a light curtain is tripped. This eliminates the risk of uncontrolled motor coast-down in press, conveyor, or winding applications.

For environments with high electromagnetic interference — such as arc furnace bays, variable-speed pump stations, or large compressor rooms — adding a Schaffner FN3258 or equivalent DIN-rail EMC filter upstream of the drive further suppresses conducted emissions and protects the drive’s control board from signal corruption. Complementing this with a Phoenix Contact TRABTECH surge protection device (SPD) on the 24VDC control supply rail guards against transient overvoltages that could corrupt drive parameters or trigger nuisance faults.

Finally, for cabinet thermal management in high-ambient or poorly ventilated enclosures, a Rittal SK 3105 or equivalent cabinet cooling unit maintains the internal temperature within the drive’s rated operating range, preventing thermal derating and extending component service life — a key consideration for 24/7 continuous process operations.

Critical Industrial Safety Applications

The Allen-Bradley 22B-D010N104 is deployed across a broad spectrum of safety-critical and continuous-process industries where motor control reliability directly impacts operational safety and production continuity.

Petrochemical & Refinery Plants: In pump and compressor drive applications within classified hazardous areas, the 22B-D010N104 is installed in purged and pressurized control panels to regulate feed pumps, cooling water circulation, and chemical dosing systems. Its precise speed control prevents cavitation, reduces mechanical stress, and supports safe process shutdown sequences during emergency depressurization events.

Power Generation & Utilities: Auxiliary motor drives in coal-fired, gas turbine, and hydroelectric plants rely on PowerFlex 40 series drives for boiler feed pump auxiliaries, cooling tower fans, and fuel handling conveyors. The drive’s robust overcurrent and phase-loss protection prevents motor burnout during grid disturbances — a common occurrence in utility environments with fluctuating load profiles.

Mining & Mineral Processing: Underground and surface mining operations subject drives to extreme dust ingress, vibration, and wide temperature swings. The 22B-D010N104, installed in sealed, climate-controlled MCC panels, controls conveyor belt drives, slurry pump motors, and ventilation fans — all of which are safety-critical systems under mining regulations. Its built-in ground fault detection is particularly valuable in wet underground environments.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use this drive to control submersible pump motors, aeration blowers, and sludge dewatering equipment. Soft-start and energy-saving V/Hz control modes reduce water hammer events and extend pump seal life, while the drive’s communication capability enables SCADA integration for remote monitoring of critical lift stations.

Metallurgy & Steel Mills: In rolling mill auxiliary drives, ladle transfer cars, and fume extraction systems, the 22B-D010N104 provides the torque accuracy and fault resilience required in high-temperature, high-vibration environments. Its dynamic braking capability supports controlled deceleration of high-inertia loads — essential for preventing mechanical damage during emergency stops.

Port & Marine Applications: Shore-power converter panels, crane hoist auxiliaries, and ballast pump control systems in port terminals and vessels benefit from the drive’s compact footprint and wide input voltage tolerance, accommodating the voltage variations typical of shipboard power systems.

Continuous Manufacturing: In food processing, pharmaceutical, and packaging lines where unplanned downtime triggers product loss and regulatory non-compliance, the 22B-D010N104 serves as a reliable spare-parts-program component — stocked on-site to enable rapid swap-out and minimize mean time to repair (MTTR).

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the Allen-Bradley 22B-D010N104?
Every 22B-D010N104 unit supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Our warranty support includes technical diagnosis, replacement dispatch, and root-cause documentation — ensuring your maintenance team has full traceability for every spare part in your critical control system.

Q2: What pre-shipment testing is performed on each unit?
All drives undergo a multi-point pre-shipment inspection that includes power-on functional verification, output voltage balance check, parameter default confirmation, and visual inspection for physical damage or counterfeit indicators. Units that do not pass inspection are quarantined and never shipped. A test record is available upon request for quality-critical procurement programs.

Q3: Is the 22B-D010N104 compatible with existing PowerFlex 40 installations and peripherals?
Yes. The 22B-D010N104 is a direct form-fit-function replacement for other PowerFlex 40 units of the same power rating and voltage class. It is compatible with all standard PowerFlex 40 peripheral accessories including the 22-HIM-A3 remote HIM panel, DSI communication adapters, and external dynamic braking resistors. Parameter sets from existing drives can be uploaded and restored using the DriveExecutive or Studio 5000 Logix Designer software tools.

Q4: Can NINERMAS support long-term supply commitments for this SKU?
Yes. NINERMAS specializes in long-lifecycle spare-parts programs for industrial automation components, including Allen-Bradley PowerFlex series drives. We maintain dedicated stock allocations for high-priority SKUs and can support blanket purchase orders, scheduled delivery programs, and multi-year supply agreements — giving your plant engineering team the procurement certainty needed for critical asset management and turnaround planning.
