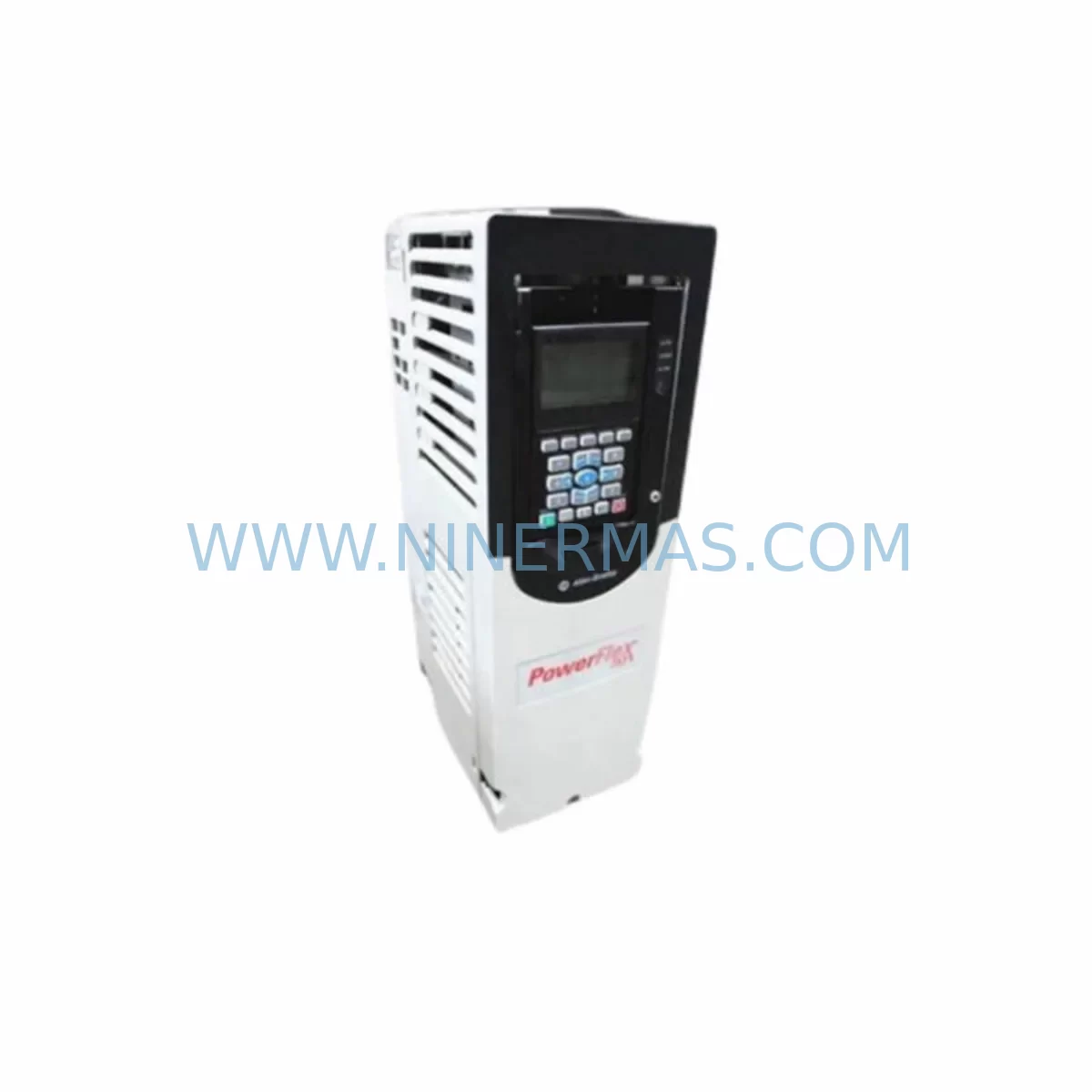

The Allen-Bradley 20F11NC022JA0NNNNN is a PowerFlex 753 series AC variable frequency drive engineered for demanding industrial environments where control continuity and operational safety are non-negotiable. Designed and manufactured by Rockwell Automation under the Allen-Bradley brand, this drive delivers precise motor speed and torque regulation across a wide range of critical process applications — from continuous chemical production lines to high-load mining conveyors and hazardous petrochemical pump stations.

In safety-critical control cabinets, the risk of unplanned downtime caused by drive failure, signal drift, power fluctuation, or communication fault can cascade into costly production losses or even personnel hazards. The 20F11NC022JA0NNNNN addresses these risks through robust hardware design, integrated protection functions, and compatibility with the broader PowerFlex 753 control architecture — making it a trusted choice for maintenance engineers and reliability teams managing long-lifecycle industrial assets.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered motor control center (MCC) or variable speed drive panel, the 20F11NC022JA0NNNNN does not operate in isolation. Its reliability is reinforced by a coordinated ecosystem of protection, power conditioning, and communication components. For installations where this drive manages critical pump, fan, or compressor loads, engineers typically pair it with a Allen-Bradley 1321-3R10-B line reactor to suppress voltage spikes and reduce harmonic distortion on the input side — a key measure in sites with weak grid infrastructure or heavy switching loads nearby.

On the output side, a Allen-Bradley 1321-M2 dV/dt output filter protects motor windings from steep voltage rise times, particularly important in installations with long cable runs between the drive and motor — a common scenario in water treatment pump stations or offshore platform motor rooms. Surge protection at the panel level is further enhanced by coordinating the drive with Allen-Bradley 1492-SPM series supplementary protectors, which provide branch circuit protection without introducing nuisance tripping under VFD-generated harmonic loads.

For process control integrity, the PowerFlex 753 drive communicates natively over EtherNet/IP using an optional 20-750-ENETR dual-port EtherNet/IP adapter, enabling Device Level Ring (DLR) topology for fault-tolerant network redundancy — critical in continuous process plants where a single network cable fault cannot be allowed to interrupt drive command signals. In legacy installations still running DeviceNet, the 20-750-DN DeviceNet adapter provides seamless integration with existing Allen-Bradley PLC-5 or SLC 500 control architectures.

Power quality at the drive’s supply is often managed by coordinating with a Allen-Bradley 1606-XLP power supply for auxiliary control circuits within the same panel, ensuring that 24VDC logic power remains stable even during main bus voltage dips. For safety interlock circuits, the drive’s Safe Torque Off (STO) function — when enabled via a 20-750-S1 safety option card — integrates directly with safety relay modules such as the Allen-Bradley 440R-N23132 Guardmaster safety relay, allowing the drive to be safely de-energized without opening the main contactor, reducing mechanical wear and improving SIL 2 compliance in safety instrumented systems.

Thermal management within the control cabinet is equally important. Pairing the 20F11NC022JA0NNNNN with a properly sized Rittal SK 3105 cabinet cooling unit or equivalent ensures the drive operates within its 0–50°C thermal envelope even in high-ambient tropical or desert field sites. In dusty or humid environments such as cement plants or coastal facilities, additional IP54-rated enclosure upgrades or positive-pressure purge systems are recommended to protect the drive’s internal components from particulate ingress and condensation.

Critical Industrial Safety Applications

The Allen-Bradley 20F11NC022JA0NNNNN PowerFlex 753 drive is deployed across a broad spectrum of safety-critical industrial sectors where motor control reliability directly impacts process safety and regulatory compliance.

In petrochemical and refinery environments, this drive controls cooling water pumps, reflux pumps, and compressor auxiliaries in classified hazardous areas (Zone 2 / Division 2). Its robust overcurrent and ground fault protection prevents drive-induced faults from propagating into process upsets, while its STO capability supports emergency shutdown (ESD) integration without requiring additional contactors in the safety loop.

In electric power generation and transmission facilities — including coal-fired, gas turbine, and hydroelectric plants — the drive manages boiler feed pump auxiliaries, cooling tower fans, and induced draft fan systems. The ability to maintain precise speed control under rapidly varying load conditions reduces mechanical stress on rotating equipment and extends mean time between failures (MTBF) for critical rotating assets.

In mining and mineral processing operations, the 20F11NC022JA0NNNNN drives conveyor belt systems, slurry pumps, and ventilation fans in underground and open-cut environments characterized by high dust loading, vibration, and wide ambient temperature swings. Its integrated protection suite — including phase loss detection and motor thermistor input — prevents catastrophic motor failures that could halt ore production or compromise mine ventilation safety.

In water and wastewater treatment plants, the drive controls submersible pump stations, aeration blowers, and sludge transfer pumps operating continuously around the clock. Reliable variable speed control reduces water hammer events, extends valve and pipe service life, and enables energy-efficient operation across varying demand cycles — all while maintaining the process continuity required by municipal water safety regulations.

In metallurgical and steel facilities, the drive is applied to rolling mill auxiliaries, cooling bed conveyors, and fume extraction systems where high electromagnetic interference from arc furnaces and induction heaters demands a drive with strong EMC immunity and stable communication performance under electrically noisy conditions.
