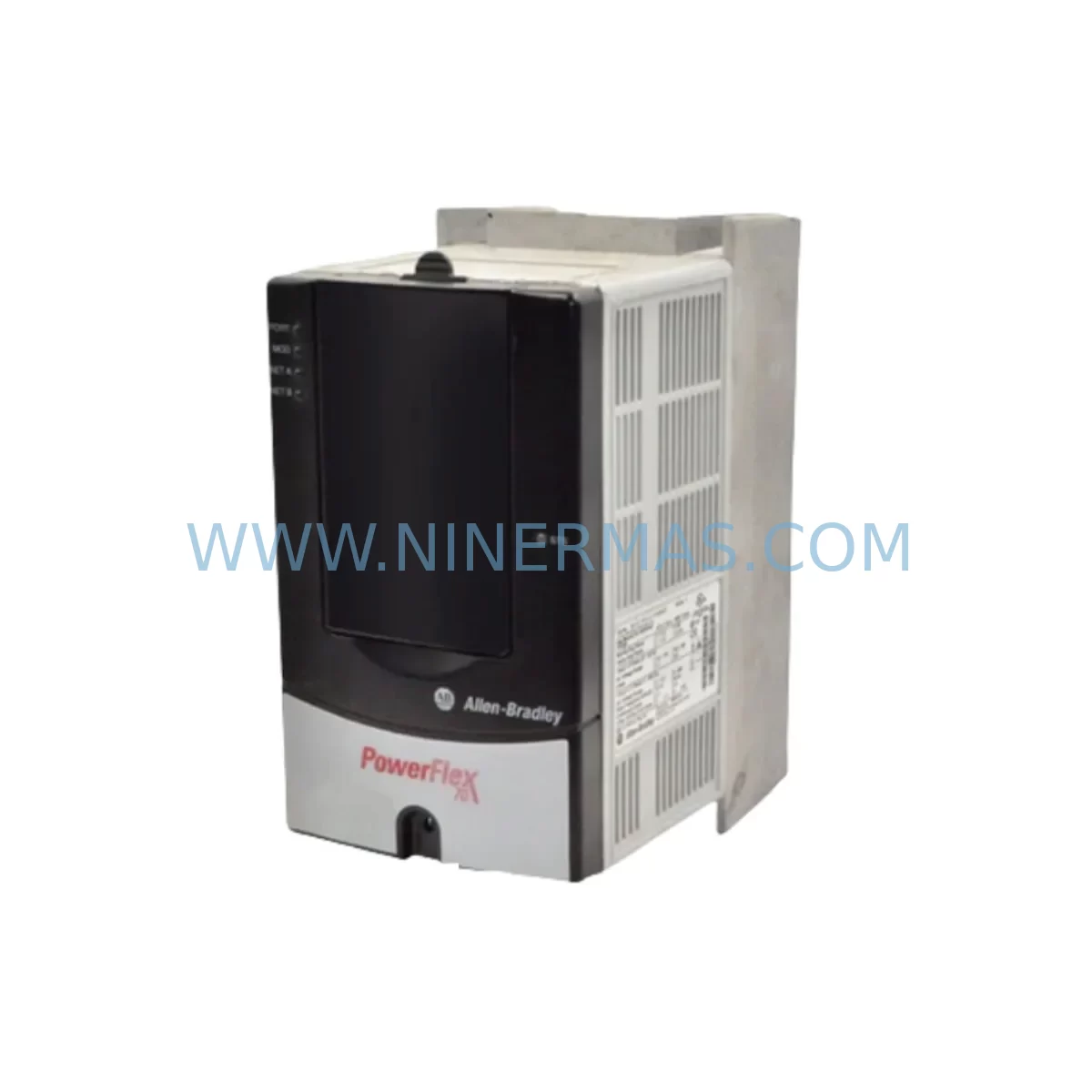

Allen-Bradley 20AD3P4A0AYNNNC0 Safety-Reliable AC Drive

Allen-Bradley 20AD3P4A0AYNNNC0 Safety-Reliable AC Drive for Critical Control Sites

The Allen-Bradley 20AD3P4A0AYNNNC0 is a PowerFlex 70 series AC variable frequency drive engineered for demanding industrial environments where motor control reliability and process continuity are non-negotiable. Rated at 3.4A output current with 240V AC input, this compact yet robust VFD delivers precise speed and torque regulation across a wide range of motor-driven applications — from continuous process lines to safety-critical interlock loops in heavy industrial facilities.

In environments characterized by high electromagnetic interference, voltage fluctuations, mechanical vibration, and thermal stress, the 20AD3P4A0AYNNNC0 maintains stable output through its advanced PWM control architecture and built-in EMC filtering. Its onboard diagnostics and fault logging capabilities allow maintenance teams to detect anomalies before they escalate into unplanned shutdowns, directly reducing the risk of control interruption, signal drift, and nuisance tripping that can compromise production safety.

For facilities operating under continuous production mandates — petrochemical plants, power generation stations, water treatment facilities, and metallurgical processing lines — the PowerFlex 70 platform is a proven backbone of motor control infrastructure. The 20AD3P4A0AYNNNC0 integrates seamlessly into existing Allen-Bradley control architectures, supporting DeviceNet and other communication protocols that enable real-time monitoring and remote diagnostics without disrupting live operations.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the 20AD3P4A0AYNNNC0 as part of a structured control cabinet risk reduction strategy requires attention to the full drive ecosystem. In a typical PowerFlex 70 installation, the drive operates alongside the Allen-Bradley 20-HIM-A6 Human Interface Module for local parameter access and fault acknowledgment — a critical capability during emergency response scenarios where remote access may be unavailable.

Power quality upstream of the drive is equally important. Pairing the 20AD3P4A0AYNNNC0 with a Allen-Bradley 1321-3R3-B line reactor significantly attenuates voltage spikes and harmonic distortion that can cause nuisance faults or degrade the drive’s DC bus capacitors over time. In facilities with unstable grid supplies — common in mining, port operations, and heavy manufacturing — this combination is considered best practice for surge protection and long-term drive health.

For communication integrity, the drive’s embedded DeviceNet port connects directly to Allen-Bradley 1756-DNB DeviceNet Bridge modules within ControlLogix backplanes, enabling deterministic I/O scanning and real-time fault propagation to the supervisory PLC. This architecture eliminates communication latency that could otherwise delay safety interlock responses in time-critical processes.

Dynamic braking applications — such as those found in crane hoists, centrifuge deceleration, or emergency stop sequences — benefit from the addition of an Allen-Bradley 20-BR-B1P0-AA dynamic braking resistor module, which safely dissipates regenerative energy and prevents DC bus overvoltage faults that could trip the drive unexpectedly during load rejection events.

In dusty or humid environments where the IP20 enclosure rating requires supplemental protection, the drive is typically installed within a Rittal AX or Allen-Bradley 1492-series wireway-equipped enclosure with filtered ventilation panels. Complementary components such as Allen-Bradley 1492-SP1C060 supplementary protectors provide branch circuit protection upstream, while Allen-Bradley 1606-XLP power supplies ensure stable 24VDC control voltage to the drive’s logic circuits even during input voltage sags. Together, these elements form a layered defense against the most common causes of unplanned motor control failures in critical industrial sites.

Critical Industrial Safety Applications

The Allen-Bradley 20AD3P4A0AYNNNC0 is deployed across a broad spectrum of safety-critical industrial applications where motor control reliability directly impacts process safety and regulatory compliance.

In petrochemical and refinery operations, the drive controls cooling water pumps, chemical dosing systems, and compressor auxiliaries where a control interruption can trigger emergency shutdown sequences and significant production losses. Its built-in fault diagnostics and DeviceNet integration allow safety instrumented systems (SIS) to receive real-time drive status, enabling coordinated safe-state transitions.

In power generation facilities — including thermal, hydro, and renewable energy plants — the 20AD3P4A0AYNNNC0 manages auxiliary motor loads such as cooling fans, lubrication pumps, and fuel handling conveyors. The drive’s sensorless vector control maintains precise speed regulation even under variable load conditions, preventing the speed excursions that can damage rotating equipment or trigger protective relay operations.

In water and wastewater treatment plants, the drive operates aeration blowers, sludge transfer pumps, and UV disinfection system fans. Continuous operation requirements in these facilities demand drives with robust thermal management and reliable fault recovery — both hallmarks of the PowerFlex 70 platform.

In metallurgical and mining operations, where high ambient temperatures, heavy dust loading, and frequent voltage transients are routine, the 20AD3P4A0AYNNNC0’s transient protection and EMC filtering provide the resilience needed to maintain conveyor, crusher, and ventilation fan control without nuisance tripping. Port and shipboard applications similarly benefit from the drive’s compact form factor and vibration tolerance, making it suitable for crane drives, ballast pump control, and cargo handling systems operating in marine-grade environments.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 20AD3P4A0AYNNNC0?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the unit fails to perform to its rated specifications within the warranty period, we provide replacement or repair at no additional cost. Warranty claims are supported with full documentation and technical assistance.

Q2: What pre-shipment testing is performed before dispatch?
Every 20AD3P4A0AYNNNC0 unit undergoes a comprehensive functional test prior to shipment, including power-on verification, output current measurement, communication port validation, and fault response testing. Test records are available upon request to support incoming inspection and quality assurance requirements.

Q3: Is the 20AD3P4A0AYNNNC0 compatible with existing PowerFlex 70 installations?
Yes. The 20AD3P4A0AYNNNC0 is a direct form-fit-function replacement for PowerFlex 70 Frame A drives with equivalent ratings. It is compatible with existing HIM modules, DeviceNet networks, and ControlLogix/CompactLogix PLC architectures without requiring firmware or wiring changes in most standard configurations.

Q4: Can long-term supply be guaranteed for critical spare parts programs?
We maintain dedicated stock of the 20AD3P4A0AYNNNC0 and related PowerFlex 70 components to support long-term spare parts programs for facilities with extended maintenance cycles. Bulk commitment orders and scheduled delivery programs are available to ensure supply continuity for critical control infrastructure over multi-year horizons.
