Allen-Bradley 2094-SE02F-M00-S0 Retrofit Servo Drive

Allen-Bradley 2094-SE02F-M00-S0 Retrofit-Compatible Servo Drive for Legacy Systems

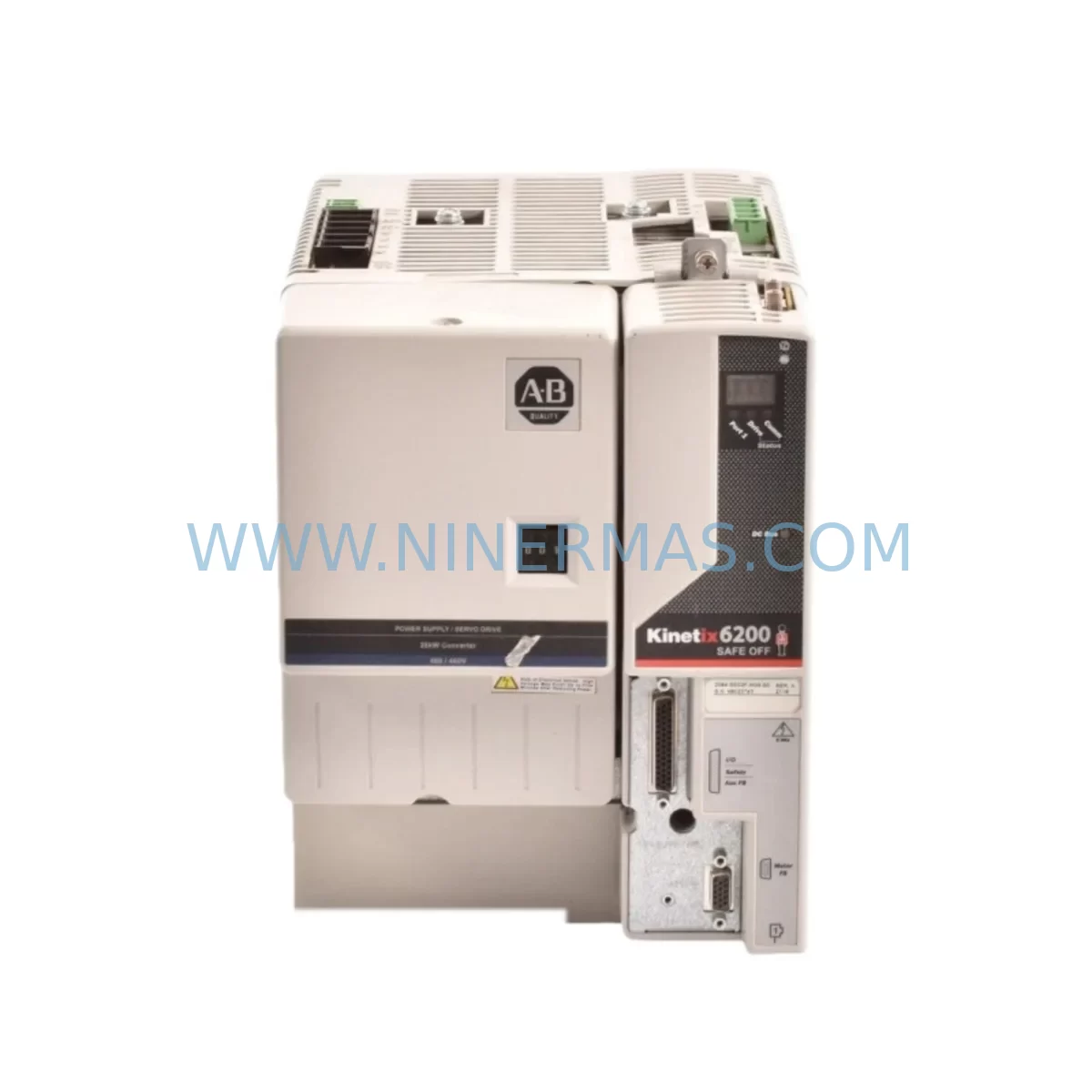

The Allen-Bradley 2094-SE02F-M00-S0 is a ruggedized servo drive module engineered for demanding industrial environments and is widely deployed in legacy Kinetix 6000 multi-axis servo systems. As original equipment manufacturers discontinue support for aging control architectures, plant engineers and system integrators increasingly rely on verified retrofit-compatible units to extend the operational life of existing production lines without committing to a full platform migration. NINERMAS maintains ready inventory of the 2094-SE02F-M00-S0 to support planned maintenance windows, emergency breakdowns, and phased modernization programs across discrete manufacturing, automotive assembly, packaging, and material handling sectors.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 2094-SE02F-M00-S0 into an existing Kinetix 6000 installation requires a structured pre-retrofit assessment to avoid commissioning delays and unplanned downtime. The first step is to audit the current chassis configuration. The 2094-BC04-M03-M four-slot chassis and the larger 2094-BC07-M05-M seven-slot chassis are the most common backplane assemblies found in the field. Engineers must confirm that a compatible slot is available and that the shared DC-bus rail can accommodate the additional axis without exceeding the power module’s rated output current.

Power capacity verification is critical. The 2094-BMP5-S power rail module governs the total bus energy available to all axis modules on the same chassis. Before installing the replacement 2094-SE02F-M00-S0, calculate the combined continuous and peak current demand of all active axes. If the existing power module is already operating near its rated ceiling, a parallel upgrade to a higher-capacity 2094-BMP10-S unit may be necessary to maintain system stability during acceleration-intensive motion profiles.

Terminal wiring and motor feedback cabling must be inspected and re-terminated to match the pinout of the replacement module. The 2094-SE02F-M00-S0 uses a standard Kinetix 6000 feedback connector accepting Hiperface, EnDat, or incremental encoder signals depending on the connected servo motor. If the existing motor is a legacy MPL or MPF series unit, verify that the feedback cable assembly — typically a 2090-XXNFMF-Sxx flying-lead cable — is in serviceable condition and correctly wired to the new module’s feedback port.

On the control side, the SERCOS II fiber-optic ring must be re-established after module replacement. The 1756-M03SE or 1756-M08SE motion controller module in the ControlLogix chassis manages the SERCOS ring topology. After physically reconnecting the TX and RX fiber cables to the new drive, the ring must be re-initialized in Studio 5000 Logix Designer. Axis properties — including drive model, motor catalog number, feedback type, and motion scaling — must be verified against the saved project file to ensure the controller recognizes the replacement module without requiring a full axis re-configuration.

I/O mapping and HMI screen validation are often overlooked during drive replacements. If the machine uses a PanelView Plus 7 or PanelView 800 HMI terminal, confirm that any drive-status tags — fault codes, axis state, torque reference — are correctly mapped in the FactoryTalk View ME project. A mismatch between the HMI tag database and the actual axis object in the controller program can cause misleading operator displays after the retrofit is complete.

For installations that include a 1756-EN2T or 1756-EN3TR EtherNet/IP communication module alongside the SERCOS motion network, verify that the network topology and IP addressing scheme remain intact after the chassis work. Some legacy systems also incorporate a 1756-DNB DeviceNet scanner for auxiliary I/O; confirm that DeviceNet node addresses and scan list entries are unaffected by the drive replacement. Signal isolators installed on analog reference or feedback circuits should be inspected for correct scaling and zero-offset calibration before the system is returned to automatic mode.

Downtime Control During System Migration

Minimizing production interruption during a servo drive replacement begins with preparation well before the maintenance window opens. A complete backup of the Studio 5000 project — including all motion group configurations, axis parameters, cam profiles, and coordinated motion tasks — must be saved to a secure offline location. If the controller is a 1756-L73 or 1756-L83E ControlLogix processor, use the controller’s SD card slot to store a redundant project image that can be restored rapidly in the event of an unexpected fault during commissioning.

Physical replacement of the 2094-SE02F-M00-S0 module should be performed with the entire Kinetix 6000 power section de-energized and locked out in accordance with local LOTO procedures. The shared DC-bus architecture means that removing one axis module while the bus remains energized can expose personnel to hazardous voltage levels and may damage adjacent modules on the same chassis. Once the new module is seated and the fiber-optic SERCOS cables are reconnected, power can be restored in a controlled sequence: AC input to the power rail first, followed by enabling the SERCOS ring from the motion controller.

Initial commissioning should be performed in a controlled jog mode with reduced velocity and torque limits active. Verify that the axis homes correctly, that feedback counts increment in the expected direction, and that the drive does not generate nuisance faults related to motor thermal model mismatch or encoder signal integrity. Once basic motion is confirmed, restore the original velocity and torque limits and execute a full machine cycle in manual mode before returning the line to automatic production. This staged approach typically allows a complete drive replacement and recommissioning to be completed within a two-to-four-hour planned maintenance window, significantly reducing the risk of extended unplanned downtime.

Retrofit Support FAQ

Q: Is the 2094-SE02F-M00-S0 a direct drop-in replacement for the 2094-SE02F-M00?
A: Yes. The S0 suffix designates the ruggedized conformal-coated variant. It is mechanically and electrically compatible with the standard 2094-SE02F-M00 and can be installed in the same chassis slot without hardware modification. The axis configuration in Studio 5000 does not require changes beyond confirming the drive catalog number in the axis properties dialog.

Q: What pre-shipment testing is performed on each unit?
A: Every 2094-SE02F-M00-S0 unit dispatched by NINERMAS undergoes a full functional test that includes power-on verification, SERCOS communication initialization, and axis enable/disable cycling. A test report is available upon request. Units are shipped in anti-static packaging with protective covers on all connectors.

Q: What is covered under the 12-month warranty?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental exposure beyond the module’s rated specifications. NINERMAS provides technical support throughout the warranty period to assist with installation and commissioning questions.

Q: Can NINERMAS supply other Kinetix 6000 components needed for a complete retrofit?
A: Yes. NINERMAS maintains inventory of complementary Kinetix 6000 components including the 2094-BC04-M03-M and 2094-BC07-M05-M chassis assemblies, 2094-BMP5-S and 2094-BMP10-S power rail modules, and associated 2090-series motor feedback cables. Contact our sales team with your full bill-of-materials for a consolidated quotation and coordinated delivery schedule.
