Allen-Bradley 2094-BM05-M Spare Part for Industrial Maintenance

Allen-Bradley 2094-BM05-M Spare Part for Industrial Maintenance

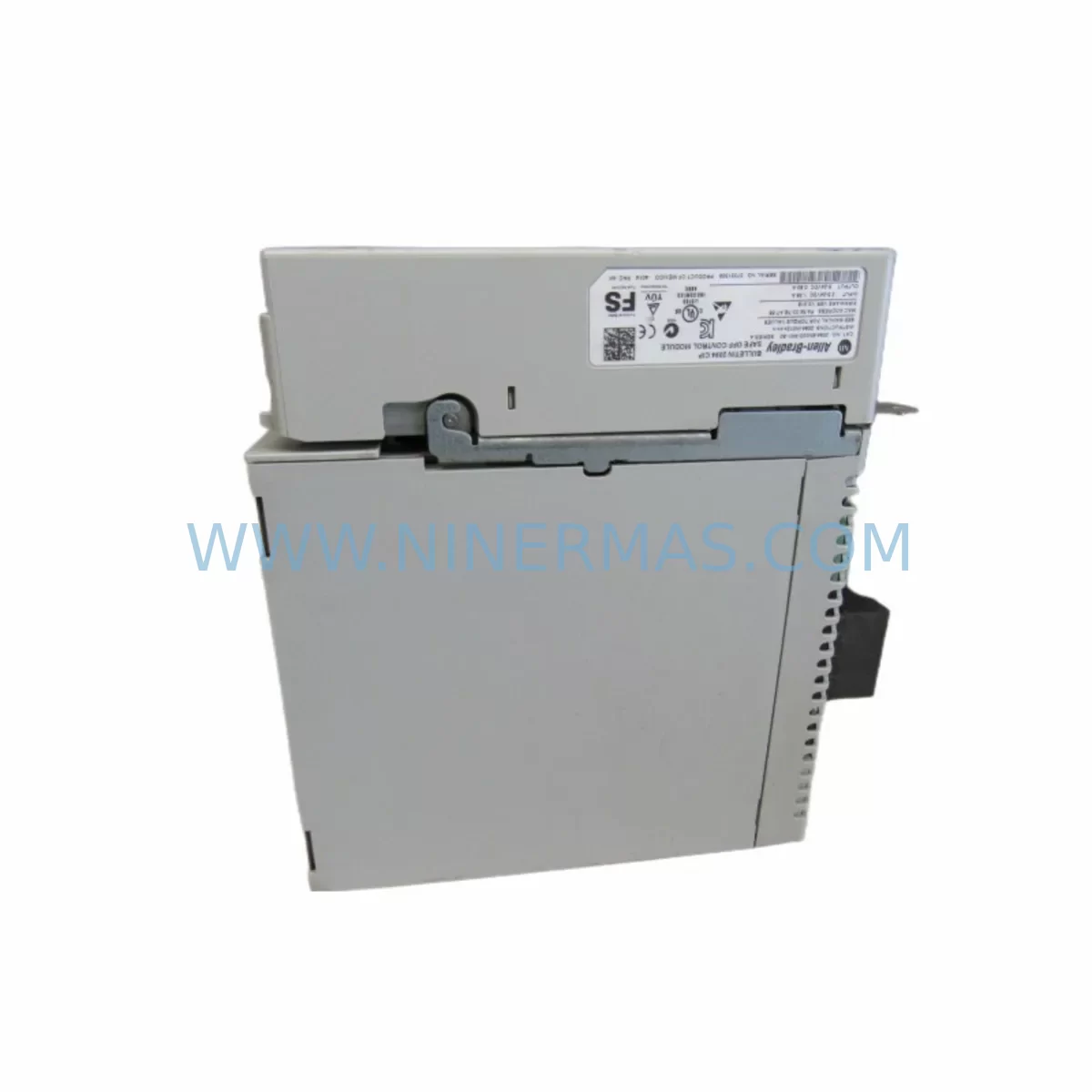

The Allen-Bradley 2094-BM05-M is a Bulletin 2094 Kinetix 6000 Multi-axis Servo Drive bus module designed for high-performance motion control applications in industrial automation environments. As a service-ready spare part, the 2094-BM05-M is an essential component for maintenance engineers managing Kinetix 6000 drive systems on production lines, packaging machinery, material handling conveyors, and precision CNC equipment. Unplanned downtime caused by a failed bus module can halt an entire multi-axis servo system — having a verified, tested replacement unit in your spare parts inventory is the most effective strategy for rapid recovery and minimizing production loss.

The 2094-BM05-M serves as the power interface bus module within the Kinetix 6000 modular drive system, distributing DC bus power across multiple axis modules mounted on the same Bulletin 2094 power rail. When this component fails or degrades, all downstream axis modules — including inverter modules such as the 2094-AM01, 2094-AM02, and 2094-AM03 — lose their shared DC bus supply, resulting in a complete multi-axis shutdown. Maintenance engineers should treat the 2094-BM05-M as a critical single point of failure and stock at least one verified replacement unit per Kinetix 6000 cabinet.

At NINERMAS, every 2094-BM05-M unit is sourced from authorized supply channels, inspected for physical integrity, and tested prior to shipment. Each unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our global logistics network supports urgent spare parts orders with fast dispatch to minimize your downtime window.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 2094-BM05-M in a Kinetix 6000 multi-axis servo cabinet, a thorough maintenance inspection of the surrounding system is essential to prevent repeat failures and ensure a clean restart. Begin by verifying the Integrated Axis Module (IAM) — typically a 2094-BC01-MP5 or 2094-BC02-M02-M — which provides the primary AC input, converter stage, and DC bus source for the entire drive system. A degraded IAM converter section can cause abnormal DC bus voltage that stresses and eventually destroys bus modules.

Inspect the Bulletin 2094 power rail for signs of arcing, corrosion, or mechanical damage at the module connector slots. A damaged power rail can cause intermittent bus faults even after a new 2094-BM05-M is installed. Check all axis module connectors — 2094-AM01 and 2094-AM02 units should be seated firmly with no bent pins or contamination on the bus interface.

Review the 24VDC control power supply feeding the Kinetix 6000 system. An unstable or undersized 24VDC supply — such as a 1606-XLP or equivalent Allen-Bradley power supply — can cause erratic enable/disable behavior across all axis modules. Verify output voltage under load and replace if ripple exceeds specification.

Check the feedback cables and motor power cables connected to each axis module. Damaged 2090-series feedback cables or motor power cables with compromised shielding can inject noise into the drive system, triggering nuisance faults that are often misdiagnosed as bus module failures. Inspect cable routing, strain relief, and connector seating at both the drive and motor ends.

For systems integrated with a ControlLogix or CompactLogix PLC, verify the 1756-M02AE or 1756-M08SE servo module firmware version and axis configuration in Studio 5000 Logix Designer. After replacing the 2094-BM05-M, re-commission the axis group and confirm that all axes home correctly and respond to motion commands without fault codes. If the system uses a 1756-EN2T or 1756-EN3TR EtherNet/IP communication module for drive-to-controller communication, verify network connectivity and module status LEDs before resuming production.

Maintenance engineers should also inspect the 1492-series terminal blocks and wiring within the control cabinet for loose connections, especially on the enable, fault reset, and hardwired safety circuits. Loose terminal connections are a common root cause of intermittent drive faults that appear to originate from the bus module. A complete cabinet inspection during a planned replacement of the 2094-BM05-M is the most cost-effective way to prevent the next unplanned shutdown.

Site Replacement Workflow

Step 1 — Safe Isolation: De-energize the Kinetix 6000 drive system following your site LOTO (Lockout/Tagout) procedure. Confirm that DC bus voltage has discharged to safe levels (typically below 50VDC) before opening the cabinet or touching any drive components. The Kinetix 6000 system retains hazardous DC bus voltage for several minutes after AC power removal.

Step 2 — Document Current Configuration: Before removing the failed 2094-BM05-M, photograph the wiring, connector positions, and module slot arrangement. Note the axis module layout on the power rail to ensure correct reinstallation sequence.

Step 3 — Module Removal: Disconnect the bus module from the Bulletin 2094 power rail by releasing the module locking mechanism. Carefully slide the module out of its slot, avoiding contact with the bus connector pins.

Step 4 — Inspect and Clean: Inspect the power rail slot and adjacent module connectors for contamination, corrosion, or physical damage. Clean with appropriate electronics-safe contact cleaner if required.

Step 5 — Install Replacement Unit: Align the new 2094-BM05-M with the power rail slot and slide firmly into position until the locking mechanism engages. Verify the module is fully seated with no gap at the bus connector interface.

Step 6 — Re-energize and Verify: Restore AC power to the system and monitor the IAM and axis module status LEDs. Clear any latched faults via the PLC program or HMI. Perform a controlled jog test on each axis before returning the machine to automatic production mode.

Using a verified, original Allen-Bradley 2094-BM05-M replacement ensures full compatibility with the existing Kinetix 6000 system firmware and hardware revision, eliminating the risk of incompatibility faults that can arise from counterfeit or non-original spare parts. NINERMAS supplies only original-source components with pre-shipment functional testing to support your site replacement workflow.

Spare Parts Support FAQ

Q1: Is the 2094-BM05-M compatible with all Kinetix 6000 power rail configurations?
The 2094-BM05-M is designed for use with the Bulletin 2094 Kinetix 6000 multi-axis servo drive system. Compatibility depends on the specific power rail catalog number and the number of axis module slots in your configuration. Always verify your existing IAM catalog number and power rail revision before ordering. NINERMAS technical support can assist with compatibility confirmation based on your system documentation.

Q2: What is included in the 12-month warranty and how does it work?
Every 2094-BM05-M supplied by NINERMAS carries a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, NINERMAS will arrange replacement or repair at no additional cost. Warranty claims require a fault description and, where possible, a fault code log from the drive system.

Q3: How does NINERMAS verify units before shipment?
Each 2094-BM05-M unit undergoes a pre-shipment inspection covering physical condition, connector integrity, and where applicable, functional power-on testing. Units that do not pass inspection are not dispatched. A test report or inspection certificate can be provided upon request for critical maintenance applications.

Q4: Can NINERMAS support long-term or repeat supply of the 2094-BM05-M?
Yes. NINERMAS maintains ongoing sourcing relationships to support long-term spare parts supply for Allen-Bradley Kinetix 6000 components, including the 2094-BM05-M and related axis modules, IAMs, and power rail accessories. For customers managing multi-site maintenance programs or annual MRO procurement, NINERMAS can provide framework pricing and reserved stock arrangements. Contact our team to discuss your supply requirements.
