Allen-Bradley 2093-AM01 Safety-Reliable Servo Drive for Critical Control

Allen-Bradley 2093-AM01 Safety-Reliable Servo Drive for Critical Control Sites

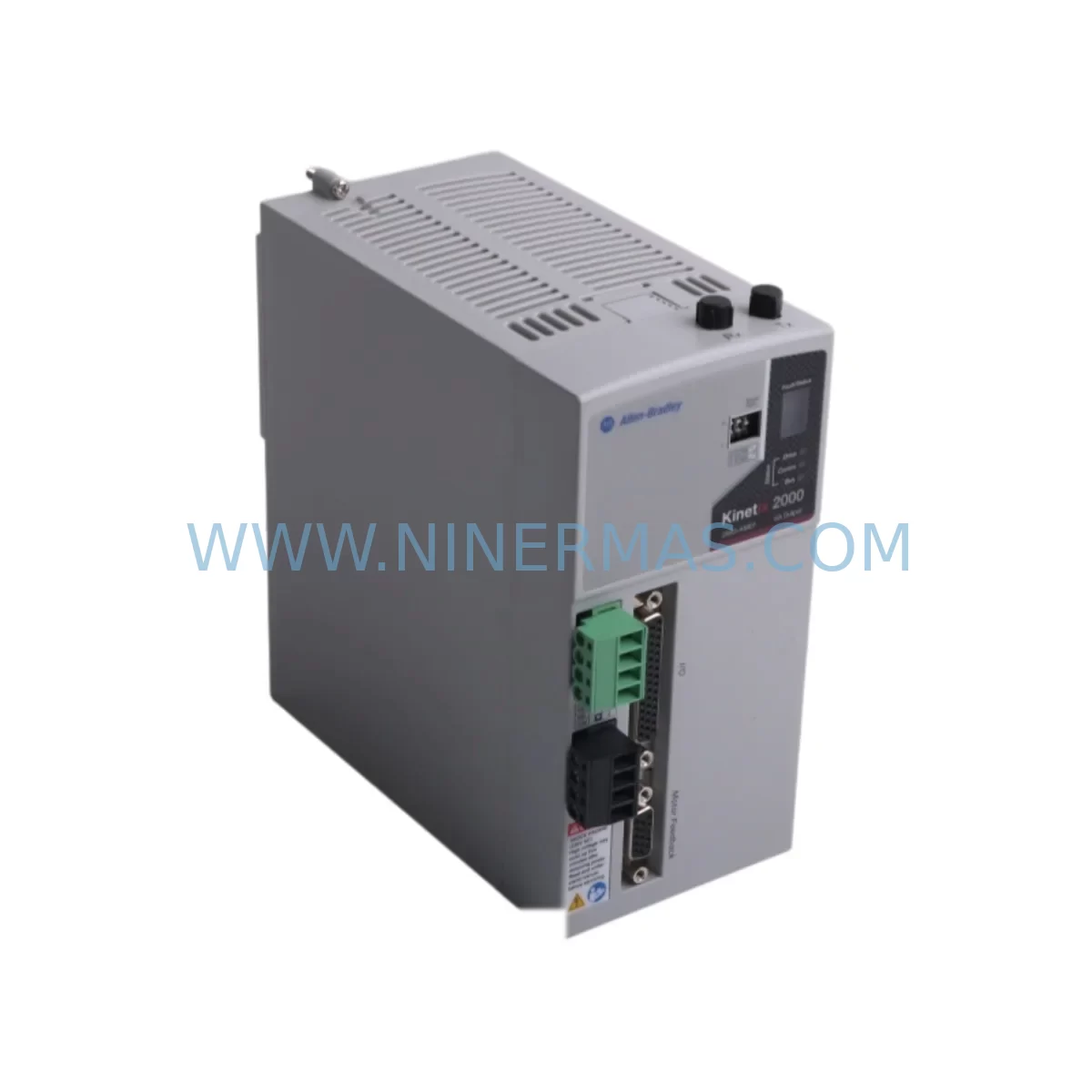

The Allen-Bradley 2093-AM01 is a high-performance axis module designed for the Kinetix 2000 multi-axis servo drive system. Engineered for demanding industrial environments, this module delivers precise motion control with the safety reliability required at critical production sites — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical mills, port terminals, and continuous manufacturing lines. With a 12-month warranty and full pre-shipment testing, the 2093-AM01 is a trusted replacement and upgrade solution for engineers who cannot afford unplanned downtime.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In critical control cabinets, a single point of failure in the motion control chain can cascade into production shutdowns, safety incidents, or costly equipment damage. The 2093-AM01 axis module is designed to integrate seamlessly within a hardened Kinetix 2000 drive system, where every component plays a role in maintaining loop integrity under adverse conditions.

The 2093-AC05-M1 Kinetix 2000 power rail and shared DC bus architecture allow multiple axis modules — including the 2093-AM01 — to share a common power supply, reducing the number of independent power conversion stages and the associated failure points. When paired with the 2093-AMP1 power module, the system maintains stable DC bus voltage even during transient load spikes, protecting servo loops from voltage sag-induced position errors and unexpected axis faults.

For applications where electromagnetic interference from variable frequency drives, large contactors, or welding equipment poses a risk of signal corruption, the 2093-AM01’s Sercos II fiber-optic communication eliminates copper-based signal paths entirely, providing inherent immunity to conducted and radiated EMI. This is particularly valuable in heavy industry control rooms where 1756-M02AE or 1756-M08SE motion control cards coordinate multi-axis positioning across noisy electrical environments.

Surge protection is a critical consideration in facilities with frequent switching of large inductive loads. Installing 1492-SPM series surge protective devices at the cabinet entry point, combined with proper grounding of the Kinetix 2000 chassis, significantly reduces the risk of transient overvoltage events reaching the 2093-AM01’s internal power stage. For additional protection of the 24 VDC control circuit, 1606-XLP series power supplies with active power factor correction and built-in output hold-up time ensure that the control logic remains stable during brief mains interruptions — preventing nuisance faults and unintended axis motion.

In safety-critical interlock circuits, the 2093-AM01 is compatible with 440R-N23132 Guardmaster safety relays, enabling hardware-level Safe Torque Off (STO) implementation without relying solely on software commands. This dual-channel safety architecture meets the requirements of SIL 2 / PLd safety functions, ensuring that servo axes de-energize predictably in emergency stop scenarios. Complementing this, 800F series illuminated push buttons and 440E series safety interlock switches provide the field-level input devices that feed into the safety relay logic.

For facilities managing spare parts inventory, the 2093-AM01 is a direct replacement for worn or failed axis modules in existing Kinetix 2000 installations, requiring no firmware changes or re-commissioning of the power rail. Stocking a replacement module alongside a spare 2090-XXLF-X series feedback cable and a set of 2093-PRF power rail fuses ensures that maintenance teams can restore full axis functionality within minutes rather than hours, minimizing mean time to repair (MTTR) and protecting production schedules.

Critical Industrial Safety Applications

Petrochemical & Refining: In continuous process plants, the 2093-AM01 drives precision positioning of control valves, reactor agitators, and conveyor indexing systems. Its fiber-optic Sercos II interface eliminates ground loop interference common in hazardous area cable runs, while the shared DC bus architecture reduces the number of AC/DC conversion stages exposed to corrosive atmospheres.

Power Generation: Turbine auxiliary systems, cooling water pump drives, and fuel handling conveyors demand servo axes that maintain position accuracy under variable load. The 2093-AM01’s tight current loop bandwidth and high-resolution encoder feedback support the precise torque control needed to protect mechanical couplings and gearboxes from shock loading during start-up and load transitions.

Mining & Mineral Processing: High dust concentrations, vibration from crushers and screens, and frequent voltage fluctuations from large motor starts create a hostile environment for motion control electronics. Installed in sealed, climate-controlled control cabinets with proper IP54 or higher enclosure ratings, the 2093-AM01 provides reliable axis control for conveyor positioning, feeder drives, and sampling system automation.

Water & Wastewater Treatment: Pump station automation, sluice gate positioning, and chemical dosing systems require servo drives that operate reliably in high-humidity environments with minimal maintenance intervention. The 2093-AM01’s compatibility with ControlLogix and CompactLogix PLCs allows integration into existing SCADA architectures without additional protocol gateways.

Metallurgy & Steel Mills: Rolling mill positioning, ladle transfer car drives, and coiler tension control expose servo systems to extreme thermal cycling, heavy vibration, and intense electromagnetic fields from large DC drives and induction furnaces. The Kinetix 2000 system’s shared bus design reduces the number of individual drive enclosures, simplifying thermal management and reducing the surface area exposed to mill-scale contamination.

Port & Marine Terminals: Container crane spreader positioning, ship loader conveyors, and hatch cover drives operate in salt-laden, high-humidity coastal environments. The 2093-AM01’s robust construction and compatibility with Allen-Bradley safety systems supports the precise, repeatable motion control required for safe cargo handling operations.

Safety and Quality FAQ

Q1: Does the 2093-AM01 come with a warranty, and what does it cover?
Yes. Every 2093-AM01 supplied by NINERMAS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If the unit fails within the warranty period, we provide full replacement or repair at no additional cost, including return shipping coordination.

Q2: What pre-shipment testing is performed on each unit?
Each 2093-AM01 undergoes a 100% functional test prior to dispatch. Testing includes DC bus energization, axis enable verification, encoder feedback signal integrity check, and communication interface validation via Sercos II. A test report is available upon request for quality-critical procurement processes.

Q3: Is the 2093-AM01 compatible with my existing Kinetix 2000 power rail and ControlLogix system?
Yes. The 2093-AM01 is a standard Kinetix 2000 axis module that mounts directly onto the 2093-AC05-M1 or compatible power rail without hardware modification. It is fully compatible with 1756 ControlLogix and 1768 CompactLogix motion controllers running RSLogix 5000 / Studio 5000 software. No firmware changes to the controller are required for a like-for-like replacement.

Q4: Can NINERMAS support long-term supply for ongoing maintenance programs?
Absolutely. NINERMAS maintains stock of the 2093-AM01 and related Kinetix 2000 components to support planned maintenance, emergency replacement, and capital spares programs. We offer consistent supply with short lead times, making us a reliable partner for facilities that require guaranteed availability of critical motion control spare parts over multi-year maintenance contracts.
