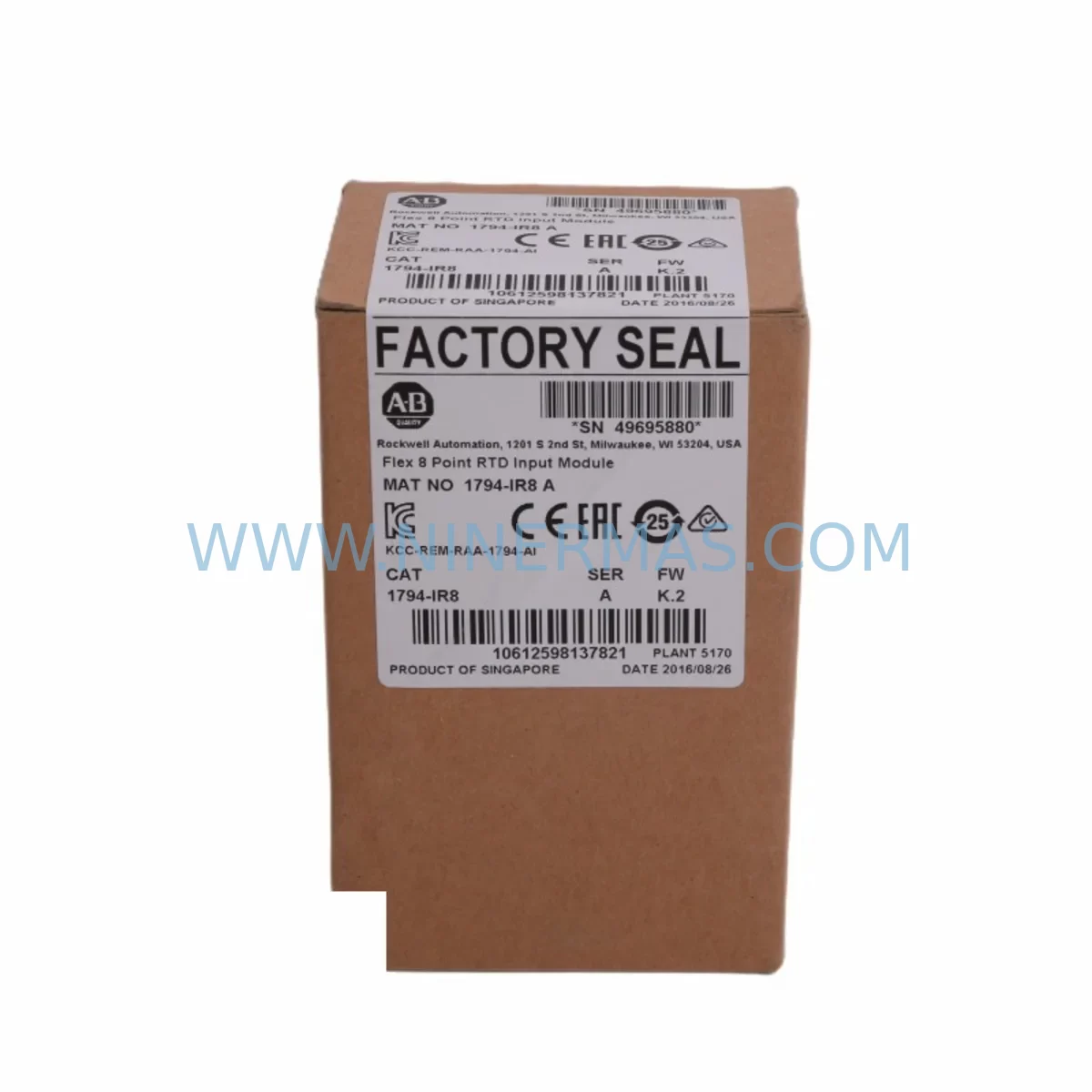

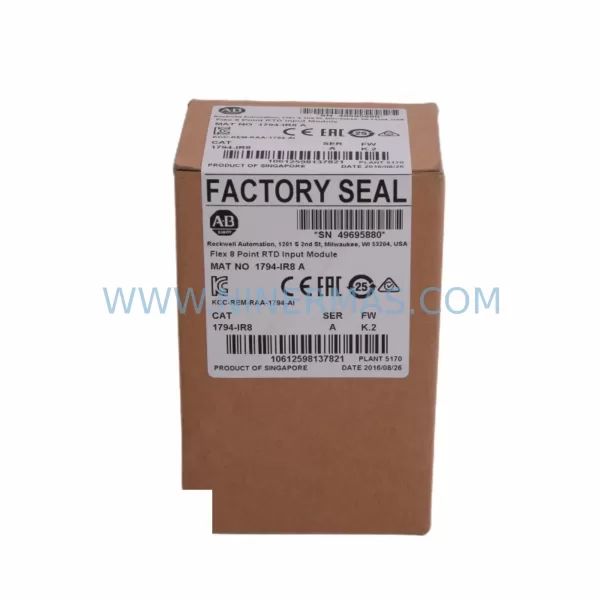

Allen-Bradley 1794-IR8 Safety-Reliable RTD Input for Critical Control

Allen-Bradley 1794-IR8 Safety-Reliable RTD Input for Critical Control

The Allen-Bradley 1794-IR8 is an 8-point RTD (Resistance Temperature Detector) input module designed for the FLEX I/O platform, engineered to deliver precise, safety-reliable temperature measurement in the most demanding industrial control environments. Whether deployed in continuous process manufacturing, critical interlock loops, or high-EMI control cabinets, the 1794-IR8 provides the signal integrity and operational stability that maintenance engineers and procurement teams depend on to keep production running without interruption.

In critical industrial sites — including petrochemical plants, power generation facilities, water treatment stations, metallurgical operations, and port logistics systems — unplanned downtime caused by a failed RTD input module can cascade into significant production losses and safety incidents. The 1794-IR8 addresses this risk by offering robust input filtering, high-resolution temperature conversion, and compatibility with a wide range of RTD sensor types including PT100, PT1000, Ni120, and 10Ω copper. Its design supports stable operation across wide temperature ranges and in environments subject to vibration, humidity, and electrical noise — conditions common to heavy industrial control cabinets.

From a maintenance engineering perspective, the 1794-IR8 integrates seamlessly into existing FLEX I/O backplane architectures, minimizing reconfiguration time during emergency replacements. When a temperature input channel fails or drifts, rapid module swap-out is essential to restoring loop control and preventing process upsets. The 1794-IR8’s hot-swap capability within the FLEX I/O system further reduces exposure to unplanned downtime, allowing field technicians to replace the module without powering down the entire rack.

Procurement engineers sourcing the 1794-IR8 as a long-term spare should consider stocking it alongside complementary FLEX I/O components to ensure complete system coverage. In a typical FLEX I/O control cabinet, the 1794-IR8 operates in conjunction with the 1794-AENT or 1794-AENTR EtherNet/IP adapter modules, which handle communication between the I/O modules and the ControlLogix or CompactLogix controller backplane. Ensuring these adapter modules are also available as spares prevents a single-point communication failure from disabling an entire I/O bank.

Power integrity is equally critical. The 1794-PS13 or 1794-PS3 power supply modules that feed the FLEX I/O bus should be inspected and tested whenever the 1794-IR8 is replaced, as power fluctuations are a common root cause of RTD input anomalies and module faults. Similarly, the field wiring terminals and terminal base units — such as the 1794-TB3 or 1794-TB3S — should be checked for corrosion, loose connections, and insulation degradation, particularly in humid or chemically aggressive environments.

For sites running mixed analog I/O architectures, the 1794-IE8 analog input module and 1794-OE4 analog output module are frequently found in the same control cabinet as the 1794-IR8. Maintaining spares for these modules as part of a coordinated I/O spare parts strategy reduces the risk of extended downtime when multiple channels are affected by a common-cause failure such as a power surge or ground fault. Surge protection devices and fused terminal blocks installed upstream of the FLEX I/O rack provide an additional layer of protection against transient overvoltage events.

In safety-critical applications, the 1794-IR8 may be used in conjunction with safety relay modules and safety PLCs to implement temperature-based safety interlock functions. In these configurations, signal isolation barriers and intrinsic safety barriers are often installed between the RTD sensors and the input module to protect against hazardous area ignition risks and to maintain signal accuracy over long cable runs. Regular calibration verification of the RTD inputs, combined with periodic inspection of the associated sensor wiring and junction boxes, is recommended as part of a preventive maintenance program.

NINERMAS supplies the Allen-Bradley 1794-IR8 as a tested, service-ready spare part backed by a 12-month warranty. Each unit undergoes functional verification prior to shipment to confirm input channel accuracy, communication integrity, and physical condition. Long-term supply availability is maintained to support both emergency replacement orders and planned annual maintenance procurement cycles.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Effective risk reduction in a FLEX I/O control cabinet requires a systems-level approach to spare parts management. When planning maintenance around the 1794-IR8, engineers should simultaneously assess the condition and availability of the following components:

The 1794-AENT EtherNet/IP Adapter is the communication gateway for the entire FLEX I/O bank. A failed adapter renders all downstream I/O modules — including the 1794-IR8 — invisible to the controller, making it a high-priority spare. The 1794-PS13 Power Supply provides regulated bus power to the I/O modules; voltage sags or ripple on this supply can cause erratic RTD readings and module resets. Stocking a replacement power supply alongside the 1794-IR8 is a standard best practice for critical process loops.

The 1794-TB3 Terminal Base is the physical mounting and wiring interface for the 1794-IR8. Corrosion or mechanical damage to the terminal base can cause intermittent channel faults that are difficult to diagnose without swapping the base unit. The 1794-IE8 Analog Input Module and 1794-OE4 Analog Output Module are commonly co-located with the 1794-IR8 in mixed-signal control cabinets; maintaining spares for these modules ensures complete I/O coverage during a cabinet-level fault event.

For sites with long RTD cable runs or hazardous area classifications, signal isolation barriers and intrinsic safety barriers installed between the field sensors and the 1794-IR8 inputs protect both the module and the process from ground loops, common-mode noise, and ignition risks. Surge protection terminal blocks at the cabinet entry point guard against lightning-induced transients and switching surges from large motor loads. Safety relay modules in the interlock circuit should also be inspected and tested as part of any planned maintenance event involving the RTD input loop.

Critical Industrial Safety Applications

The Allen-Bradley 1794-IR8 is deployed across a broad spectrum of safety-critical industrial applications where accurate, continuous temperature monitoring is essential to process integrity and personnel safety.

In petrochemical and refining facilities, the 1794-IR8 monitors reactor temperatures, heat exchanger outlet conditions, and pipeline thermal profiles. Accurate RTD input data feeds directly into safety instrumented systems (SIS) that trigger emergency shutdowns when process temperatures exceed safe operating limits. In power generation plants, the module is used to monitor transformer winding temperatures, generator bearing temperatures, and cooling system performance — all of which are critical to preventing catastrophic equipment failures.

In water and wastewater treatment facilities, the 1794-IR8 supports temperature monitoring in biological treatment processes, chemical dosing systems, and UV disinfection units where temperature stability directly affects treatment efficacy. In metallurgical and steel production environments, the module withstands high-vibration, high-temperature cabinet conditions while providing reliable temperature feedback for furnace control, cooling line management, and rolling mill process optimization.

In port and maritime logistics applications, the 1794-IR8 is used in crane control systems and cargo handling equipment where reliable temperature monitoring of drive systems and power electronics prevents thermal overload shutdowns during peak operational periods. In continuous manufacturing — including food processing, pharmaceutical production, and chemical synthesis — the module supports GMP-compliant temperature recording and process validation requirements.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the Allen-Bradley 1794-IR8?
NINERMAS provides a 12-month warranty on the 1794-IR8 from the date of shipment. Each unit is functionally tested prior to dispatch to verify input channel accuracy, backplane communication, and physical integrity. Units that fail to meet specification are not shipped.

Q2: Is the 1794-IR8 supplied by NINERMAS compatible with all FLEX I/O terminal bases and adapters?
Yes. The 1794-IR8 is compatible with the full range of 1794-series terminal base units and FLEX I/O adapter modules, including EtherNet/IP, DeviceNet, and ControlNet variants. Compatibility is verified against Rockwell Automation’s published specifications. If your application requires a specific firmware revision or hardware series letter, please provide this information when placing your order.

Q3: Can NINERMAS support long-term or recurring procurement of the 1794-IR8?
Yes. NINERMAS maintains ongoing inventory and sourcing capability for the 1794-IR8 to support both emergency replacement orders and planned annual maintenance procurement. Customers with recurring spare parts requirements are encouraged to contact our sales team to discuss volume pricing and reserved stock arrangements.

Q4: What should be checked in the field before and after replacing the 1794-IR8?
Before replacement, verify that the FLEX I/O power supply voltage is within specification and that the terminal base unit shows no signs of corrosion or physical damage. After installing the replacement 1794-IR8, confirm that all RTD input channels are reading within expected range, that the module status LED indicates normal operation, and that the controller program recognizes the module without fault codes. Document the replacement in your maintenance management system and update your spare parts inventory accordingly.
