Allen-Bradley 1794-ACNR15 Safety-Reliable ControlNet Adapter

Allen-Bradley 1794-ACNR15 Safety-Reliable ControlNet Adapter for Critical Control Sites

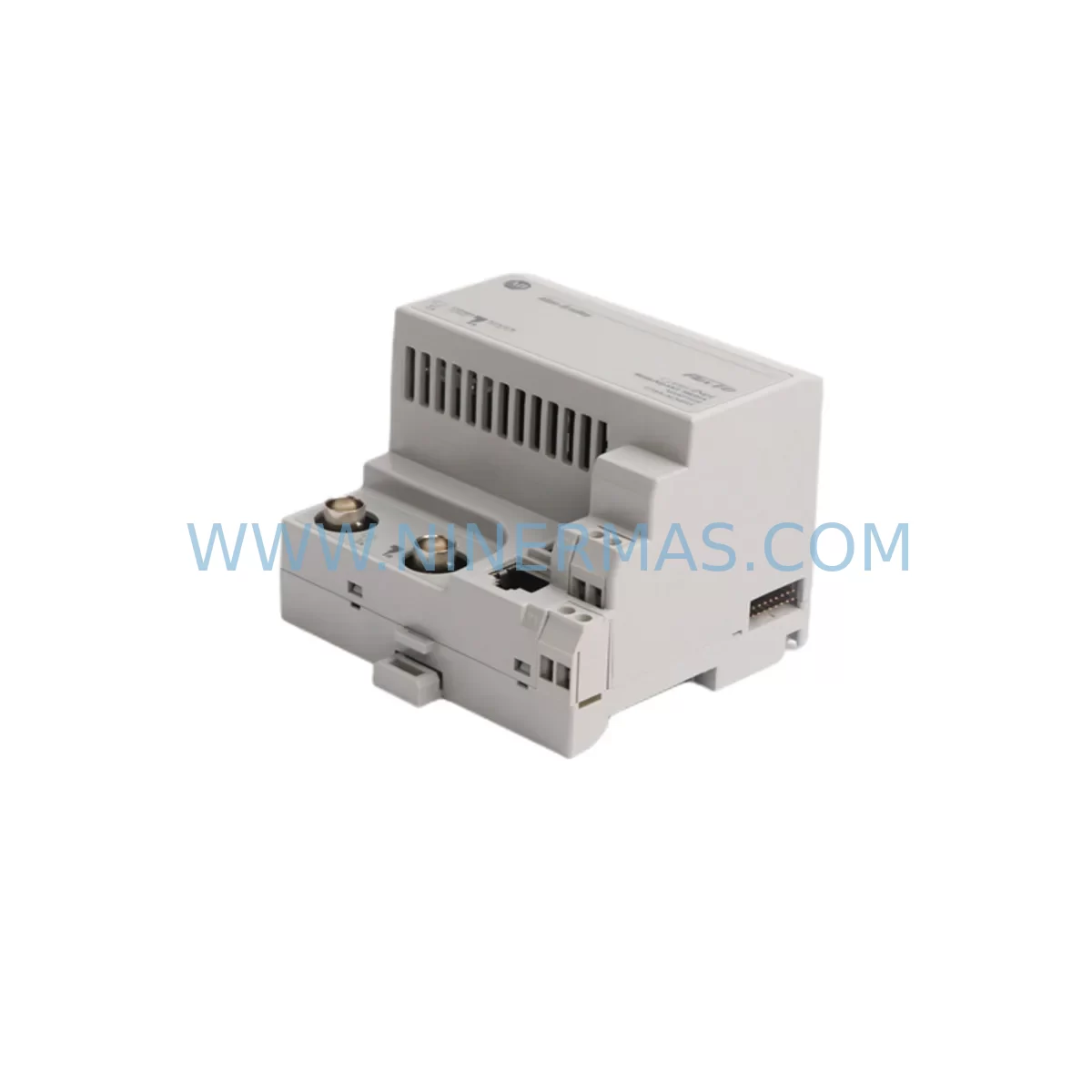

The Allen-Bradley 1794-ACNR15 is a FLEX I/O ControlNet Adapter designed for demanding industrial environments where control continuity, signal integrity, and network reliability are non-negotiable. As part of Rockwell Automation’s proven FLEX I/O platform, the 1794-ACNR15 delivers robust ControlNet communication performance in continuous production lines, critical interlock circuits, heavy-duty control cabinets, and hazardous field conditions including high electromagnetic interference (EMI), dust, moisture, high temperature, and mechanical vibration.

At NINERMAS, every 1794-ACNR15 unit is sourced, inspected, and dispatched with a 12-month quality warranty, full pre-shipment functional testing, and guaranteed long-term inventory availability — ensuring your critical control sites are never left waiting for a replacement.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In modern industrial control cabinets, a single point of communication failure can cascade into unplanned shutdowns, process upsets, or — in worst-case scenarios — safety incidents. The 1794-ACNR15 addresses this risk by providing a stable, deterministic ControlNet interface between the controller backplane and distributed FLEX I/O field devices, dramatically reducing the probability of signal drift, spurious trips, and communication timeouts.

For complete cabinet-level protection, the 1794-ACNR15 is commonly deployed alongside the 1794-PS13 FLEX I/O Power Supply, which provides regulated 24V DC with built-in overcurrent protection to prevent voltage sag from destabilizing the adapter or downstream I/O modules. In high-surge environments — such as motor control centers or variable frequency drive (VFD) panels — pairing the adapter with a 1794-AENT or 1794-ACNR series redundant network configuration ensures that a single coax fault does not interrupt the control loop.

The ControlNet network itself benefits from the use of 1786-RPA/B ControlNet Repeaters in long-distance or electrically noisy cable runs, maintaining signal quality across the full segment. For the PLC side, the 1756-CNB or 1756-CNBR ControlLogix ControlNet Bridge modules serve as the upstream network master, and their compatibility with the 1794-ACNR15 is well-established in Rockwell Automation system architectures.

In safety-critical interlock circuits, the 1794-ACNR15 is often installed in the same cabinet as Allen-Bradley 440R GuardMaster Safety Relays and 1794-IB16 or 1794-OB16 FLEX I/O digital I/O modules, forming a tightly integrated safety loop that monitors emergency stop circuits, gate interlocks, and pressure relief signals. The adapter’s configurable fault-mode output ensures that in the event of a ControlNet communication loss, all connected outputs can be driven to a defined safe state — preventing uncontrolled actuator movement or valve misoperation.

For power quality protection across the entire control panel, a 1606-XLP power supply or equivalent Rockwell industrial SMPS unit is recommended upstream of the 1794-PS13, providing additional surge suppression and brownout ride-through capability. This layered power architecture is especially important in mining substations, offshore platforms, and petrochemical DCS panels where grid instability is common.

Communication architecture integrity is further supported by using 1784-PCICS ControlNet interface cards at the engineering workstation level, enabling rapid diagnostics, firmware updates, and network health monitoring without interrupting live production — a key requirement in continuous process industries where any maintenance window must be minimized.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hydrocarbon processing facilities, the 1794-ACNR15 is deployed in emergency shutdown (ESD) and process safety management (PSM) control panels. Its deterministic ControlNet communication ensures that critical valve position feedback, pressure transmitter signals, and burner management system (BMS) I/O are transmitted without latency or dropout — even in environments saturated with hydrocarbon vapors and subject to frequent electrical transients from large motor starts.

Electric Power Generation & Transmission: Power plant distributed control systems (DCS) and substation automation panels rely on the FLEX I/O platform for turbine control, generator excitation monitoring, and protection relay interfacing. The 1794-ACNR15’s redundant media ControlNet capability is particularly valued in 110kV and 220kV substation environments where a communication fault could delay protective relay response.

Mining & Mineral Processing: Underground and open-cut mining operations subject control equipment to extreme vibration, coal dust ingress, and wide temperature swings. The 1794-ACNR15, mounted in sealed IP54 or higher enclosures with appropriate gasket sealing, provides reliable conveyor belt control, crusher interlock management, and ventilation fan safety monitoring in these harsh conditions.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the 1794-ACNR15 in pump station control panels, chemical dosing systems, and SCADA-connected remote I/O stations. Its resistance to humidity and condensation — combined with ControlNet’s media redundancy — ensures continuous operation of critical chlorination, filtration, and effluent discharge control loops.

Metallurgy & Steel Manufacturing: In electric arc furnace (EAF) and continuous casting environments, the 1794-ACNR15 withstands intense electromagnetic interference generated by high-current bus bars and induction heating systems. It maintains reliable communication for ladle transfer car positioning, mold level control, and cooling water interlock systems — all of which are safety-critical in preventing molten metal incidents.

Port & Marine Applications: Ship-to-shore crane control systems and vessel automation panels in port environments face salt air corrosion, vibration from wave motion, and power supply instability from diesel generators. The 1794-ACNR15’s robust design and ControlNet determinism support safe load handling, anti-sway control, and emergency stop circuit integrity in these demanding maritime settings.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the Allen-Bradley 1794-ACNR15?
Every 1794-ACNR15 supplied by NINERMAS carries a 12-month quality warranty from the date of shipment. If the unit fails under normal operating conditions within this period, NINERMAS will provide a replacement or full technical support to resolve the issue — ensuring your production site is never left without a qualified spare.

Q2: Is the 1794-ACNR15 tested before shipment?
Yes. All units undergo a full pre-shipment functional verification process at NINERMAS before dispatch. This includes communication interface checks, power input validation, and visual inspection for physical integrity — so you receive a unit that is ready for immediate installation in your control cabinet.

Q3: Is the 1794-ACNR15 compatible with existing ControlLogix and PLC-5 ControlNet systems?
The 1794-ACNR15 is fully compatible with Rockwell Automation ControlNet architectures, including ControlLogix (1756-CNB/CNBR), SLC 500, and PLC-5 ControlNet scanner configurations. It integrates directly into existing FLEX I/O backplane assemblies without requiring hardware modifications, making it an ideal drop-in replacement for aging or failed adapters in legacy and current-generation systems.

Q4: Can NINERMAS guarantee long-term supply of the 1794-ACNR15 for ongoing maintenance programs?
Yes. NINERMAS maintains dedicated inventory of the 1794-ACNR15 and related FLEX I/O components to support planned maintenance schedules, emergency replacements, and multi-site spare parts programs. Our supply chain is structured to provide consistent availability even for products that have reached end-of-life status with the original manufacturer — protecting your long-term operational continuity.
