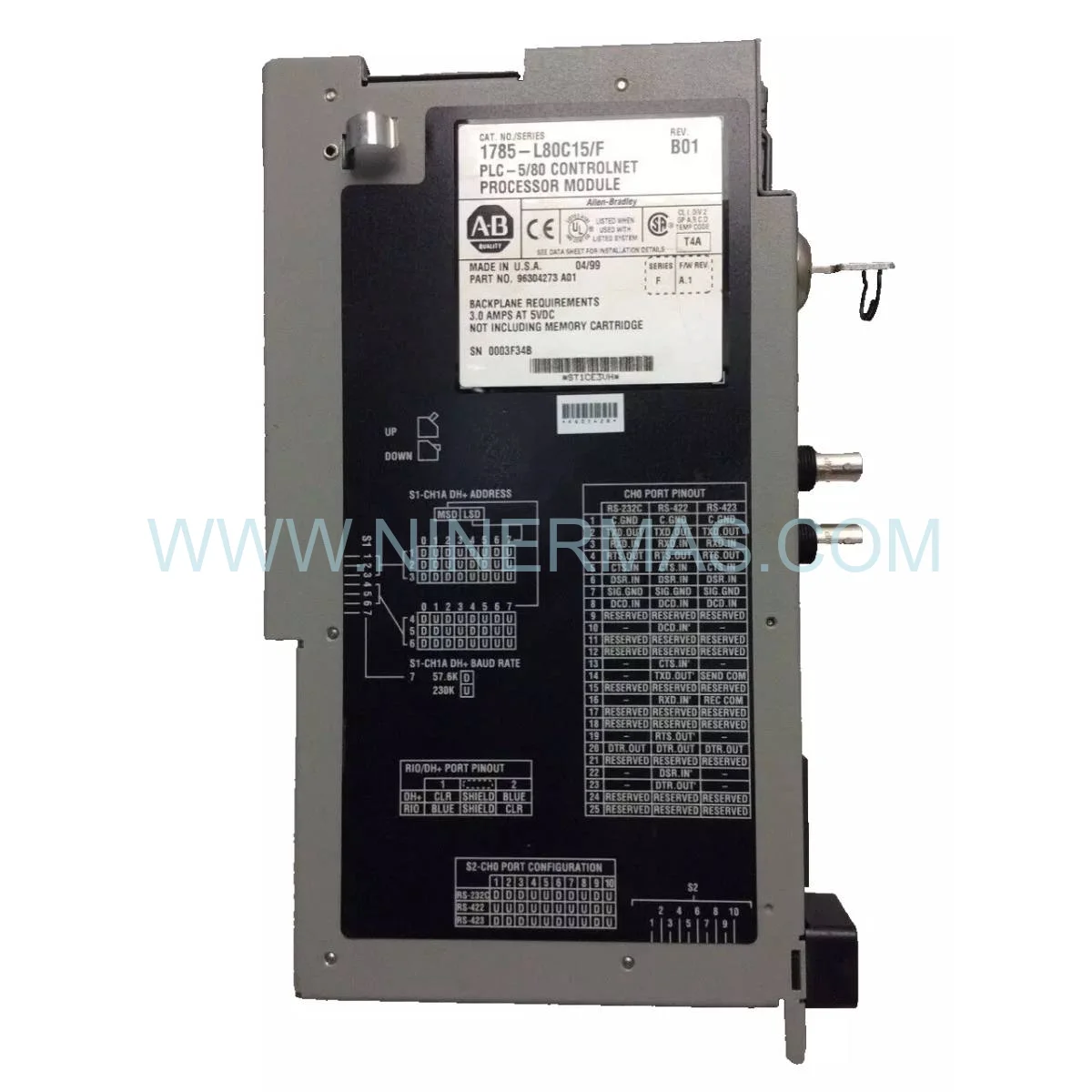

Allen-Bradley 1785-L80C15 | PLC-5/80 ControlNet Retrofit Processor

Allen-Bradley 1785-L80C15 — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system transformations, the Allen-Bradley 1785-L80C15 stands out as a cornerstone component in any PLC-5 platform modernization initiative. Its 100K-word user memory capacity and integrated ControlNet 1.5 interface allow aging automation infrastructures to achieve measurable performance gains without requiring a full system overhaul. By deploying the Allen-Bradley 1785-L80C15, plant engineers can extend the operational lifespan of existing 1771 I/O chassis and 1785 ControlNet backplanes while simultaneously unlocking deterministic network communication capabilities that modern production demands.

One of the most compelling advantages of this processor in a retrofit context is its backward compatibility with legacy PLC-5 programming logic developed in RSLogix 5. Existing ladder logic, function block diagrams, and I/O mapping configurations can be migrated with minimal rework, making the 1785-L80C15 an ideal upgrade path core for facilities transitioning from earlier PLC-5/40 or PLC-5/60 platforms. Its hardware architecture preserves the familiar 1771 rack ecosystem, eliminating the need for costly chassis replacements during phased modernization projects.

From a risk and cost management perspective, selecting the 1785-L80C15 as the migration anchor significantly reduces downtime exposure. Rather than executing a disruptive rip-and-replace strategy, project teams can implement a staged hardware upgrade, validating each control loop incrementally. This approach compresses migration timelines, lowers engineering labor costs, and minimizes production interruption — delivering a compelling ROI for both greenfield expansions and brownfield retrofit programs.

Upgrade Highlights & Compatibility

✅ Seamless Integration: Drop-in compatible with 1771 I/O chassis and 1785 ControlNet backplane configurations — no structural modifications required.
Performance Enhancement: Supports up to 4,096 discrete I/O and 480 analog I/O points, delivering expanded capacity over predecessor processors.
? Legacy Compatibility: Full RSLogix 5 software support ensures existing programs transfer with minimal re-engineering effort.
Future-Proofing: Integrated ControlNet 1.5 interface supports peer-to-peer communication, enabling multi-controller architectures scalable for future expansion.
? Hardware Upgrade Path: Serves as a direct performance upgrade from PLC-5/40 and PLC-5/60 processors within the same chassis family.
Redundancy Ready: Compatible with redundant ControlNet media adapters for mission-critical, high-availability applications.

Modernization Use Cases & Success Stories

DCS Migration in Chemical Processing Plants: A regional chemical manufacturer operating a legacy distributed control system (DCS) integrated the 1785-L80C15 as the primary controller node during a phased migration. By leveraging its ControlNet backbone, the team achieved real-time data synchronization across 12 remote I/O drops — reducing batch cycle variance by 18% and eliminating communication timeouts that had plagued the previous PLC-5/60 installation.

Turbine Supervisory Instrumentation (TSI) Retrofit: In a combined-cycle power generation facility, aging turbine monitoring controllers were upgraded using the 1785-L80C15 as the central processing unit. The processor’s deterministic scan time (sub-10ms) met the stringent timing requirements of vibration and temperature monitoring loops, enabling the plant to defer a full DCS replacement by an estimated 7-10 years while maintaining regulatory compliance.

Automotive Assembly Line Modernization: A Tier-1 automotive supplier replaced end-of-life PLC-5/40 processors across three body-in-white welding cells with the 1785-L80C15. The retrofit preserved all existing I/O wiring and chassis infrastructure, cutting hardware replacement costs by approximately 40% compared to a full ControlLogix migration, while delivering the processing headroom needed for new vision system integration.

Pharmaceutical Batch Control Upgrade: A GMP-compliant pharmaceutical facility deployed the 1785-L80C15 to replace a failing processor in a validated batch control system. The hardware upgrade path maintained 21 CFR Part 11 audit trail integrity and allowed the facility to avoid a costly revalidation cycle associated with platform changes.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed Units: Every Allen-Bradley 1785-L80C15 supplied through our network is sourced from certified distribution channels. Units are inspected for authenticity, completeness of documentation, and physical integrity prior to dispatch — ensuring you receive genuine hardware that meets OEM specifications.

Expedited Global Logistics: Recognizing that retrofit and emergency replacement projects operate under compressed timelines, we maintain strategic inventory positions to support rapid order fulfillment. Expedited air freight options are available to all major industrial regions, with typical lead times of 3-7 business days for in-stock units.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy Allen-Bradley PLC-5 platform deployments. From pre-purchase compatibility verification to post-installation commissioning guidance, we provide end-to-end technical assistance — including RSLogix 5 configuration advice, ControlNet network topology review, and I/O mapping validation for retrofit projects.

Documentation Package: Each shipment includes or provides access to relevant technical documentation: installation instructions, hardware reference manuals, and firmware revision notes — supporting both new deployments and revalidation requirements in regulated industries.

Retrofit FAQ — Upgrade Guide

Q1: Is the 1785-L80C15 physically compatible with my existing 1771 chassis without mechanical modifications?
A: Yes. The Allen-Bradley 1785-L80C15 is designed to occupy a standard 1771 I/O chassis slot. No mechanical modifications to the chassis, backplane, or enclosure are required. Verify slot width and power supply capacity (5V DC at 1.5A minimum) before installation to ensure the existing power supply can support the processor’s draw alongside installed I/O modules.

Q2: How does the 1785-L80C15 handle communication between new ControlNet devices and legacy Remote I/O (RIO) networks?
A: The 1785-L80C15 supports ControlNet as its primary network interface. For facilities with existing Remote I/O drops, communication bridge modules (such as the 1747-SN or compatible RIO scanner adapters) can be used to maintain legacy RIO device connectivity while the ControlNet backbone handles higher-speed peer-to-peer and scheduled data transfers. This hybrid architecture is a proven strategy for phased migration without disrupting existing field device wiring.

Q3: Can I reuse my existing RSLogix 5 program files when replacing an older PLC-5 processor with the 1785-L80C15?
A: In most cases, yes. RSLogix 5 program files (.RSS) developed for PLC-5/40 or PLC-5/60 processors are generally transferable to the 1785-L80C15 with minimal modification. Key considerations include verifying memory allocation (the 1785-L80C15 offers 100K words, providing significant headroom), reviewing any processor-specific instructions, and confirming I/O configuration maps align with the new processor’s addressing scheme. A full offline simulation and FAT (Factory Acceptance Test) is recommended before live deployment.

Q4: What are the recommended spare part substitutes if the 1785-L80C15 reaches end-of-availability in the future?
A: For long-term migration planning, the Allen-Bradley ControlLogix platform (specifically the 1756-L series processors with ControlNet communication modules such as the 1756-CNB) represents the strategic upgrade path endorsed by Rockwell Automation. However, for facilities committed to the PLC-5 ecosystem in the near term, maintaining a buffer stock of 1785-L80C15 units is advisable. Our team can assist with lifecycle planning and multi-unit procurement strategies to ensure continuity.

Q5: Does the 1785-L80C15 support redundant processor configurations for high-availability applications?
A: The 1785-L80C15 itself operates as a single processor unit; however, it is compatible with redundant ControlNet media configurations using dual coaxial cable runs and redundant media adapters (e.g., 1786-RPCD). For full processor redundancy in PLC-5 applications, consult Rockwell Automation’s redundancy system documentation to evaluate compatible redundancy modules and chassis configurations appropriate for your specific application requirements.

Q6: What ControlNet cable infrastructure is required for a retrofit installation using the 1785-L80C15?
A: ControlNet 1.5 installations require RG-6 quad-shield coaxial cable with BNC connectors, or fiber optic cable with appropriate media adapters for longer distances or electrically noisy environments. Proper network termination (75-ohm terminators at each trunk end) is essential for signal integrity. Maximum trunk length is 1,000 meters with coaxial media (without repeaters). For retrofit projects, existing ControlNet cabling infrastructure can typically be reused if it meets these specifications and passes a network health diagnostic using the ControlNet Analyzer tool.
