Allen-Bradley 1783-BMS20CA Safety-Reliable Switch for Critical Control Sites

Allen-Bradley 1783-BMS20CA Safety-Reliable Switch for Critical Control Sites

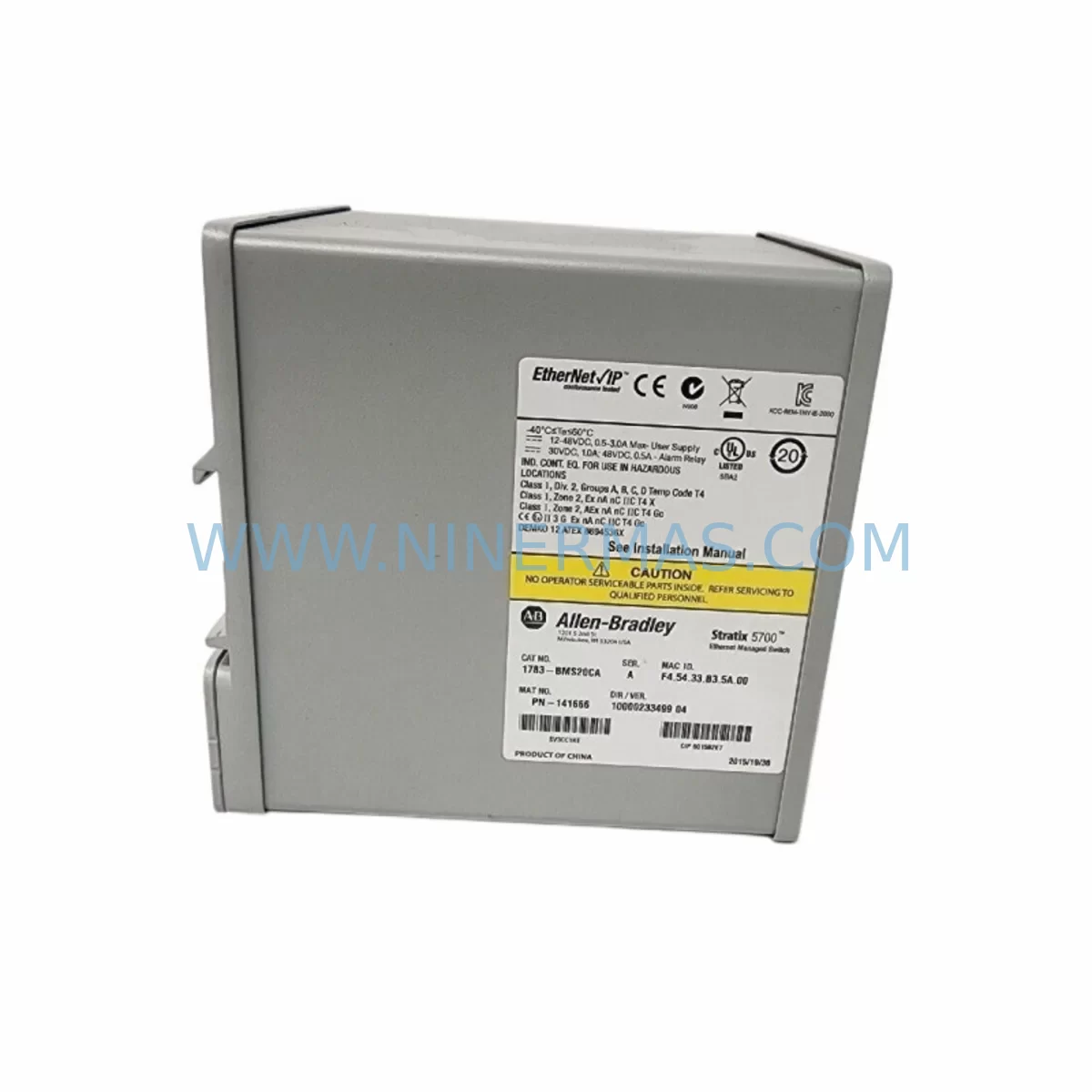

The Allen-Bradley 1783-BMS20CA is a managed industrial Ethernet switch from the Stratix 5700 series, engineered for deployment in the most demanding control environments. Designed to meet the rigorous requirements of continuous production facilities, critical interlock loops, and high-electromagnetic-interference (EMI) panels, this switch delivers the network-layer reliability that modern industrial safety architectures demand. Whether installed in a petrochemical DCS cabinet, a power plant SCADA ring, or a mining conveyor control system, the 1783-BMS20CA provides deterministic communication that reduces the risk of control interruption, signal drift, and unplanned downtime.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In modern industrial control cabinets, network reliability is as critical as power quality. The 1783-BMS20CA integrates seamlessly into EtherNet/IP architectures alongside Allen-Bradley 1756-EN2T ControlLogix Ethernet communication modules, ensuring that I/O data from remote 1734-AENT POINT I/O adapter nodes reaches the controller without latency spikes or packet loss — even under heavy electromagnetic interference from variable frequency drives and large motor starters.

For power system protection within the same cabinet, pairing the 1783-BMS20CA with a 1606-XLP power supply provides regulated 24 VDC with surge suppression, protecting the switch’s dual power inputs from voltage transients and brownout conditions common in heavy industrial environments. Where additional surge protection is required at the panel entry point, a 1783-ETAP EtherNet/IP tap can be deployed upstream to monitor link health without interrupting the live network segment.

In safety-instrumented systems (SIS), the switch supports the communication backbone between GuardLogix 5580 safety controllers and distributed 1791DS Guard I/O safety modules. Maintaining deterministic scan times across this safety network is non-negotiable — any communication anomaly can trigger a spurious trip or, worse, mask a genuine process hazard. The 1783-BMS20CA’s IGMP snooping and RSTP ring recovery (sub-50 ms) capabilities directly reduce these risks.

For facilities running PowerFlex 755 drives on EtherNet/IP, the switch’s QoS (Quality of Service) traffic prioritization ensures drive command and feedback traffic is never starved by lower-priority HMI or historian data. This is particularly important in continuous casting, paper mill, and cement kiln applications where drive communication loss causes immediate process disruption. Complementary components such as the 1783-RMS06T stratix managed switch and 1783-ETAP2F fiber tap further extend the network’s reach into hazardous or physically separated zones.

When replacing aging unmanaged switches in legacy panels, the 1783-BMS20CA provides a direct upgrade path with backward-compatible 10/100 Mbps auto-negotiation, eliminating the need to re-terminate existing copper runs. Its DIN-rail form factor fits standard 35 mm rails used across Allen-Bradley MCC and control panel assemblies, minimizing retrofit downtime.

Critical Industrial Safety Applications

Petrochemical & Refinery: In continuous process plants, the 1783-BMS20CA serves as the backbone switch for emergency shutdown (ESD) communication networks. Its deterministic RSTP recovery ensures that a single cable fault does not isolate a safety PLC from its field devices, maintaining the integrity of the safety instrumented function (SIF) at all times.

Electric Power Generation & Transmission: Substation automation systems require switches that tolerate high-voltage induced interference and wide temperature swings. The 1783-BMS20CA’s IEC 61000-4 EMI immunity and extended temperature rating make it suitable for relay protection panels and SCADA communication rings in both thermal and renewable power plants.

Mining & Mineral Processing: Underground and surface mining operations expose network equipment to dust, moisture, and mechanical vibration. The switch’s IEC 60068-rated vibration and shock resistance, combined with its sealed DIN-rail enclosure, supports reliable operation in conveyor control, crusher automation, and ventilation safety systems.

Water & Wastewater Treatment: Municipal and industrial water facilities rely on uninterrupted SCADA communication for pump control, chemical dosing, and overflow prevention. The 1783-BMS20CA’s redundant power input and ring topology support eliminate single points of failure in these critical public safety systems.

Metallurgy & Steel: High-temperature, high-vibration environments in electric arc furnace (EAF) and rolling mill control rooms demand switches that maintain link integrity despite thermal cycling and conducted EMI from large thyristor drives. The 1783-BMS20CA’s industrial-grade components are selected for long-term stability under these conditions.

Port & Marine Logistics: Crane control systems and vessel automation networks require managed switches capable of handling real-time motion control traffic alongside safety interlock signals. The switch’s QoS and VLAN segmentation capabilities allow crane PLC traffic to be isolated from administrative network traffic, reducing collision risk and improving response time.

Safety and Quality FAQ

Q1: Does the 1783-BMS20CA come with a warranty?
Yes. Every 1783-BMS20CA supplied by NINERMAS COMPANY LIMITED is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly with replacement or repair support.

Q2: What pre-shipment testing is performed?
Each unit undergoes outgoing quality control (OQC) inspection including power-on functional verification, port link testing, and visual inspection for physical integrity before dispatch. Units that do not pass inspection are not shipped.

Q3: Is the 1783-BMS20CA compatible with existing Rockwell Automation systems?
Yes. The 1783-BMS20CA is fully compatible with Studio 5000 Logix Designer, RSLogix 5000, and FactoryTalk network management tools. It supports EtherNet/IP CIP communication and integrates with existing Stratix 5700 series network topologies without firmware conflicts.

Q4: Can NINERMAS guarantee long-term supply for maintenance and spare parts?
NINERMAS maintains stock of Allen-Bradley Stratix series switches and related components to support ongoing maintenance, planned shutdowns, and emergency replacements. We provide stable supply commitments for critical spare parts programs, reducing the risk of extended downtime due to parts unavailability.
