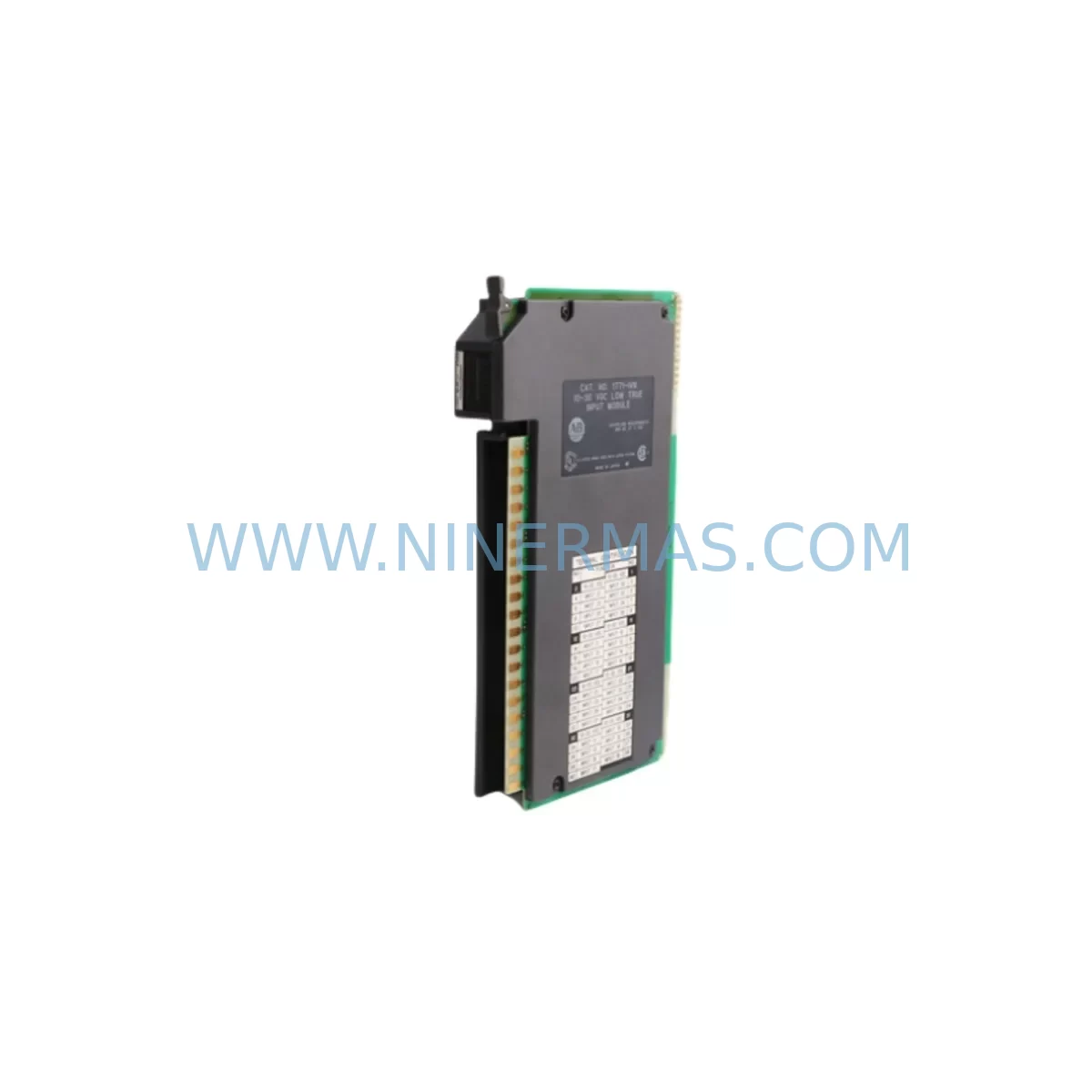

Allen-Bradley 1771-IVN/C Safety-Reliable Input Module

Allen-Bradley 1771-IVN/C Safety-Reliable Input Module for Critical Control Sites

The Allen-Bradley 1771-IVN/C is a discrete input module designed for the PLC-5 programmable controller platform — one of the most widely deployed control architectures in continuous process industries. In critical control environments where unplanned downtime carries severe operational, financial, and safety consequences, the 1771-IVN/C delivers the signal integrity and environmental resilience required to maintain reliable interlock and monitoring functions across demanding field conditions.

Sourced, inspected, and pre-shipment tested by NINERMAS, this module is available as a verified spare to support retrofit, replacement, and lifecycle extension programs for PLC-5-based control cabinets operating in petrochemical, power generation, mining, water treatment, metallurgical, port logistics, marine, and continuous manufacturing environments.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a PLC-5 control cabinet, the 1771-IVN/C input module sits at the front line of field signal acquisition. Its optical isolation barrier is the first line of defense against voltage spikes, ground loops, and electromagnetic interference generated by variable frequency drives, motor starters, and high-current switching loads sharing the same panel enclosure. When this isolation layer degrades or fails, the consequences cascade: false input states trigger unintended actuator responses, safety interlocks fail to register field conditions, and the control system loses situational awareness of the process.

To build a fully protected and resilient PLC-5 control architecture, the 1771-IVN/C is typically deployed alongside complementary modules and protective components. The Allen-Bradley 1771-OBN discrete output module handles the corresponding actuator-side switching, forming a matched input/output pair within the same 1771 chassis. For analog process variables — pressure, temperature, flow — the Allen-Bradley 1771-IFE analog input module provides the precision signal conditioning needed to maintain loop stability under noisy field conditions.

Power supply integrity is equally critical. The Allen-Bradley 1771-P4S chassis power supply provides regulated, filtered DC power to the 1771 I/O backplane, ensuring that voltage fluctuations and power line disturbances do not propagate into the module logic circuits. For installations where power quality is a persistent concern, supplementing the panel with a dedicated industrial UPS or line conditioner upstream of the PLC-5 rack significantly reduces the risk of nuisance faults and data corruption during grid disturbances.

Communication reliability is another dimension of cabinet risk. The Allen-Bradley 1785-L40B PLC-5 processor, when paired with a 1784-KTX or 1784-PCMK communication card, maintains deterministic data exchange between the control rack and the supervisory SCADA layer. In high-EMI environments, shielded cable assemblies and proper grounding of the 1771 chassis frame are non-negotiable practices that prevent signal drift and communication timeouts on the Data Highway Plus network.

For installations requiring safety-rated interlock monitoring, the 1771-IVN/C input states are often cross-referenced with outputs from dedicated safety relays — such as the Allen-Bradley 440R series — to implement dual-channel emergency stop and safety gate monitoring circuits. This layered approach ensures that a single component failure does not compromise the integrity of the safety function. Surge protection devices installed at field terminal blocks further shield the input module from lightning-induced transients and switching surges on long cable runs between the control room and field instruments.

Maintaining a verified spare inventory of the 1771-IVN/C — alongside matched spares for the 1771-OBN, 1771-IFE, and the 1771-P4S power supply — is a recognized best practice in lifecycle management for aging PLC-5 installations. With Rockwell Automation having moved the PLC-5 platform to end-of-life status, sourcing quality-verified replacement modules from specialist distributors like NINERMAS is the most reliable path to sustaining control system availability without a full platform migration.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous distillation, cracking, and blending processes, the 1771-IVN/C monitors field-mounted limit switches, pressure switches, and flow switches that form part of the process safety interlock system. Reliable input acquisition is essential to ensure that high-pressure or high-temperature exceedance conditions are correctly detected and that emergency shutdown sequences are initiated without delay or false triggering.

Power Generation and Substation Control: In coal-fired, gas turbine, and hydroelectric generating stations, PLC-5-based control systems manage auxiliary systems including cooling water, lubrication, fuel gas, and excitation. The 1771-IVN/C reads status signals from motor protection relays, valve position indicators, and breaker auxiliary contacts, providing the control processor with the real-time field state data needed to execute automatic start/stop sequences and protective tripping logic.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and humidity. The 1771-IVN/C’s robust construction and optical isolation make it well-suited for conveyor control, crusher interlock monitoring, and ventilation system management in these harsh environments, where control interruptions can create immediate safety hazards for personnel.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on PLC-5 systems to manage pump sequencing, chemical dosing interlocks, and level monitoring. The 1771-IVN/C reads discrete signals from float switches, flow switches, and valve limit switches, ensuring that treatment processes remain within safe operating parameters and that overflow or dry-run conditions are detected and alarmed promptly.

Metallurgical and Steel Production: In electric arc furnace, rolling mill, and continuous casting operations, the 1771-IVN/C monitors cooling water flow confirmation, hydraulic pressure status, and roll gap position switches. Accurate and timely input acquisition is critical to preventing equipment damage and ensuring personnel safety in these high-energy, high-temperature production environments.

Port Logistics and Marine Applications: Ship-to-shore cranes, bulk material handling systems, and vessel automation platforms that incorporate PLC-5 control architecture depend on reliable discrete input modules to monitor load cell status, limit switch positions, and safety interlock states. The 1771-IVN/C provides the signal integrity needed to maintain safe and productive operations in salt-air, high-humidity coastal environments.

Safety and Quality FAQ

Q1: Does the Allen-Bradley 1771-IVN/C come with a warranty?
Yes. Every 1771-IVN/C unit supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions consistent with the module’s published specifications. Our warranty commitment reflects our confidence in the pre-shipment inspection and testing process applied to every unit before dispatch.

Q2: What pre-shipment testing is performed on the 1771-IVN/C?
Each unit undergoes functional verification testing prior to shipment. This includes confirmation of input channel response, optical isolation integrity, and backplane interface continuity. Units that do not meet functional acceptance criteria are not dispatched. Test records are available upon request for customers with documentation requirements for their quality management systems.

Q3: Is the 1771-IVN/C compatible with all PLC-5 processor variants?
The 1771-IVN/C is designed for use in the Allen-Bradley 1771 I/O chassis and is compatible with the full range of PLC-5 processors — including the PLC-5/10, PLC-5/15, PLC-5/20, PLC-5/30, PLC-5/40, PLC-5/60, and PLC-5/80 — when installed in a correctly configured 1771 chassis with an appropriate power supply. Customers should verify chassis slot addressing and I/O configuration in their existing PLC-5 program before installation.

Q4: Can NINERMAS support long-term supply of the 1771-IVN/C for ongoing maintenance programs?
Yes. NINERMAS maintains stock of the 1771-IVN/C and related PLC-5 series components to support planned maintenance, emergency replacement, and lifecycle extension programs. We understand that many critical industrial facilities are committed to their existing PLC-5 infrastructure for the foreseeable future, and we are positioned to provide reliable, quality-verified spare parts supply to support those commitments. Contact our team to discuss volume requirements, lead times, and scheduled supply arrangements.
