Allen-Bradley 1763-BA Safety-Reliable PLC Battery

Allen-Bradley 1763-BA Safety-Reliable PLC Battery for Critical Control Sites

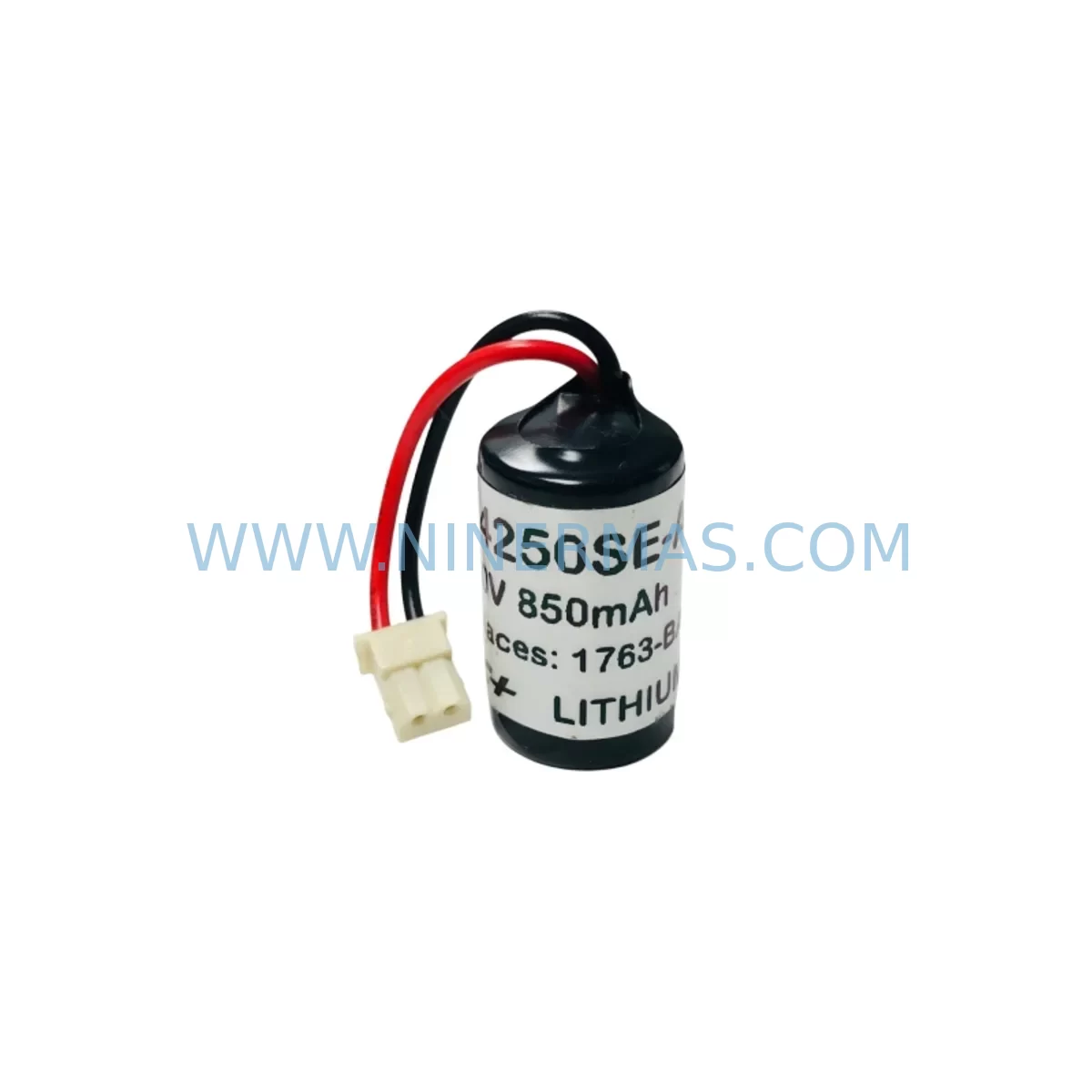

The Allen-Bradley 1763-BA is a dedicated lithium backup battery engineered for the MicroLogix 1100 programmable logic controller series. In continuous production environments — where unplanned downtime translates directly into safety incidents, production loss, and costly restart procedures — the integrity of PLC memory backup is not a secondary concern. It is a frontline safety requirement. The 1763-BA ensures that all ladder logic programs, data table values, I/O configurations, and communication parameters stored in the MicroLogix 1100 are fully preserved during power interruptions, control cabinet maintenance windows, and emergency shutdowns.

Sourced from verified supply channels and subjected to pre-shipment electrical testing at NINERMAS, every 1763-BA unit is confirmed to meet original Rockwell Automation voltage and capacity specifications before dispatch. This discipline eliminates the risk of deploying a degraded or counterfeit battery into a live control system — a failure mode that has caused undetected memory corruption, false program restarts, and safety interlock failures in field installations worldwide.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a MicroLogix 1100-based control cabinet, the 1763-BA does not operate in isolation. Its role is to anchor the memory integrity of the entire control node while surrounding components manage power quality, signal conditioning, and communication continuity. When the 1763-BA is paired with a reliable 1763-L16BWA or 1763-L16DWD MicroLogix 1100 controller unit, the system achieves a coherent backup architecture where both the processor and its retained data remain protected across power cycles.

On the power supply side, cabinets running MicroLogix 1100 systems frequently incorporate Allen-Bradley 1606-XLP power supplies or equivalent 24 V DC regulated sources. Voltage sags and transient surges from motor starters, variable frequency drives, or solenoid switching can stress the PLC’s internal power rail. While the 1763-BA itself is a passive memory backup device, its effectiveness depends on the main supply remaining within specification during normal operation — making surge-protected, regulated DC power supplies a critical companion component in any risk reduction strategy.

For I/O expansion, the MicroLogix 1100 platform supports 1762 Series I/O expansion modules, including digital input modules such as the 1762-IQ16 and analog input modules such as the 1762-IF4. In safety-critical applications — chemical dosing, conveyor interlocks, pump control, or HVAC sequencing — these I/O modules must retain their configuration data without corruption. The 1763-BA ensures that even after an unplanned power loss, the controller restores its I/O map and resumes scanning without requiring manual re-entry of parameters, which is a significant source of human error during emergency recovery.

Communication integrity is equally important. MicroLogix 1100 controllers equipped with the 1761-NET-ENI Ethernet interface or RS-232 communication modules depend on stored IP address configurations, baud rate settings, and node addressing that are held in battery-backed RAM. A failed or depleted 1763-BA can cause the controller to lose its network identity upon restart, triggering communication faults across the entire SCADA or DCS architecture. In facilities using RSLinx Classic or FactoryTalk View for supervisory monitoring, this type of fault can cascade into false alarms, missed interlocks, and operator confusion during the most critical moments of a process upset.

For installations in high-vibration environments — mining conveyors, offshore platforms, steel rolling mills, or port crane systems — the physical seating of the 1763-BA in its battery holder should be verified during each planned maintenance cycle. Vibration-induced contact loosening is a known failure mode that can cause intermittent memory loss without triggering a low-battery alarm. Pairing the battery replacement schedule with inspection of the 1763-NC13 or equivalent communication cables, terminal block torque checks on 1492-series wiring accessories, and verification of the 1763-MM1 memory module (where installed) creates a comprehensive preventive maintenance routine that addresses all memory and communication retention risks simultaneously.

Critical Industrial Safety Applications

The Allen-Bradley 1763-BA supports reliable PLC operation across a wide range of critical industrial environments. In petrochemical and refinery facilities, MicroLogix 1100 controllers manage pump sequencing, valve actuation, and emergency shutdown (ESD) pre-logic. A battery failure in these applications can result in loss of ESD program integrity, requiring a full safety validation cycle before restart — a process that may take hours and carries significant production and safety risk.

In water and wastewater treatment plants, MicroLogix 1100 systems control dosing pumps, UV disinfection sequences, and lift station operations. These are 24/7 continuous processes where any unplanned controller restart due to memory loss can cause dosing errors, overflow events, or regulatory compliance violations. The 1763-BA provides the memory retention backbone that keeps these systems running through grid fluctuations, generator switchovers, and routine maintenance outages.

In mining and mineral processing, where high dust concentrations, ground vibration, and frequent power interruptions are standard operating conditions, the 1763-BA’s sealed lithium cell construction and wide operating temperature range make it a dependable choice for conveyor control, crusher sequencing, and slurry pump management applications. The ability to restore the PLC program instantly after a power event — without operator intervention — is a direct safety benefit in environments where manual restart procedures carry their own hazard exposure.

In port and maritime logistics, crane control systems and automated guided vehicle (AGV) controllers built on MicroLogix 1100 platforms rely on battery-backed memory to retain positioning data, load limit parameters, and safety interlock configurations. Loss of this data during a power interruption can cause equipment to restart in an undefined state, creating collision and overload risks. The 1763-BA eliminates this failure mode.

In metallurgical and steel production environments, where high electromagnetic interference from arc furnaces, induction heaters, and large motor drives is constant, the passive nature of the 1763-BA means it is completely unaffected by EMI — providing a stable, interference-immune memory backup solution regardless of the electrical noise environment.

Safety and Quality FAQ

Q1: What warranty does the 1763-BA carry when purchased from NINERMAS?
Every Allen-Bradley 1763-BA shipped by NINERMAS is covered by a 12-month warranty from the date of shipment. If the battery exhibits premature capacity loss, voltage drop below specification, or physical defects within the warranty period, NINERMAS will arrange replacement or credit. Warranty claims are supported by our pre-shipment test records, which document the open-circuit voltage of each unit prior to dispatch.

Q2: How is each 1763-BA tested before shipment?
Each unit undergoes open-circuit voltage verification to confirm the cell is at or above the nominal 3.0 V DC threshold. Units that fall below specification are quarantined and not shipped. This testing protocol ensures that customers receive a battery with full remaining capacity, not a shelf-depleted or counterfeit cell that may fail within weeks of installation.

Q3: Is the 1763-BA a direct drop-in replacement for the original Rockwell Automation battery?
Yes. The 1763-BA is the OEM-specified battery for the MicroLogix 1100 (1763 Series) controller. It installs directly into the battery holder on the controller without modification, adapter, or firmware change. No programming or configuration is required after installation — the controller automatically recognizes the restored power source and continues normal operation.

Q4: Can NINERMAS support long-term or bulk supply of the 1763-BA for maintenance programs?
Yes. NINERMAS maintains stock inventory of the 1763-BA and can support scheduled procurement programs for facilities that operate large fleets of MicroLogix 1100 controllers. Bulk orders, annual supply agreements, and priority allocation for critical spare parts programs are available. Contact our team to discuss lead times, pricing, and stock commitment arrangements suited to your maintenance cycle.
