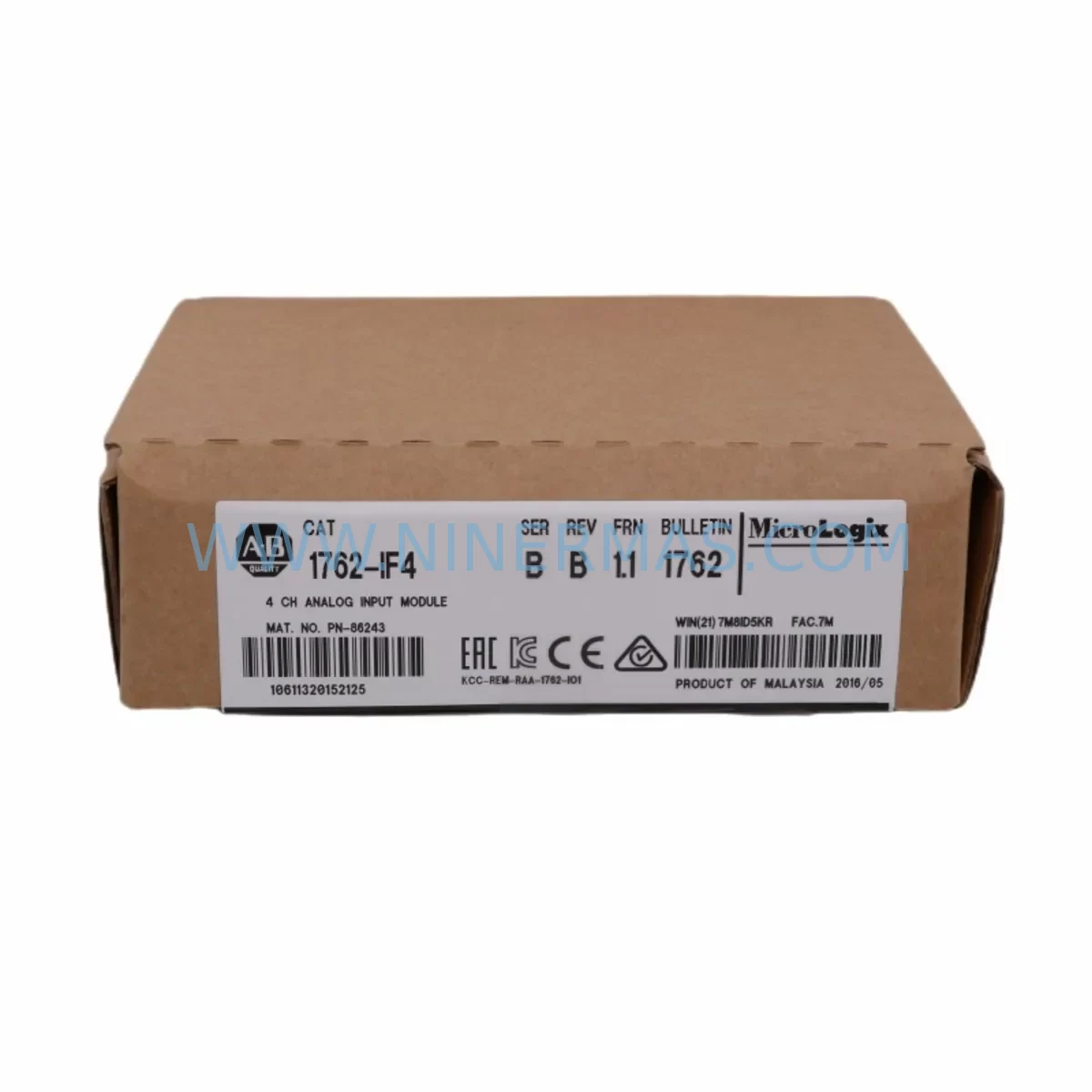

Allen-Bradley 1762-IF4 Safety-Reliable Analog Input Module

Allen-Bradley 1762-IF4: Safety-Reliable Analog Input Module for Critical Industrial Control Sites

The Allen-Bradley 1762-IF4 is a 4-channel analog input module engineered for the MicroLogix 1200 series programmable logic controller platform. Designed to meet the demanding requirements of continuous production environments, critical interlock systems, and heavy-duty control cabinets, the 1762-IF4 delivers precise signal acquisition and robust noise immunity across a wide range of industrial field conditions. Whether deployed in petrochemical processing, power generation, mining operations, water treatment facilities, metallurgical plants, port logistics, or continuous manufacturing lines, this module provides the signal integrity and operational stability that safety-critical automation demands.

In high-electromagnetic-interference environments — such as those found near variable frequency drives, large motor starters, and high-current bus bars — the 1762-IF4 maintains accurate analog signal conversion without drift or false readings. Its shielded input architecture and differential signal processing suppress common-mode noise, reducing the risk of control loop disturbances that could trigger unplanned shutdowns or unsafe actuator responses. For facilities where a single erroneous analog reading can cascade into a process trip or equipment damage event, the signal fidelity of the 1762-IF4 is a direct contributor to plant safety.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered MicroLogix 1200 control cabinet, the 1762-IF4 analog input module operates as part of a layered protection architecture. The MicroLogix 1200 CPU — such as the 1762-L24BWA or 1762-L40BWA — processes the analog data acquired by the 1762-IF4 and executes the control logic that governs process safety interlocks and regulatory loops. Alongside the analog input module, digital I/O expansion modules such as the 1762-IQ16 (16-point DC input) and 1762-OW16 (16-point relay output) handle discrete field signals, forming a complete I/O subsystem capable of managing both continuous process variables and on/off safety commands within the same compact cabinet footprint.

Power quality is a critical upstream factor for analog signal accuracy. Surges, sags, and high-frequency noise on the 24 VDC supply rail can introduce offset errors and signal drift in analog input channels. Integrating a Rockwell Automation 1606-XLP power supply or equivalent DIN-rail-mounted regulated SMPS with built-in surge suppression upstream of the MicroLogix 1200 system significantly reduces this risk. For additional transient protection at the field wiring terminals, surge protection devices (SPDs) rated for 24 VDC signal circuits — such as those from the Phoenix Contact TRABTECH or Weidmüller VARITECTOR series — are recommended in high-lightning-risk or long-cable-run installations.

Communication integrity is equally important in safety-relevant control architectures. The MicroLogix 1200 communicates via RS-232 (Channel 0) and optionally via RS-485 DF1/DH-485 (Channel 1), enabling integration with SCADA systems, HMI panels such as the Allen-Bradley PanelView 800, and upstream PLCs. In environments with high electromagnetic interference, using shielded communication cables and proper cable segregation from power conductors prevents communication anomalies that could mask analog alarm conditions or delay safety responses. For Ethernet-connected architectures, the 1761-NET-ENI Ethernet interface module extends MicroLogix 1200 connectivity to EtherNet/IP networks, enabling remote monitoring of analog process values without interrupting local control execution.

In dusty, humid, or chemically aggressive environments, the physical integrity of the control cabinet enclosure directly affects the long-term reliability of the 1762-IF4 and its companion modules. Specifying an IP54 or IP65-rated enclosure with filtered ventilation, combined with anti-condensation heaters where ambient temperature swings are significant, protects the module’s PCB and terminal connections from corrosion and contamination-induced failures. Periodic inspection of the expansion bus connector between the MicroLogix 1200 CPU and the 1762-IF4 module is also recommended as part of a preventive maintenance program, as oxidation or mechanical loosening of this connector can cause intermittent analog channel faults that are difficult to diagnose under live production conditions.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In continuous process units such as distillation columns, reactor feed systems, and heat exchanger trains, the 1762-IF4 acquires 4–20 mA signals from pressure transmitters, temperature sensors, and flow meters. These analog values feed into MicroLogix 1200 control logic that governs safety interlock functions — including high-pressure shutdowns, high-temperature trips, and low-flow alarms. The module’s noise immunity ensures that transient signals from nearby pump motors or solenoid valves do not generate spurious interlock activations that could cause unnecessary process shutdowns or, more critically, mask genuine hazardous conditions.

Power Generation and Substation Control: In power plant auxiliary systems — such as cooling water circuits, fuel oil handling, and compressed air systems — the 1762-IF4 monitors analog process variables that support safe turbine and generator operation. Its ability to maintain signal accuracy in environments with strong electromagnetic fields generated by high-voltage switchgear and large transformers makes it a reliable choice for substation automation panels where MicroLogix 1200 systems manage non-critical but operationally important control loops.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature variations. The 1762-IF4’s rated vibration and shock resistance, combined with proper cabinet sealing, supports reliable analog signal acquisition from conveyor load cells, crusher motor current sensors, and slurry density transmitters. Uninterrupted monitoring of these variables is essential for preventing equipment overload events and maintaining safe production throughput.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on continuous analog monitoring of pH, dissolved oxygen, turbidity, chlorine residual, and flow rate. The 1762-IF4 interfaces directly with 4–20 mA transmitters from these instruments, providing the MicroLogix 1200 with the real-time data needed to control dosing pumps, aeration blowers, and filtration systems. Reliable analog input performance is critical in these applications because sensor signal loss or drift can result in under-treatment or over-treatment conditions with regulatory and public health implications.

Metallurgy and Steel Production: In electric arc furnace (EAF) auxiliary systems, rolling mill hydraulic controls, and continuous casting cooling circuits, the 1762-IF4 operates in environments characterized by intense electromagnetic interference from high-current furnace electrodes and large DC drives. Its differential input design provides meaningful rejection of common-mode interference, supporting stable analog acquisition even in these electrically hostile conditions.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the Allen-Bradley 1762-IF4?
Every 1762-IF4 module supplied by NINERMAS COMPANY LIMITED carries a 12-month warranty from the date of shipment. This warranty covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides warranty support including failure diagnosis, replacement processing, and application guidance throughout the warranty period.

Q2: What pre-shipment testing is performed on each 1762-IF4 module?
Each unit undergoes functional verification testing prior to shipment, including power-on self-test confirmation, analog channel response checks across the configured input range, and expansion bus connector integrity inspection. Modules are shipped in anti-static packaging with physical protection appropriate for international freight, ensuring they arrive in field-ready condition.

Q3: Is the 1762-IF4 compatible with all MicroLogix 1200 CPU variants, and can it be used as a direct replacement for a failed module in an existing system?
The 1762-IF4 is compatible with all MicroLogix 1200 CPU models (1762-L24xxx and 1762-L40xxx series) as a right-side expansion module. It is a direct plug-in replacement for existing 1762-IF4 modules in service — no firmware changes or hardware modifications are required. Configuration parameters (input range, filter settings) are stored in the MicroLogix 1200 CPU program and are automatically applied to the replacement module upon power-up, minimizing restoration time during unplanned maintenance events.

Q4: Can NINERMAS support long-term and repeat supply requirements for the 1762-IF4?
Yes. NINERMAS maintains stock inventory of the 1762-IF4 and related MicroLogix 1200 expansion modules to support both immediate replacement needs and planned maintenance procurement programs. We serve industrial customers with ongoing supply agreements, providing consistent lead times and stable pricing for critical spare parts. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to discuss your supply requirements.
