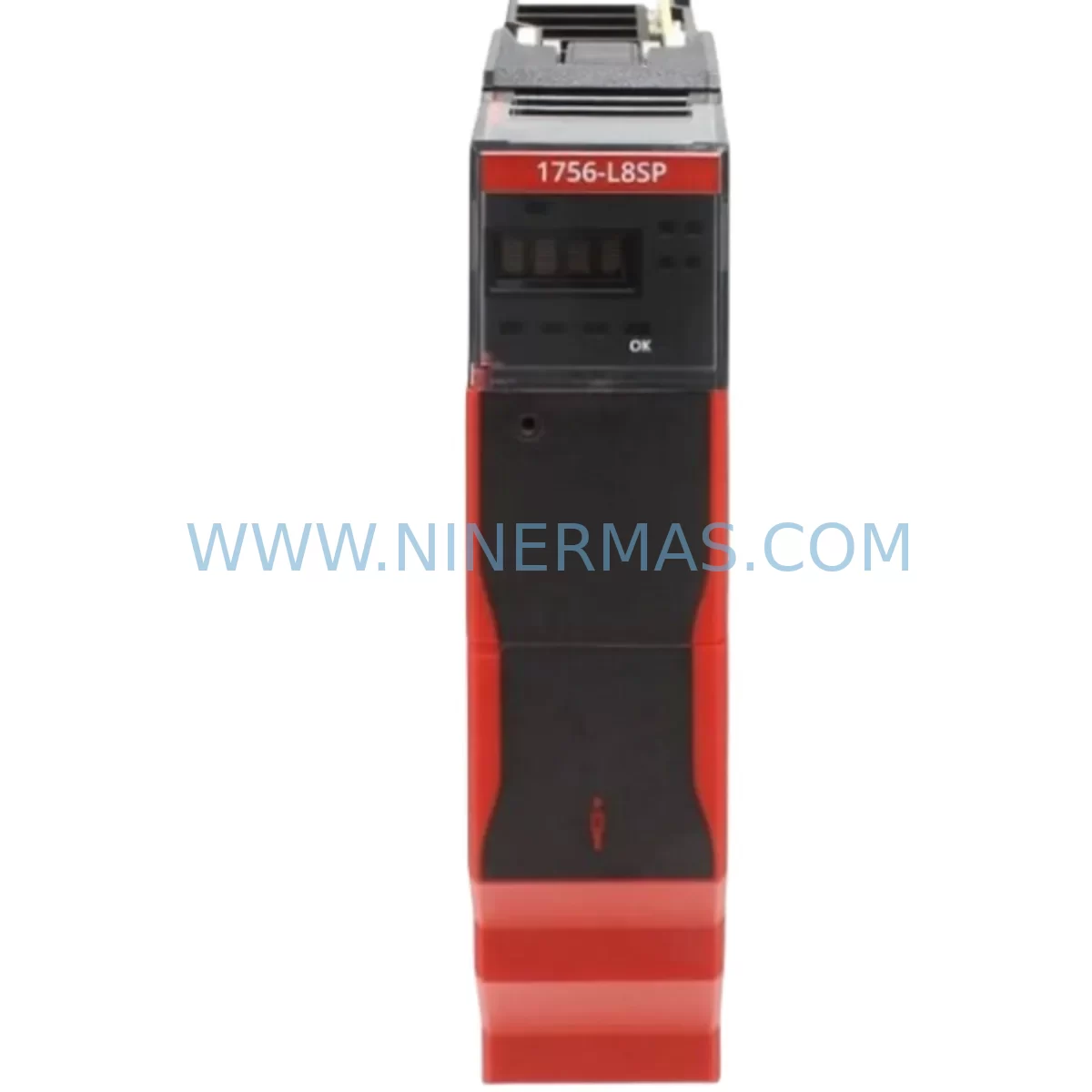

Allen-Bradley 1756-L8SP Service-Ready Spare Part for Industrial Maintenance

Allen-Bradley 1756-L8SP Service-Ready Spare Part for Industrial Maintenance

The Allen-Bradley 1756-L8SP is the dedicated Safety Partner module for the GuardLogix 5580 safety controller platform, operating within Rockwell Automation’s ControlLogix 1756 series chassis architecture. Designed to work in tandem with the primary GuardLogix 5580 controller (such as the 1756-L81ES, 1756-L82ES, or 1756-L83ES), the 1756-L8SP provides the redundant safety processing layer required to achieve SIL 2 and SIL 3 functional safety ratings under IEC 61508 and IEC 62061 standards. In industrial environments where safety-rated control is non-negotiable — including automotive assembly, chemical processing, oil and gas, food and beverage, and heavy machinery — maintaining a service-ready 1756-L8SP spare is a critical element of any responsible maintenance strategy.

When a GuardLogix 5580 safety system experiences a fault or the Safety Partner module reaches end of service life, production lines can face immediate safety-triggered shutdowns. Unlike standard controller faults that may allow degraded operation, a Safety Partner failure typically results in a full safety stop — halting the entire controlled zone until the module is replaced and the safety task re-validated. Keeping a tested, original 1756-L8SP spare on-site dramatically reduces mean time to repair (MTTR) and protects against extended unplanned downtime.

At NINERMAS, every 1756-L8SP unit is sourced as an original Allen-Bradley component, individually inspected, and shipped with a 12-month warranty. We support maintenance engineers and procurement teams across global industrial facilities with reliable spare parts supply, long-term stock commitments, and responsive technical coordination.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 1756-L8SP Safety Partner is rarely an isolated task. Because this module operates as the redundant safety processor within a GuardLogix 5580 system, a thorough site replacement should be accompanied by a systematic inspection of all interconnected components in the same control cabinet and safety loop.

Begin with the chassis power supply — units such as the 1756-PA72 or 1756-PB72 are the foundation of the entire ControlLogix rack. A degraded power supply can cause intermittent faults that mimic controller failures; always verify output voltage stability and ripple before concluding the Safety Partner is the root cause. If the power supply is approaching its rated service hours, replace it proactively during the same maintenance window.

Next, inspect the ControlLogix backplane (chassis models such as 1756-A7 or 1756-A10) for physical damage, corrosion on the backplane connectors, or signs of thermal stress. A compromised backplane can prevent the 1756-L8SP from communicating correctly with the primary GuardLogix controller, leading to persistent safety faults even after module replacement.

Review all safety I/O modules in the rack — particularly 1791DS or 1732DS series ArmorBlock Guard I/O modules connected via DeviceNet Safety or EtherNet/IP — as these are the field-side endpoints of the safety logic executed by the GuardLogix pair. Confirm that all safety input signatures and output status indicators are within normal parameters. Any I/O module showing intermittent faults should be flagged for replacement during the same outage.

Check the EtherNet/IP communication module (such as the 1756-EN2T or 1756-EN2TR) that connects the GuardLogix system to the plant network and SCADA layer. Network communication faults can trigger safety controller diagnostics and should be ruled out before and after the Safety Partner replacement. Inspect cable terminations, SFP modules, and switch port configurations.

For facilities using safety relays downstream of the GuardLogix outputs — such as Allen-Bradley MSR series or Guardmaster 440C safety relays — verify that all relay contacts are within specification and that response times remain within the safety function’s required performance level. Safety relays are often overlooked during controller-level maintenance but are equally critical to the overall safety function integrity.

If the control cabinet includes a PanelView Plus 7 or similar HMI terminal connected to the GuardLogix system, confirm that the HMI firmware and tag database remain synchronized after the Safety Partner replacement. Safety-tagged data visible on the HMI should be re-verified against the controller’s live values during commissioning.

Finally, review the terminal blocks, fuse holders, and wiring harnesses within the cabinet. Loose terminations on 24VDC safety circuits are a common source of nuisance faults that can be misattributed to the Safety Partner module. Tighten all connections, replace any discolored or heat-damaged terminal blocks, and verify fuse continuity on all safety-critical circuits before returning the system to service.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the 1756-L8SP, export the current controller project from Studio 5000 Logix Designer and confirm the safety task signature. Document the existing safety partner firmware version and note the chassis slot position. Ensure the replacement 1756-L8SP carries the same or compatible firmware revision.

Step 2 — Safe Isolation: Follow your site’s Lockout/Tagout (LOTO) procedure. Place the GuardLogix system into a safe state — confirm all safety outputs are de-energized and all field devices are in their safe positions before proceeding. Do not rely solely on the software safety stop; verify physical isolation at the field level.

Step 3 — Module Removal and Installation: With power removed from the chassis, slide the 1756-L8SP out of its slot. Install the replacement unit in the same slot position. Ensure the module is fully seated on the backplane connector. Restore chassis power and observe the module status indicators — the Safety Partner should enter a pairing sequence with the primary GuardLogix controller automatically.

Step 4 — Safety Task Re-Validation: After the replacement 1756-L8SP has paired with the primary controller, Studio 5000 will prompt for safety task re-validation. This is a mandatory step — do not bypass it. Verify the safety task signature matches the pre-replacement export. Perform all required functional safety tests per your site’s safety validation plan before returning the system to automatic operation.

Step 5 — Documentation and Return to Service: Record the replacement in your maintenance management system (CMMS), including the new module serial number, firmware version, installation date, and the name of the technician who performed the validation. Update your spare parts inventory and initiate a replenishment order for the consumed 1756-L8SP to maintain on-site stock levels.

Spare Parts Support FAQ

Q1: Is the 1756-L8SP compatible with all GuardLogix 5580 primary controllers?
The 1756-L8SP is designed to pair exclusively with GuardLogix 5580 series primary controllers (1756-L81ES through 1756-L85ES). It is not compatible with the earlier GuardLogix 5570 series (1756-L7xS). Always confirm the primary controller model before ordering to ensure correct pairing. NINERMAS can assist with compatibility verification prior to shipment.

Q2: What does the 12-month warranty cover, and what is the claims process?
Our 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is tested before shipment. In the event of a warranty claim, contact sale@ninermas.com with the order reference, fault description, and site installation details. We will coordinate a replacement or repair with minimal disruption to your maintenance schedule.

Q3: Can NINERMAS support long-term or blanket purchase orders for the 1756-L8SP?
Yes. We support long-term supply agreements and blanket PO arrangements for critical spare parts including the 1756-L8SP. For facilities managing multiple GuardLogix systems or planning multi-year maintenance programs, we recommend establishing a standing stock commitment to avoid lead-time risk as Allen-Bradley product lifecycles evolve. Contact our sales team to discuss volume pricing and delivery scheduling.

Q4: How is the 1756-L8SP tested before shipment?
Every 1756-L8SP unit undergoes functional inspection prior to dispatch, including visual examination, connector integrity check, and power-on verification. Units are packaged in anti-static protective packaging with appropriate cushioning for international freight. A test report and packing list are included with each shipment. Express and priority freight options are available for emergency maintenance situations.
