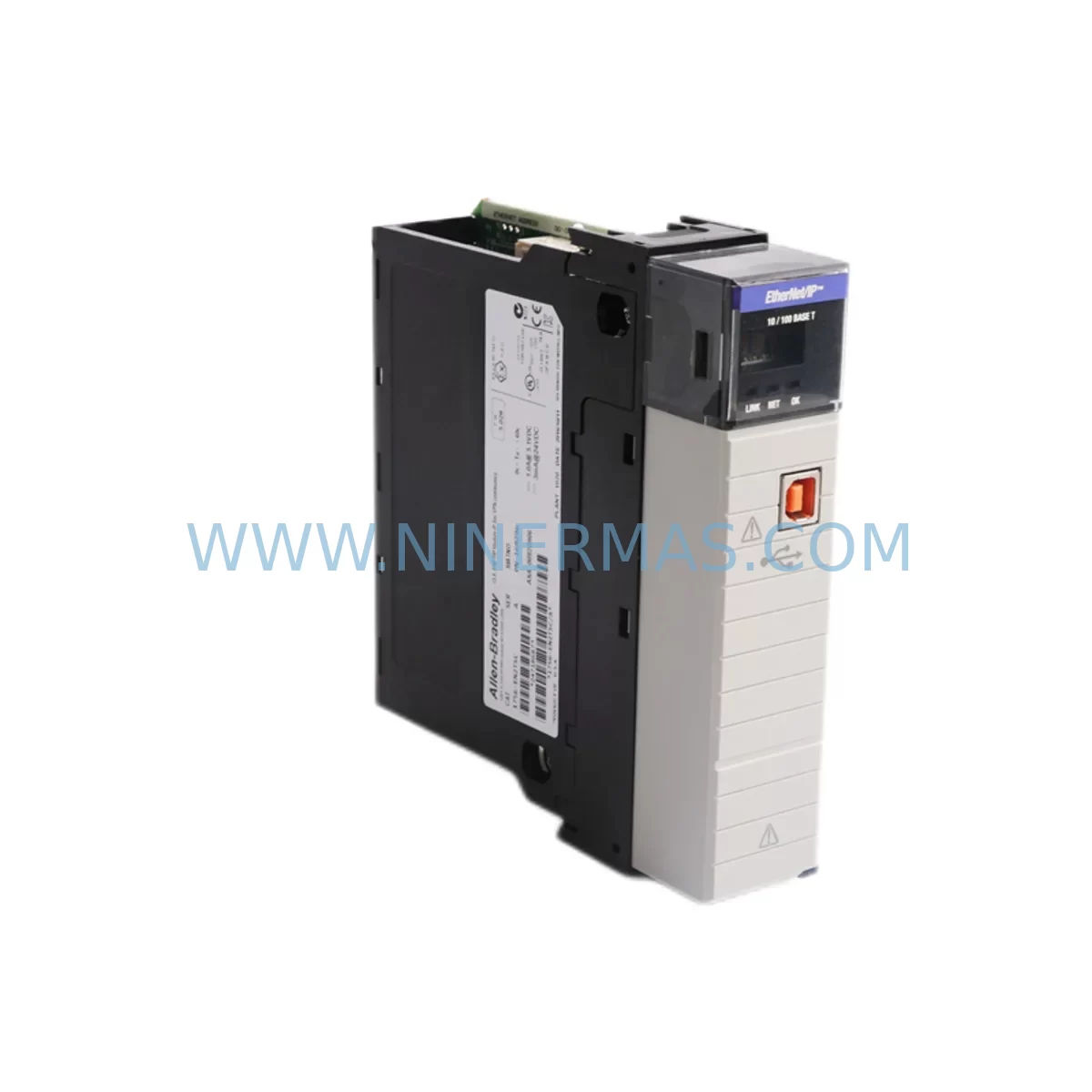

Allen-Bradley 1756-EN2TSC Safety-Reliable EtherNet/IP Bridge

Allen-Bradley 1756-EN2TSC Safety-Reliable EtherNet/IP Bridge for Critical Control Sites

The Allen-Bradley 1756-EN2TSC is a dual-port EtherNet/IP communication bridge module designed for the ControlLogix platform, engineered to deliver uncompromising safety reliability in the most demanding industrial environments. Whether deployed in continuous petrochemical processing, high-voltage power distribution switchgear panels, underground mining control rooms, or heavy-load metallurgical drive cabinets, the 1756-EN2TSC provides the deterministic, fault-tolerant network communication backbone that modern critical control architectures demand. Its dual-port topology supports Device Level Ring (DLR) and linear/star network configurations, enabling redundant communication paths that dramatically reduce the risk of a single cable fault causing a full control loop interruption or unplanned production shutdown.

In high electromagnetic interference (EMI) environments — such as those found near large variable frequency drives, arc furnaces, high-current bus bars, or heavy welding equipment — signal integrity is non-negotiable. The 1756-EN2TSC is built to maintain stable EtherNet/IP communication even under severe conducted and radiated EMI conditions, preventing the signal drift, packet loss, and communication timeouts that can trigger nuisance trips, false interlock activations, or dangerous uncontrolled process states. When paired with a 1756-L85E ControlLogix controller running safety-rated logic, the module forms the communication spine of a fully integrated safety instrumented system (SIS) capable of meeting IEC 61511 functional safety requirements.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

A robust industrial control cabinet is only as reliable as its weakest communication link. The 1756-EN2TSC eliminates that vulnerability by providing a hardened, dual-path EtherNet/IP bridge that keeps the ControlLogix backplane continuously synchronized with field devices, remote I/O racks, and supervisory SCADA systems — even during partial network failures. In a typical critical control cabinet architecture, the 1756-EN2TSC works in concert with a 1756-PA75 power supply module to ensure stable 5VDC and 24VDC backplane power, preventing the voltage sag events that can cause communication modules to reset mid-scan and corrupt in-flight I/O data tables.

For process interlocks requiring deterministic response times, the 1756-EN2TSC is frequently deployed alongside 1756-IB16 digital input modules and 1756-OB16E digital output modules to form a tightly integrated safety relay and interlock circuit. The module’s support for CIP Safety protocol extensions allows it to participate in safety-rated communication loops when the system includes a 1756-L8SP GuardLogix safety controller, providing the SIL 2 or SIL 3 communication integrity required for emergency shutdown (ESD) and fire and gas (F&G) systems.

In environments with heavy power line disturbances — such as those near large motor control centers (MCCs) or transformer switching stations — the 1756-EN2TSC’s surge immunity prevents the communication resets and watchdog faults that can cascade into full PLC rack faults. Supplementing the cabinet with a 1606-XLP72E power supply for 24VDC field device power and a 1783-BMS10CGP managed Ethernet switch for network segmentation further isolates the ControlLogix communication network from upstream surge events and broadcast storms. For remote I/O expansion in distributed control architectures, the 1756-EN2TSC pairs seamlessly with 1734 POINT I/O adapter modules and 1738 ArmorPOINT I/O for field-hardened, IP67-rated remote I/O in wet or dusty environments.

When replacing a failed communication module in a live production environment, the 1756-EN2TSC supports hot-swap removal and insertion within a powered ControlLogix chassis — a critical feature that allows maintenance teams to restore network communication without a full system shutdown, minimizing mean time to repair (MTTR) and protecting production continuity. Keeping a verified spare 1756-EN2TSC in your critical spare parts inventory, alongside a 1756-L85E controller and a 1756-PA75 power supply, is a recognized best practice in IEC 62443-compliant industrial cybersecurity and functional safety programs.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous hydrocarbon processing facilities, the 1756-EN2TSC serves as the EtherNet/IP backbone connecting ControlLogix safety controllers to distributed control nodes across reactor units, distillation columns, and compressor trains. Its DLR topology ensures that a single cable cut — a real risk in high-traffic process areas — does not interrupt the safety interlock communication between the emergency shutdown system and field actuators.

Power Generation & Transmission: In coal, gas, hydro, and nuclear power plants, the 1756-EN2TSC enables reliable communication between turbine control panels, generator protection relays, and plant-wide DCS/SCADA systems. Its EMI hardening is essential in high-voltage switchyards where induced voltages on cable shields can corrupt standard Ethernet communications.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, coal dust ingress, and wide temperature swings. The 1756-EN2TSC’s vibration-rated design and wide operating temperature range make it suitable for longwall shearer control systems, conveyor drive panels, and ventilation fan control cabinets where communication reliability directly impacts personnel safety.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on the 1756-EN2TSC to maintain uninterrupted communication between ControlLogix controllers managing chlorination dosing, pump station interlocks, and SCADA telemetry — environments characterized by high humidity, chemical vapors, and 24/7 unattended operation requirements.

Metallurgy & Steel Production: Electric arc furnace (EAF) and continuous casting operations generate some of the most severe EMI conditions in industry. The 1756-EN2TSC’s IEC 61000-4 compliance ensures stable communication in these environments, supporting the precise timing coordination between hydraulic press controllers, cooling water systems, and mold oscillation drives that prevents costly breakouts and equipment damage.

Port & Marine Applications: Ship-to-shore crane control systems, bulk material handling terminals, and offshore platform control panels benefit from the 1756-EN2TSC’s salt-air corrosion resistance and wide humidity tolerance, maintaining reliable EtherNet/IP communication in coastal and marine environments where standard industrial equipment degrades rapidly.

Safety and Quality FAQ

Q1: What warranty does the 1756-EN2TSC carry when purchased from NINERMAS?
Every Allen-Bradley 1756-EN2TSC supplied by NINERMAS COMPANY LIMITED is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our warranty support includes technical diagnosis, replacement dispatch, and full documentation for your maintenance records.

Q2: What pre-shipment testing is performed on the 1756-EN2TSC?
Each unit undergoes a comprehensive outgoing quality control (OQC) inspection prior to shipment, including visual inspection for physical damage, firmware version verification, communication port continuity testing, and backplane connector integrity checks. Units that do not pass all inspection criteria are quarantined and not shipped.

Q3: Is the 1756-EN2TSC compatible with all ControlLogix chassis and controller revisions?
The 1756-EN2TSC is compatible with all standard 1756 ControlLogix chassis (4, 7, 10, 13, and 17-slot) and is supported by Logix Designer (Studio 5000) software version 20.00 and later. It is compatible with all current ControlLogix, CompactLogix, and GuardLogix controllers that support EtherNet/IP communication. For legacy systems running RSLogix 5000 v16–v19, please contact our technical team to confirm firmware compatibility before ordering.

Q4: Can NINERMAS guarantee long-term supply and replacement support for the 1756-EN2TSC?
Yes. NINERMAS maintains dedicated safety-critical spare parts inventory for Allen-Bradley ControlLogix modules, including the 1756-EN2TSC, to support customers with long-lifecycle plant assets. We provide ongoing replacement support for facilities operating under IEC 62443 or ISO 55001 asset management frameworks, with typical lead times of 3–7 business days for in-stock units and documented traceability records available upon request.
