Allen-Bradley 1756-DNB Safety-Reliable DeviceNet Scanner

Allen-Bradley 1756-DNB Safety-Reliable DeviceNet Scanner for Critical Control Sites

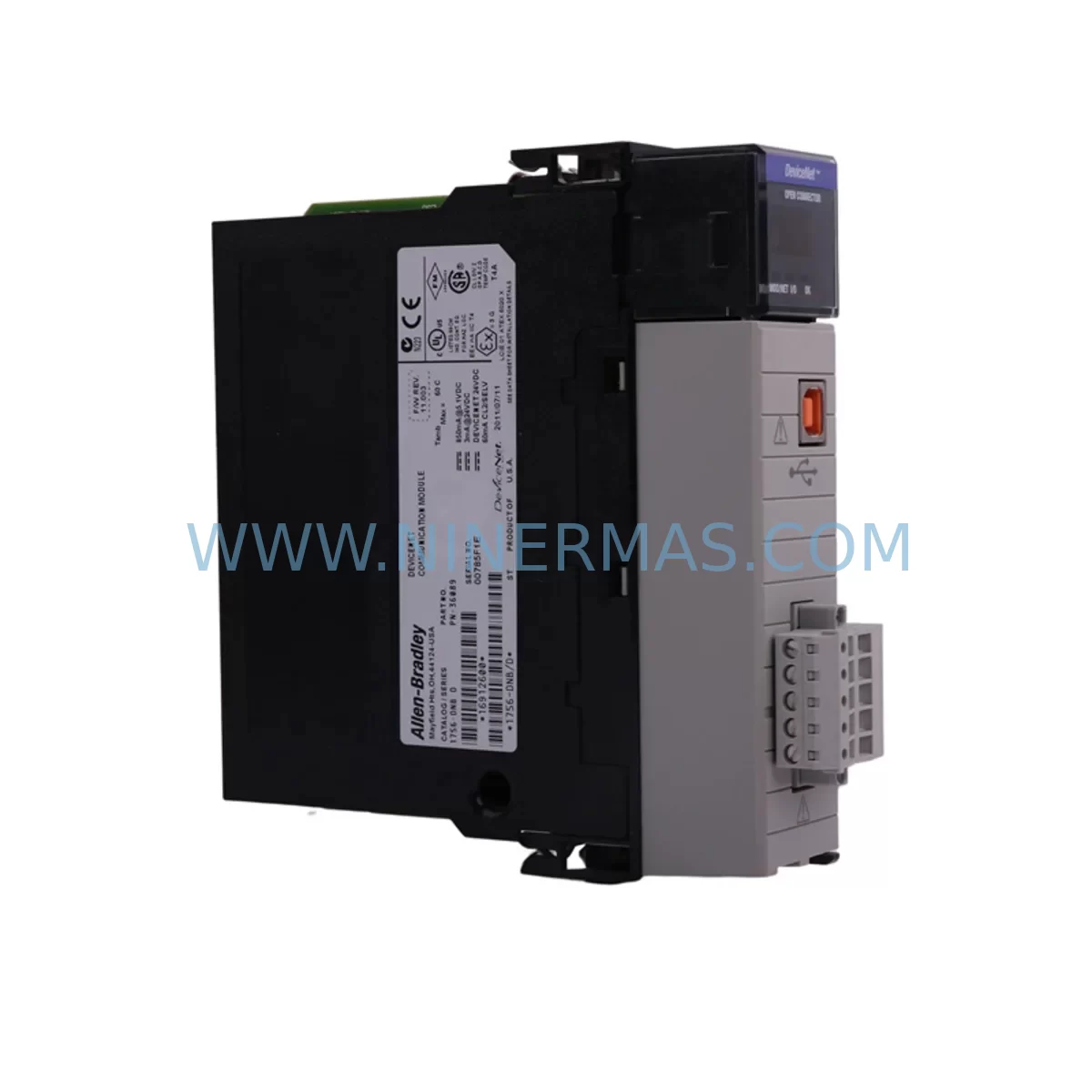

The Allen-Bradley 1756-DNB is a ControlLogix-platform DeviceNet Scanner Module engineered for mission-critical industrial environments where control interruption, signal drift, and unplanned downtime carry serious operational and safety consequences. Designed to integrate seamlessly into the 1756 ControlLogix chassis, the 1756-DNB provides a robust, high-integrity DeviceNet master/scanner interface that keeps field devices — drives, sensors, actuators, and safety components — continuously communicating with the control system under the most demanding conditions.

In continuous production facilities, petrochemical plants, power generation stations, and heavy metallurgical operations, the reliability of the DeviceNet communication backbone is non-negotiable. The 1756-DNB delivers deterministic, real-time I/O scanning across the DeviceNet network, supporting up to 64 nodes per scanner and sustaining stable communication even in environments characterized by high electromagnetic interference (EMI), voltage fluctuations, ground noise, and mechanical vibration. Its galvanically isolated network interface and robust transceiver design actively suppress surge impulses and common-mode noise that would otherwise cause signal drift or spurious device trips in sensitive safety interlocks.

For control cabinet integrators and plant engineers, the 1756-DNB fits directly into any 1756 ControlLogix chassis slot alongside companion modules such as the 1756-L85E ControlLogix 5580 Controller, 1756-EN2T EtherNet/IP Communication Module, and 1756-PA75 AC Power Supply, forming a tightly integrated, redundancy-capable control architecture. When paired with the 1756-RM2 ControlLogix Redundancy Module, the scanner supports hot-standby configurations that eliminate single points of failure in critical interlock loops — a requirement in SIL-rated safety systems across oil and gas, water treatment, and mining sectors.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Effective risk reduction in industrial control cabinets begins with selecting components that are proven to perform under real-world stress — not just laboratory conditions. The 1756-DNB is routinely deployed in heavy-duty control panels alongside the 1756-IB16 16-Point Digital Input Module and 1756-OB16E 16-Point Digital Output Module to form complete discrete I/O architectures that feed safety interlock logic directly into the ControlLogix controller. In high-power drive applications, the scanner coordinates with PowerFlex 755 AC Drives over DeviceNet, enabling real-time speed feedback, fault status monitoring, and remote trip commands — all without the latency risks associated with hardwired relay logic.

Power quality is a leading cause of control system instability in industrial environments. The 1756-PA75 Power Supply Module provides regulated, noise-filtered 5 VDC and 24 VDC backplane power, ensuring the 1756-DNB and co-resident modules receive clean, stable power even when upstream distribution panels experience voltage sags or switching transients. For facilities with particularly aggressive power environments — arc furnaces, large motor starts, or variable-frequency drive banks — supplementing the panel with a 1783-US5T Stratix 2000 Unmanaged Switch on the EtherNet/IP tier and a dedicated DeviceNet trunk line conditioner further isolates the scanner from conducted interference.

In safety-critical interlock circuits, the 1756-DNB is often installed in the same chassis as the 1756-L73S GuardLogix Safety Controller, where it handles standard DeviceNet I/O while the GuardLogix manages SIL 2/3 safety functions via a separate safety network. This architecture allows engineers to maintain a clear separation between standard control and safety-rated functions, satisfying IEC 61508 and IEC 62061 requirements without duplicating hardware. The 1756-CN2 ControlNet Communication Module may also be present in the same chassis to bridge legacy ControlNet field devices into the same control program, providing a unified programming environment in Studio 5000 Logix Designer.

For remote I/O expansion in large distributed control systems, the 1756-DNB works in conjunction with 1734 POINT I/O DeviceNet Adapters mounted at field junction boxes, dramatically reducing home-run wiring costs while maintaining deterministic scan times. This distributed architecture is particularly valuable in port terminal automation, water treatment clarifier control, and mining conveyor systems where field devices are spread across hundreds of meters.

Critical Industrial Safety Applications

The Allen-Bradley 1756-DNB has established a strong track record across the most demanding industrial sectors globally:

Petrochemical & Refining: In continuous process plants, the 1756-DNB manages DeviceNet-connected smart valve positioners, pressure transmitters, and emergency shutdown (ESD) actuators. Its deterministic scan cycle ensures that process upsets trigger interlock responses within defined safety time windows, reducing the risk of runaway reactions or uncontrolled pressure buildup. The module’s Class I Division 2 certification allows installation in control rooms adjacent to classified hazardous areas.

Power Generation & Utilities: Turbine control panels and substation automation systems rely on the 1756-DNB to coordinate DeviceNet-connected protection relays, motor control centers (MCCs), and auxiliary equipment. The scanner’s ability to sustain communication during high-voltage switching events — where induced EMI can disrupt lesser-quality communication modules — makes it a preferred choice for power plant distributed control system (DCS) integration projects.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The 1756-DNB, housed in sealed IP65 or IP67 enclosures with appropriate cable glands, maintains reliable DeviceNet communication to conveyor drive systems, crusher controls, and ventilation fan starters. Unplanned conveyor stoppages in longwall mining operations can cost tens of thousands of dollars per hour — the 1756-DNB’s robust design directly mitigates this risk.

Water & Wastewater Treatment: Municipal water treatment facilities use the 1756-DNB to integrate DeviceNet-connected pump drives, chemical dosing systems, and level sensors into centralized SCADA architectures. The module’s resistance to humidity and condensation — common in wet well pump stations — ensures continuous operation without the corrosion-related failures that affect less ruggedized communication hardware.

Metallurgy & Steel Production: Electric arc furnace (EAF) and continuous casting operations generate some of the most severe electromagnetic environments in industry. The 1756-DNB’s isolated network interface and surge-tolerant design allow it to maintain stable DeviceNet communication to electrode positioning drives and mold oscillation systems even during furnace tap events that produce kiloampere-level current transients.

Port & Marine Automation: Container crane control systems and ship-to-shore (STS) crane drives use the 1756-DNB to coordinate DeviceNet I/O across multiple drive cabinets. The module’s support for long-trunk DeviceNet cable runs — up to 500 meters at 125 kbps — makes it well-suited for the physically large control architectures typical of port terminal equipment.

Safety and Quality FAQ

Q1: What warranty coverage does NINERMAS provide for the 1756-DNB?
All 1756-DNB units supplied by NINERMAS carry a 12-month warranty covering manufacturing defects, functional failures, and premature component degradation under normal operating conditions. Warranty claims are processed promptly with replacement units dispatched from our Hong Kong warehouse to minimize your downtime exposure.

Q2: What pre-shipment testing is performed on each 1756-DNB unit?
Every 1756-DNB undergoes a multi-point outgoing quality inspection prior to shipment, including visual inspection for physical damage, firmware version verification, backplane connector integrity check, and functional power-on testing. Units that do not pass all inspection criteria are quarantined and not shipped. Test records are retained and available upon request for critical project documentation.

Q3: Is the 1756-DNB compatible with all ControlLogix chassis and controller revisions?
The 1756-DNB is compatible with all standard 1756 ControlLogix chassis (4, 7, 10, 13, and 17-slot) and is supported by ControlLogix controllers from the 1756-L55 series through the current 1756-L8x series. It is configured and managed via RSNetWorx for DeviceNet software and integrates with Studio 5000 Logix Designer for I/O tag mapping. NINERMAS technical support can assist with compatibility verification for your specific controller firmware revision prior to purchase.

Q4: Can NINERMAS support long-term supply and emergency replacement requirements for the 1756-DNB?
Yes. NINERMAS maintains dedicated inventory of the 1756-DNB and related ControlLogix modules to support both planned maintenance schedules and emergency breakdown replacement scenarios. We understand that production-critical sites cannot wait weeks for standard distribution lead times. Our team is reachable at sale@ninermas.com or +0086 187 5021 5667 for urgent inquiries, and we offer expedited shipping to minimize plant downtime.
