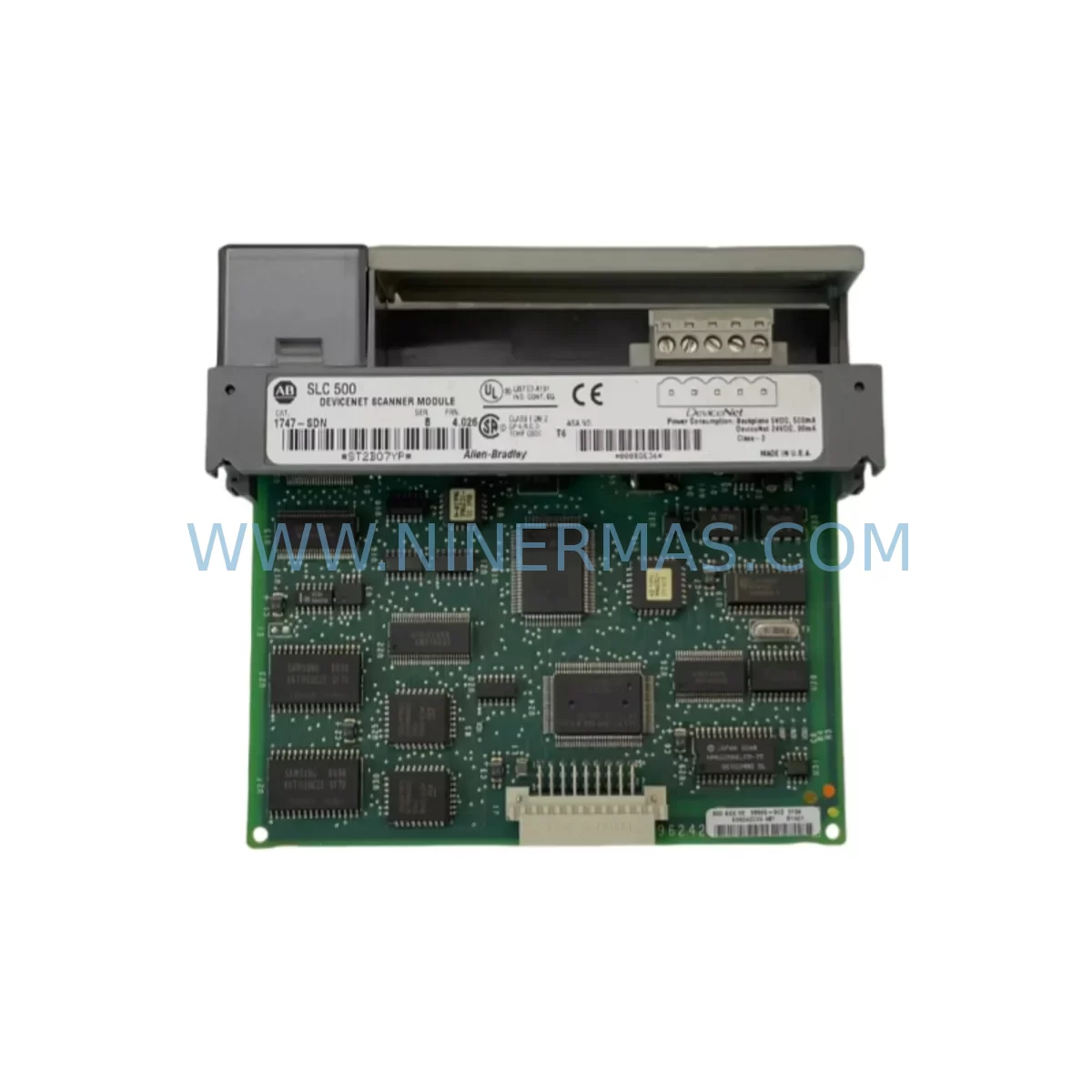

Allen-Bradley 1747-SDN Safety-Reliable DeviceNet Scanner

Allen-Bradley 1747-SDN Safety-Reliable DeviceNet Scanner for Critical Control Sites

The Allen-Bradley 1747-SDN is a DeviceNet Scanner Module engineered for the SLC 500 programmable controller platform, delivering deterministic, safety-reliable communication across DeviceNet field device networks in the most demanding industrial environments. Designed and manufactured by Rockwell Automation under the Allen-Bradley brand, the 1747-SDN serves as the backbone of distributed I/O architectures where control loop integrity, signal continuity, and network determinism are non-negotiable requirements. Whether deployed in continuous process manufacturing, critical interlock systems, or high-density control cabinet installations, this module provides the communication reliability that safety-critical operations demand.

In environments characterized by high electromagnetic interference (EMI), voltage transients, ground loops, and power supply fluctuations — common in petrochemical plants, steel mills, mining operations, and port automation systems — the 1747-SDN maintains stable DeviceNet master scanning without signal drift or communication timeouts. Its robust hardware design and Rockwell Automation’s proven firmware architecture ensure that field device polling cycles remain consistent even under electrical stress, reducing the risk of unplanned shutdowns caused by communication anomalies.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered SLC 500 control cabinet, the 1747-SDN scanner module operates as the DeviceNet master, coordinating real-time data exchange with field devices such as Allen-Bradley 1769-IQ16 CompactLogix digital input modules, 1746-OB16 SLC 500 digital output modules, and distributed I/O adapters like the 1769-ADN DeviceNet adapter. This architecture eliminates point-to-point hardwiring between the PLC and field instruments, reducing wiring complexity and the associated risk of loose connections causing intermittent faults or spurious trips in safety interlock circuits.

Power supply stability is foundational to reliable DeviceNet communication. Pairing the 1747-SDN with a 1606-XLP power supply or an Allen-Bradley 1746-P4 SLC 500 power supply module ensures that backplane voltage remains within specification even during load transients caused by simultaneous actuator energization. For sites with unstable utility power or frequent voltage sags, supplementing the cabinet with a 1606-XLS series regulated SMPS provides an additional layer of protection against power-induced communication resets.

Surge and transient protection is equally critical. In petrochemical and mining environments where long cable runs between the control room and field junction boxes are common, DeviceNet trunk cables are susceptible to induced surges from nearby high-voltage switching events. Installing DeviceNet surge suppressors at cabinet entry points, combined with proper cable shielding and grounding practices per the DeviceNet specification, significantly reduces the risk of surge-induced node dropouts that could trigger unplanned process shutdowns.

For cabinet-level diagnostics and fault isolation, integrating the 1747-SDN with an Allen-Bradley 1747-L553 SLC 5/05 processor — which supports Ethernet/IP for remote monitoring — enables maintenance teams to detect DeviceNet communication faults before they escalate into production-impacting events. Complementing this with 1747-SCNR remote I/O scanner modules in multi-rack configurations ensures that even geographically distributed control panels maintain synchronized, fault-tolerant communication.

In high-dust or high-humidity environments such as cement plants or coastal port facilities, cabinet sealing and internal climate control become essential. Pairing the control cabinet housing the 1747-SDN with Rittal or Hoffman-rated IP54/IP65 enclosures, internal anti-condensation heaters, and cabinet air conditioners or heat exchangers protects the module from moisture ingress and particulate contamination that could degrade connector contacts and accelerate PCB corrosion over time.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous process environments such as crude distillation units and hydrocracker control systems, the 1747-SDN enables deterministic scanning of DeviceNet-connected valve positioners, pressure transmitters, and motor control center (MCC) intelligent starters. Its ability to maintain consistent polling cycles under high-EMI conditions — generated by large variable frequency drives (VFDs) and transformer switching — makes it a trusted component in emergency shutdown (ESD) adjacent control architectures where communication latency must remain predictable.

Electric Power Generation & Substation Automation: Power generation facilities rely on SLC 500-based control systems for auxiliary equipment management, including cooling water pumps, fuel handling conveyors, and generator excitation control. The 1747-SDN’s robust backplane integration and DeviceNet master capability allow plant engineers to consolidate distributed field device monitoring into a single, auditable I/O map — simplifying SCADA integration and reducing the risk of undetected field device failures that could compromise generation availability.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The 1747-SDN, installed in sealed, climate-controlled control cabinets, provides reliable communication with conveyor belt safety switches, crusher load monitors, and ventilation fan controllers. Its compatibility with the full SLC 500 ecosystem means that spare parts availability — including 1746-A7 chassis, 1746-P2 power supplies, and 1746-IB16 input modules — is well-established, minimizing mean time to repair (MTTR) during unplanned maintenance events.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities operating 24/7 depend on uninterrupted PLC-to-field communication for pump station control, chemical dosing systems, and effluent monitoring. The 1747-SDN’s support for up to 63 DeviceNet nodes per scanner allows a single SLC 500 rack to manage an entire pump station’s distributed I/O, reducing hardware footprint and simplifying preventive maintenance schedules.

Port & Maritime Automation: Container terminal crane control systems and ship-to-shore (STS) crane PLCs operating in salt-air, high-humidity coastal environments require components with proven corrosion resistance and long-term spare parts availability. The 1747-SDN’s established position in the Rockwell Automation ecosystem ensures that replacement units remain available for legacy crane control systems with 15–20 year operational lifespans, supporting long-term procurement planning without forced system upgrades.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the Allen-Bradley 1747-SDN?
All Allen-Bradley 1747-SDN units supplied by NINERMAS COMPANY LIMITED carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional verification to confirm backplane communication integrity and DeviceNet port operability before dispatch.

Q2: How is the 1747-SDN tested before shipment?
Every 1747-SDN unit is subject to outgoing quality control (OQC) inspection, including visual inspection for physical damage, connector pin integrity checks, and where applicable, power-on functional testing. Units sourced as original Allen-Bradley spare parts are verified against Rockwell Automation part number documentation to confirm authenticity and revision compatibility.

Q3: Is the 1747-SDN compatible with all SLC 500 chassis and processor revisions?
The 1747-SDN is compatible with all standard 1746-series SLC 500 chassis (1746-A4, A7, A10, A13) and is designed to operate alongside SLC 5/01 through SLC 5/05 processors. Configuration is performed via RSNetWorx for DeviceNet software. For specific firmware revision compatibility or multi-scanner configurations, NINERMAS technical support can assist with pre-purchase compatibility verification.

Q4: Can NINERMAS support long-term or bulk procurement of the 1747-SDN for ongoing maintenance programs?
Yes. NINERMAS specializes in long-term spare parts supply programs for legacy industrial automation platforms. We maintain stock commitments for high-demand SLC 500 components including the 1747-SDN, supporting planned maintenance schedules, insurance spare strategies, and multi-site procurement programs. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to discuss volume pricing and stock reservation arrangements.
