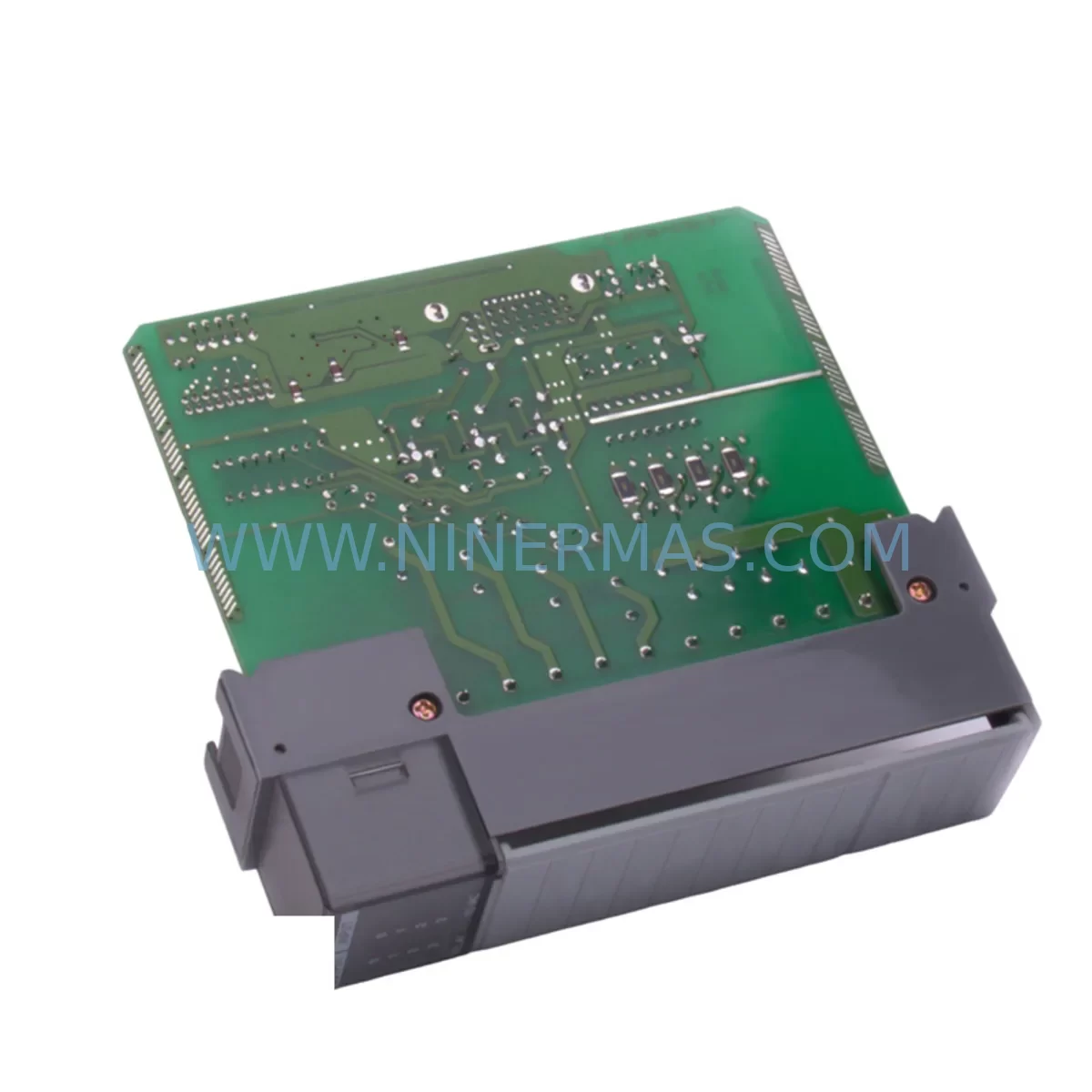

Allen-Bradley 1747-OCVGA1 Safety-Reliable Output for Critical Control

Allen-Bradley 1747-OCVGA1 Safety-Reliable Output for Critical Control

The Allen-Bradley 1747-OCVGA1 is a high-density AC output module engineered for the SLC 500 programmable logic controller platform — one of the most widely deployed control architectures in continuous process industries. Designed to deliver consistent, interference-resistant switching performance, the 1747-OCVGA1 is a trusted component in critical control cabinets where output signal integrity directly determines process safety and uptime.

In demanding industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical furnaces, port logistics systems, and continuous manufacturing lines — the reliability of every output channel is non-negotiable. A single output failure can cascade into a full interlock trip, an unplanned shutdown, or worse, a safety incident. The 1747-OCVGA1 addresses these risks through robust triac-based output circuitry, wide operating temperature tolerance, and proven compatibility with the SLC 500 backplane architecture.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered SLC 500 control cabinet, the 1747-OCVGA1 output module does not operate in isolation — it functions as part of a tightly integrated safety and control architecture. Its performance is directly influenced by, and in turn influences, the reliability of every adjacent component in the panel.

Starting at the power supply level, the 1746-P4 or 1746-P7 SLC 500 power supply modules provide the regulated 5VDC and 24VDC backplane power that the 1747-OCVGA1 depends on for stable logic-side operation. Power supply instability — caused by voltage sags, surges, or harmonic distortion on the incoming AC feed — can induce spurious output transitions or false trips. Pairing the 1747-OCVGA1 with a quality surge protection device (SPD) on the incoming AC line, such as those from the Phoenix Contact TRABTECH series, significantly reduces the risk of transient-induced output misfires in high-lightning or heavy-switching environments.

On the input side, the 1746-IB32 DC input module and 1746-IA16 AC input module work in tandem with the 1747-OCVGA1 to form complete I/O interlock loops. In safety-critical applications such as emergency shutdown (ESD) circuits, motor interlock chains, or valve position feedback loops, the integrity of both input sensing and output actuation must be maintained simultaneously. Signal drift on input channels — often caused by aging field wiring, loose terminal connections, or ground loops — can cause the SLC 500 processor to issue incorrect output commands to the 1747-OCVGA1, resulting in unintended actuator movement or missed interlock responses.

The 1747-L553 or 1747-L543 SLC 5/05 and SLC 5/04 processor modules serve as the command brain for the 1747-OCVGA1. Processor firmware integrity, scan time consistency, and communication health are all prerequisites for reliable output switching. In facilities running EtherNet/IP or DH+ communication networks, the 1747-SDN DeviceNet scanner or 1747-KE communication module may also be present in the same chassis, and any communication fault that causes a processor fault will directly affect the output state of the 1747-OCVGA1 — potentially leaving field devices in an unsafe energized or de-energized condition.

For output-side field wiring protection, terminal blocks from the 1492-W series (Allen-Bradley IEC terminal blocks) are commonly used to interface the 1747-OCVGA1 output wiring to field devices. Proper terminal torque, wire ferrule installation, and periodic thermal imaging of the terminal strip are essential maintenance practices that prevent resistive heating, arcing, and intermittent output faults — particularly in high-cycle applications such as conveyor drives, solenoid valve banks, or motor starter coil circuits.

In environments with significant electromagnetic interference — such as variable frequency drive (VFD) rooms, arc furnace control buildings, or high-voltage switchgear substations — the optical isolation built into the 1747-OCVGA1 provides a critical barrier between the noisy field side and the sensitive logic backplane. However, this isolation is most effective when complemented by proper cable segregation (power cables separated from signal cables), shielded conduit for output field wiring, and the use of line reactors or EMI filters on VFD inputs. These system-level precautions, combined with the inherent isolation of the 1747-OCVGA1, form a layered defense against EMI-induced output errors.

Finally, for facilities operating under IEC 62061 or ISO 13849 functional safety frameworks, the 1747-OCVGA1 is typically deployed in conjunction with dedicated safety relays — such as the Allen-Bradley MSR127RP or Pilz PNOZ X series — to form a two-channel output architecture for Category 3 or Category 4 safety functions. The safety relay monitors the output channel for welded contact or open-circuit faults, providing the diagnostic coverage required by the safety integrity level (SIL) or performance level (PL) target of the machine or process.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous hydrocarbon processing, the 1747-OCVGA1 controls solenoid-operated shutdown valves, pump motor starters, and flare ignition systems. Its optical isolation prevents ground-loop currents — common in large grounded process plants — from corrupting output switching logic. Unplanned output failures in these environments can trigger emergency depressurization sequences or loss of containment events, making spare module availability and rapid replacement capability a core element of the site’s process safety management (PSM) program.

Electric Power Generation & Substation Control: In coal, gas, hydro, and renewable power plants, SLC 500 systems with 1747-OCVGA1 modules manage auxiliary equipment such as cooling fans, lube oil pumps, excitation contactors, and breaker trip coils. The module’s wide AC voltage range (85–265V AC) makes it compatible with both 110V and 220V auxiliary control systems found in different generations of power plant infrastructure.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, coal dust ingress, and wide temperature swings. The 1747-OCVGA1, housed in a sealed, climate-controlled control enclosure with appropriate IP-rated cabinet protection, provides reliable output control for conveyor belt drives, crusher motor starters, ventilation fan contactors, and dewatering pump systems. Its proven SLC 500 compatibility means maintenance teams can replace modules quickly without reprogramming — a critical advantage in remote mine sites with limited automation engineering support.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on SLC 500 systems for dosing pump control, UV disinfection system management, and sludge dewatering press operation. The 1747-OCVGA1’s resistance to humidity (up to 95% non-condensing) makes it suitable for the wet, chemically aggressive environments typical of pump stations and treatment buildings. Continuous operation requirements — often 24/7/365 — mean that spare modules must be on-site and pre-tested before a fault occurs.

Metallurgy & Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines generate some of the most severe electromagnetic interference of any industrial environment. The 1747-OCVGA1’s optical isolation, combined with proper cabinet shielding and cable management, allows it to maintain output integrity even in the presence of high-frequency EMI from arc furnace electrodes and large DC drives. Output modules in these applications are subject to high switching frequencies and must be inspected and replaced on a planned maintenance schedule to prevent thermal fatigue failures.

Port Logistics & Ship-to-Shore Cranes: Container terminal automation systems use SLC 500 PLCs to control spreader hoist drives, trolley travel, and anti-sway systems. The 1747-OCVGA1 provides the output switching for contactor coils and brake release solenoids in these high-cycle, safety-critical applications. Marine environments introduce salt air corrosion risks, making it essential to store spare modules in sealed, desiccant-protected packaging and to inspect terminal connections regularly for oxidation.

Safety and Quality FAQ

Q1: Does the 1747-OCVGA1 come with a warranty, and what does it cover?
Yes. Every 1747-OCVGA1 supplied by NINERMAS COMPANY LIMITED carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If the module fails within the warranty period, we will replace or repair it at no additional cost. Our warranty reflects our confidence in the quality of every unit we ship.

Q2: What testing is performed before shipment?
Each 1747-OCVGA1 undergoes a full functional inspection prior to dispatch. This includes visual inspection for physical damage, verification of output channel continuity, and confirmation of backplane connector integrity. We do not ship untested modules. Our outgoing quality control process is designed to ensure that the module you receive is ready for immediate installation in your control cabinet.

Q3: Is this module compatible with all SLC 500 chassis and processors?
The 1747-OCVGA1 is compatible with the full range of SLC 500 modular chassis, including the 1746-A4, 1746-A7, 1746-A10, and 1746-A13 chassis sizes. It is compatible with all SLC 500 processor families, including the SLC 5/01, 5/02, 5/03, 5/04, and 5/05. No special configuration is required — the module is recognized automatically by RSLogix 500 / Studio 5000 Logix Designer during I/O configuration.

Q4: Can NINERMAS guarantee long-term supply for ongoing maintenance and spare parts programs?
Yes. NINERMAS maintains dedicated inventory of Allen-Bradley SLC 500 series modules, including the 1747-OCVGA1, to support customers with long-term maintenance contracts, annual spare parts budgets, and emergency replacement requirements. We understand that legacy PLC platforms like the SLC 500 are often in service for 15–25 years, and we are committed to providing reliable supply continuity for the lifetime of your installed base. Contact our team to discuss blanket order arrangements or consignment stock programs tailored to your site’s needs.
