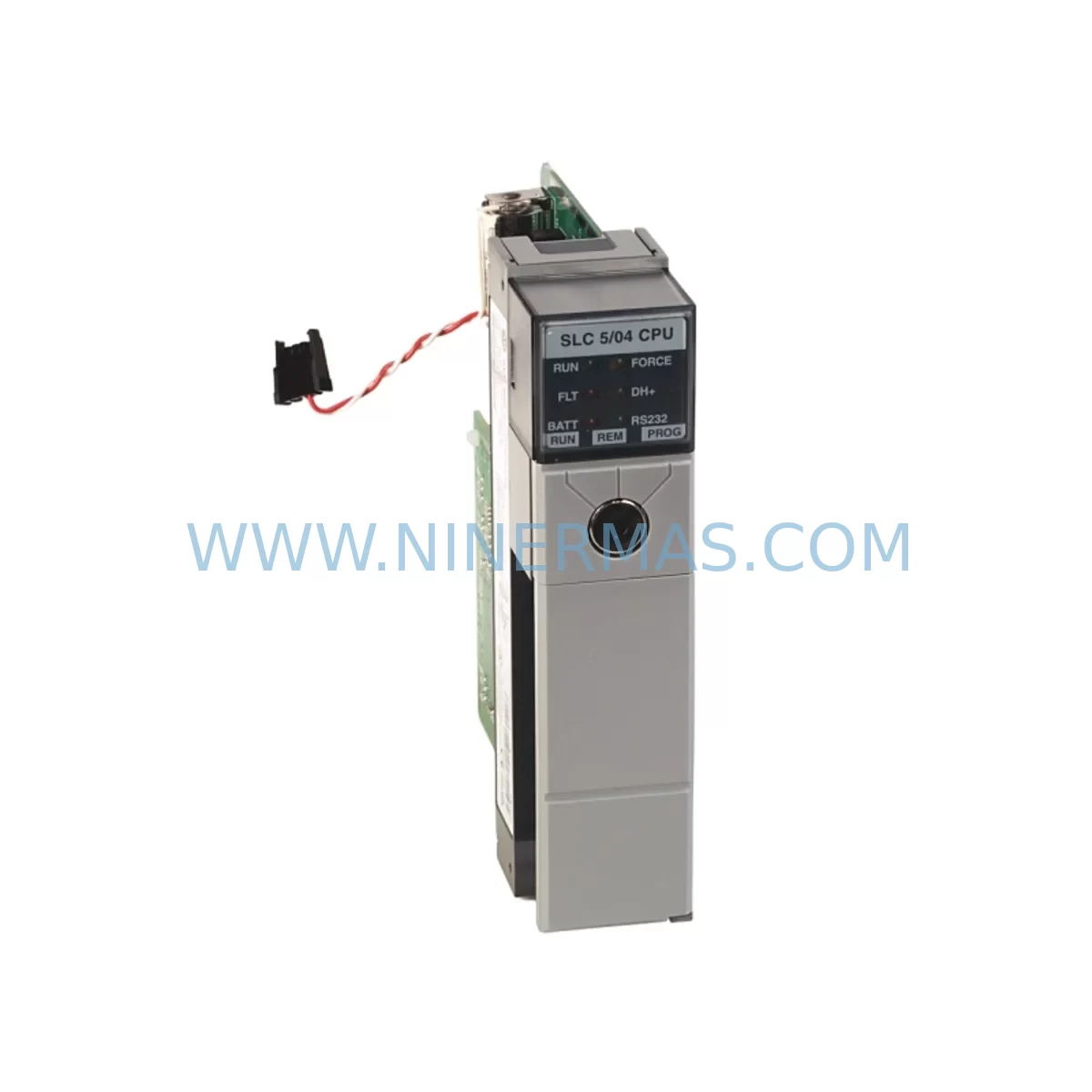

Allen-Bradley 1747-L542/C Safety-Reliable SLC 5/04 CPU

Allen-Bradley 1747-L542/C Safety-Reliable SLC 5/04 CPU for Critical Control Sites

The Allen-Bradley 1747-L542/C is a high-performance SLC 5/04 series programmable logic controller CPU module engineered for demanding industrial environments where control continuity, safety reliability, and signal integrity are non-negotiable. Designed for critical process and discrete manufacturing applications, this CPU module delivers deterministic scan-cycle execution, robust communication capability, and proven resilience against the electrical and environmental stresses common to heavy industrial sites. Whether deployed in petrochemical interlock systems, power distribution control panels, mining conveyor automation, or water treatment SCADA architectures, the 1747-L542/C provides the stable, uninterrupted control performance that safety-critical operations demand.

At NINERMAS, every 1747-L542/C unit undergoes pre-shipment functional testing to verify CPU initialization, memory integrity, communication port response, and I/O bus handshake performance before dispatch. This quality assurance protocol ensures that replacement units arrive field-ready, minimizing commissioning time and reducing the risk of unplanned downtime during critical spare part changeovers.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In safety-critical control cabinets, the 1747-L542/C CPU operates as the central decision-making node, executing ladder logic and function block programs that govern interlock sequences, permissive conditions, and emergency shutdown routines. Its deterministic scan cycle eliminates timing ambiguity in safety-critical sequences, reducing the risk of spurious trips or missed interlock conditions that could compromise personnel safety or process integrity.

To build a complete, resilient SLC 500 control system around the 1747-L542/C, the following companion components are commonly integrated in the same control cabinet or safety loop architecture:

The 1746-P2 power supply module provides regulated 24VDC backplane power with built-in surge protection, ensuring the CPU and I/O modules receive stable, clean power even during grid fluctuations or capacitive load switching events. Pairing the CPU with a 1746-IB16 digital input module and a 1746-OB16 digital output module creates a robust discrete I/O layer capable of handling field device signals from proximity sensors, limit switches, solenoid valves, and motor starters without signal degradation in high-EMI environments.

For analog process variable monitoring — critical in temperature, pressure, and flow control loops — the 1746-NI4 analog input module integrates seamlessly with the 1747-L542/C CPU, enabling closed-loop PID control with high-resolution signal acquisition. In applications where communication redundancy is required, the 1747-SDN DeviceNet Scanner module extends the SLC 500 system’s network reach to field-level devices, reducing point-to-point wiring complexity and improving diagnostic visibility across the control network.

For installations in hazardous or high-vibration environments such as mining headframes, offshore platforms, or chemical processing units, the 1746-A10 10-slot SLC 500 chassis provides a mechanically robust mounting platform with secure card-edge retention. Surge protection at the cabinet entry point — typically implemented with a Phoenix Contact TRABTECH surge arrester or equivalent DIN-rail SPD — further shields the 1747-L542/C and its associated I/O modules from transient overvoltage events caused by nearby motor starts, lightning coupling, or bus fault clearing.

Where DH+ network communication is used to link multiple SLC 500 nodes or to interface with a 1785-L60B PLC-5 controller in a legacy hybrid architecture, the 1747-L542/C’s onboard DH+ port eliminates the need for an external communication module, reducing cabinet footprint and potential failure points. For HMI connectivity, the RS-232 Channel 0 port supports direct connection to PanelView 550 or PanelView 600 operator terminals, enabling real-time process visualization and alarm acknowledgment at the control panel face.

Critical Industrial Safety Applications

The Allen-Bradley 1747-L542/C has established a long service record across the most demanding industrial sectors where control system failure carries significant safety, environmental, or financial consequences.

Petrochemical and Refinery Plants: In continuous process environments such as crude distillation units, compressor trains, and flare header control systems, the 1747-L542/C executes high-speed interlock logic that responds to abnormal process conditions — high pressure, high temperature, or loss of flow — within milliseconds. Its deterministic scan time and robust EMI immunity make it well-suited for control rooms located near high-voltage switchgear or variable frequency drives.

Power Generation and Substation Automation: Thermal power plants and hydroelectric facilities rely on SLC 500 systems for auxiliary equipment control, including cooling water pumps, lube oil systems, and generator excitation sequences. The 1747-L542/C’s DH+ communication capability allows integration into plant-wide SCADA systems for centralized monitoring and alarm management.

Mining and Mineral Processing: Underground and surface mining operations deploy SLC 500 CPU modules in conveyor drive control, crusher sequencing, and ventilation fan management. The module’s tolerance for dusty, humid, and vibration-prone environments — common in underground headings and open-pit processing facilities — supports reliable long-term operation without frequent maintenance interventions.

Water and Wastewater Treatment: Municipal and industrial water treatment plants use the 1747-L542/C to control dosing pumps, clarifier drives, UV disinfection systems, and lift station pump sequences. Its ability to handle both digital and analog I/O through the SLC 500 modular chassis makes it a versatile platform for multi-variable process control in wet, corrosive environments.

Metallurgy and Steel Production: Rolling mill drives, furnace temperature control, and ladle transfer automation in steel plants demand PLCs that can withstand intense electromagnetic interference from large induction furnaces and high-current bus systems. The 1747-L542/C’s proven EMI resilience and fast scan cycle support safe, precise control in these electrically hostile environments.

Port and Marine Logistics: Container crane control systems, ship-to-shore loader automation, and bulk material handling conveyors at port facilities benefit from the SLC 500 platform’s modular expandability and long-term spare parts availability — a critical consideration for assets with 20–30 year operational lifespans.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Allen-Bradley 1747-L542/C?
All 1747-L542/C units supplied by NINERMAS carry a 12-month warranty from the date of shipment. This covers functional failures under normal operating conditions and includes technical support for installation and commissioning queries. Warranty claims are processed promptly with replacement or repair options available.

Q2: What pre-shipment testing is performed on each unit?
Every 1747-L542/C undergoes a documented functional test protocol prior to dispatch. This includes CPU power-on self-test verification, memory read/write integrity check, DH+ and RS-232 communication port response testing, and backplane I/O bus handshake confirmation. Test records are available upon request for quality-critical procurement processes.

Q3: Is the 1747-L542/C compatible with existing SLC 500 chassis and I/O modules?
Yes. The 1747-L542/C is fully compatible with all standard SLC 500 modular chassis (1746-A4, 1746-A7, 1746-A10, 1746-A13) and the complete range of 1746-series I/O modules. It is also backward-compatible with programs developed for earlier SLC 5/04 firmware revisions, supporting direct drop-in replacement without program modification in most applications.

Q4: Can NINERMAS support long-term supply commitments for this part?
Yes. NINERMAS maintains ongoing inventory programs for long-lifecycle Allen-Bradley SLC 500 components, including the 1747-L542/C, to support customers with extended maintenance contracts, plant turnaround schedules, and multi-year spare parts agreements. Contact our team to discuss volume pricing, reserved stock arrangements, and lead time commitments tailored to your operational requirements.
