Allen-Bradley 1746-OAP12 Retrofit-Compatible AC Output Module

Allen-Bradley 1746-OAP12 Retrofit-Compatible AC Output Module: Seamless Legacy SLC 500 System Upgrade

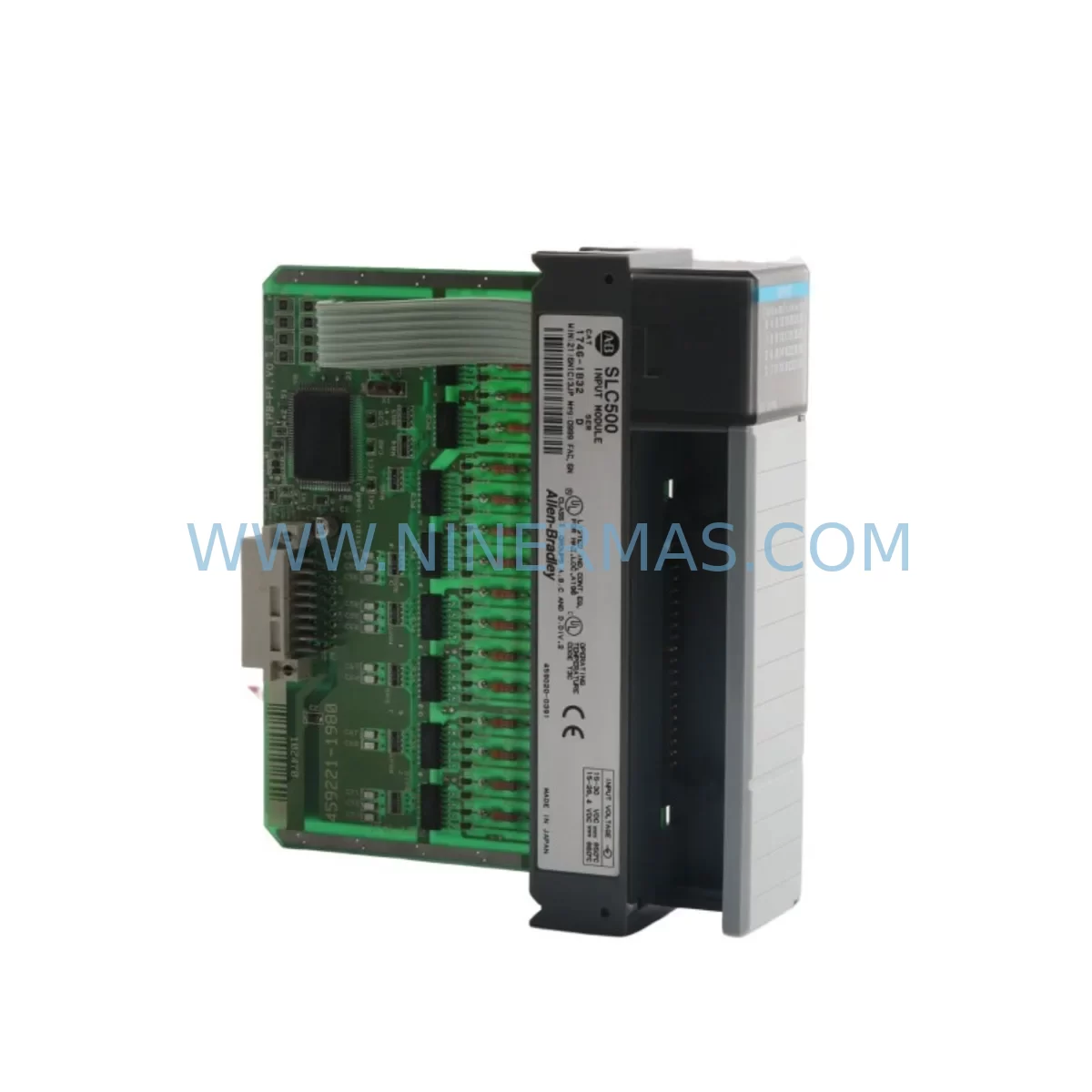

The Allen-Bradley 1746-OAP12 is a 12-point AC output module designed for the SLC 500 modular I/O platform. As legacy SLC 500 control systems approach end-of-life and original spare parts become increasingly scarce, the 1746-OAP12 remains one of the most sought-after retrofit and replacement components for facilities that need to extend the operational life of their existing automation infrastructure without committing to a full platform migration.

At NINERMAS, we maintain verified inventory of the 1746-OAP12 to support engineers and maintenance teams managing brownfield automation environments. Each unit is functionally tested prior to shipment and backed by a 12-month warranty, giving procurement and engineering teams confidence in both availability and reliability.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the 1746-OAP12 in an active SLC 500 control system requires careful pre-planning to avoid unplanned downtime and configuration errors. The 1746-OAP12 occupies a single slot in the 1746-series chassis — commonly the 1746-A4, 1746-A7, or 1746-A10 — and its slot address is directly referenced in the RSLogix 500 program as an output file (O:x). Before pulling the existing module, engineers should document the current slot assignment, verify the output file mapping in the processor program, and confirm that the replacement module’s wiring terminal layout matches the existing field wiring.

Terminal block wiring on the 1746-OAP12 uses a removable connector, which simplifies the physical swap significantly. However, it is critical to verify that the field wiring — typically 120V AC or 240V AC loads such as motor starters, solenoid valves, or pilot lights — is de-energized before disconnecting. The 1746-P4 or 1746-P2 power supply feeding the chassis should be confirmed as adequately rated for the total module load after the replacement, particularly if the retrofit involves adding additional I/O modules to the same chassis.

In systems where the SLC 5/03 or SLC 5/04 processor communicates over DH-485 using a 1747-AIC link coupler or over RS-232 via the 1747-CP3 programming cable, no communication reconfiguration is required after swapping the 1746-OAP12 — the backplane interface is transparent to the processor’s communication channel. If the system also includes a 1747-SDN DeviceNet Scanner or a 1746-BAS BASIC module in adjacent slots, confirm that those modules’ slot addresses are unaffected by the replacement.

For facilities running a PanelView 550 or PanelView 600 HMI connected to the SLC 500 via DH-485, the HMI screen tags referencing output coils driven by the 1746-OAP12 should be verified post-replacement to ensure the display correctly reflects output states. In some aging installations, the 1747-L532 or 1747-L541 processor may have battery-backed RAM holding the last program state; confirm the processor is in REM RUN mode and the program is intact before returning the system to production.

Where the retrofit scope extends beyond a single module swap — for example, when upgrading an entire control cabinet that also includes a 1746-IB16 DC input module, a 1746-OB16 DC output module, or a 1746-NI4 analog input module — it is advisable to perform a full I/O checkout using RSLogix 500’s I/O forcing function before releasing the system to operators. This confirms that each output point on the replacement 1746-OAP12 correctly drives its corresponding field device.

Downtime Control During System Migration

Minimizing production downtime during a 1746-OAP12 replacement is achievable with proper preparation. The most effective approach is to pre-stage the replacement module, verify its physical condition, and have the RSLogix 500 program backup saved to a laptop running RSLogix 500 or Studio 5000 Logix Designer (for cross-reference) before the maintenance window begins.

During the swap, the SLC 500 processor should be placed in Program mode via the keyswitch on the 1747-L532 or equivalent processor faceplate before removing the module. This prevents spurious output activations during the physical exchange. Once the replacement 1746-OAP12 is seated and the terminal block reconnected, the processor can be returned to REM RUN mode. A brief I/O status check in RSLogix 500 — reviewing the output file O:x — will confirm that all 12 output points are communicating correctly with the backplane.

For facilities where continuous process control is critical, a cold-standby strategy using a pre-configured spare chassis with a loaded 1746-OAP12 can reduce the actual switchover time to under 15 minutes. NINERMAS maintains ready-to-ship stock of the 1746-OAP12 to support emergency replacement scenarios, with same-day dispatch available for orders confirmed before the daily cut-off. The 12-month warranty covers functional failures arising from normal industrial operating conditions, providing additional assurance during the post-retrofit commissioning period.

Where the migration scope involves transitioning from the SLC 500 platform to a ControlLogix or CompactLogix architecture in the longer term, the 1746-OAP12 serves as a cost-effective bridge solution that preserves the existing control logic and field wiring investment while the broader migration is planned and budgeted.

Retrofit Support FAQ

Q: Is the 1746-OAP12 a direct drop-in replacement for a failed AC output module in my SLC 500 chassis?
A: Yes, provided the replacement unit is installed in the same chassis slot and the terminal block wiring is reconnected correctly. No program changes are required if the slot address is unchanged. Verify the output file O:x in RSLogix 500 after installation to confirm normal operation.

Q: What pre-shipment testing does NINERMAS perform on the 1746-OAP12?
A: Each unit undergoes functional output testing prior to dispatch. We verify backplane communication and output point activation under load conditions. Units that do not meet specification are not shipped. All units are covered by a 12-month warranty from the date of shipment.

Q: Can the 1746-OAP12 be used in a chassis that also contains analog and communication modules?
A: Yes. The 1746-OAP12 coexists with other 1746-series modules — including analog input modules such as the 1746-NI4, communication modules such as the 1747-SDN, and DC I/O modules — in the same chassis without conflict, provided the chassis power supply (e.g., 1746-P4) has sufficient capacity for the total module load.

Q: How quickly can NINERMAS supply the 1746-OAP12 for an emergency breakdown situation?
A: We maintain in-stock inventory of the 1746-OAP12 and offer same-day dispatch for orders confirmed before the daily shipping cut-off. Contact our team directly at sale@ninermas.com or +0086 187 5021 5667 to confirm availability and arrange expedited shipment.
