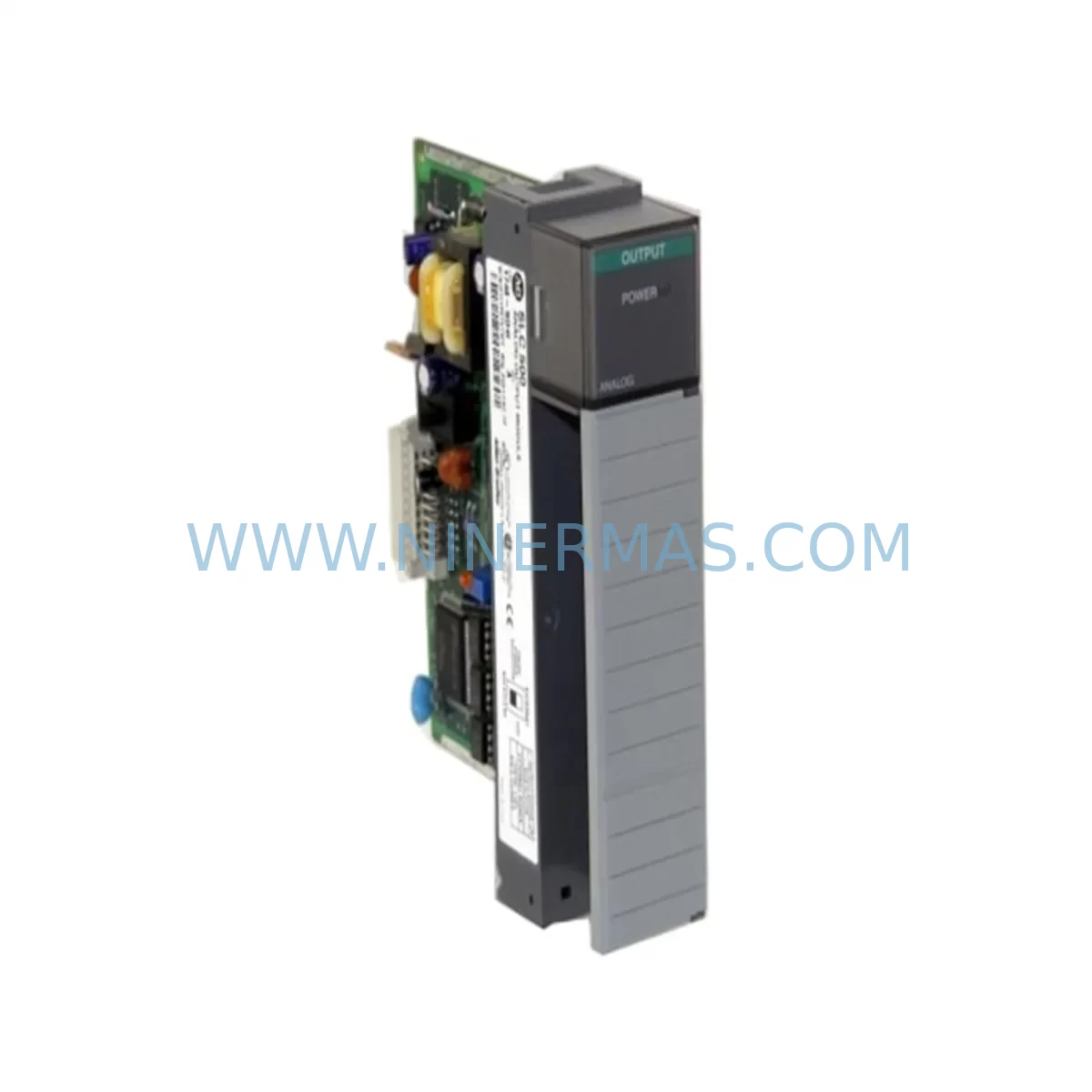

Allen-Bradley 1746-NIO4I Safety-Reliable Analog I/O Module

Allen-Bradley 1746-NIO4I Safety-Reliable Analog I/O Module for Critical Control Sites

The Allen-Bradley 1746-NIO4I is a combination analog input/output module designed for the SLC 500 series programmable logic controller platform. Engineered for demanding industrial environments, this module delivers consistent signal integrity and reliable control loop performance across continuous production lines, critical interlock systems, and heavy-duty control cabinet installations. Whether deployed in high electromagnetic interference zones, dusty or humid field enclosures, or high-temperature and high-vibration process areas, the 1746-NIO4I maintains stable analog signal transmission — reducing the risk of control interruption, signal drift, spurious trips, and unplanned downtime.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In critical control cabinet architectures, the 1746-NIO4I serves as the analog signal bridge between field transmitters and the SLC 500 CPU — a role that demands zero tolerance for signal drift or communication anomalies. When integrated alongside the 1746-P4 power supply module, the system benefits from a stable, regulated backplane voltage that prevents analog output fluctuation caused by power rail disturbances. For applications requiring expanded I/O capacity, the module pairs seamlessly with the 1746-IB16 digital input module and 1746-OB16 digital output module, enabling a unified control strategy across both analog and discrete signal domains.

In high-surge environments — such as motor control centers or variable frequency drive (VFD) cabinets — the 1746-NIO4I benefits from upstream protection provided by Phoenix Contact TRABTECH surge protection devices installed on the 24 VDC supply rail. This combination significantly reduces the risk of transient-induced analog signal corruption. For communication-intensive architectures, the 1747-SDN DeviceNet Scanner module and 1747-L553 SLC 5/05 CPU with Ethernet/IP extend the control network while the 1746-NIO4I maintains local analog loop integrity independent of network status — a critical safety feature in the event of communication anomalies or network timeouts.

Where redundant power is required, the 1746-P7 high-capacity power supply provides additional current headroom for dense I/O chassis configurations. Grounding and shielding discipline — enforced through proper use of Panduit cable management systems and shielded twisted-pair field wiring — further suppresses common-mode noise that could otherwise cause signal drift on the 1746-NIO4I’s analog input channels. For safety interlock loops, the module is often deployed in conjunction with Pilz PNOZ safety relays or Rockwell Automation GuardLogix safety controllers, where its analog feedback signals contribute to process variable monitoring within the safety instrumented function (SIF).

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In continuous distillation and reactor control systems, the 1746-NIO4I monitors critical process variables — temperature, pressure, and flow — via 4–20 mA transmitters. Its optical isolation and EMI filtering prevent spurious analog readings caused by high-voltage switching equipment operating in adjacent panels, reducing the risk of false shutdowns or missed process alarms in safety instrumented systems (SIS).

Power Generation & Utilities: Turbine governor control and boiler feedwater regulation systems rely on precise analog output signals to position control valves. The 1746-NIO4I’s 12-bit resolution and stable output under varying backplane load conditions ensure that valve positioning commands remain accurate, preventing thermal runaway or pressure excursions in steam generation circuits.

Mining & Mineral Processing: Conveyor belt tension monitoring, crusher load control, and slurry pump flow regulation in underground and open-pit mining operations expose control hardware to extreme vibration, dust ingress, and wide temperature swings. The 1746-NIO4I’s robust construction and sealed terminal block design maintain signal integrity in these harsh conditions, supporting continuous production without unplanned stoppages.

Water & Wastewater Treatment: Dosing pump control, pH monitoring, and effluent flow measurement in municipal and industrial water treatment facilities require reliable analog I/O that can operate in high-humidity environments. The 1746-NIO4I’s non-condensing humidity tolerance and corrosion-resistant terminal design make it a dependable choice for wet process areas and outdoor pump station enclosures.

Metallurgy & Steel Production: Electric arc furnace (EAF) electrode regulation and rolling mill tension control demand analog modules capable of withstanding intense electromagnetic interference generated by high-current bus bars and induction heating equipment. The 1746-NIO4I’s built-in RFI filtering and channel isolation prevent cross-talk and signal corruption in these electromagnetically hostile environments.

Port & Marine Applications: Crane load monitoring, ship-to-shore conveyor control, and ballast water management systems in port terminals and vessels require control hardware certified for marine-grade humidity and vibration exposure. The 1746-NIO4I, when housed in appropriately rated enclosures, provides reliable analog signal processing for these safety-critical lifting and fluid management operations.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the 1746-NIO4I?
All 1746-NIO4I modules supplied by NINERMAS COMPANY LIMITED carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly with replacement or repair support to minimize your site downtime.

Q2: How is the 1746-NIO4I tested before shipment?
Every unit undergoes a comprehensive outgoing quality inspection prior to dispatch. This includes functional verification of all analog input and output channels, isolation resistance testing, and visual inspection for physical integrity. Test records are available upon request for traceability purposes.

Q3: Is the 1746-NIO4I compatible with all SLC 500 chassis configurations?
Yes. The 1746-NIO4I is compatible with all standard SLC 500 modular chassis (4-slot, 7-slot, 10-slot, and 13-slot configurations) using the 1746 backplane standard. It is not compatible with the SLC 500 fixed hardware platform. Always verify chassis slot availability and power supply current budget before installation.

Q4: Can NINERMAS support long-term supply and replacement needs for the 1746-NIO4I?
NINERMAS maintains dedicated inventory of the 1746-NIO4I and related SLC 500 series components to support ongoing maintenance, spare parts programs, and emergency replacement requirements. We serve industrial clients across petrochemical, power, mining, and manufacturing sectors with consistent stock availability and rapid order fulfillment.
